Wipers/Washers

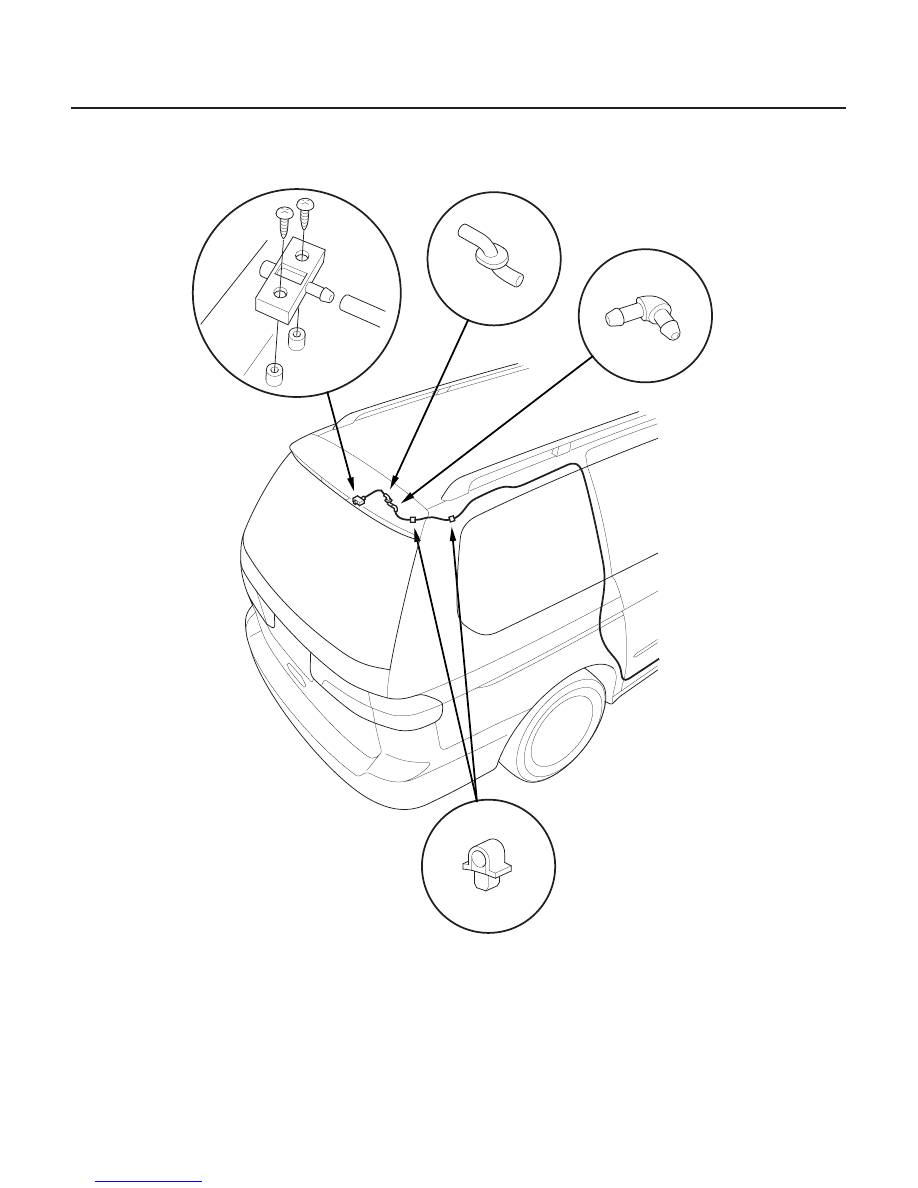

Rear Window Wiper Motor
Replacement

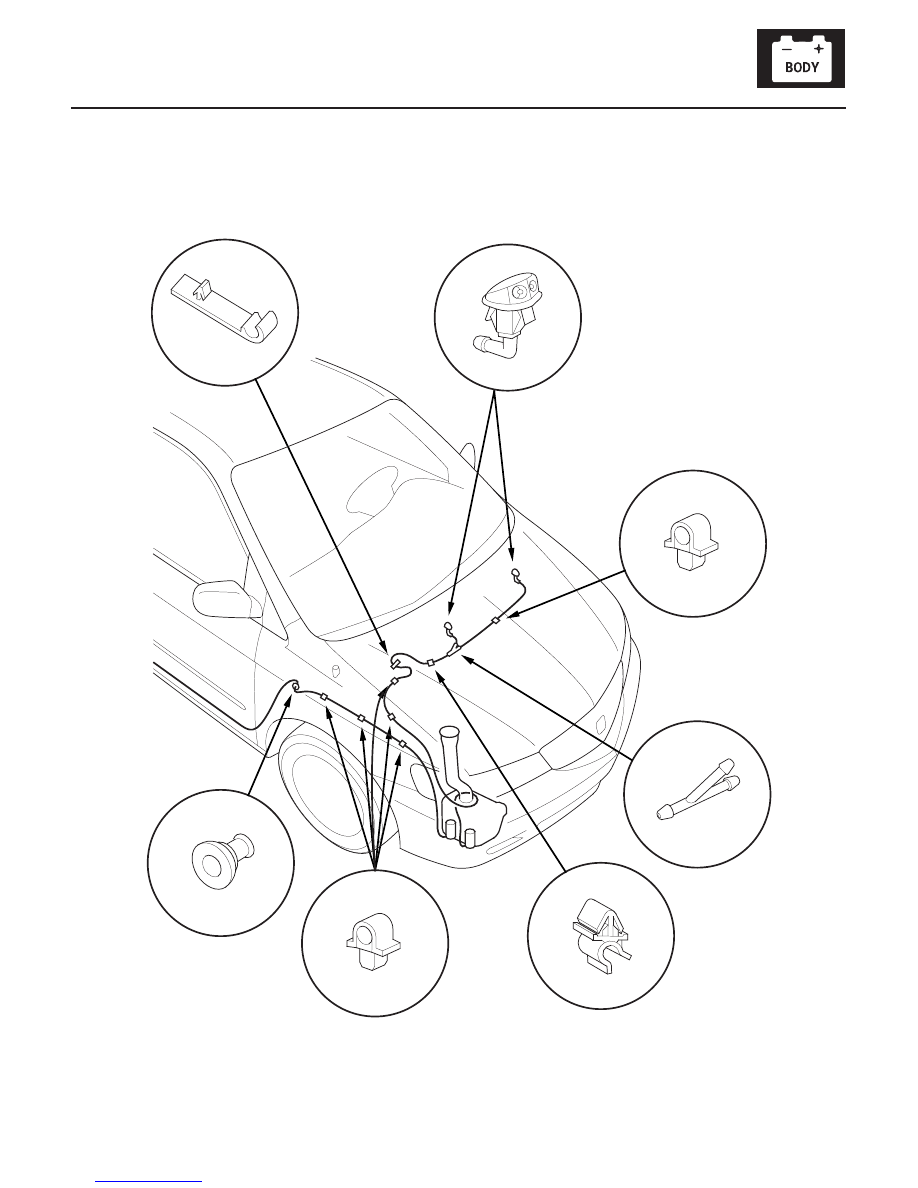

Washer Reservoir Replacement
B
A
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
C
8 N·m (0.8 kgf·m, 6.0 lbf·ft)
B
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
C
A
B
A
C
A
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
A
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
B

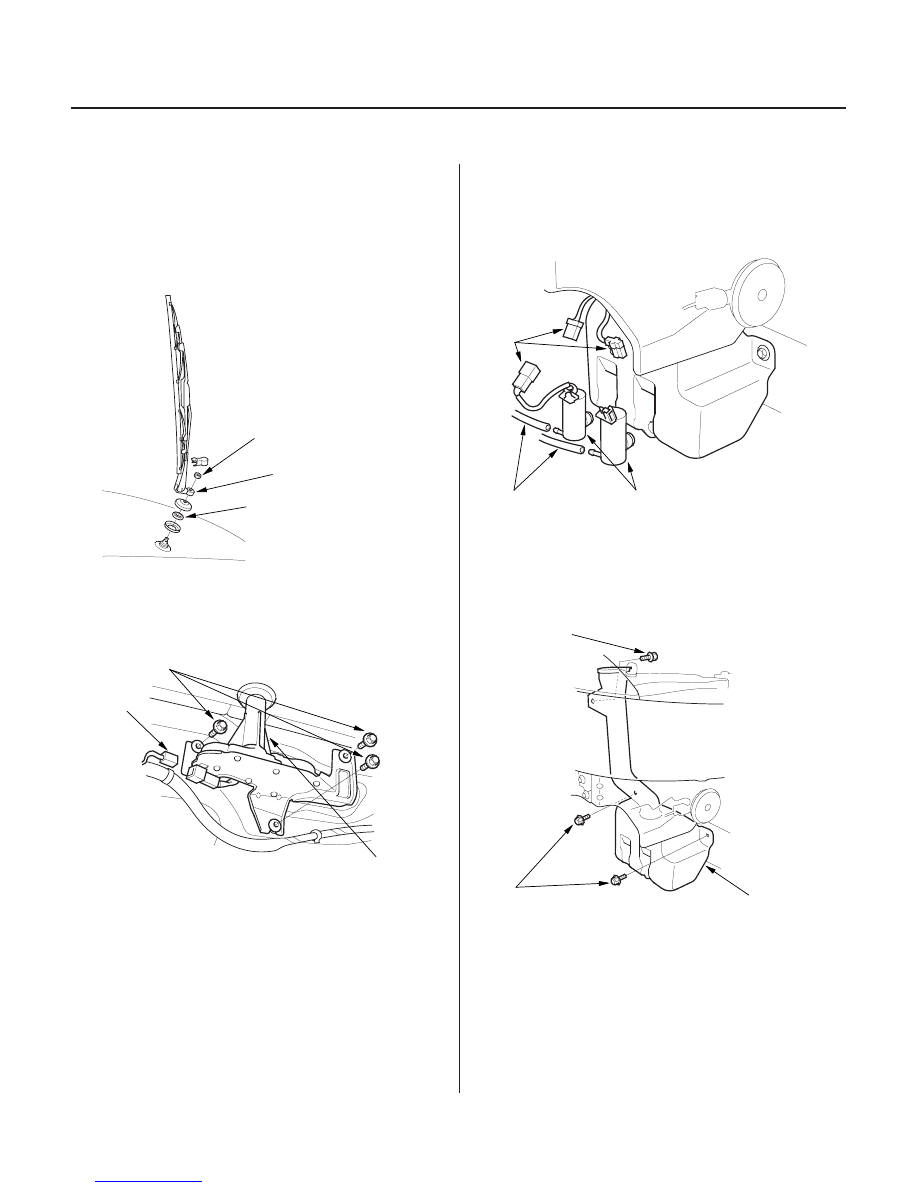

1. Open the tailgate, and remove the tailgate lower
trim panel (see page 20-61).
2. Remove the mounting nut (A), the wiper arm (B)
and the special nut (C).
3. Disconnect the 4P connector (A) and remove the
three mounting bolts (B), then remove the rear
window wiper motor (C).
4. Install in the reverse order of removal.
1. Pull away the right inner fender.
2. Disconnect the 2P connectors (A) from the washer
motors (B) and level switch.
3. Disconnect the tubes (C) from the washer motors.
4. Remove the three bolts (A) and washer reservoir
(B).
5. Install in the reverse order of removal.
