Honda Odyssey 2004. Manual - part 451





01

02

S0X4A00J32173159121KBAT00

Taillights

Inner Taillights

BRAKE/TAILLIGHT:

21/5 W

TURN SIGNAL LIGHT: 21 W

TAILLIGHT:

5 W

BACK-UP LIGHT:

21 W

22-132

Exterior Lights

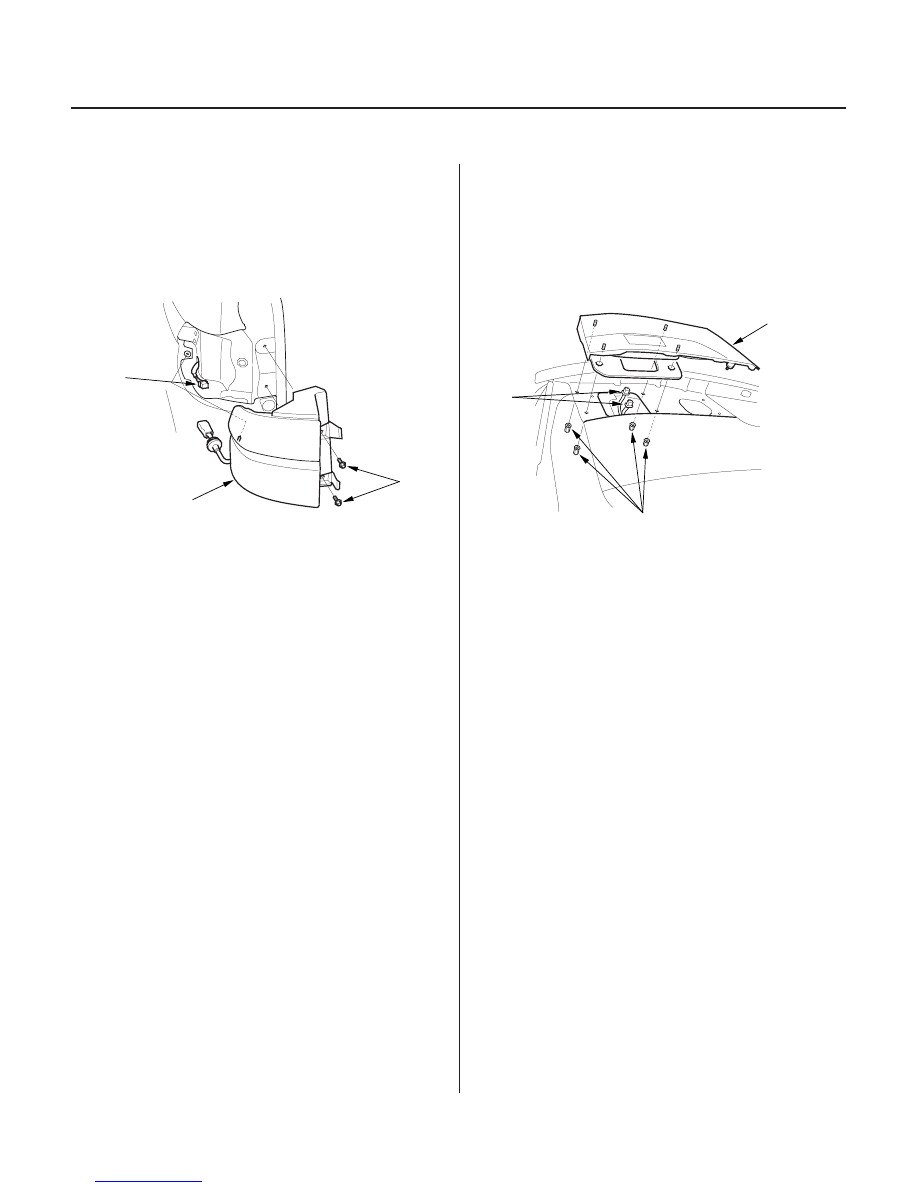

Taillight Replacement

A

B

C

C

B

A

1. Remove the two mounting bolts (A), then pull out

the taillight (B).

2. Disconnect the connector (C) from the taillight.

3. Install the taillight, and note these items:

• Inspect the gasket; replace it if it is distorted or

stays compressed.

• After installing the taillight, run water over it to

make sure it does not leak.

1. Remove the tailgate trim panel (see page 20-61).

2. Disconnect the connectors (A) from the taillight (B).

3. Remove the four mounting nuts (C), then pull out

the inner taillight.

4. Install the taillight, and note these items:

• Inspect the gasket; replace it if it is distorted or

stays compressed.

• After installing the taillight, run water over it to

make sure it dose not leak.

03/07/29 10:21:25 61S0X050_220_0134

02

S0X4A00J32113331601KBAT01

01

S0X4A00J32100037301KBAT02

HIGH MOUNT BRAKE LIGHT BULB: 18 W

LICENSE PLATE LIGHT BULB:

5 W

22-133

22-133

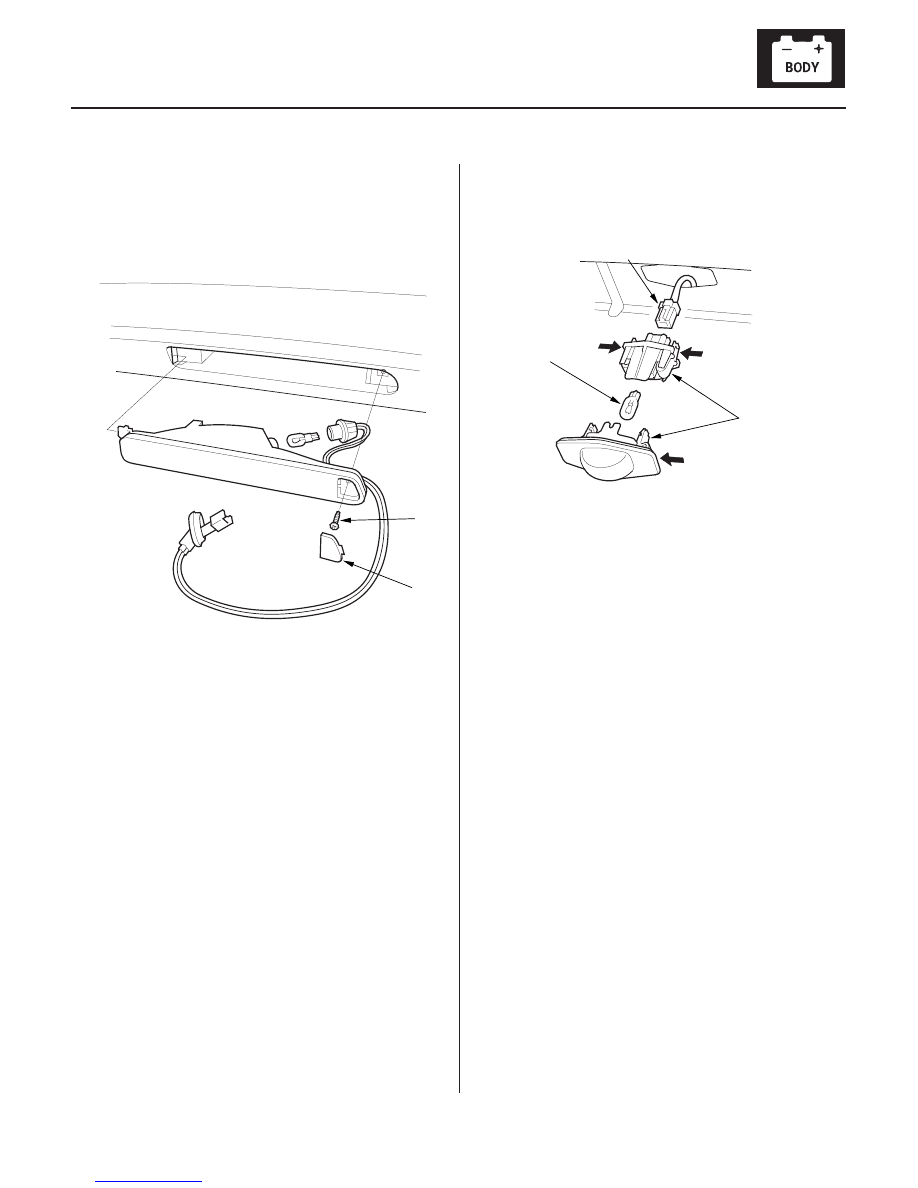

High Mount Brake Light
Replacement

License Plate Light Replacement

B

A

B

A

C

1. Remove the cover (A), then remove the screw (B)

from the high mount brake light.

2. Disconnect the 2P connector from the high mount

brake light.

1. Pull the license plate light assembly (A) out, and

disconnect the 2P connector (B) from the light.

2. Take the lens off, then replace the bulb (C).

03/07/29 10:21:25 61S0X050_220_0135

*01

S0X4A00J32173600000DAAT00

22-134

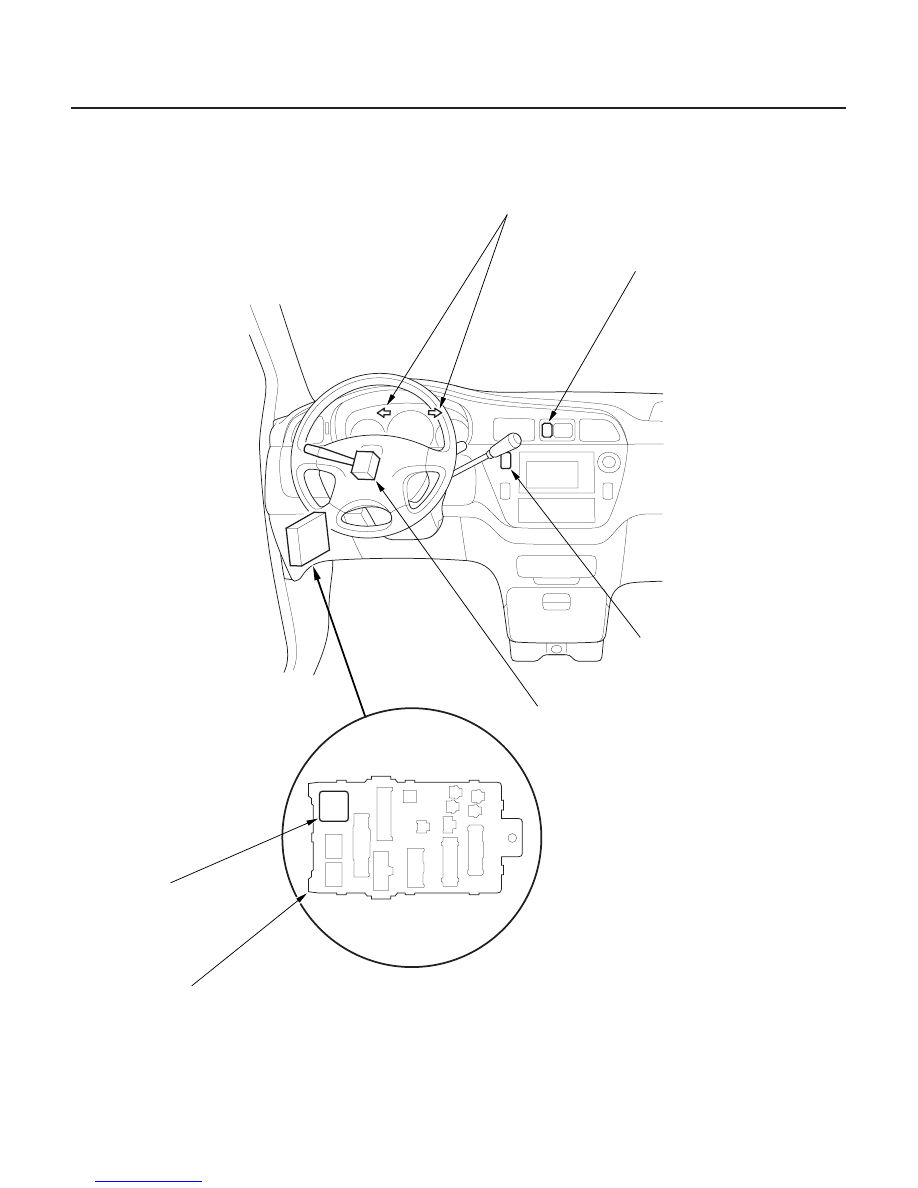

Turn Signal/Hazard Flasher

Component Location Index

COMBINATION LIGHT/TURN SIGNAL SWITCH

TURN SIGNAL INDICATOR LIGHTS

HAZARD WARNING SWITCH

TURN SIGNAL/HAZARD
RELAY

DRIVER’S UNDER-DASH
FUSE/RELAY BOX

HAZARD WARNING SWITCH

Test, page 22-123

(In the gauge assembly)
Bulb Location, page 22-95

(Without Navigation System)
Test, page 22-137

Input Test, page 22-136

(With Navigation System)
Test, page 22-137

03/07/29 10:21:26 61S0X050_220_0136

*01

S0X4A00J32173600000EAAT00

[ ]

[ ]

[ ]

[ ]

[ ]

[ ]

[ ]

[ ]

[ ]

22-135

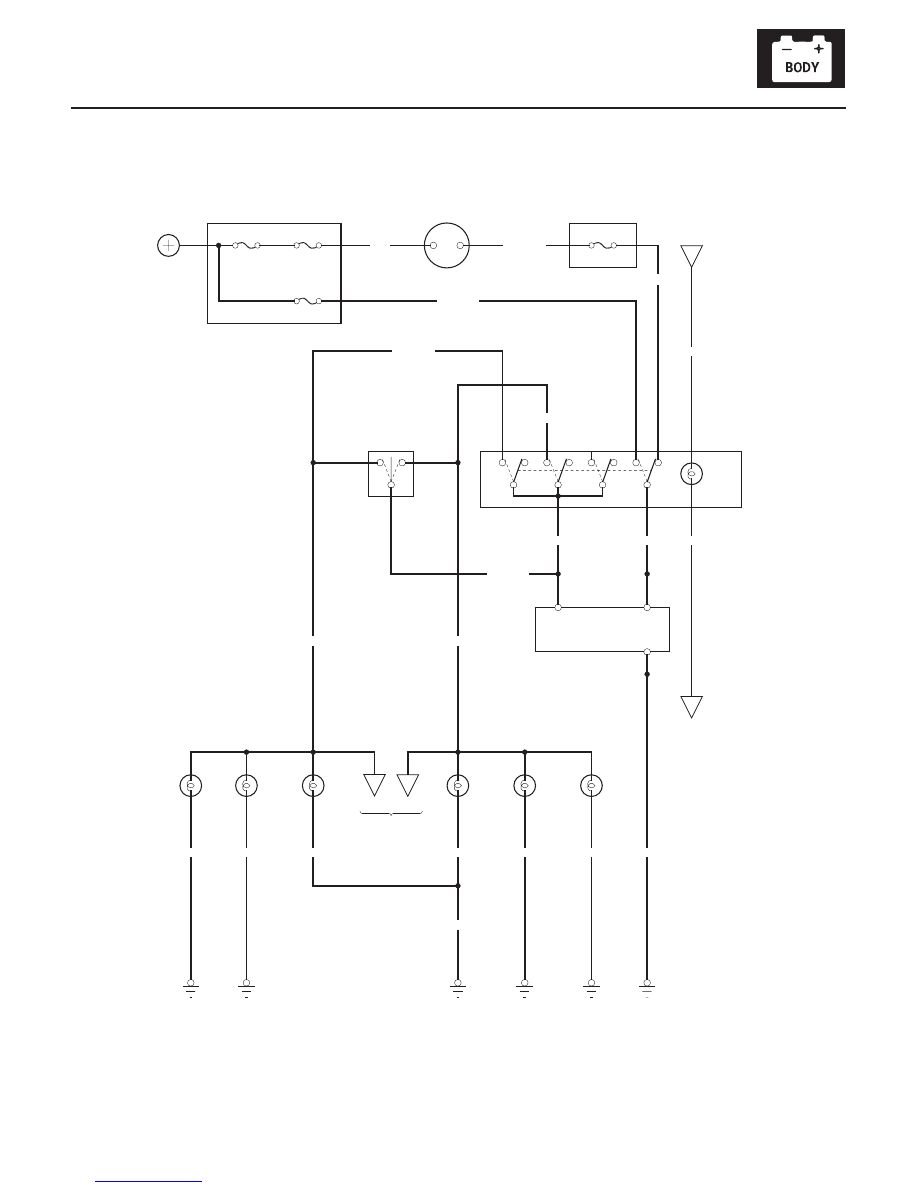

Circuit Diagram

: With Navigation System

BLK

G503

G582

No.10 (7.5A)

No.49 (15A)

No.42 (50A)

G552

1

7

3

5

10

1

No.41 (120A)

BATTERY

LIGHT
(0.84W)

G201

LEFT TURN SIGNAL LIGHTS

RIGHT

LEFT

YEL/RED

2

3

13

14

12

2

6

5

10

4

9

6

3

8

2

1

G301

BLK

BLK

UNDER HOOD FUSE/RELAY BOX

WHT

IGNITION SWITCH

IG1

BAT

WHT/GRN

BLK/YEL

RED/BLK

ON

L.

R.

OFF

GRN/YEL

GRN/RED

GRN/RED

GRN/WHT

RED

L.

R.

GRN/BLU

GRN/YEL

GRN/BLU

RIGHT TURN SIGNAL LIGHTS

BLK

BLK

BLK

BLK

BLK

G401

DRIVER’S
UNDER DASH
FUSE/RELAY BOX

COMBINATION
LIGHT SWITCH

TURN SIGNAL
SWITCH

HAZARD
WARNING
SWITCH

TURN SIGNAL/
HAZARD RELAY

DRIVER’S
MULTIPLEX
CONTROL UNIT

REAR
(21W)

FRONT
(21W)

INDICATOR
(1.4W)

TRAILER
LIGHTING
CONNECTOR

INDICATOR
(1.4W)

FRONT
(21W)

REAR
(21W)

03/07/29 10:21:27 61S0X050_220_0137
