Safety Indicator System

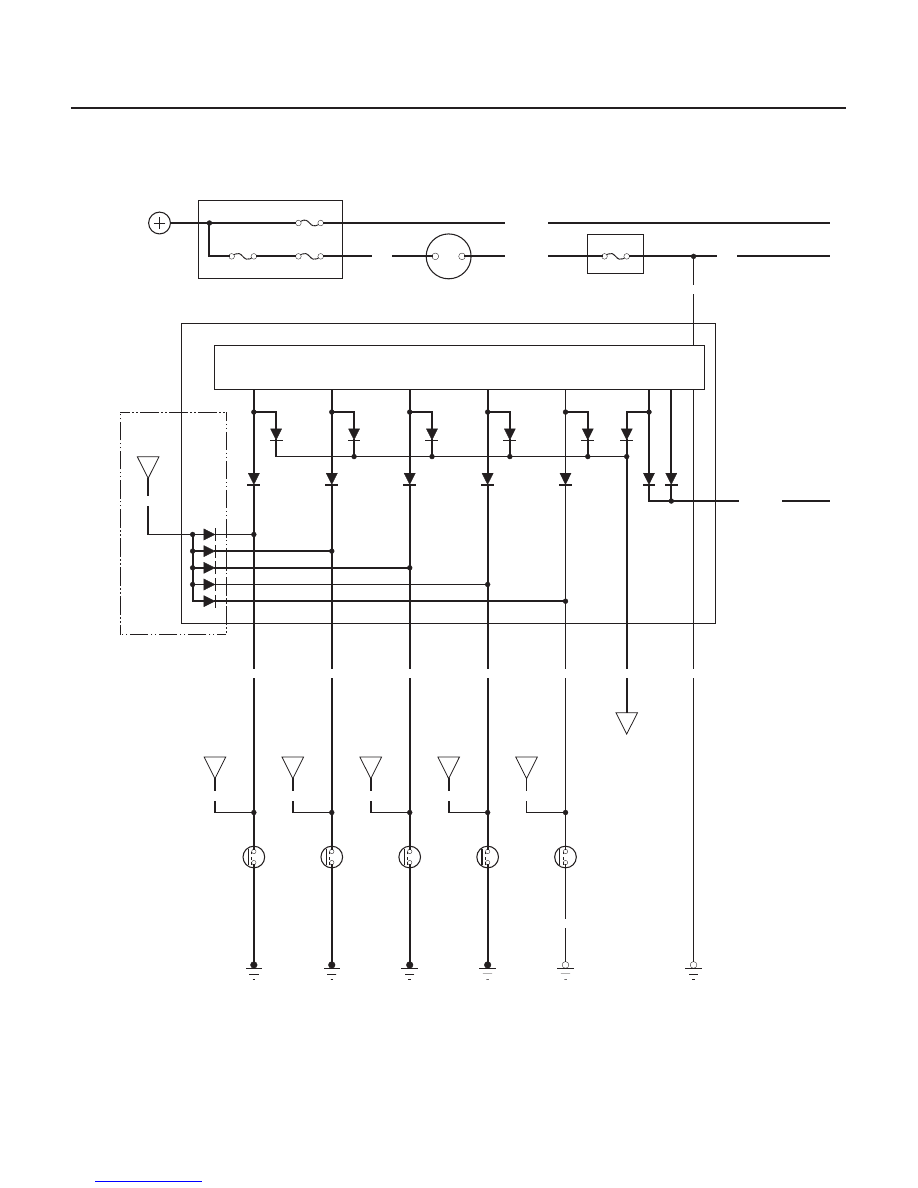

Circuit Diagram

A11

WHT/GRN

ALTERNATOR

B8

WHT/BLU

(Without keyless entry system)

BLK/WHT

A10

A9

A1

A8

GRN/YEL

GRN/WHT

GRN

GRN/ORN

GRN/WHT

GRN/YEL

ORN

YEL

IGNITION SWITCH

IG1

BAT

B16

A7

A2

SAFETY INDICATOR CIRCUIT

No.47 (20A)

No.42 (50A)

No.41 (120A)

No.9 (10A)

SAFETY INDICATOR (In the gauge assembly)

G552

BLK

BLK/YEL

WHT

WHT/YEL

UNDER HOOD FUSE/RELAY BOX

BATTERY

G503

BLK

B11

GRN/ORN

GRN

ORN

YEL

DRIVER’S
UNDER DASH
FUSE/RELAY
BOX

CEILING
LIGHT

DRIVER’S
MULTIPLEX
CONTROL
UNIT

PASSENGER’S
MULTIPLEX
CONTROL
UNIT

DRIVER’S
MULTIPLEX
CONTROL
UNIT

PASSENGER’S
MULTIPLEX
CONTROL
UNIT

CARGO
AREA LIGHT

DRIVER’S
DOOR
SWITCH
(Closed :
Door open)

FRONT
PASSENGER’S
DOOR
SWITCH
(Closed :
Door open)

LEFT
SLIDING
DOOR
SWITCH
(Closed :
Door open)

RIGHT
SLIDING
DOOR
SWITCH
(Closed :
Door open)

TAILGATE
LATCH
SWITCH
(Closed :
Tailgate open)

03/07/29 10:21:06 61S0X050_220_0106

*90

22-105

1

2

G582

G552

BLK

BLK

GRN

BLK

GRN

GRN

BLK

BLK

G552

WHT/BLK

WHT/GRN

4

3

2

6

WHT/BLK

5

YEL


WHT/BLK

WHT/BLK

WHT/BLK

WHT/YEL

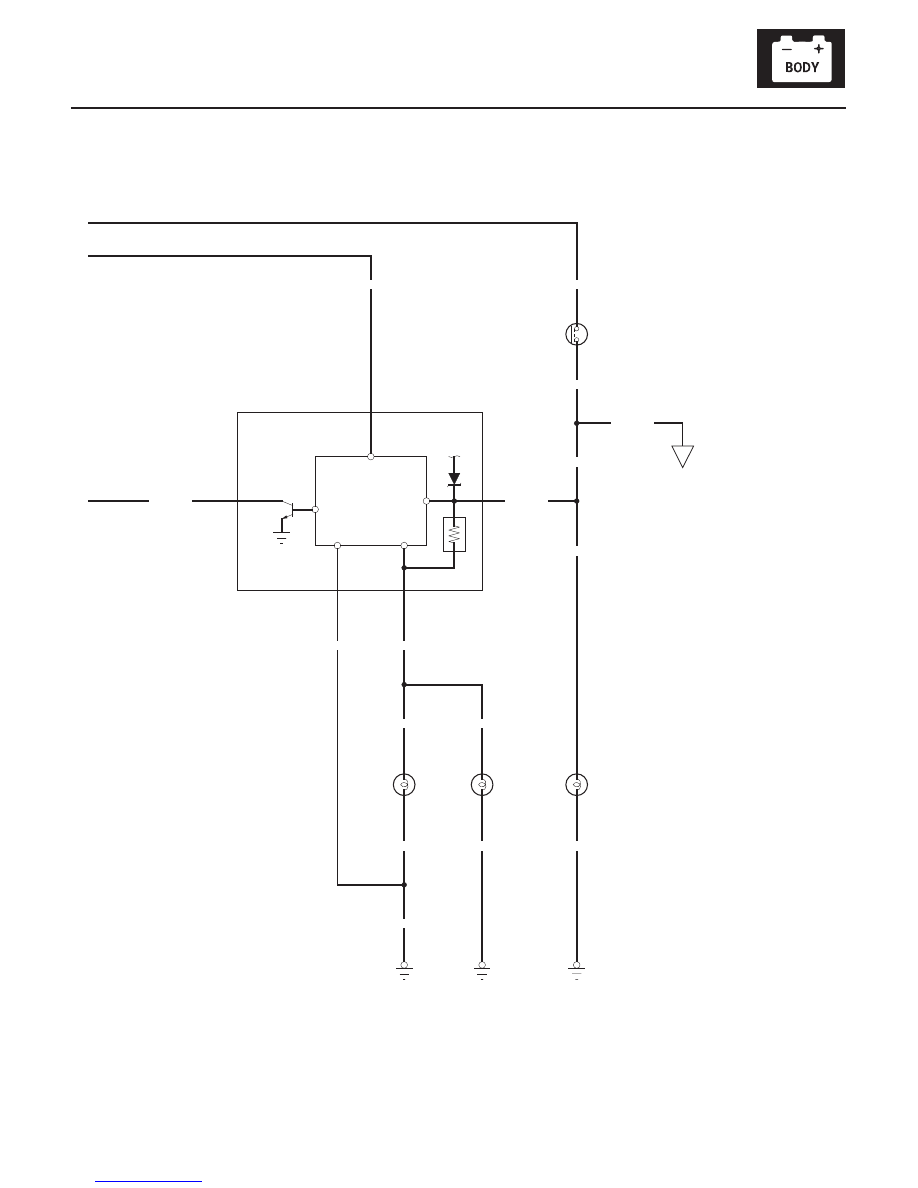

BRAKE LIGHT
FAILURE SENSOR

BRAKE PEDAL
POSITION
SWITCH

LEFT
BRAKE
LIGHT
(21W)

RIGHT
BRAKE
LIGHT
(21W)

HIGH MOUNT
BRAKE LIGHT
(18W)

ABS CONTROL UNIT
ABS/TCS CONTROL UNIT

PCM

CRUISE CONTROL UNIT
DRIVER’S MULTIPLEX
CONTROL UNIT

TRAILER LIGHTING
CONNECTOR

03/07/29 10:21:06 61S0X050_220_0107

01

S0X4A00J26370100000FCAT00

22-106

Safety Indicator System

Safety Indicator Input Test

GRN/WHT

WHT/GRN

GRN/YEL

GRN

BLK

ORN

WHT/BLU

YEL

GRN/ORN

BLK/WHT

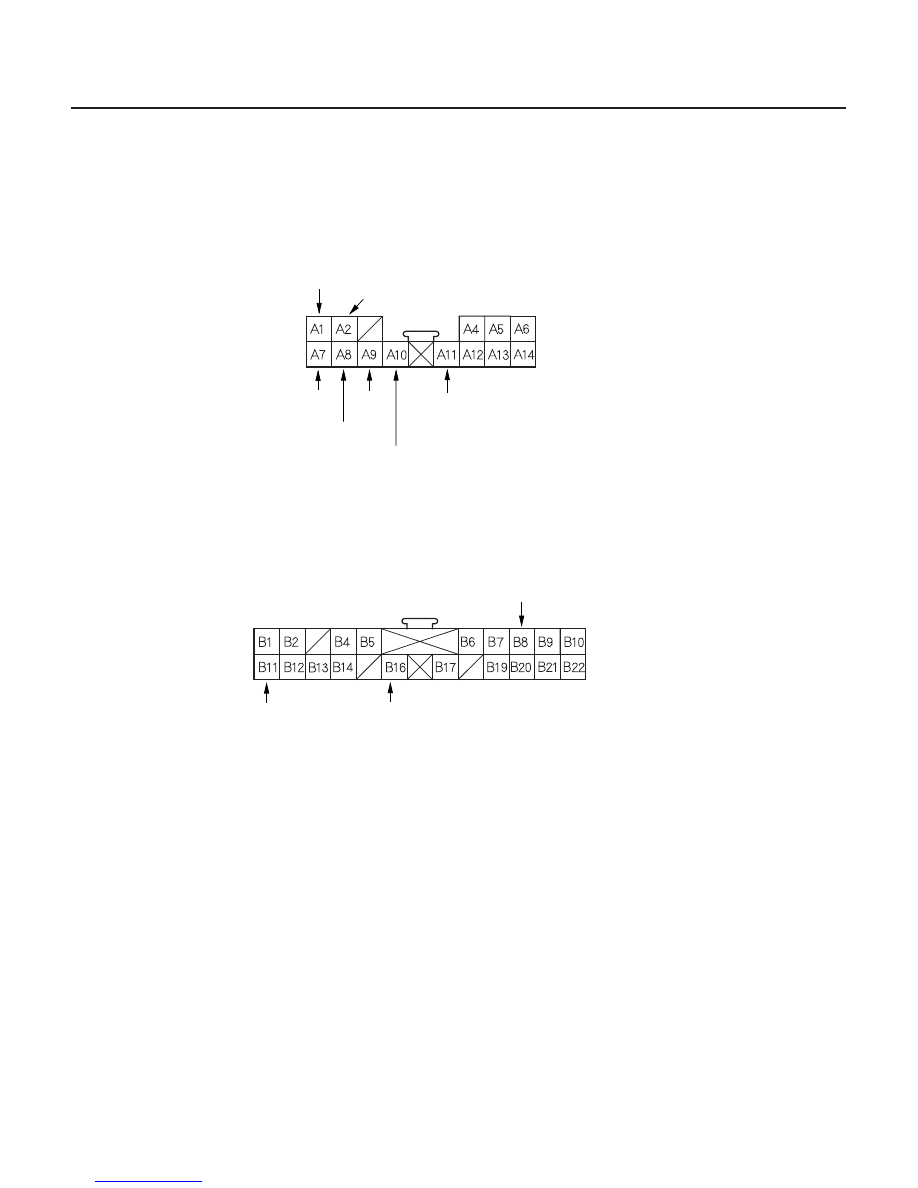

22P CONNECTOR B

14P CONNECTOR A

1. Remove the gauge assembly (see page 22-100).

2. Disconnect the 14P connector A and 22P connector B from the gauge assembly.

3. Inspect the connector and socket terminals to be sure they are all making good contact.

• If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
• If the terminals look OK, go to step 4.

Wire side of female
terminals

Wire side of female
terminals

03/07/29 10:21:07 61S0X050_220_0108

Cavity

Wire

Test condition

Test: Desired result

Cavity

Wire

Test condition

Test: Desired result

Possible cause if result is not obtained

Possible cause if result is not obtained

22-107

4. With the connectors still disconnected, make these input tests at the connectors.

• If the test indicates a problem, find and correct the cause, then recheck the system.
• If the input test proves OK, go to step 5.



A11

WHT/GRN

Under all
conditions

Check for continuity between
the A11 terminal and the brake
failure sensor No. 4 terminal:
There should be continuity.

An open in the wire

B16

BLK

Under all
conditions

Check for voltage to ground:
There should be 1 V or less.

Poor ground (G503)
An open in the wire

B11

YEL

Ignition switch ON
(II)

Check for voltage to ground:
There should be battery voltage.

Blown No. 9 (10A) fuse in the
driver’s under-dash fuse/relay
box
An open in the wire

5. Reconnect the connectors to the gauge assembly, and perform the following inputs tests at the appropriate

connector.

• If any test indicates a problem, find and correct the cause, and recheck the system.
• If all the input tests prove OK, the gauge internal circuit must be faulty; replace the gauge assembly.





















A10

BLK/WHT

Ceiling lights
switch in middle
position (without
keyless entry)

Connect to ground:
The ceiling lights should come
on.

Faulty ceiling light or bulb
Blown No. 11 (10A) fuse in
the passenger’s under-dash
fuse/relay box
An open in the wire

B8

WHT/BLU

Engine running

Check for voltage to ground:
There should be battery voltage.

Faulty charging system
An open in the wire

A7

GRN

Front passenger’s
door open

Check for voltage to ground:
There should be less than 1 V.

Faulty front passenger’s door
switch
An open in the wire

Front passenger’s
door closed

Check for voltage to ground:
There should be 5 V or more.

Faulty front passenger’s door
switch
Short to ground in the wire

A2

GRN/ORN

Driver’s door open

Check for voltage to ground:
There should be less than 1 V.

Faulty driver’s door switch
An open in the wire

Driver’s door
closed

Check for voltage to ground:
There should be 5 V or more.

Faulty driver’s door switch
Short to ground in the wire

A9

ORN

Tailgate open

Check for voltage to ground:
There should be less than 1 V.

Faulty tailgate latch switch
An open in the wire
Poor ground (G552)

Tailgate closed

Check for voltage to ground:
There should be 5 V or more.

Faulty tailgate latch switch
Short to ground in the wire

A8

GRN/WHT

Right sliding door
open

Check for voltage to ground:
There should be less than 1 V.

Faulty right sliding door
switch
An open in the wire

Right sliding door
closed

Check for voltage to ground:
There should be 5 V or more.

Faulty right sliding door
switch
Short to ground in wire

A1

GRN/YEL

Left sliding door
open

Check for voltage to ground:
There should be less than 1 V.

Faulty left sliding door switch
An open in the wire

Left sliding door
closed

Check for voltage to ground:
There should be 5 V or more.

Faulty left sliding door switch
Short to ground in the wire

03/07/29 10:21:07 61S0X050_220_0109
