Honda Odyssey 2004. Manual - part 416





01

S0X4A12G44200049781KDAT00

02

01

S0X4A12G44200049781FEAT00

21-140

21-140

Rear Heater-A/C

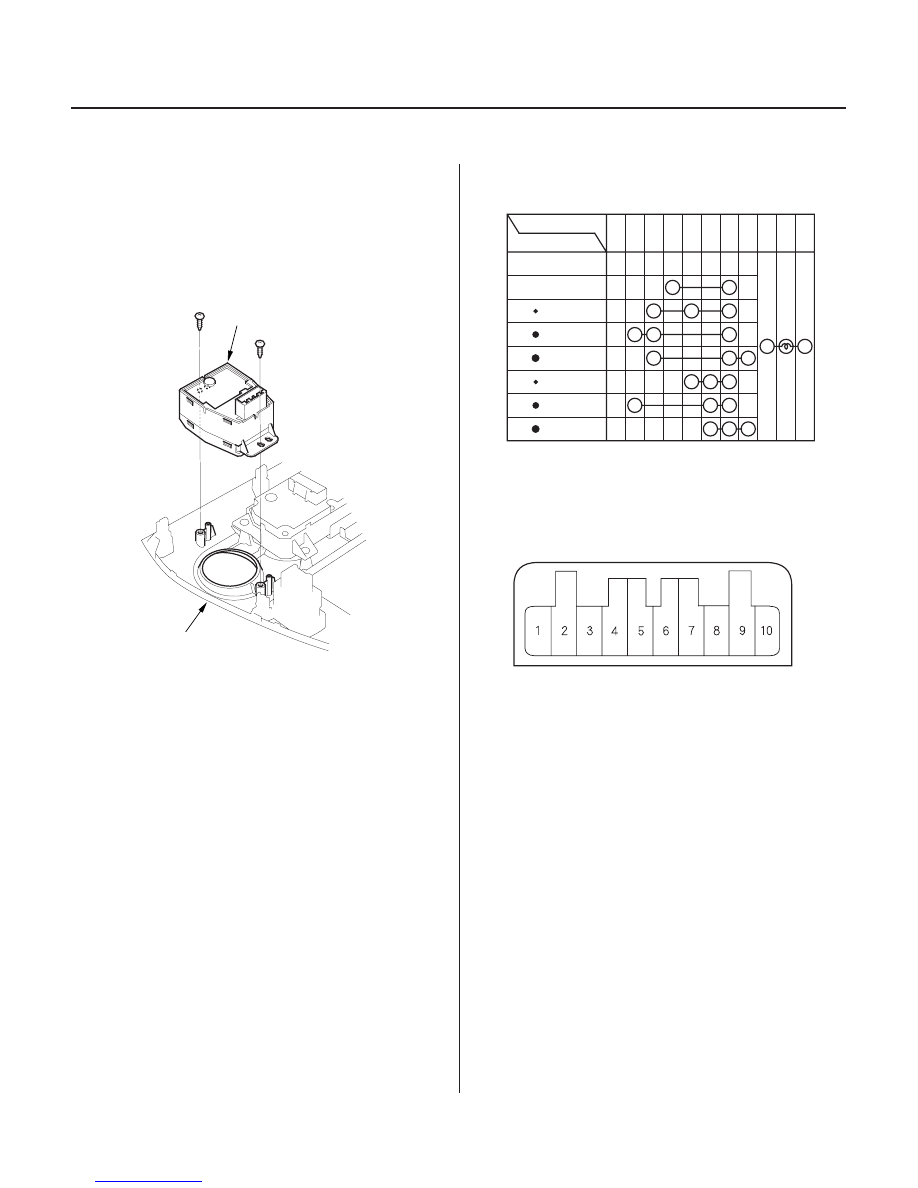

Rear Heater-A/C Main Switch
Removal and Installation

Rear Heater-A/C Main Switch Test

A

B

Terminal

Position

OFF

RR

(Cool)

(Hot)

2

3

4

5

6

7

8

9

1

10

(Cool)

(Cool)

(Hot)

(Hot)

REAR HEATER-A/C MAIN SWITCH

1. Remove the center panel with the rear heater-A/C

main switch (see page 20-69).

2. Remove the self-tapping screws and the rear

heater-A/C main switch (A) from the center panel
(B).

3. Install the main switch in the reverse order of

removal. After installation, operate the main switch
controls to see whether it works properly.

Check for continuity between the terminals in each
switch position according to the table.

03/07/29 10:14:32 61S0X050_210_0141

01

S0X4A12G44200049782KDAT00

02

03

01

S0X4A12G44200049782FEAT00

Fan Switch Test

Mode Control Switch Test

21-141

21-141

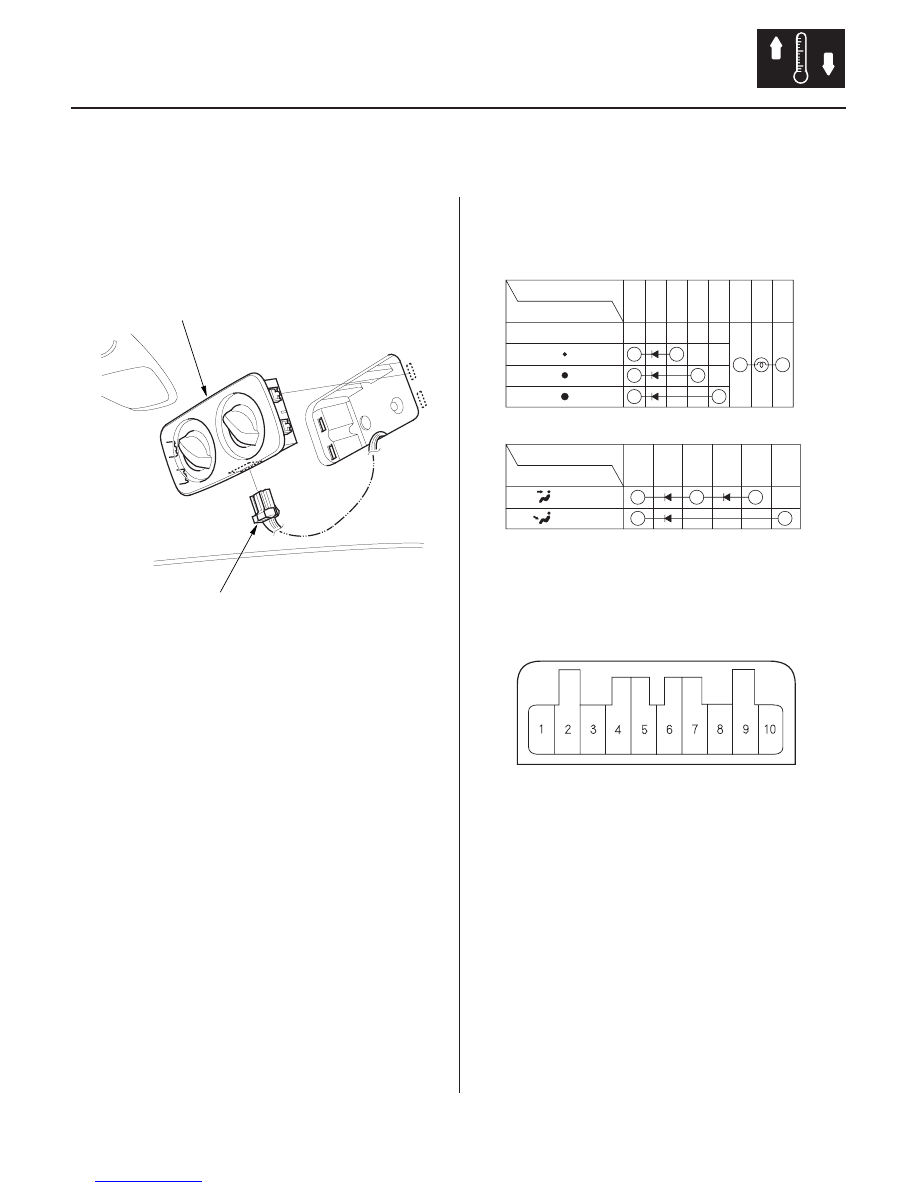

Rear Heater-A/C Passenger’s
Control Panel Removal and
Installation

Rear Heater-A/C Passenger’s
Control Panel Test

A

B

REAR HEATER-A/C PASSENGER’S
CONTROL PANEL

Terminal

Position

OFF

2

3

4

5

6

1

Terminal

Position

1

8

7

9

(Cool)

(Hot)

1. Remove the rear heater-A/C passenger’s control

panel (A) from the headliner, then disconnect the
10P connector (B). Be careful not to damage the
switch or the headliner.

2. Install the control panel in the reverse order of

removal. After installation, operate the control
panel controls to see whether it works properly.

Check for continuity between the terminals in each
switch position according to the table.

03/07/29 10:14:33 61S0X050_210_0142

01

S0X4A12G44200014661KDAT00

01

S0X4A12G44200014662KBAT00

21-142

21-142

Rear Heater-A/C

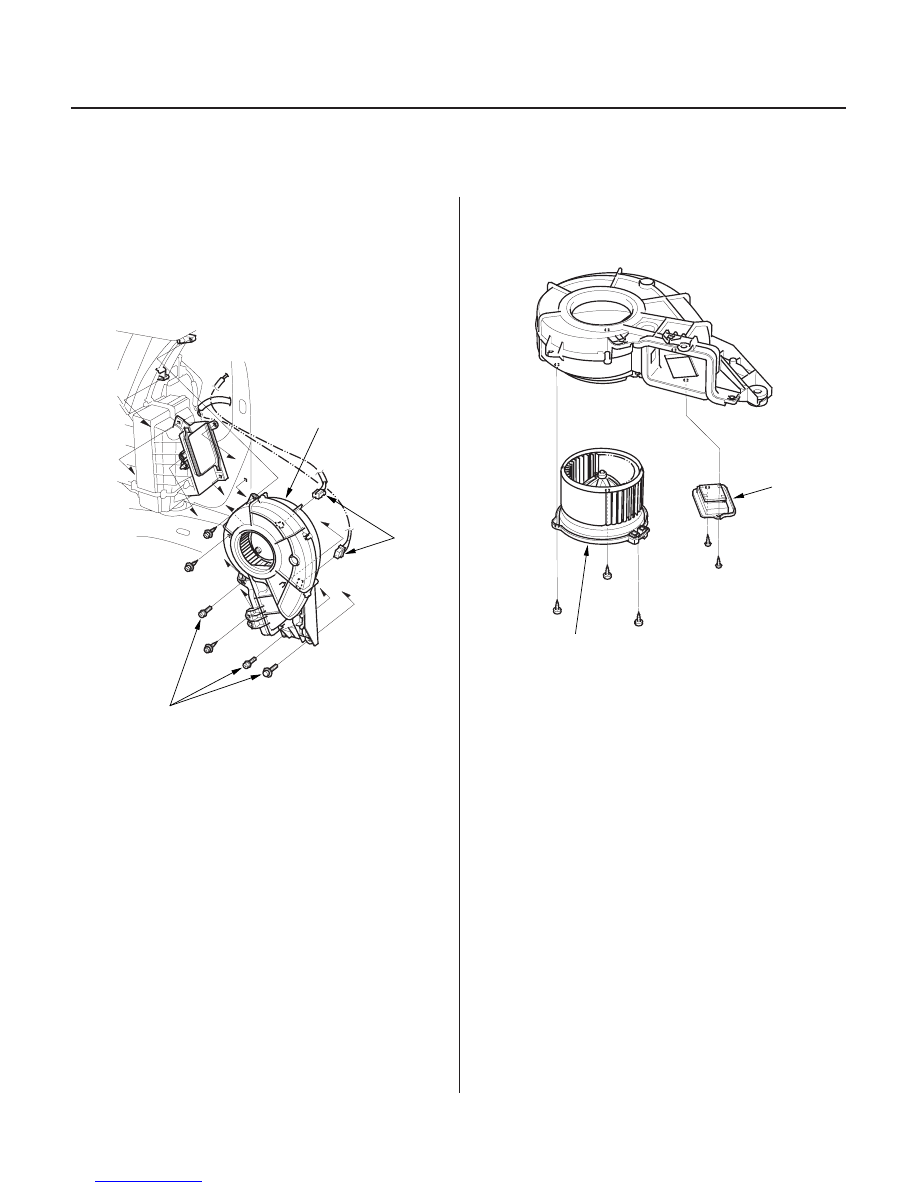

Rear Blower Unit Removal and
Installation

Rear Blower Unit Component
Replacement

B

A

6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

A

B

1. Remove the rear side trim panel of the right side

(see page 20-60).

2. Disconnect the connectors (A) from the rear blower

motor and the rear blower resistor, then remove
the self-tapping screws, the mounting bolts and the
rear blower unit (B).

3. Install the unit in the reverse order of removal.

Make sure that there is no air leakage.

1. Remove the self-tapping screws and the rear

blower motor (A). Remove the self-tapping screws
and the rear blower resistor (B).

2. Install the motor and the resistor in the reverse

order of removal.

03/07/29 10:14:34 61S0X050_210_0143

01

01

03

S0X4A12G44223700000KDAT00

21-143

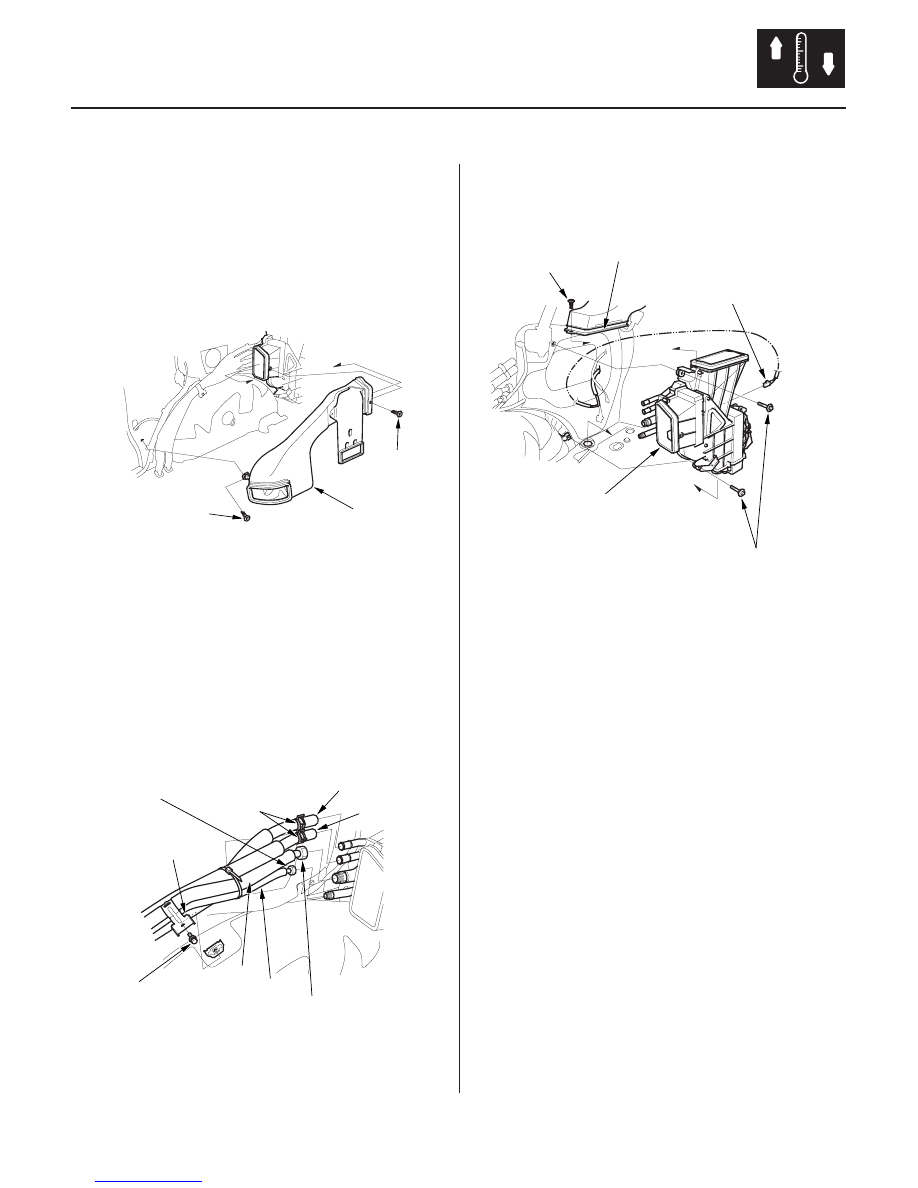

Rear Evaporator-Heater Unit Removal and Installation

A

B

A

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

31 N·m
(3.2 kgf·m, 23 lbf·ft)

B

C

A

13 N·m
(1.3 kgf·m, 9.4 lbf·ft)

F

E

D

A

B

D

C

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

1. When the engine is cool, drain the engine coolant

from the radiator (see page 10-13).

2. Recover the refrigerant with a recovery/recycling/

charging station (see page 21-56).

3. Remove the rear blower unit (see page 21-142).

4. Remove the clips (A) and the rear heater duct (B).

5. Remove the bolt from the bracket (A). Disconnect

the suction line (B) and receiver line (C) from the
rear evaporator. Slide the hose clamps (D) back,
then disconnect the inlet heater hose (E) and the
outlet heater hose (F) from the rear heater unit.
Engine coolant will run out when the hoses are
disconnected; drain it into a clean drip pan. Be sure
not to let coolant spill on the electrical parts or the
painted surfaces. If any coolant spills, rinse it off
immediately. Plug or cap the lines immediately
after disconnecting them to avoid moisture and
dust contamination.

6. Remove the clip (A), then lifting the upper duct (B)

up. Disconnect the connector (C) from the rear
mode control motor. Remove the mounting bolts
and the rear evaporator-heater unit (D).

7. Install the unit in the reverse order of removal, and

note these items.

• If you’re installing a new evaporator, add

refrigerant oil (DENSO ND-OIL 8) (see page 21-6).

• Replace the O-rings with new ones at each fitting,

and apply a thin coat of refrigerant oil before
installing them. Be sure to use the correct O-rings
for HFC-134a (R-134a) to avoid leakage.

• Immediately after using the oil, reinstall the cap

on the container, and seal it to avoid moisture
absorption.

• Do not spill the refrigerant oil on the vehicle; it

may damage the paint. If the refrigerant oil
contacts the paint, wash it off immediately.

• Do not interchange the inlet and outlet heater

hoses. Install the hose clamps securely.

• Refill the cooling system with engine coolant (see

page 10-13).

• Make sure that there is no coolant leakage.
• Make sure that there is no air leakage.
• Charge the system (see page 21-58).

03/07/29 10:14:35 61S0X050_210_0144
