Heating/Air Conditioning

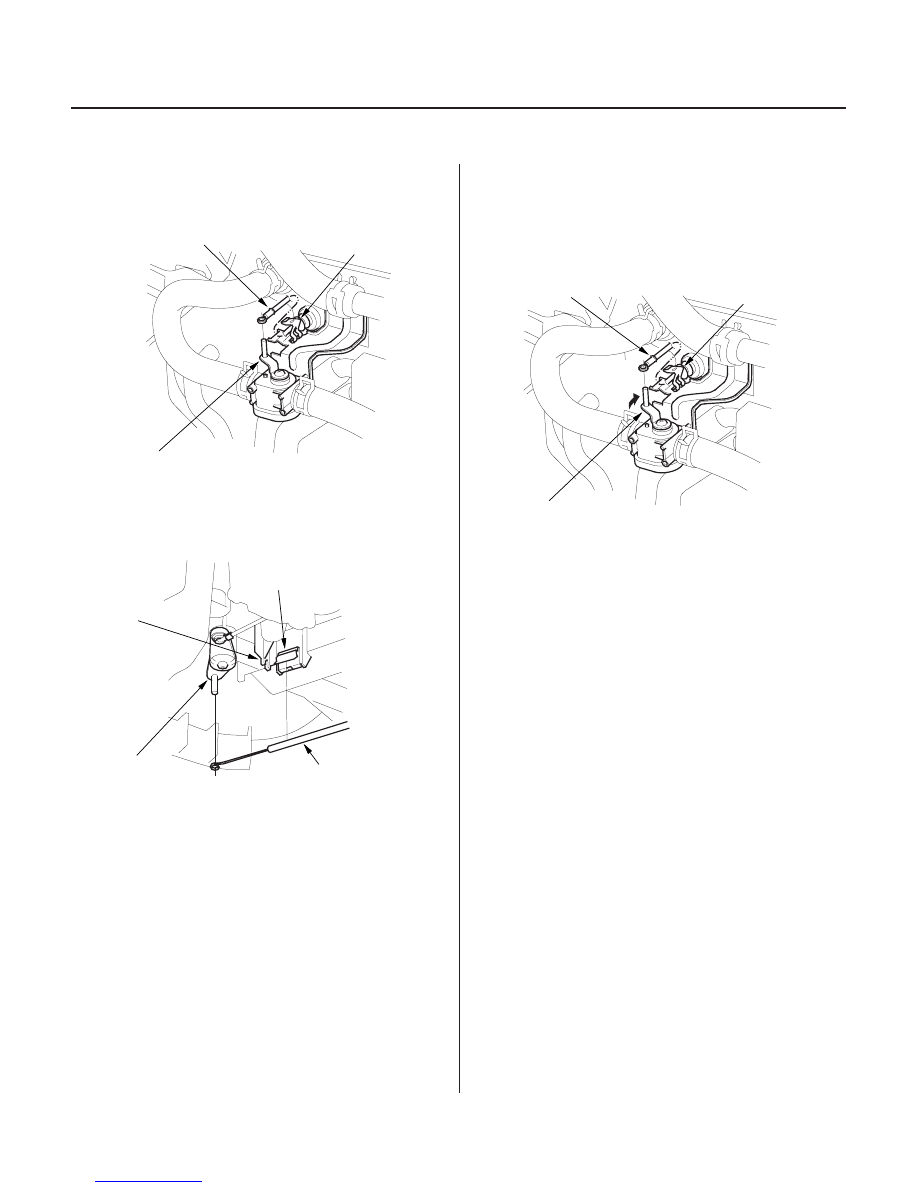

Heater Valve Cable Adjustment

B

A

C

A

D

C

B

B

A

C

1. From under the hood, open the cable clamp (A),

then disconnect the heater valve cable (B) from the
heater valve arm (C).

2. From under the dash, disconnect the heater valve

cable housing from the cable clamp (A), and
disconnect the heater valve cable (B) from the air
mix control linkage (C).

3. Set the temperature control dial or button on Max

Cool (60°F or 18°C) with the ignition switch ON (II).

4. Attach the heater valve cable (B) to the air mix

control linkage (C) as shown step 2. Hold the end of
the heater valve cable housing against the stop (D),
then snap the heater valve cable housing into the
cable clamp (A).

5. From under the hood, turn the heater valve arm (C)

to the fully closed position as shown, and hold it.
Attach the heater valve cable (B) to the heater valve
arm, and gently pull on the heater valve cable
housing to take up any slack, then install the heater
valve cable housing into the cable clamp (A).

03/07/29 10:11:14 61S0X050_210_0049

21

22

23

S0X4A00G10110100000KBAT20

21-49

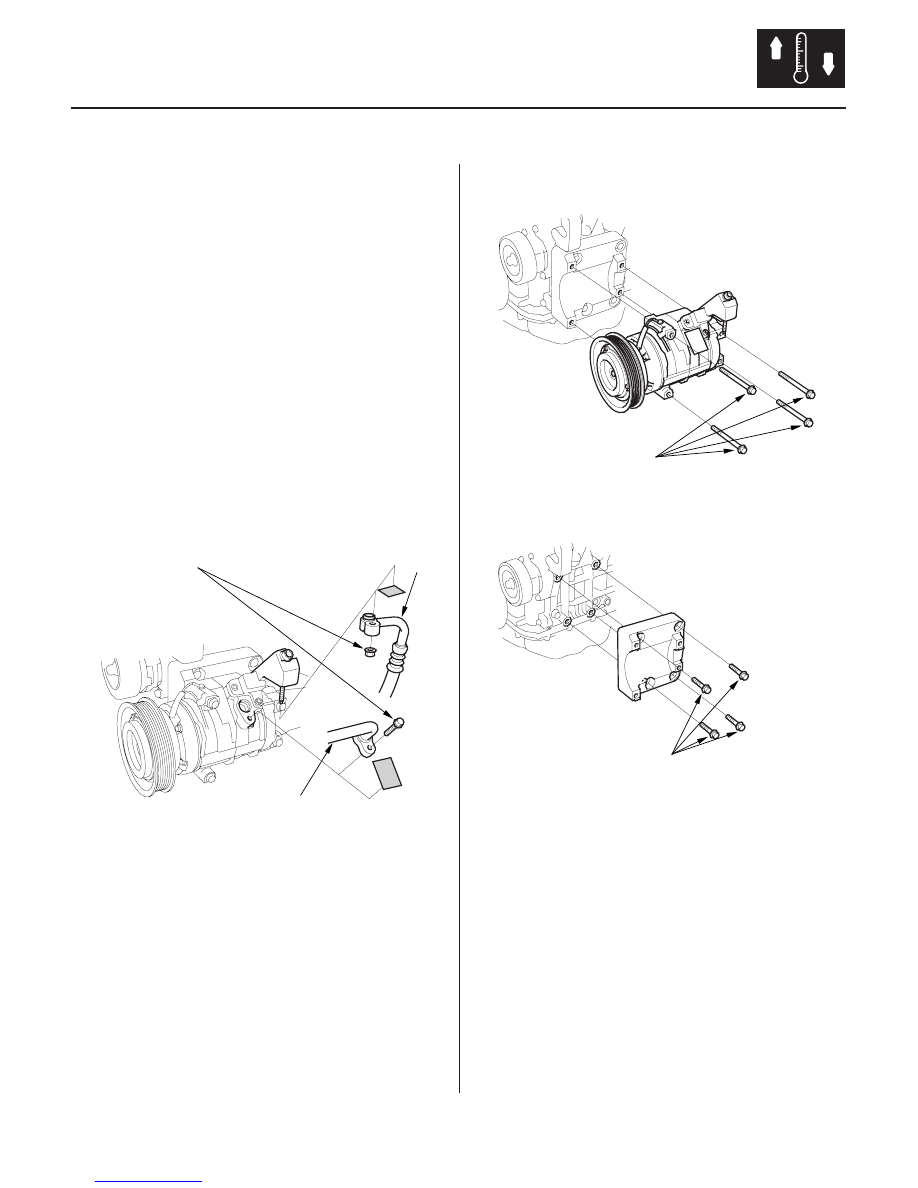

Compressor Replacement

B

A

6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

10 x 1.25 mm
44 N·m (4.5 kgf·m, 33 lbf·ft)

1. If the compressor is marginally operable, run the

engine at idle speed, and let the air conditioning
work for a few minutes, then shut the engine off.

2. Make sure you have the anti-theft code for the radio

and the navigation system, then write down the
frequencies for the radio’s preset buttons.

3. Disconnect the negative cable from the battery.

4. Recover the refrigerant with a recovery/recycling/

charging station (see page 21-56).

5. Remove the alternator (see page 4-27).

6. Remove the splash shield (see step 28 on page 5-6).

7. Remove the bolt and the nuts, then disconnect the

suction line (A) and discharge line (B) from the
compressor. Plug or cap the lines immediately after
disconnecting them to avoid moisture and dust
contamination.

8. Disconnect the compressor clutch connector, then

remove the mounting bolts and the compressor.

9. If necessary, remove the mounting bolts and the

compressor bracket.

(cont’d)

03/07/29 10:11:15 61S0X050_210_0050

21-50

Heating/Air Conditioning

Compressor Replacement (cont’d)

10. Install the compressor in the reverse order of

removal, and note these items:

• If you’re installing a new compressor, you must

calculate the amount of refrigerant oil to be
removed from it (see page 21-6).

• Replace the O-rings with new ones at each fitting,

and apply a thin coat of refrigerant oil before
installing them. Be sure to use the correct O-rings
for HFC-134a (R-134a) to avoid leakage.

• Use refrigerant oil (DENSO ND-OIL 8) for

HFC-134a DENSO piston type compressor only.

• To avoid contamination, do not return the oil to

the container once dispensed, and never mix it
with other refrigerant oils.

• Immediately after using the oil, reinstall the cap

on the container, and seal it to avoid moisture
absorption.

• Do not spill the refrigerant oil on the vehicle; it

may damage the paint. If the refrigerant oil
contacts the paint, wash it off immediately.

• Charge the system (see page 21-58).
• Do the PCM idle learn procedure (see page 11-

202).

• Do the power window control unit resetting

procedure (see page 22-200).

• Enter the anti-theft code for the radio and the

navigation system, then enter the customer’s
radio station presets.

03/07/29 10:11:15 61S0X050_210_0051

±

±

21

01

23

S0X4A00G10110112011MAAT20

Clearance:

0.5

0.15 mm (0.020

0.006 in.)

Field Coil Resistance:

3.4

3.8 ohms at

68°F (20°C)

21-51

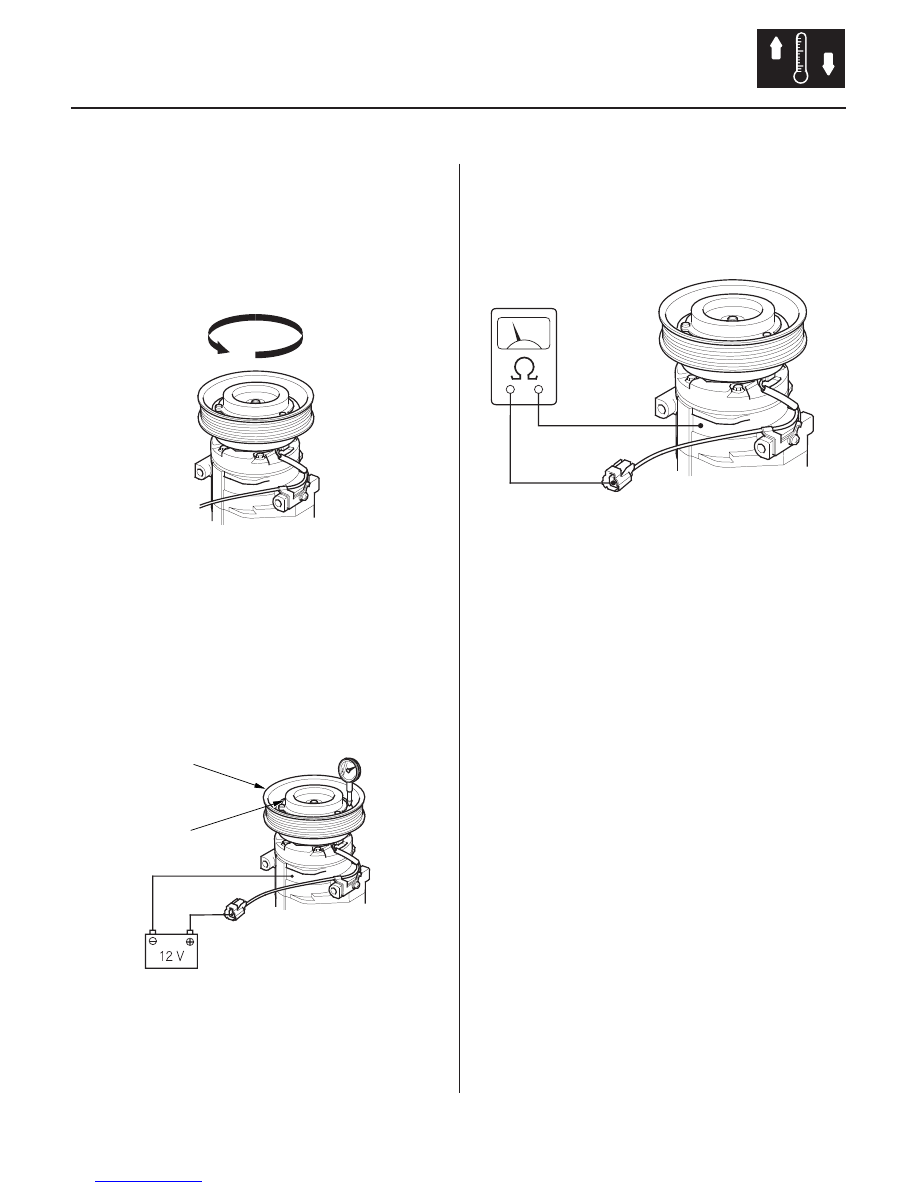

Compressor Clutch Check

A

B

1. Check the pressure plate for discoloration, peeling

or other damage. If there is damage, replace the
clutch set (see page 21-52).

2. Check the pulley bearing play and drag by rotating

the pulley by hand. Replace the clutch set with a
new one if it is noisy or has excessive play/drag
(see page 21-52).

3. Measure the clearance betweenn the pulley (A) and

the pressure plate (B) with a dial indicator. Zero out
the indicator, then apply battery voltage to the
compressor clutch. Measure the movement of the
pressure plate when the voltage is applied. If the
clearance is not within the specified limits, the
pressure plate must be reshimed (see page 21-52).

NOTE: The shims are available in four thicknesses:
0.1 mm, 0.3 mm, 0.5 mm, and 1.5mm.

4. Check resistance of the field coil. If resistance is not

within specifications, replace the field coil (see
page 21-52).

03/07/29 10:11:16 61S0X050_210_0052
