Honda Odyssey 2004. Manual - part 361

＊０１

Ｓ０Ｘ４ＡＺ４Ｊ４６１２７０５３９０１ＭＦＡＴ００

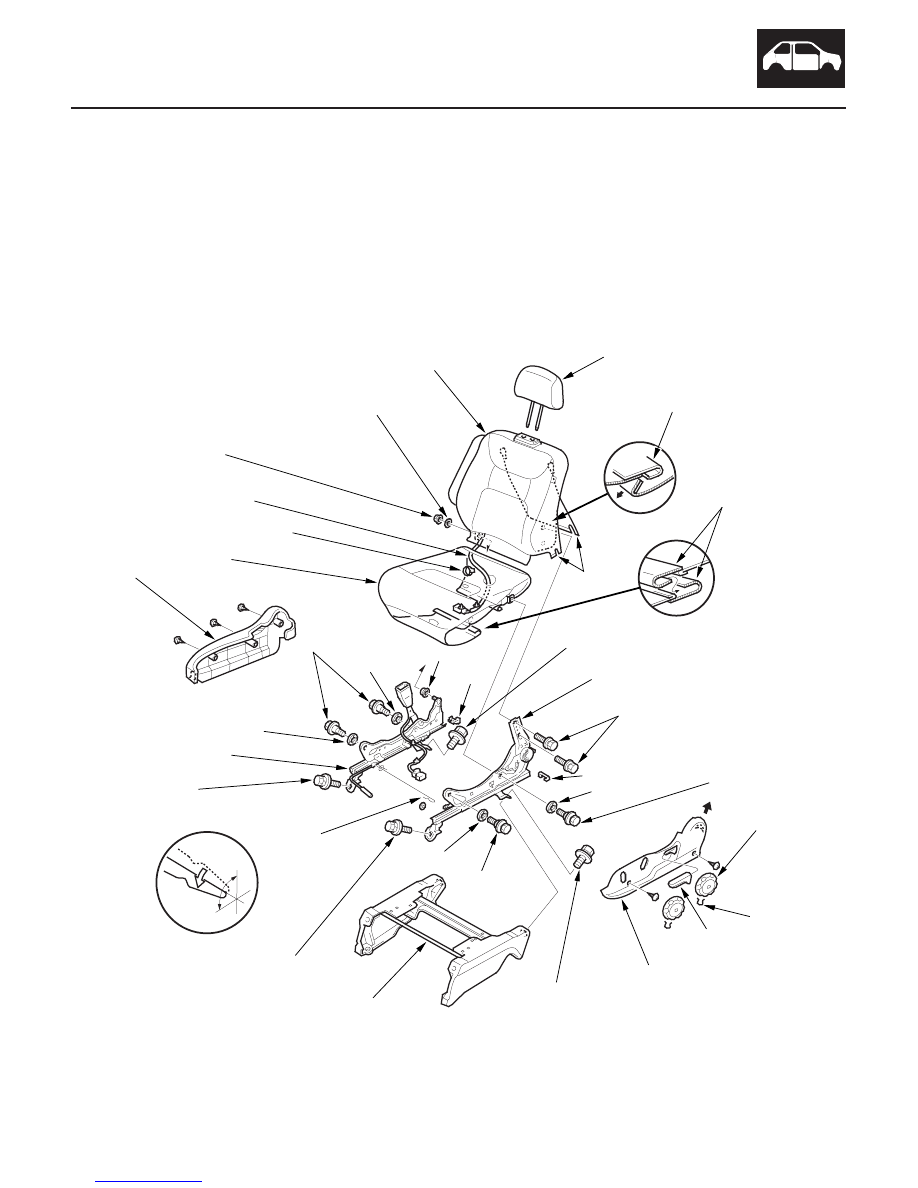

’99-01 models Without Side Airbag

20-86

Seats

Front Seat Disassembly/Reassembly - 8-Way Power

PIVOT NUT
8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

HOOK

HEADREST

SEAT-BACK

SEAT CUSHION

FRONT COVER

HEIGHT INNER COVER

CENTER COVER

CLIP
(To seat cushion
cover)

SEAT LINKAGE

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

10 x 1.25 mm
47 N·m (4.8 kgf·m, 35 lbf·ft)

POWER
SEAT
SWITCH

SEAT CUSHION COVER

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

RECLINE
COVER

CLIP
(To seat cushion
cover)

SWITCH
KNOBS

HEIGHT OUTER COVER

PIVOT WASHER

BUSHING

NOTE:

• Route the seat wire harness correctly (see page 20-94).
• Make sure the bushing and pivot washer are installed correctly.
• Apply multipurpose grease to the moving portion of the seat track.
• To prevent wrinkles in the seat-back cover, stretch the material evenly over the pad.

03/07/29 10:02:08 61S0X050_200_0088

＊０１

Ｓ０Ｘ４ＡＺＡＪ４６１２７０５３９０１ＭＦＡＴ００

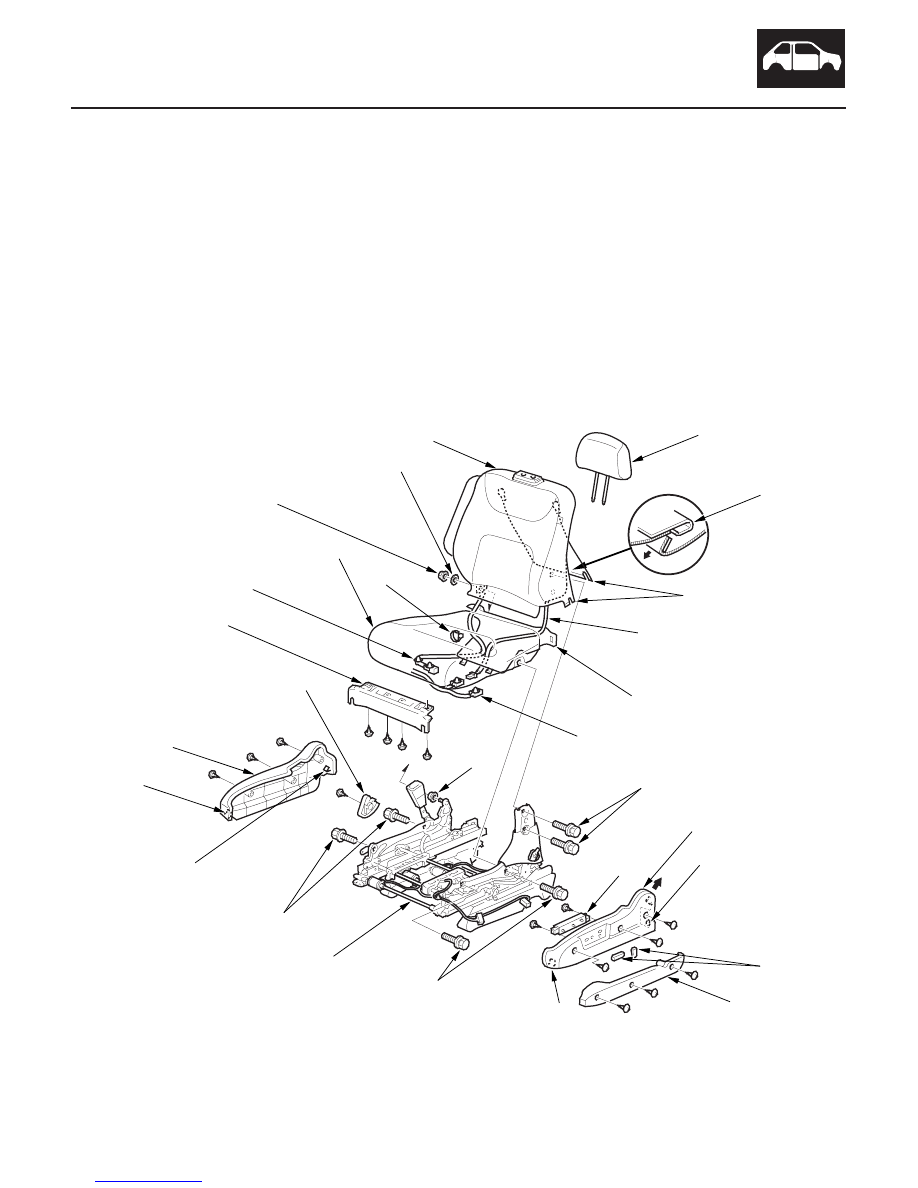

’02-04 models With Side Airbag

20-87

PIVOT NUT
8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

PIVOT WASHER

HOOKS

CENTER COVER

BUSHING

HEADREST

SEAT CUSHION COVER

10 x 1.25 mm
47 N·m (4.8 kgf·m, 35 lbf·ft)

RECLINE COVER

SEAT-BACK

SEAT CUSHION

FRONT COVER

WIRE TIE

HOOK

SEAT-BACK
HEATER HARNESS
(For some models)

SEAT CUSHION HEATER HARNESS
(For some models)

CLIP
(To seat cushion
cover)

SWITCH
KNOBS

HEIGHT OUTER COVER

POWER
SEAT
SWITCH

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

SEAT LINKAGE

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

CLIP
(To seat cushion
cover)

SIDE AIRBAG HARNESS

HOOK

HEIGHT INNER COVER

• SRS components are located in this area. Review the SRS component locations, ’02 model (see page 23-19), ’03-04

models (see page 23-20), and the precautions and procedures (see page 23-21) before performing repairs or service.

• For ’03-04 models: The operation of the driver’s seat position sensor must be checked after any of these actions (see

page 23-47):
– Driver’s seat position sensor replacement
– Cover plate (front side of driver’s seat slide rail) replacement

NOTE:

03/07/29 10:02:09 61S0X050_200_0089

＊０１

Ｓ０Ｘ４ＡＺ１Ｊ４６１２７０５３９０１ＭＦＡＴ００

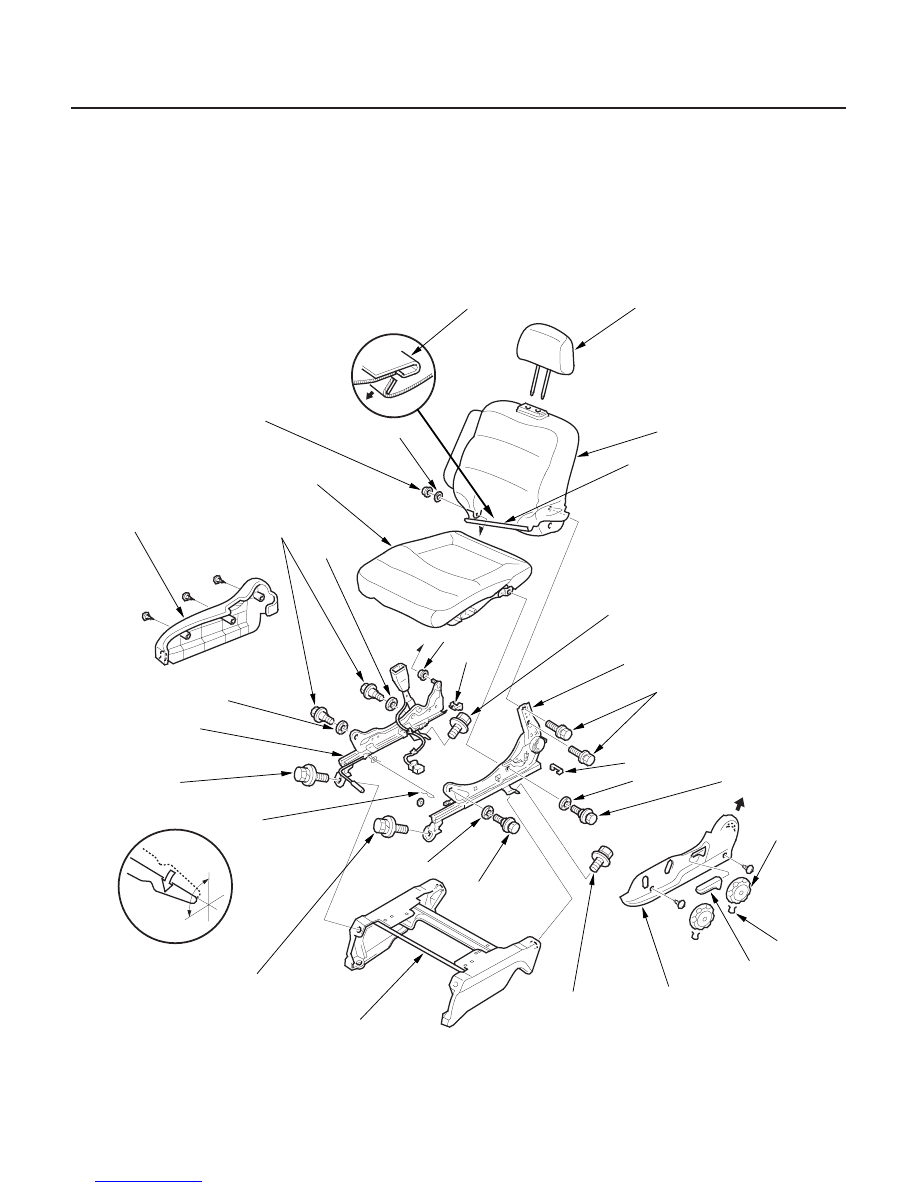

’01 model Without Side Airbag

20-88

Seats

Front Seat Disassembly/Reassembly - Manual Height Adjustable

CENTER COVER

HEADREST

HOOK

SEAT-BACK

HOOK

PIVOT WASHER

PIVOT NUT
8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

WASHER

CONNECTING
WIRE

BUSHING

END CAP

RECLINE ADJUSTER/
OUTER SEAT TRACK

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

RECLINE COVER

HEIGHT
KNOB

RECLINE
LEVER

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

SEAT RISER

WASHER

8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

WASHER

END CAP

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

CLIP

90°

INNER SEAT TRACK

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

SEAT CUSHION

WASHER

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

NOTE:

Twist 90° to
connect.

03/07/29 10:02:10 61S0X050_200_0090

＊０１

Ｓ０Ｘ４ＡＺ３Ｊ４６１２７０５３９０１ＭＦＡＴ００

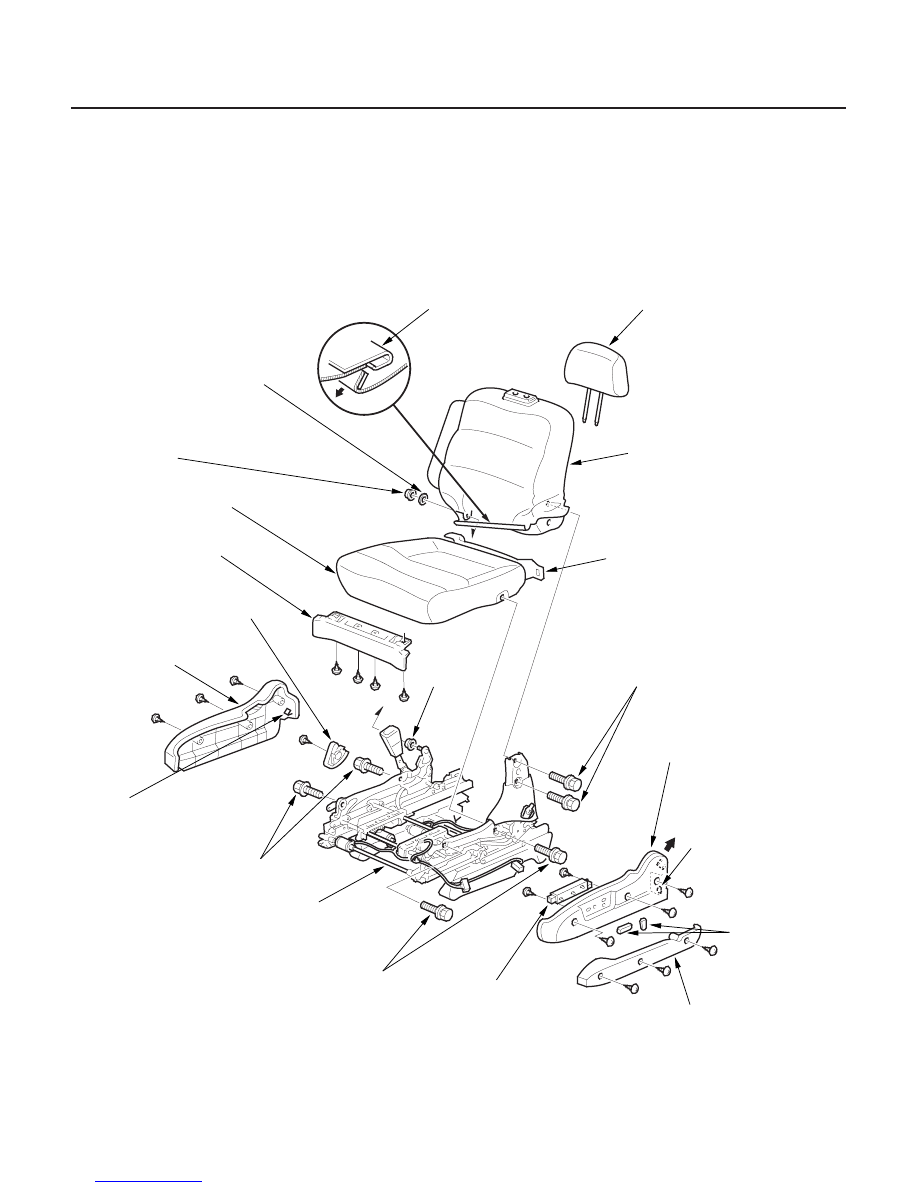

’02 model With Side Airbag

20-89

8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

INNER SEAT TRACK

CONNECTING WIRE

WASHER

RECLINE ADJUSTER/
OUTER SEAT TRACK

END CAP

10 x 1.25 mm
47 N·m (4.8 kgf·m, 35 lbf·ft)

RECLINE COVER

RECLINE
LEVER

WASHER

90°

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

10 x 1.25 mm
47 N·m (4.8 kgf·m,
35 lbf·ft)

HEIGHT
KNOB

10 x 1.25 mm
47 N·m (4.8 kgf·m, 35 lbf·ft)

SEAT RISER

PIVOT NUT
8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

PIVOT WASHER

HOOKS

BUSHING

HEADREST

SEAT-BACK

SEAT CUSHION

CENTER COVER

WIRE TIE

CLIP

SIDE AIRBAG HARNESS

HOOK

HOOKS

END CAP

10 x 1.25 mm
47 N·m (4.8 kgf·m, 35 lbf·ft)

8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

WASHER

SRS components are located in this area. Review the SRS component locations (see page 23-19), and the precautions
and procedures (see page 23-21) before performing repairs or service.

NOTE:

Twist 90° to connect.

03/07/29 10:02:11 61S0X050_200_0091
