Power Steering

Steering Gearbox Removal (cont’d)

C

A

B

C

B

C

C

C

A

30 mm (1.18 in.)

A

A

A

A

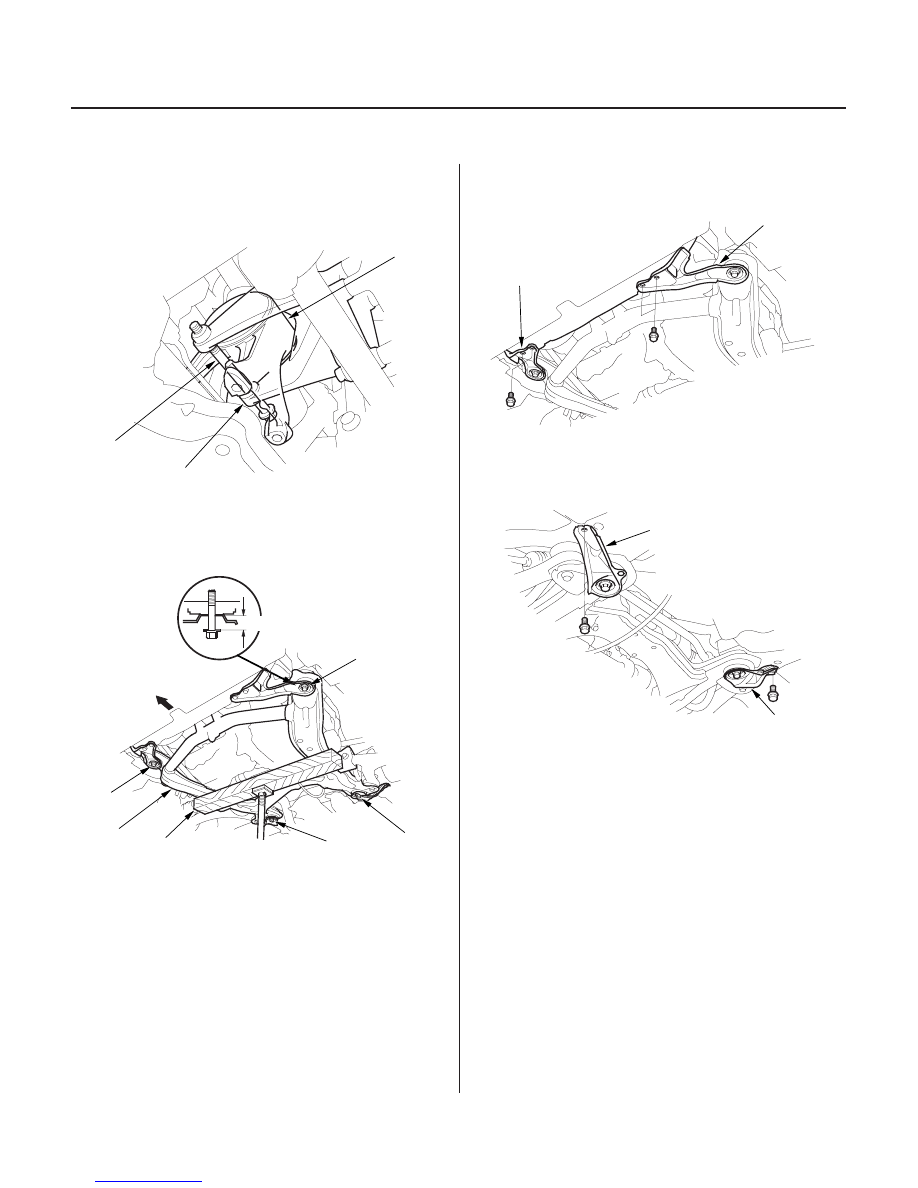

17. Pass the removed 12 mm flange bolt (A) through

the bolt hole of the mounting bracket (B), and hook
the rear engine mount (C) removed in step 16 on
the 12 mm flange bolt.

18. Attach a wood block (A) to the lower center of the

front subframe (B). Attach a jack to the center of the
wood block and support the front subframe
securely by raising the jack.

19. Loosen the four 14 mm special bolts (C) on the

front subframe so they are 30 mm (1.18 in.) from
the mounting surface (until the stepped part of
each bolt can be seen). Do not loosen the 14 mm
special bolts more than necessary.

20. Remove the four 12 mm flange bolts from the front

stiffener plates (A).

21. Remove the two 12 mm flange bolts from the rear

stiffener plates (A).

03/07/29 09:49:31 61S0X050_170_0032

12

13

14

15

17-33

A

B

A

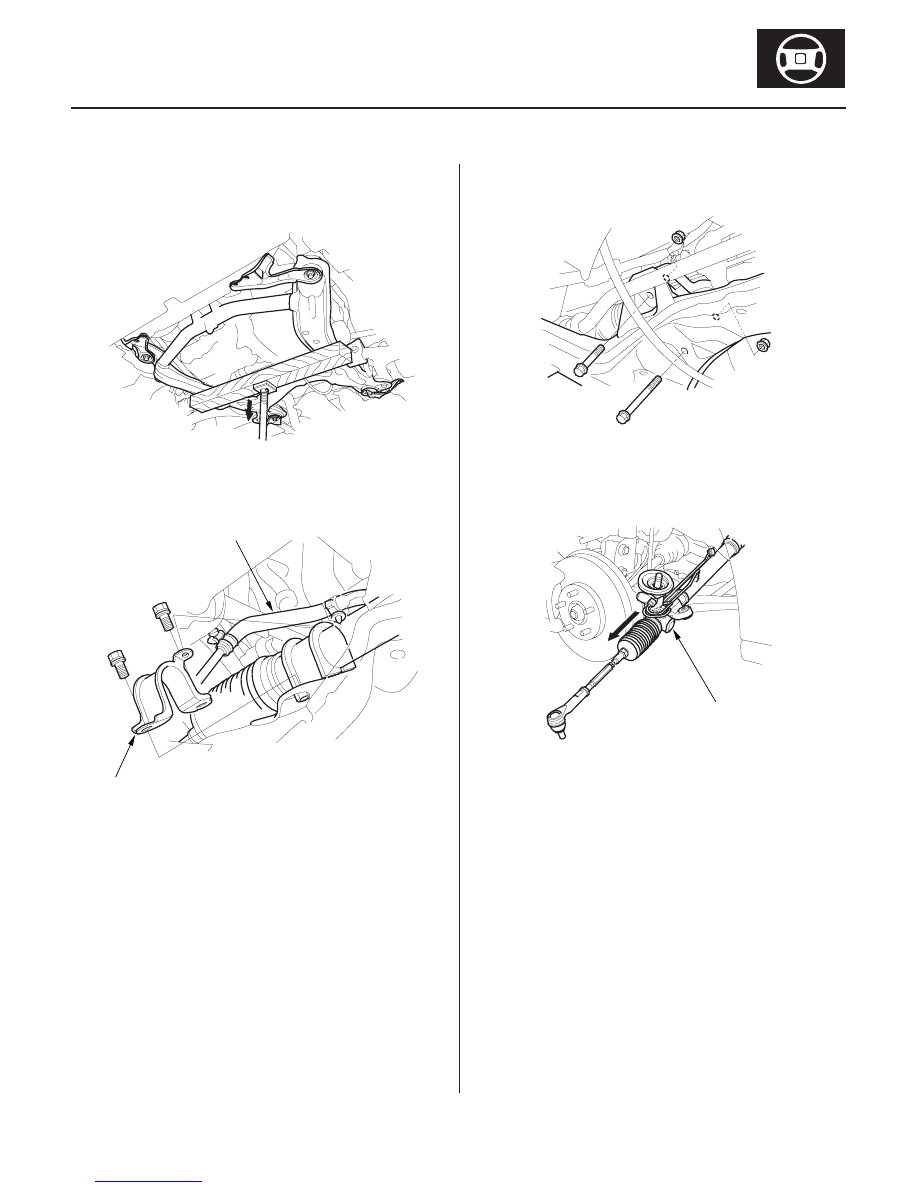

22. Lower the jack slowly until the front subframe is

held with the 14 mm special bolts that were
loosened in step 19.

23. Remove the clamp for the feed line (A) from the

right mounting bracket (B) of the steering gearbox.

24. Remove the two 10 mm mounting bolts from the

left gearbox.

25. Move the steering gearbox (A) between the body

and front subframe toward the left, and remove the
steering gearbox.

03/07/29 09:49:32 61S0X050_170_0033

*01

S0X4A00F00000057111LAAT00

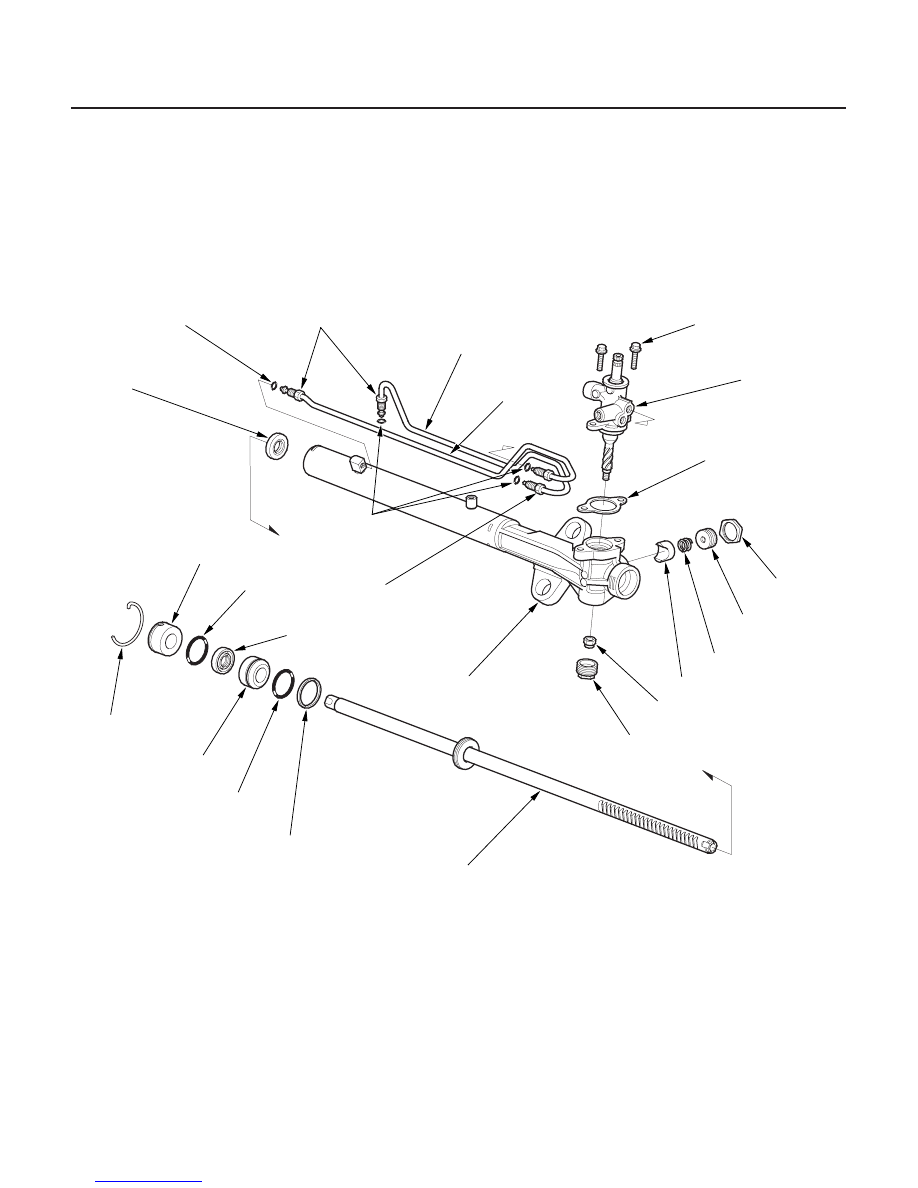

Exploded View

17-34

Power Steering

Steering Gearbox Overhaul

O-RING

CYLINDER END SEAL

FLARE NUTS
13 N·m (1.3 kgf·m, 9.4 lbf·ft)

CYLINDER LINE B

CYLINDER LINE A

FLANGE BOLTS
18 N·m (1.8 kgf·m, 13 lbf·ft)

VALVE BODY UNIT

GASKET

LOCKNUT

RACK GUIDE SCREW

SPRING

RACK GUIDE

END PLUG
59 N·m (6.0 kgf·m, 43 lbf·ft)

NUT
25 N·m (2.5 kgf·m, 18 lbf·ft)

GEARBOX HOUSING

FLARE NUTS
13 N·m (1.3 kgf·m, 9.4 lbf·ft)

O-RINGS

RACK STOP

CYLINDER END SEAL

O-RING

PISTON SEAL RING

O-RING

RACK BUSHING

CIRCLIP

STEERING RACK

Replace.

Replace.

Replace.

Replace.

Replace.

Replace.

03/07/29 09:49:33 61S0X050_170_0034

02

*16

04

Special Tools Required

Removal

Disassembly

17-35

B

A

A

A

B

C

D

E

• Cylinder end seal remover attachment

07TAF-SZ50100

• Driver 07749-0010000
• Attachment, 42 x 47 mm 07746-0010300
• Piston seal ring guide

07LAG-SM4010A or 07LAG-SM40100

• Piston seal ring sizing tool

07LAG-SM4020A or 07LAG-SM40200

• Pincer Oetiker 1098, or equivalent,

commercially available

NOTE: Refer to the Exploded View as needed during the
following procedure.

1. Remove the steering gearbox (see page 17-30).

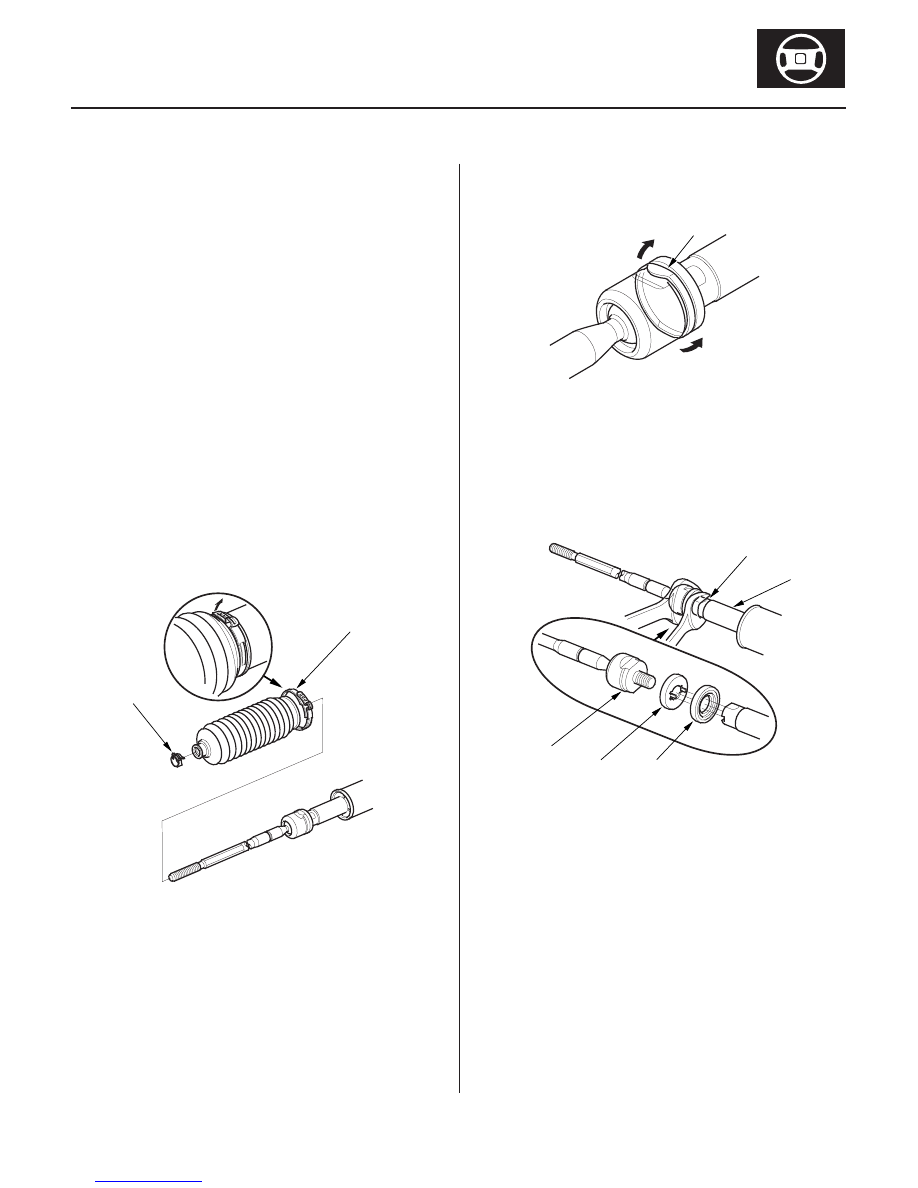

2. Remove the boot band (A) and tie-rod clips (B). Pull

the boots away from the ends of the steering
gearbox.

3. Unbend the lock washer (A).

4. Hold the flat surface sections (A) on the right side

steering rack (B) with a wrench, and unscrew the
both rack ends (C) with another wrench. Be careful
not to damage the rack surface with the wrench.
Remove the lock washer (D) and stop washer (E).

(cont’d)

03/07/29 09:49:34 61S0X050_170_0035
