Shift Cable Replacement (cont’d)

A

B

C

F

E

G

D
6 x 1.0 mm
14 N·m (1.4 kgf·m,
10 lbf·ft)

8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

6 x 1.0 mm
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)

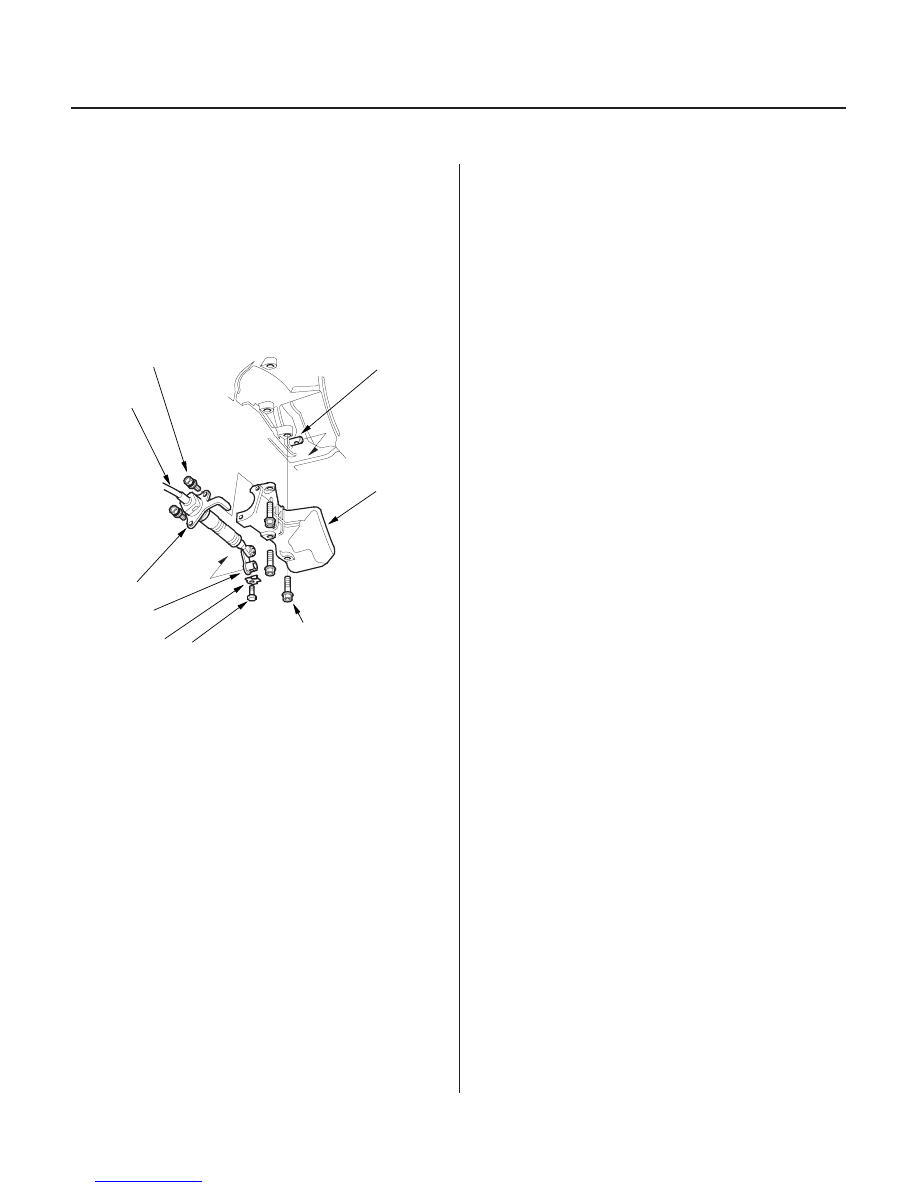

10. Insert the new shift cable through the grommet

hole, then install the shift cable guide bracket.

11. Verify that the transmission is in the N position on

the control shaft.

12. Install the control lever (A) with the shift cable (B)

on the control shaft (C). Do not bend the shift cable
excessively.

13. Install the lock bolt (D) with a new lock washer (E),

then bend the lock washer tab against the bolt head.

14. Install the shift cable cover (F), then install the shift

cable holder (G) on the shift cable cover.

NOTE: To prevent damage to the control lever joint,
be sure to install the shift cable holder after
installing the shift cable cover to the torque
converter housing.

15. Turn the ignition switch ON (II), and verify that the

the N position indicator comes on.

16. Install the shift cable end to the shift lever. If

necessary, adjust the shift cable (see step 5 on
page 14-395).

03/07/29 09:40:43 61S0X050_140_0397

01

01

03

S0X4AA1E10411412281MBAT00

14-395

Shift Cable Adjustment

D

B

A

G

E

C

F

A

B

C

SRS components are located in this area. Review the
SRS component locations, 2002 model (see page 23-19),
2003-2004 models (see page 23-20), and the
precautions and procedures (see page 23-21) in the SRS
before performing repairs or service.

1. Remove the steering column covers (see page 17-

25).

2. Shift the transmission into the N position.

3. Remove the nut (A) securing the shift cable end (B),

then separate the shift cable (C) from the shift lever
assembly (D).

4. Rotate the socket holder (E) on the shift cable

counterclockwise a quarter turn, then slide the
holder to remove the shift cable from the shift cable
bracket (F).

NOTE: Do not remove the shift cable by twisting
the shift cable guide (G).

5. Push the shift cable until it stops, then release it.

Pull the shift cable back two steps so that the shift
lever position is in N.

6. Turn the ignition switch ON (II), and verify that the

N position indicator comes on.

7. Turn the ignition switch OFF.

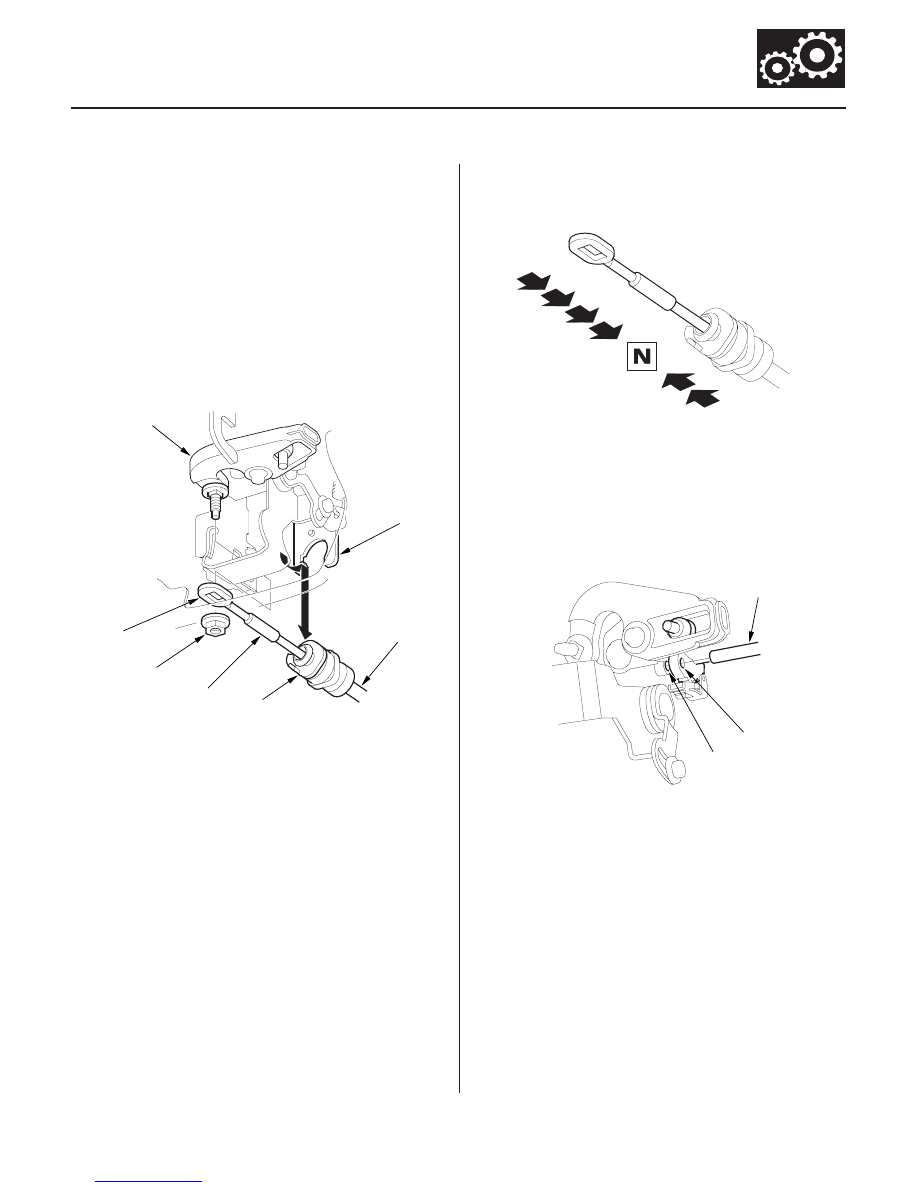

8. Insert a 6.0 mm (0.24 in.) pin (A) through the

positioning hole (B) on the detent plate and into the
positioning hole (C) on the control bracket.

(cont’d)

03/07/29 09:40:43 61S0X050_140_0398

02

04

03

14-396

Automatic Transmission

Shift Cable Adjustment (cont’d)

E

D

G

F

H

A

B

C

Properly Installed:

Improperly Installed:

A

B

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

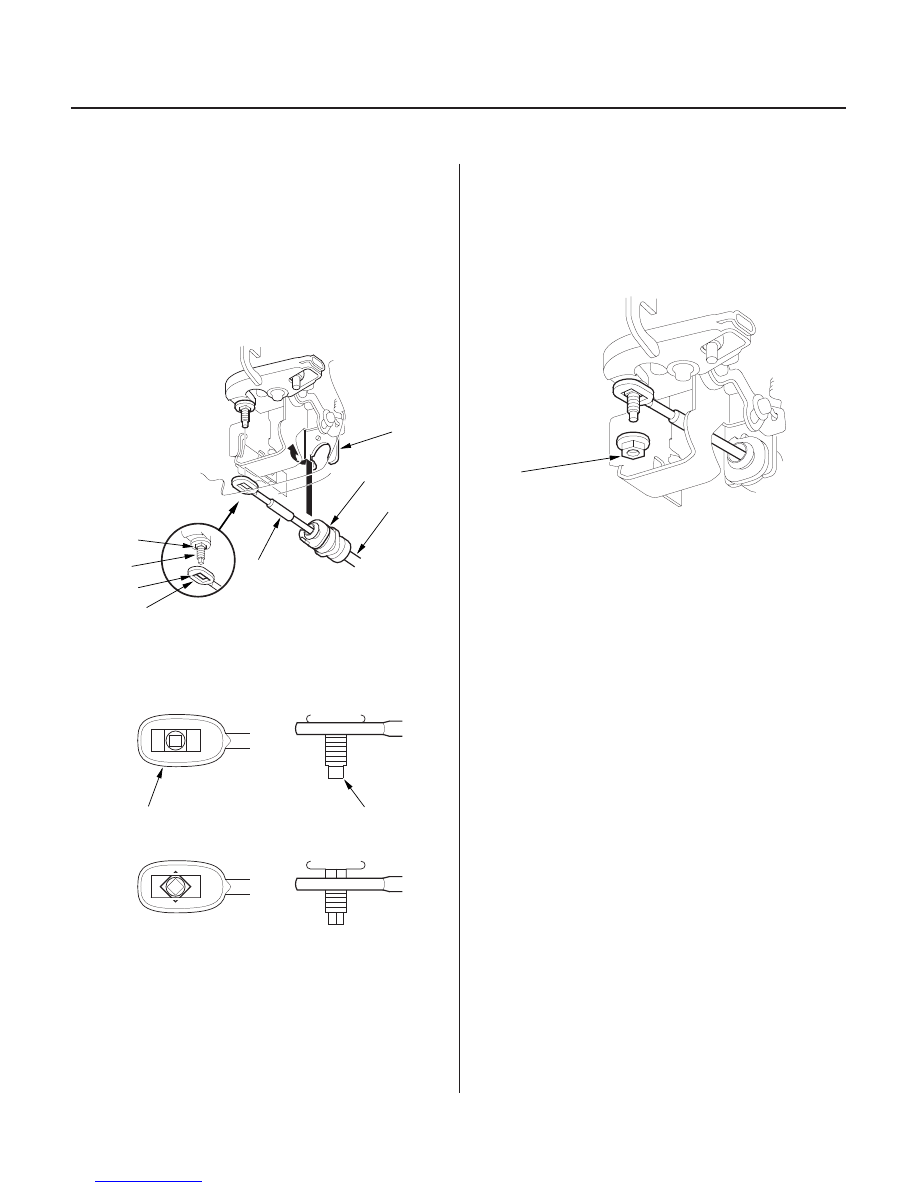

9. Align the socket holder (A) on the shift cable (B)

with the slot in the shift cable bracket (C), then slide
the holder into the bracket. Install the shift cable
end (D) over the mounting stud (E) by aligning its
square hole (F) with the square fitting (G) at the
bottom of the stud, and rotate the holder clockwise
a quarter turn to secure the shift cable.

NOTE: Do not install the shift cable by twisting the
shift cable guide (H).

10. Verify that the shift cable end (A) is properly

installed on the mounting stud (B).

11. If improperly installed, remove the shift cable from

the shift cable bracket, and reinstalled the shift
cable. Do not install the shift cable end on the
mounting stud while the shift cable is on the shift
cable bracket.

12. Install and tighten the nut to the specified torque.

13. Remove the 6.0 mm (0.24 in.) pin that was installed

to hold the shift lever.

14. Move the shift lever to each gear, and verify that

the A/T gear position indicator follows the
transmission range switch.

15. Push the shift lock release, and verify that the shift

lever releases.

Cable end rides on the bottom
of the mounting stud.

03/07/29 09:40:44 61S0X050_140_0399

*01

02

S0X4AA1E10410700000DAAT00

14-397

A/T Gear Position Indicator

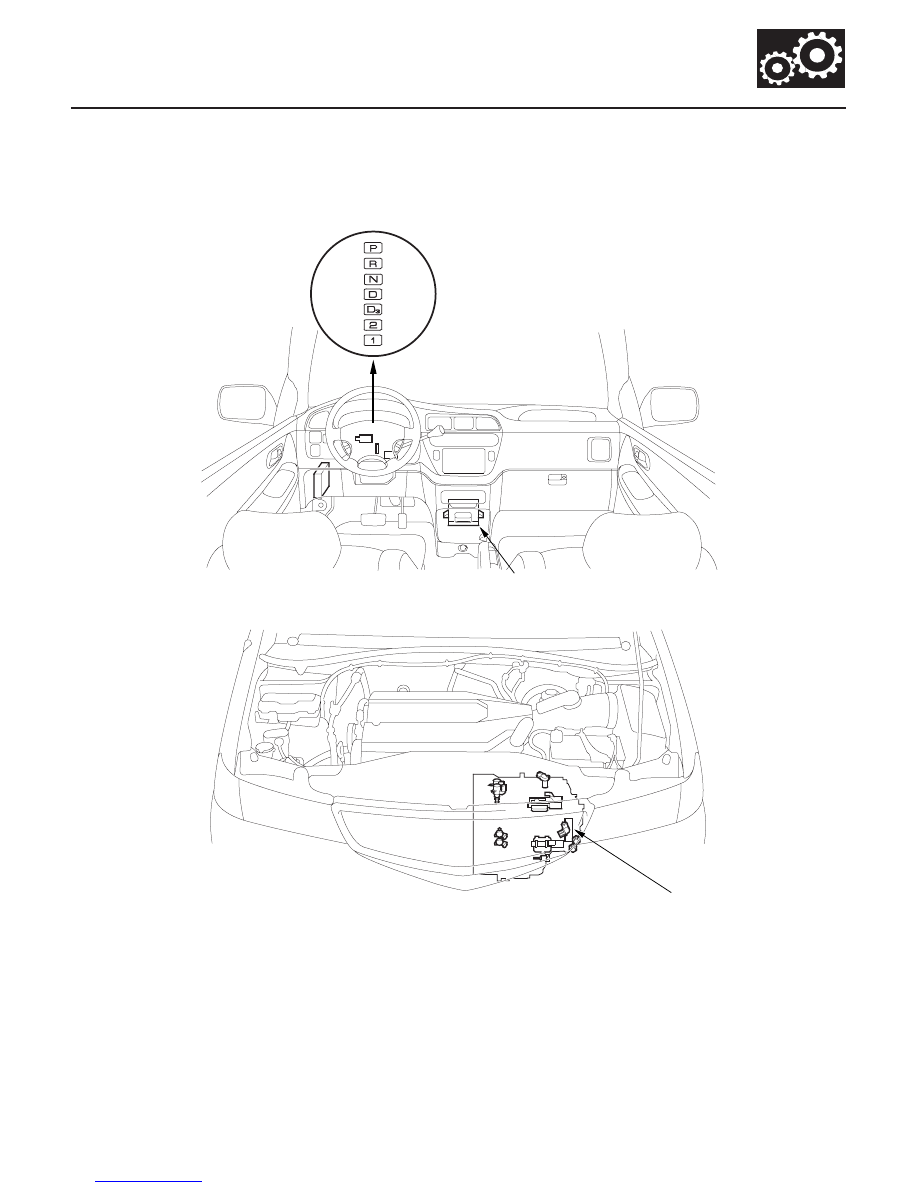

Component Location Index

A/T GEAR POSITION INDICATOR

POWERTRAIN CONTROL MODULE (PCM)

TRANSMISSION RANGE SWITCH

D Indicator Circuit Troubleshooting, page 14-399
Indicator Input Test, page 14-402
Indicator Bulb Replacement, page 14-406

Test, page 14-403
Replacement, page 14-404
