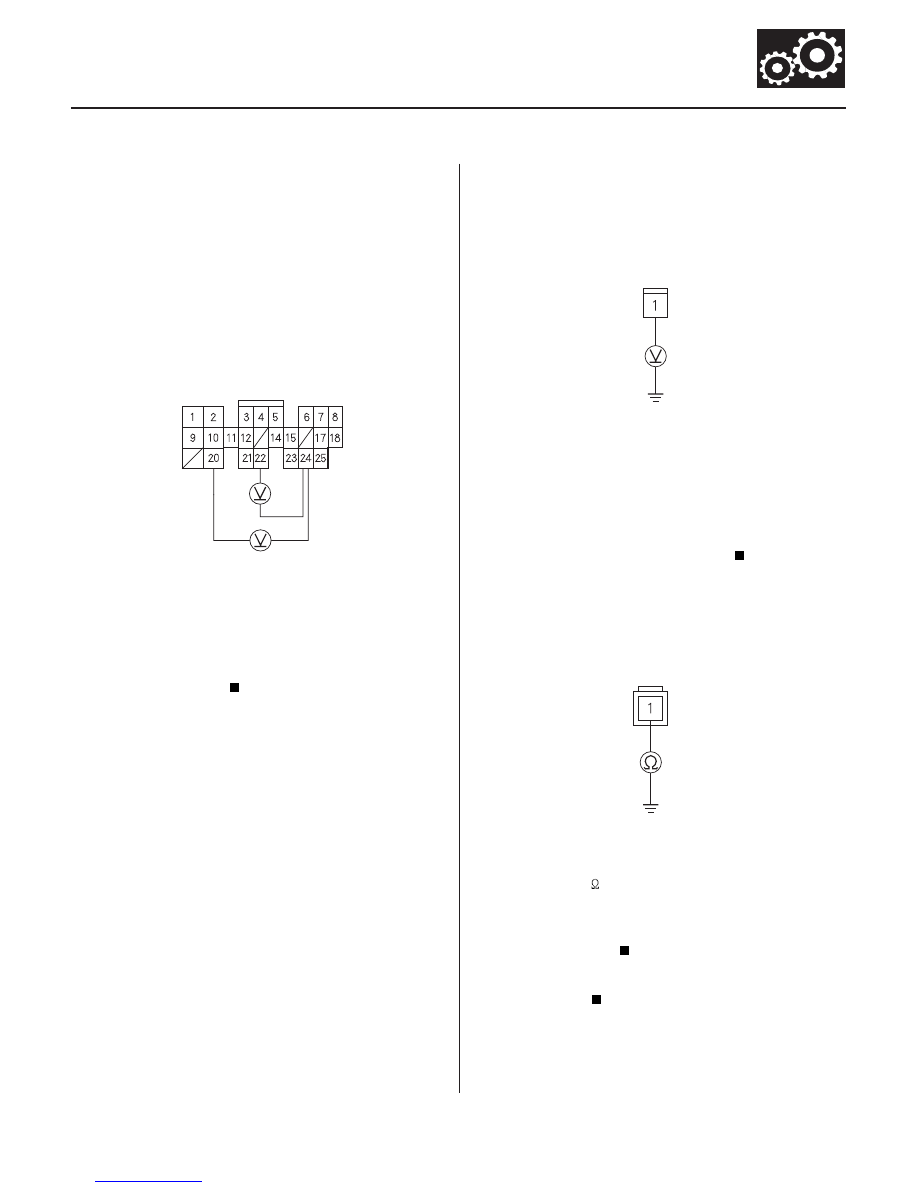

1999-2000 Models

DTC P1738:

YES

NO

YES

NO

14-86

Automatic Transmission

DTC Troubleshooting (cont’d)

PCM CONNECTORS

B (25P)

LG1 (BRN/BLK)

LG2 (BRN/BLK)

D (16P)

OP2SW (BLU/BLK)

PCM CONNECTOR D (16P)

OP2SW (BLU/BLK)

Problem in 2nd Clutch Pressure

Switch Circuit

NOTE: Record all freeze data and review General
Troubleshooting Information (see page 14-3) before
you troubleshoot.

1. Turn the ignition switch ON (II).

2. Measure the voltage between the D13 and B20 or

B22 terminals.

Go to step 7.

Go to step 3.

3. Turn the ignition switch OFF.

4. Disconnect the D (16P) connector from the PCM.

5. Disconnect the 2nd clutch pressure switch

connector.

6. Check for continuity between the D13 terminal and

body ground.

Repair short to ground in the wire between

the D13 terminal and the 2nd clutch pressure
switch.

Disconnect the 2nd clutch pressure switch

connector and go to step 15.

Wire side of female terminals

Wire side of female terminals

Is ther e batter y voltage?

Is ther e continuity?

03/07/29 09:31:09 61S0X050_140_0089

03

*01

*02

YES

NO

YES

NO

YES

NO

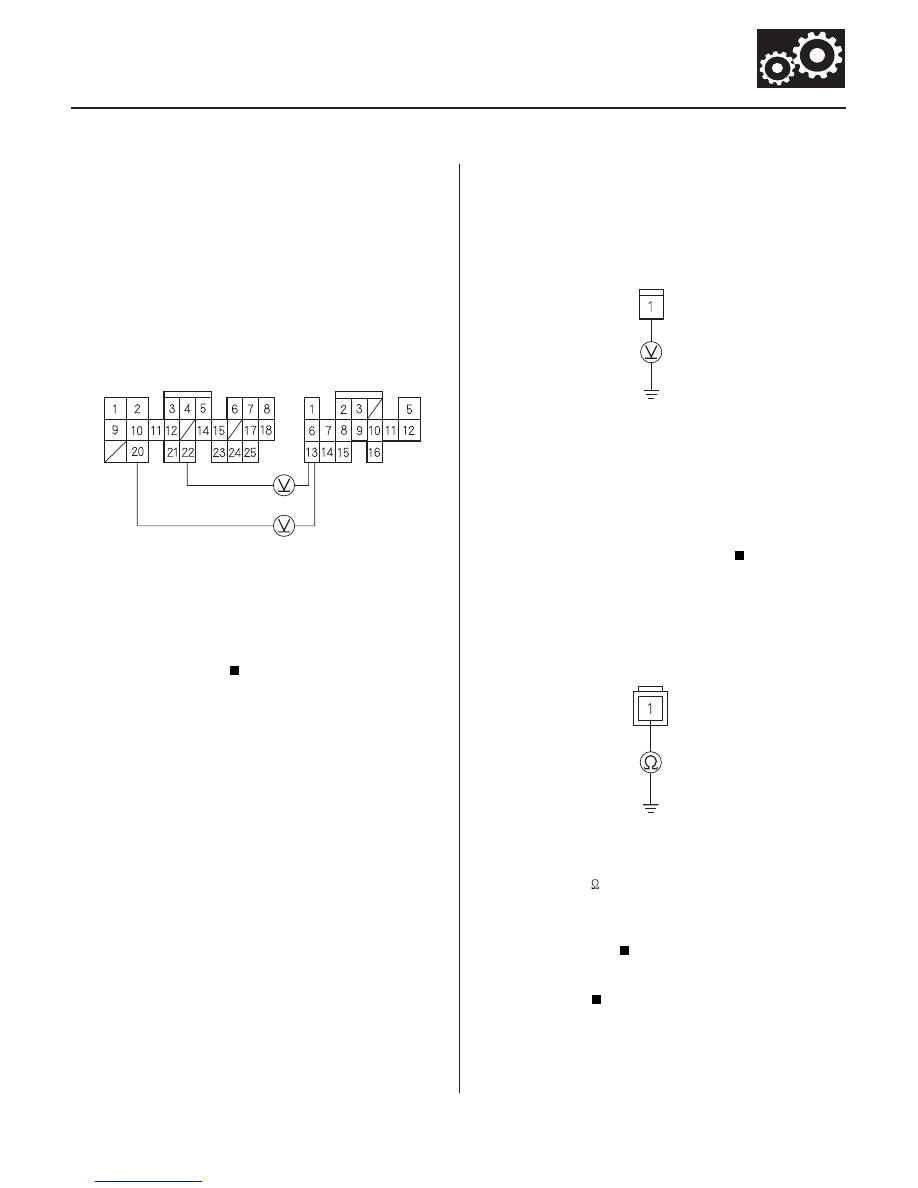

14-87

PCM CONNECTORS

B (25P)

LG1 (BRN/BLK)

LG2 (BRN/BLK)

D (16P)

OP2SW (BLU/BLK)

BLU/BLK

2ND CLUTCH PRESSURE
SWITCH CONNECTOR

2ND CLUTCH PRESSURE
SWITCH CONNECTOR

7. Raise the front of the vehicle, and make sure it is

securely supported.

8. Set the parking brake, and block rear wheels

securely.

9. Start the engine, cancel the TCS, then shift to 2

position and drive for more than five seconds.

10. Measure the voltage between the D13 and B20 or

B22 terminals.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Go to step 11.

11. Turn the ignition switch OFF.

12. Disconnect the 2nd clutch pressure switch

connector.

13. Turn the ignition switch ON (II).

14. Measure the voltage between the 2nd clutch

pressure switch connector terminal and body
ground.

Go to step 15.

Repair open in the wire between the 2nd

clutch pressure switch and the PCM.

15. Measure the resistance between the 2nd clutch

pressure switch connector terminal and body
ground.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Replace the 2nd clutch pressure switch (see

page 14-135).

Wire side of female terminals

Wire side of female terminal

Terminal side of male terminals

Is ther e about 0 V ?

Is ther e batter y voltage?

Is ther e 10 M

or mor e?

03/07/29 09:31:10 61S0X050_140_0090

*01

*02

S0X4AA2K77100091739FAAT00

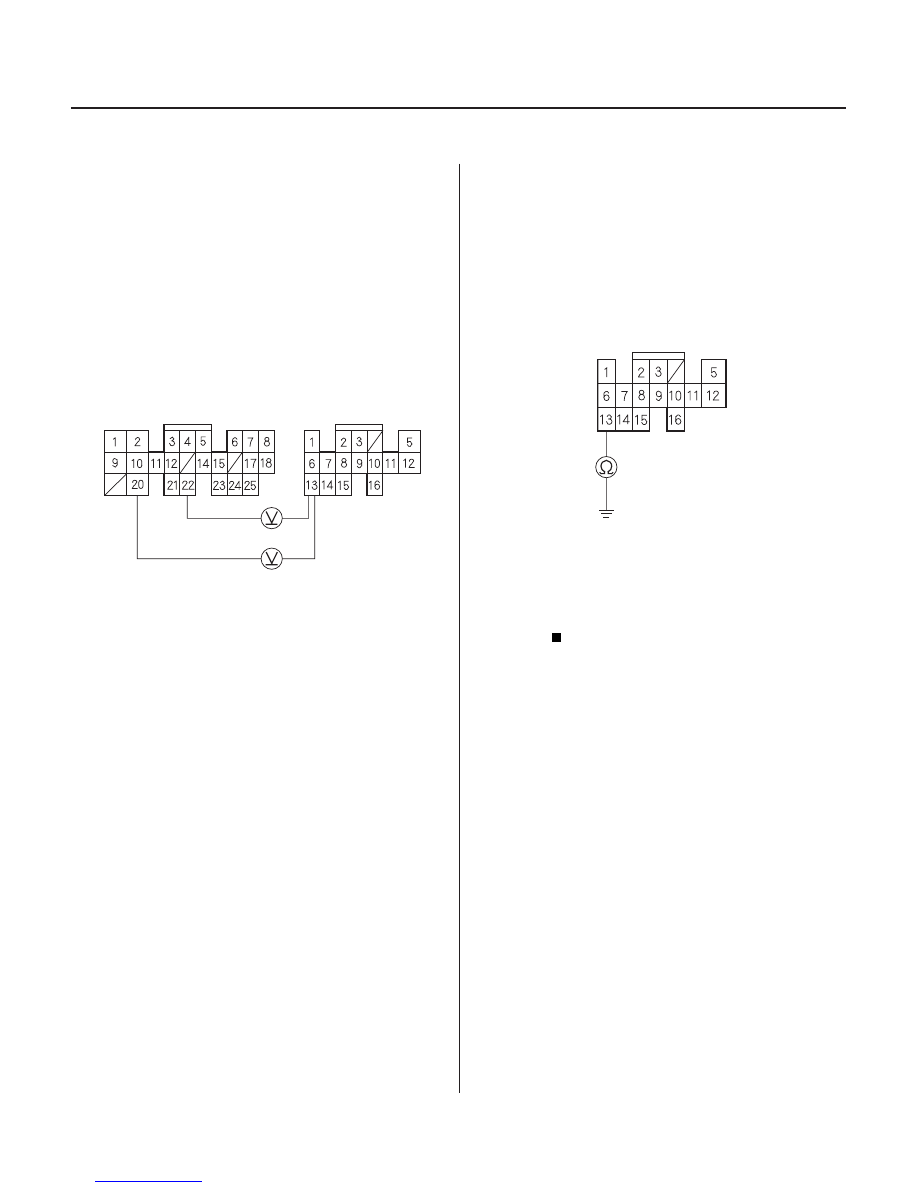

1999-2000 Models

DTC P1739:

YES

NO

YES

NO

14-88

Automatic Transmission

DTC Troubleshooting (cont’d)

PCM CONNECTOR B (25P)

LG1 (BRN/BLK)

LG2 (BRN/BLK)

OP3SW (WHT/RED)

PCM CONNECTOR B (25P)

OP3SW (WHT/RED)

Problem in 3rd Clutch Pressure

Switch Circuit

NOTE: Record all freeze data and review General
Troubleshooting Information (see page 14-3) before
you troubleshoot.

1. Turn the ignition switch ON (II).

2. Measure the voltage between the B24 and B20 or

B22 terminals.

Go to step 7.

Go to step 3.

3. Turn the ignition switch OFF.

4. Disconnect the B (25P) connector from the PCM.

5. Disconnect the 3rd clutch pressure switch

connector.

6. Check for continuity between the B24 terminal and

body ground.

Repair short to ground in the wire between

the B24 terminal and the 3rd clutch pressure
switch.

Disconnect the 3rd clutch pressure switch

connector and go to step 15.

Wire side of female terminals

Wire side of female terminals

Is ther e batter y voltage?

Is ther e continuity?

03/07/29 09:31:10 61S0X050_140_0091

*03

*04

*05

YES

NO

YES

NO

YES

NO

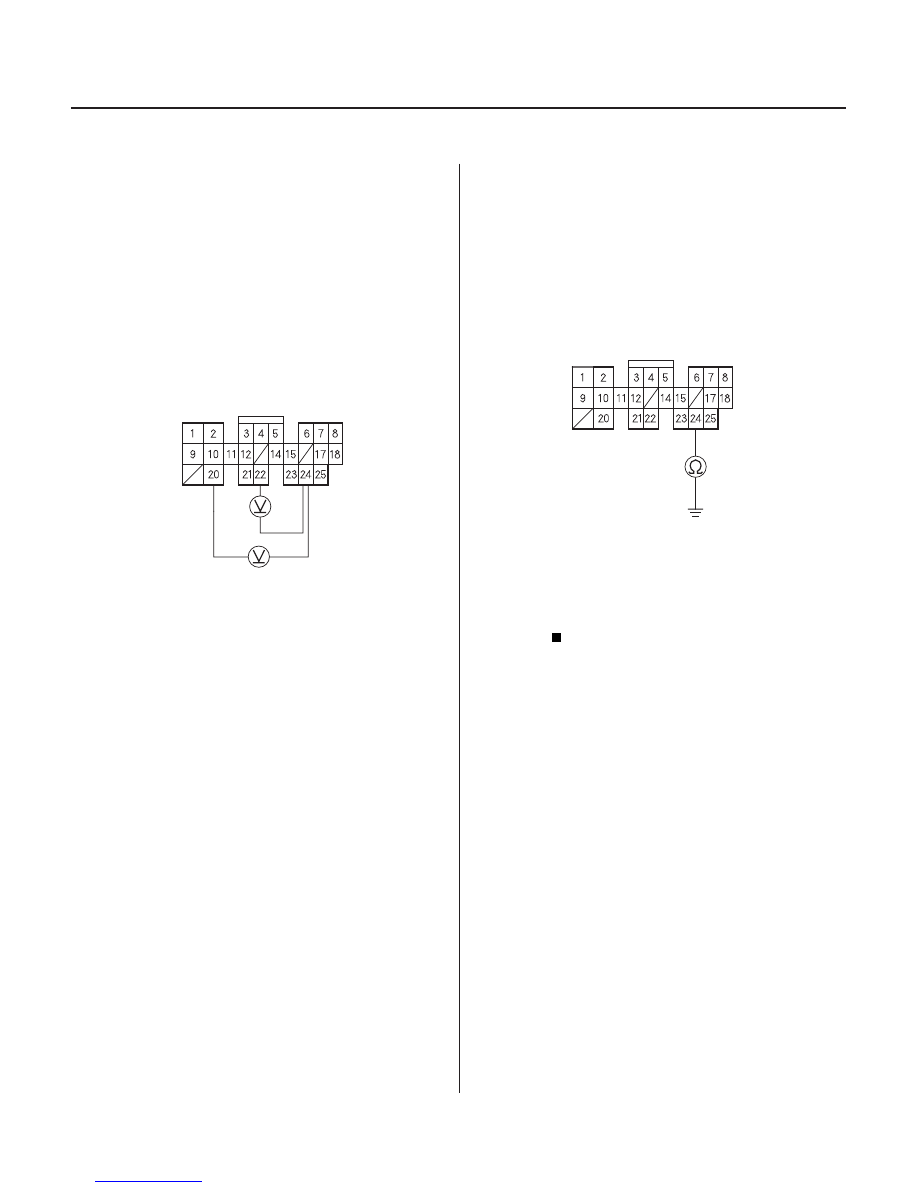

14-89

PCM CONNECTOR B (25P)

LG1 (BRN/BLK)

LG2 (BRN/BLK)

OP3SW (WHT/RED)

WHT/RED

3RD CLUTCH PRESSURE
SWITCH CONNECTOR

3RD CLUTCH PRESSURE
SWITCH CONNECTOR

7. Raise the front of the vehicle, and make sure it is

securely supported.

8. Set the parking brake, and block rear wheels

securely.

9. Start the engine, cancel the TCS, then shift to D3

position and drive in 3rd gear for more than five
seconds.

10. Measure the voltage between the B24 and B20 or

B22 terminals.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Go to step 11.

11. Turn the ignition switch OFF.

12. Disconnect the 3rd clutch pressure switch

connector.

13. Turn the ignition switch ON (II).

14. Measure the voltage between the 3rd clutch

pressure switch connector terminal and body
ground.

Go to step 15.

Repair open in the wire between the 3rd

clutch pressure switch and the PCM.

15. Measure the resistance between the 3rd clutch

pressure switch connector terminal and body
ground.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Replace the 3rd clutch pressure switch (see

page 14-135).

Wire side of female terminals

Wire side of female terminal

Terminal side of male terminal

Is ther e about 0 V ?

Is ther e batter y voltage?

Is ther e 10 M

or mor e?

03/07/29 09:31:11 61S0X050_140_0092
