Honda Odyssey 2004. Manual - part 44





*05

*06

*07

*08

6-16

Cylinder Head

Valve Clearance Adjustment (cont’d)

B

A

B

A

B

A

B

A

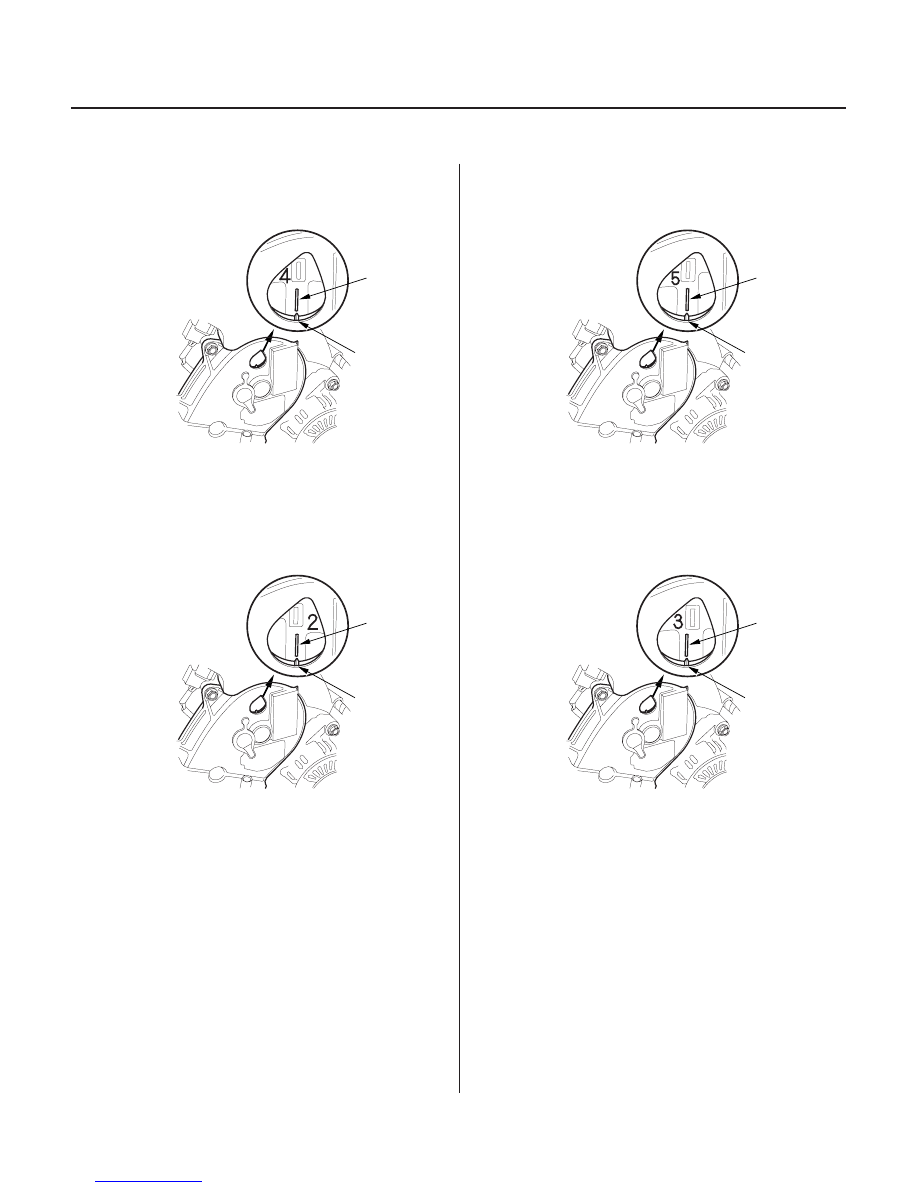

7. Rotate the crankshaft clockwise. Align the pointer

(A) on the front upper cover with the No. 4 piston
TDC mark (B) on the front camshaft pulley.

8. Check and, if necessary, adjust the valve clearance

on No. 4 cylinder.

9. Rotate the crankshaft clockwise. Align the pointer

(A) on the front upper cover with the No. 2 piston
TDC mark (B) on the front camshaft pulley.

10. Check and, if necessary, adjust the valve clearance

on No. 2 cylinder.

11. Rotate the crankshaft clockwise. Align the pointer

(A) on the front upper cover with the No. 5 piston
TDC mark (B) on the front camshaft pulley.

12. Check and, if necessary, adjust the valve clearance

on No. 5 cylinder.

13. Rotate the crankshaft clockwise. Align the pointer

(A) on the front upper cover with the No. 3 piston
TDC mark (B) on the front camshaft pulley.

14. Check and, if necessary, adjust the valve clearance

on No. 3 cylinder.

03/07/29 09:10:41 61S0X050_060_0016

*09

6-17

B

A

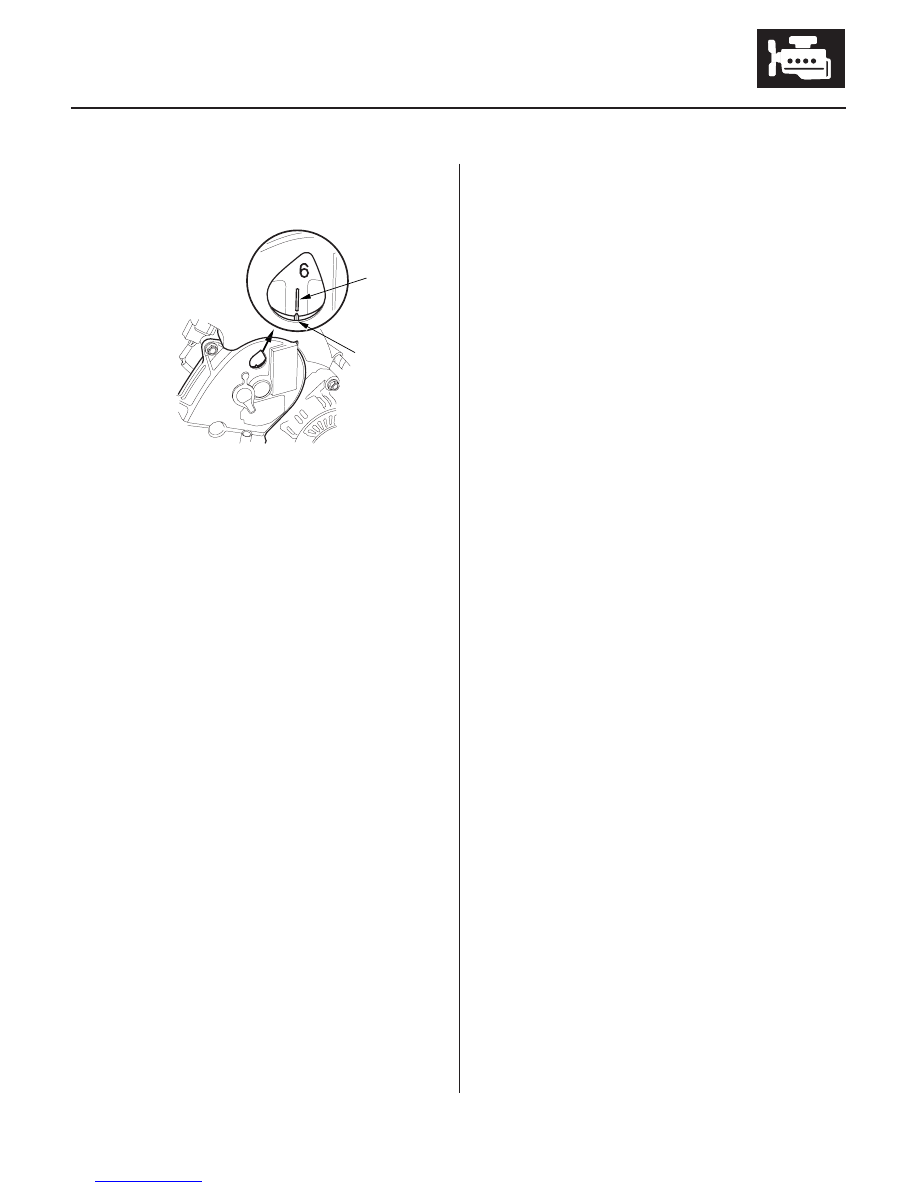

15. Rotate the crankshaft clockwise. Align the pointer

(A) on the front upper cover with the No. 6 piston
TDC mark (B) on the front camshaft pulley.

16. Check and, if necessary, adjust the valve clearance

on No. 6 cylinder.

17. Install the cylinder head covers (see page 6-34).

03/07/29 09:10:41 61S0X050_060_0017

*04

*01

*03

*02

S0X4A00A14673217531KDAT00

Special Tools Required

Removal

Installation

6-18

Cylinder Head

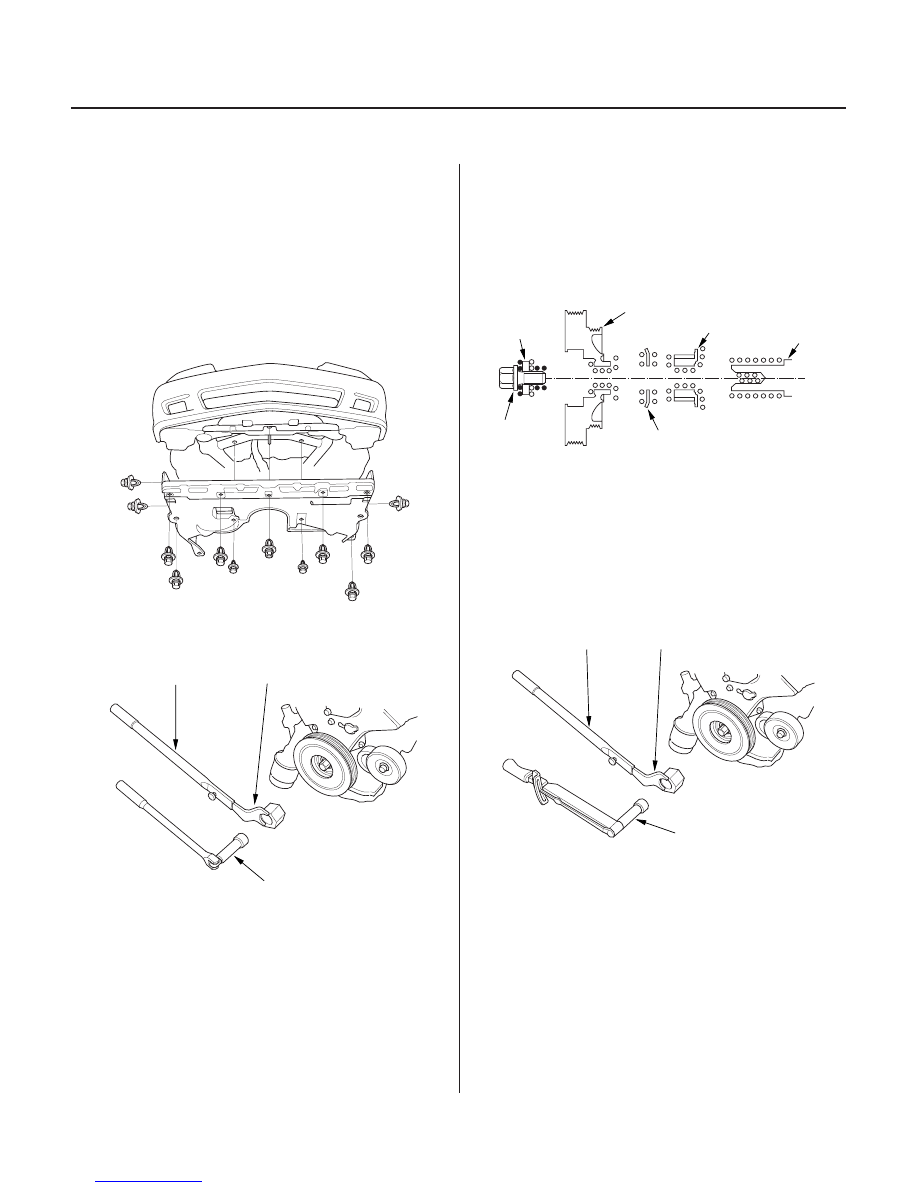

Crankshaft Pulley Removal and Installation

A
07JAB-001020A

B
07MAB-PY3010A

C
07JAA-001020A

A
07JAB-001020A

B
07MAB-PY3010A

C
07JAA-001020A

: Clean

A

A

B

A

D

C

• Holder handle 07JAB-001020A
• Holder attachment, 50 mm, offset 07MAB-PY3010A
• Socket, 19 mm 07JAA-001020A

or a commercially available 19 mm socket

1. Remove the right front tire/wheel.

2. Remove the splash shield.

3. Hold the pulley with holder handle (A) and holder

attachment (B).

4. Remove the bolt with a heavy duty 19 mm socket

(C) and breaker bar.

1. Clean the pulleys (A), crankshaft (B), bolt (C) and

2.

245 N·m (25.0 kgf·m, 181 lbf·ft). Do not use an
impact wrench.

–1 Hold the pulley with holder handle (A) and

holder attachment (B).

–2 Tighten the bolt with a torque wrench and

19 mm socket (C).

3. Install the splash shield.

4. Install the right front tire/wheel.

(or commercially available)

(or commercially available)

03/07/29 09:10:42 61S0X050_060_0018

washer (D). Lubricate with new engine oil as shown.

Install the crankshaft pulley, and tighten the bolt to

: Lubricate with new engine oil

01

01

*01

*02

S0X4A00A14673200000MAAT00

6-19

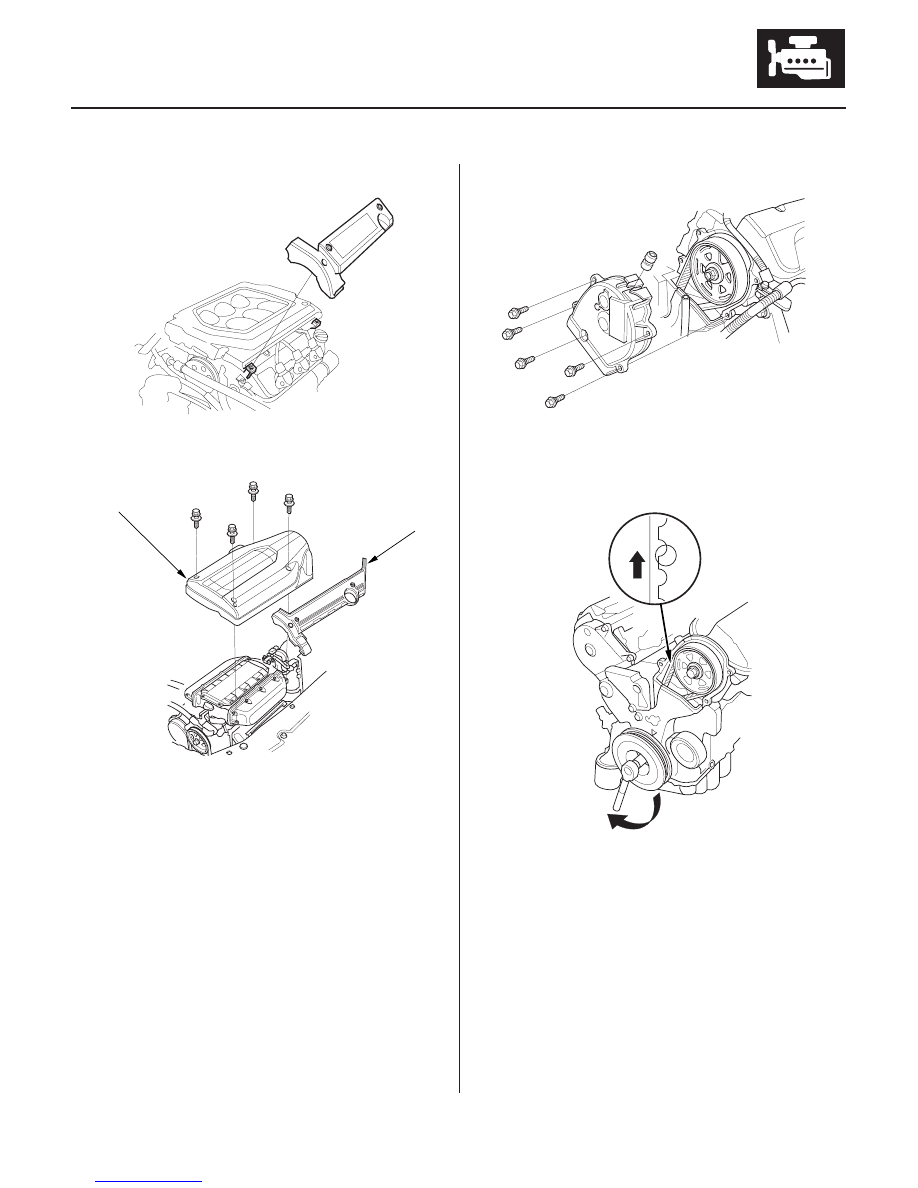

Timing Belt Inspection

B

A

1. Remove the ignition coil cover (’99-01 models).

2. Remove the intake manifold cover (A) and ignition

coil cover (B) (2002-2004 models).

3. Remove the front upper cover.

4. Inspect the timing belt for cracks and oil or coolant

soaking. Replace the belt if it is oil or coolant
soaked or cracked. Remove any oil or solvent that
gets on the belt.

03/07/29 09:10:43 61S0X050_060_0019
