Maintenance

Maintenance Schedule

Listed by Distance/Time

for Nomal Conditions

Listed by Distance/Time

for Severe Conditions

Listed by Distance/Time

for Nomal Conditions

Listed by Distance/Time

for Severe Conditions

Listed by Distance/Time

for Nomal Conditions

Listed by Distance/Time

for Severe Conditions

Listed by Distance/Time

for Nomal Conditions

Listed by Distance/Time

for Severe Conditions

......................................................

.......................................................

...................................................................

.......................................................

...................................................................

......................................................

.......................................................

...................................................................

.......................................................

...................................................................

Lubricants and Fluids

. 3-2

1999-2000 Models

. 3-4

1999-2000 Models

. 3-7

2001 Model

. 3-10

2001 Model

. 3-13

2002-2003 Models

. 3-16

2002-2003 Models

. 3-19

2004 Model

. 3-22

2004 Model

. 3-25

03/07/29 09:06:11 61S0X050_030_0001

＊１０

Ｓ０Ｘ４Ａ００００００００００００００ＢＡＡＴ８０

NO.

LUBRICATION POINTS

LUBRICANT

3-2

Lubricants and Fluids

API CERTIFICATION LABEL

Recommended Engine Oil

For 1999-2001 models

For 2002-2004 models

2002-2004 models

1999-2001 models

API CERTIFICATION
SEAL

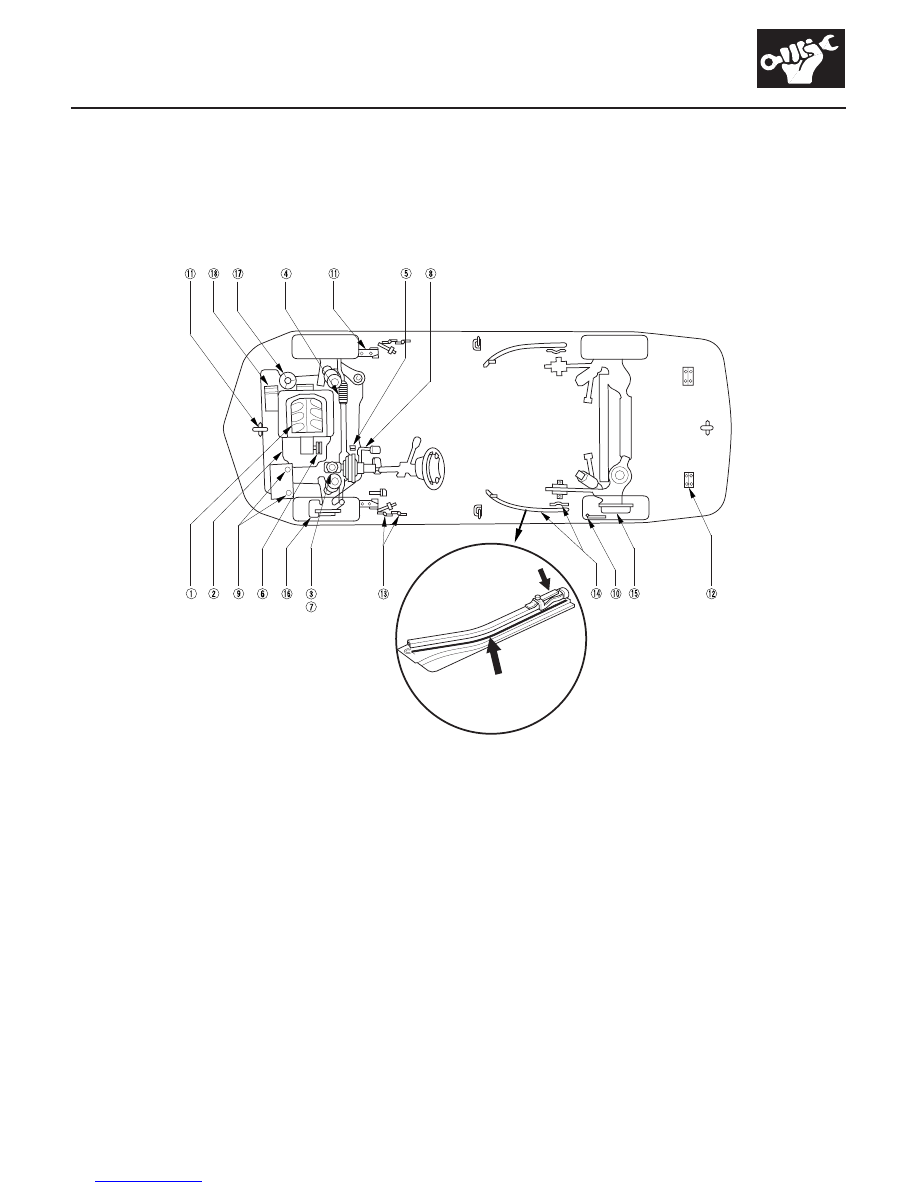

For the details of lubrication points and type of lubricants to be applied, refer to the illustrated index and various work
procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in each section.

Engine

Honda Motor Oil (P/N 08798-9023). Look for the API
Certification seal on the oil container as shown below.
Make sure it says ‘‘For Gasoline Engines.’’ SAE
Viscosity 5W-20 (for 2002-2004 models), 5W-30 (for
1999-2001 models).

Transmission

Honda ATF-Z1 (ATF)

P/N 08200-9001

Brake system (includes ABS)

Honda DOT 3 Brake Fluid

P/N 08798-9008

Power steering gearbox

Steering grease P/N 08733-B070E

Throttle cable end (Dashboard lower panel hole)

Silicone grease

Throttle cable end (Throttle link)

Super High Temp Urea Grease P/N 08798-9002

7
8
9

10
11
12
13
14

Brake booster clevis
Pedal linkage
Battery terminals
Fuel fill door
Hood hinges and hood latch
Tailgate hinges
Door hinges, upper and lower
Door rail, roller moving portion and rail spring

Multipurpose grease

Rear brake shoe linkage

Molykote Grease 44MA

Caliper piston boot, caliper pins and boots piston

Honda Caliper Grease P/N 08C30-B0234M

Power steering system

Honda Power Steering Fluid

Air conditioning compressor

Compressor oil: DENSO ND-OIL 8
(P/N 38897-PR7-A01AH or 38899-PR7-A01)
For Refrigerant: HFC-134a (R-134a)

1: Always use Honda ATF-Z1 (ATF). Using a non-Honda ATF can affect shift quality.
2: Always use Honda DOT 3 Brake Fluid. Using a non-Honda brake fluid can cause corrosion and decrease the life of

the system.

3: Always use Honda Power Steering Fluid. Using any other type of power steering fluid or automatic transmission

fluid can cause increased wear and poor steering in cold weather.

Engine oil viscosity for ambient temperature ranges

03/07/29 09:06:11 61S0X050_030_0002

０５

3-3

NOTE:

• Lubricate all hinges, latches, and locks once a year.
• In corrosive areas, more frequent lubrication is necessary.
• We recommend Honda White Lithium Grease.
