Honda Element. Manual - part 375

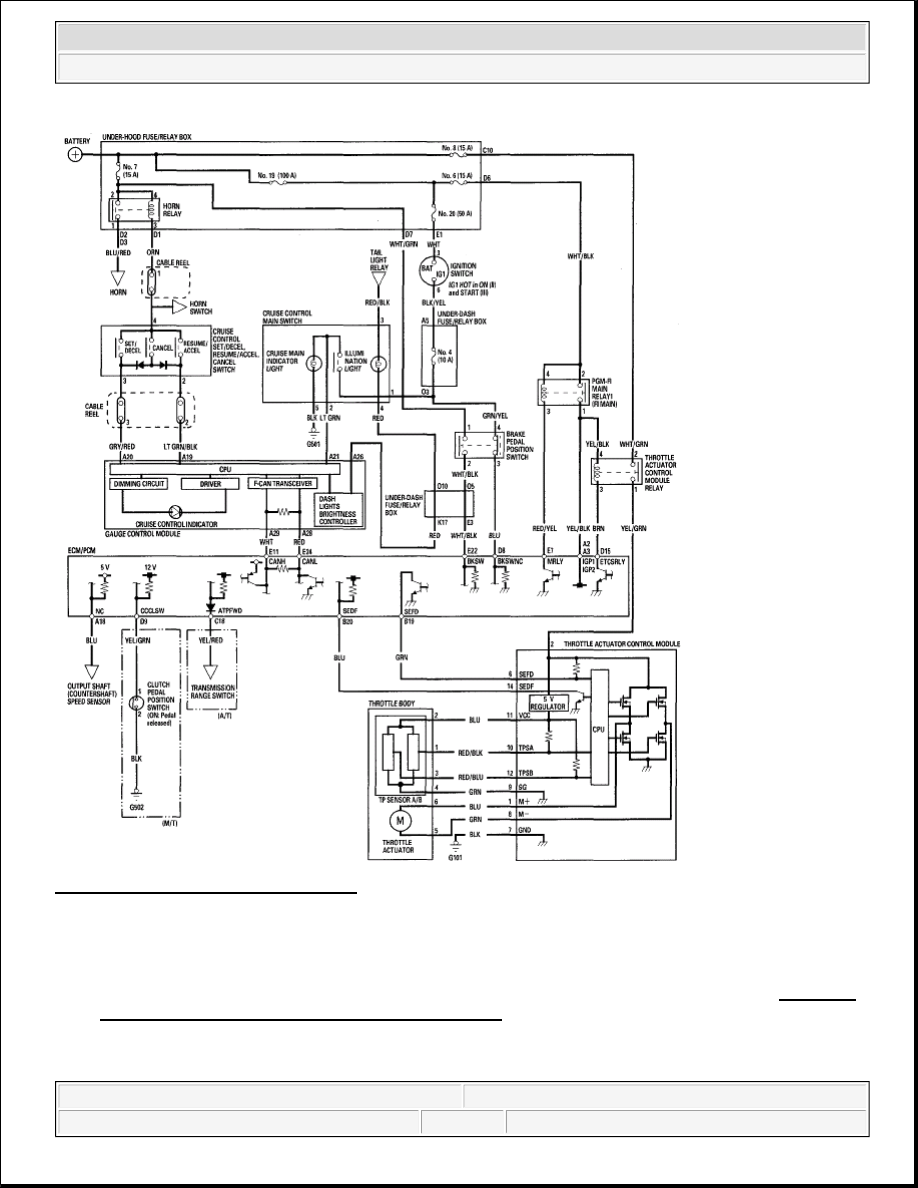

Fig. 2: Cruise Control Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CRUISE CONTROL INPUT TEST

1. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on HOW TO

USE THE HDS (HONDA DIAGNOSTIC SYSTEM) ).

2. Turn the ignition switch ON (II).

3. Make sure the HDS communicates with the vehicle and the engine control module (ECM)/powertrain



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element



control module (PCM). If it doesn't communicate, troubleshoot the DLC circuit (see DLC CIRCUIT
TROUBLESHOOTING
 ).

4. Go to PGM-FI, and check for DTCs (see DTC TROUBLESHOOTING ).

5. Do the following tests while monitoring parameters in the PGM-FI DATA LIST with the HDS.

CRUISE CONTROL INPUT TEST INSPECTION CHART

NOTE:

Intermittent failures are often caused by loose circuit connections. While
monitoring cruise control inputs, flex their circuits, and note if any of the
test results change.

Signal to be

tested

Test condition

Parameter: Desired result

Possible cause if result is

not obtained

Brake switch
signal

Brake pedal pressed, then
released

CRUISE BRAKE SW should
indicate OFF when the brake
pedal is pressed and ON when
the brake pedal is released.

Faulty brake pedal
position switch

Blown No. 4 (10 A)
fuse in the under-dash
fuse/relay box

An open in the wire
between the
ECM/PCM and the
brake pedal position
switch

A wire shorted to
ground between the
ECM/PCM and the
brake pedal position
switch

Clutch pedal
position switch
signal (M/T)

Clutch pedal pressed,
then released

SHIFT/CLUTCH SW should
indicate OFF when the clutch
pedal is pressed and ON when
the clutch pedal is released.

Faulty clutch pedal
position switch

An open in the wire
between the ECM and
the clutch pedal
position switch

A wire shorted to
ground between the
ECM and the clutch
pedal position switch

Poor ground G502

Transmission

SHIFT/CLUTCH SW should

Faulty transmission
range switch

An open in the wire
between the PCM and
the transmission range



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element



range switch
signal (A/T)

Shift lever in D

indicate ON in P, R, N, 2 and 1
and OFF in D

switch

A wire shorted to
ground between the
PCM and the
transmission range
switch

Poor ground G101

Cruise control
main switch
signal

Cruise control main
switch ON and OFF

CRUISE CONTROL MAIN
SW should indicate ON when
the cruise control main switch
is turned ON and OFF when
the cruise control main switch
is turned OFF.

Faulty cruise control
main switch

An open in the wire
between the gauge
control module and the
cruise control main
switch

A wire shorted to
ground between the
gauge control module
and the cruise control
main switch

Set switch
signal

Set/decel switch pressed
and released

CRUISE CONTROL SET SW
should indicate ON when the
set/decel switch is pressed and
OFF when the set/decel switch
is released.

Faulty cruise control
set/decel, resume/accel,
cancel switch

An open in the wire
between the gauge
control module and the
cruise control set/decel,
resume/accel, cancel
switch

A wire shorted to
ground between the
gauge control module
and the cruise control
set/decel, resume/accel,
cancel switch

Resume switch
signal

Resume/accel switch
pressed and released

CRUISE CONTROL
RESUME SW should indicate
ON when the resume/accel
switch is pressed and OFF
when the resume/accel switch
is released.

Faulty cruise control
set/decel, resume/accel,
cancel switch

An open in the wire
between the gauge
control module and the
cruise control set/decel,
resume/accel, cancel
switch

A wire shorted to



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element



CRUISE CONTROL MAIN SWITCH TEST/REPLACEMENT

1. Release the clips of the switch and push the switch (A) out of the panel, then disconnect the 5P connector

(B) from the main switch.

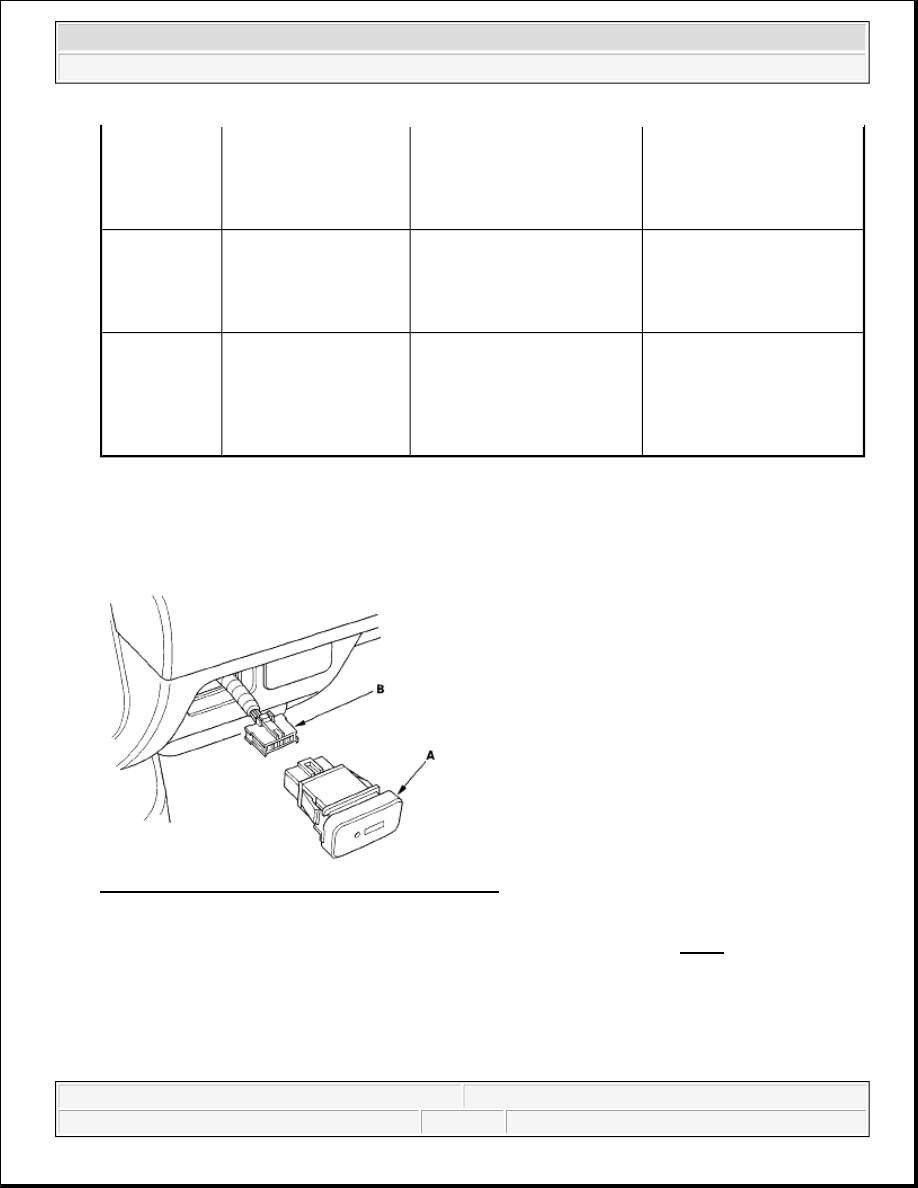

Fig. 3: Identifying 5P Connector From Main Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Check for continuity between the terminals in each switch position according to Fig. 4. If there is no

continuity, replace illumination bulbs (A) or the switch.

ground between the
gauge control module
and the cruise control
set/decel, resume/accel,
cancel switch

Cancel switch
signal

Cancel switch pressed
and released

CRUISE CONTROL
CANCEL SW should indicate
ON when the cancel switch is
pressed and OFF when the
cancel switch is released.

Faulty cruise control
set/decel, resume/accel,
cancel switch

Cruise control
indicator signal

Start the engine, turn the
cruise control main
switch on, and drive the
vehicle above 25 mph
(40 km/h). Set and cancel
the cruise control.

CRUISE INDICATOR should
indicate ON when the cruise
control is set and OFF when
the cruise control is canceled.

Faulty gauge control module



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element
