2007-08 ACCESSORIES AND EQUIPMENT

Cruise Control - Element

COMPONENT LOCATION INDEX

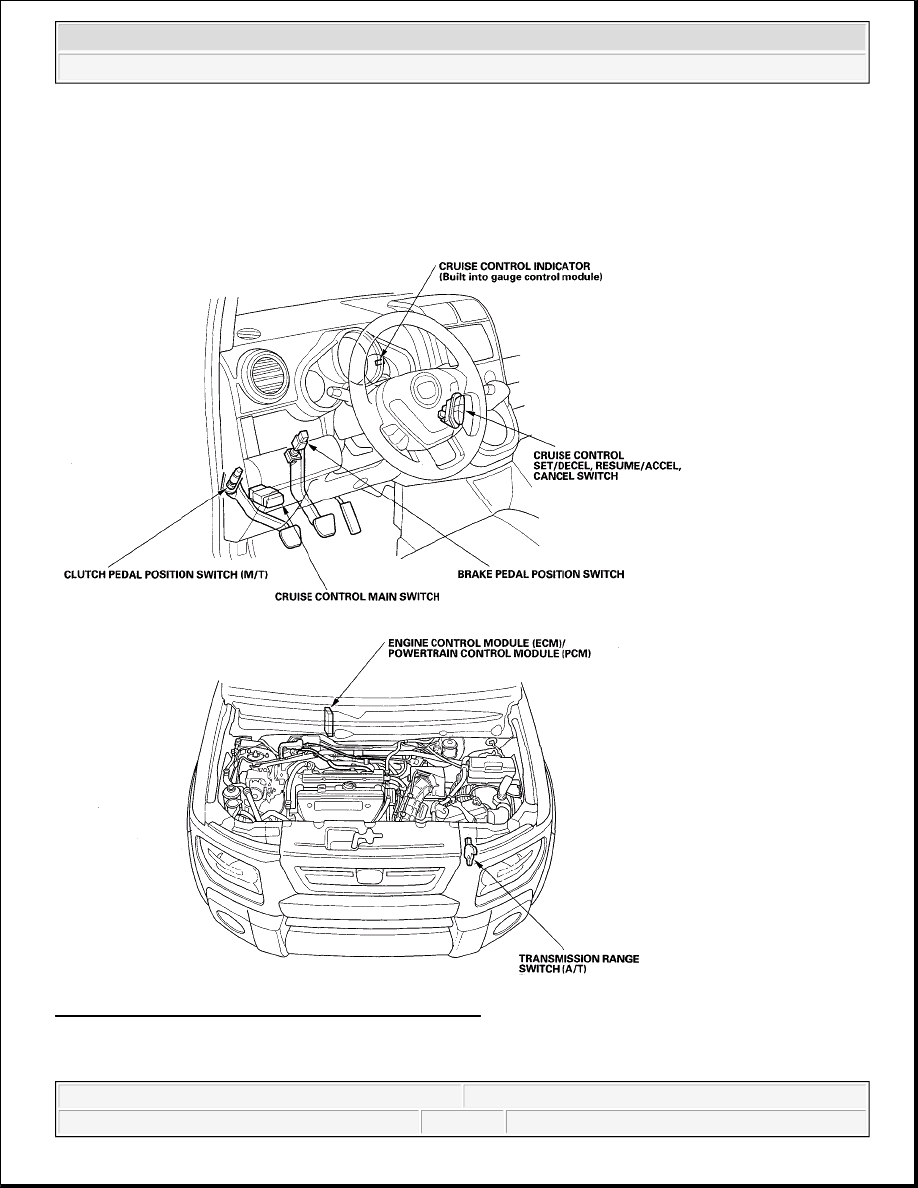

Fig. 1: Identifying Cruise Control Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYMPTOM TROUBLESHOOTING INDEX



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element





2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element



SYMPTOM TROUBLESHOOTING CHART

Symptom

Diagnostic procedure

Also check for

Cruise control cannot be set

1. Check for PGM-FI DTCs (see GENERAL

TROUBLESHOOTING
INFORMATION ) and body DTCs (see
WIRE COLOR CODES ).

2. Check the No. 7 (15 A) fuse in the under-

hood fuse/relay box, and No. 4 (10 A) fuse
in the under-dash fuse/relay box.

3. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).

4. Do the cruise control main switch test (see

CRUISE CONTROL MAIN SWITCH
TEST/REPLACEMENT ).

5. Do the cruise control set/decel,

resume/accel, cancel switch test (see
CRUISE CONTROL MAIN SWITCH
TEST/REPLACEMENT ).

Faulty cruise control
main switch

Cruise control can be set, but
the cruise control main
switch indicator does not
come on

1. Do the cruise control main switch test (see

CRUISE CONTROL MAIN SWITCH
TEST/REPLACEMENT ).

2. Check for a faulty cruise control main

switch indicator bulb.



Faulty cruise
control main
switch



Poor ground G501

Cruise control can be set, but
the cruise control indicator
does not come on

1. Check for PGM-FI DTCs (see GENERAL

TROUBLESHOOTING
INFORMATION ) and body DTCs (see
WIRE COLOR CODES ).

2. Do the gauge control module self-

diagnostic function (see WIRE COLOR
CODES 7).

3. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the cruise control indicator signal
input.

Faulty gauge control
module

Vehicle does not decelerate
or accelerate accordingly
when the set/decel or
resume/accel switch is
pressed

1. Check for PGM-FI DTCs (see GENERAL

TROUBLESHOOTING
INFORMATION ) and body DTCs (see
WIRE COLOR CODES ).

2. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the cruise control set/decel,
resume/accel switch signal input.

3. Do the cruise control set/decel,

Open circuit, loose or
disconnected terminals:
LT GRN/BLK or
GRY/RED



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element



resume/accel, cancel switch test (see
CRUISE CONTROL MAIN SWITCH
TEST/REPLACEMENT ).

Set speed does not cancel
when the brake pedal is
pressed

1. Check for PGM-FI DTCs (see GENERAL

TROUBLESHOOTING
INFORMATION ) and body DTCs (see
WIRE COLOR CODES ).

2. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the brake pedal position switch signal
input.

3. Do the brake pedal position switch test (see

LICENSE PLATE LIGHT
REPLACEMENT ).



Short to power on
the WHT/BLK
wire



Faulty brake pedal
position switch

Set speed does not cancel
when the cruise control main
switch is pressed

1. Check for PGM-FI DTCs (see GENERAL

TROUBLESHOOTING
INFORMATION ) and body DTCs (see
WIRE COLOR CODES ).

2. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the cruise control main switch signal
input.

3. Do the cruise control main switch test (see

CRUISE CONTROL MAIN SWITCH
TEST/REPLACEMENT ).

Short to power on the
LT GRN wire

Set speed does not cancel
when the cancel switch is
pressed

1. Check for PGM-FI DTCs (see GENERAL

TROUBLESHOOTING
INFORMATION ) and body DTCs (see
WIRE COLOR CODES ).

2. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the cruise control cancel switch signal
input.

3. Do the cruise control set/decel,

resume/accel, cancel switch test (see
CRUISE CONTROL MAIN SWITCH
TEST/REPLACEMENT ).

Open circuit, loose or
disconnected terminals:
LT GRN/BLK or
GRY/RED

Set speed will not resume
when the resume/accel

1. Check for PGM-FI DTCs (see GENERAL

TROUBLESHOOTING
INFORMATION ) and body DTCs (see
WIRE COLOR CODES ).

2. Check the brake pedal position switch

adjustment (see BRAKE PEDAL AND
BRAKE PEDAL POSITION SWITCH



Faulty brake pedal
position switch



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element



CIRCUIT DIAGRAM

switch is pressed (with the
cruise control main switch
turned on, and set speed
temporarily canceled by
pressing the brake pedal)

ADJUSTMENT ).

3. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the cruise control resume/accel switch
signal input. Test the brake pedal position
switch signal input.

4. Do the cruise control set/decel,

resume/accel, cancel switch test (see
CRUISE CONTROL MAIN SWITCH
TEST/REPLACEMENT ).



Open circuit,
loose or
disconnected
terminals: LT
GRN/BLK

With the ignition switch ON
(II), and the lighting switch
turned on, the cruise control
main switch illumination
does not come on

1. Replace the cruise control main switch

illumination bulb (see CRUISE
CONTROL MAIN SWITCH
TEST/REPLACEMENT ).

2. Do the cruise control main switch test (see

CRUISE CONTROL MAIN SWITCH
TEST/REPLACEMENT ).
