1. Before replacing the gauge control module, connect the HDS.
2. Select GAUGES from the BODY ELECTRICAL menu display.
3. Select "Gauge Control Module Replacement (ODO rewrite)" from the
ADJUSTMENT menu, and follow the instructions on the display to retrieve
the ODO value and the Smart Maintenance information.
4. Replace the gauge control module.
5. Follow the instructions on the display to write the new ODO value and Smart
maintenance to the new gauge control module. If the data transfer fails, refer to
the instructions to release the locked ODO value .
RELEASE LOCKED ODOMETER MILEAGE TO THE ORIGINAL GAUGE CONTROL MODULE
If after you attempt to transfer mileage the odometer has dashes (- - -), garbled, or
incorrect value display, do the following Start over. The original gauge control
module is going to be unlocked and restored to its original state.
1. Confirm that you have the latest HDS version of software.
2. Make sure that the HDS shows the correct VIN for the car you are working on.
3. With the ignition switch OFF, reconnect the original gauge assembly.
4. Completely re-boot the HDS.
5. Clear any stored DTCs.
6. Navigate to Body Electric/Gauges/Adjustment/Instrument Panel Replacement.
7. Select "3. Releasing Locked ODO Valve".
8. Follow the prompts and the Odometer mileage will be restored.
9. Start over and make sure the screen prompts are followed.

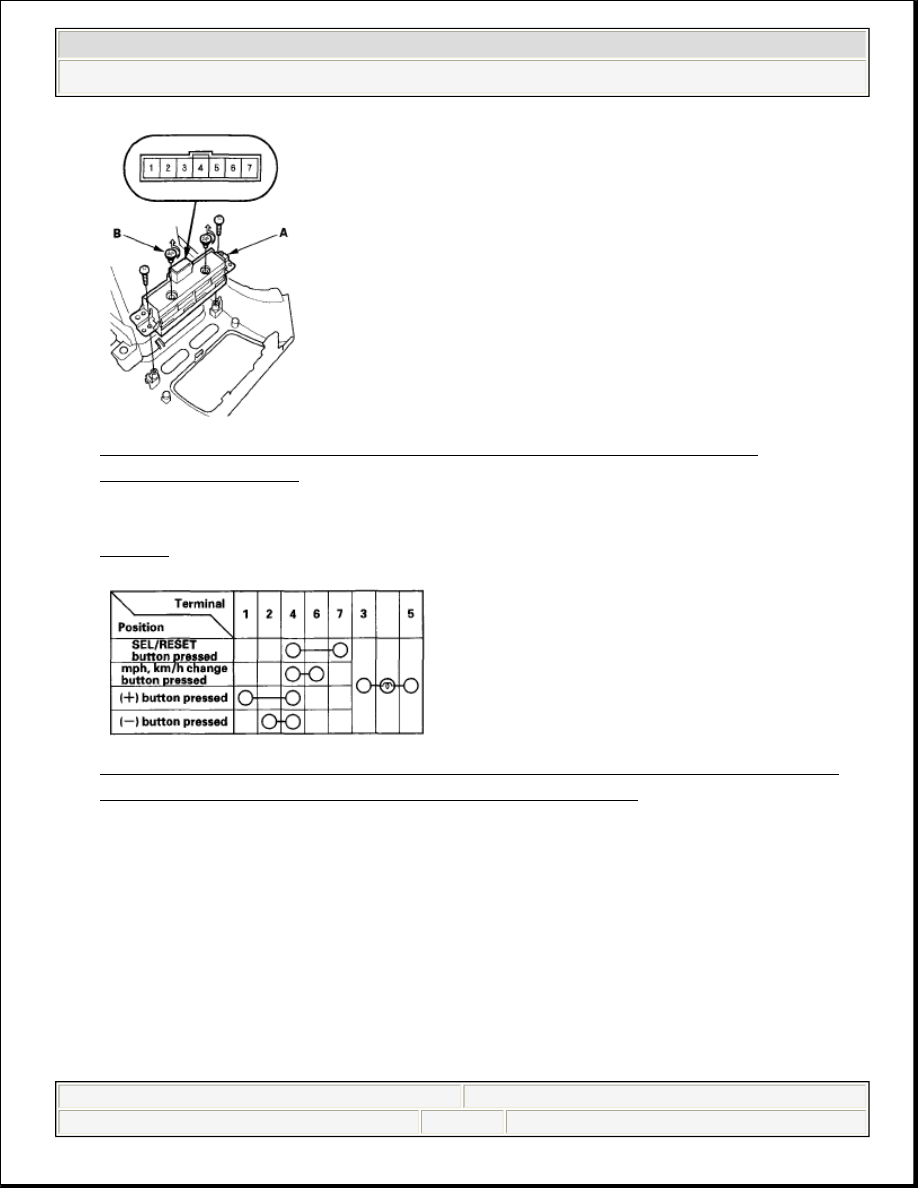

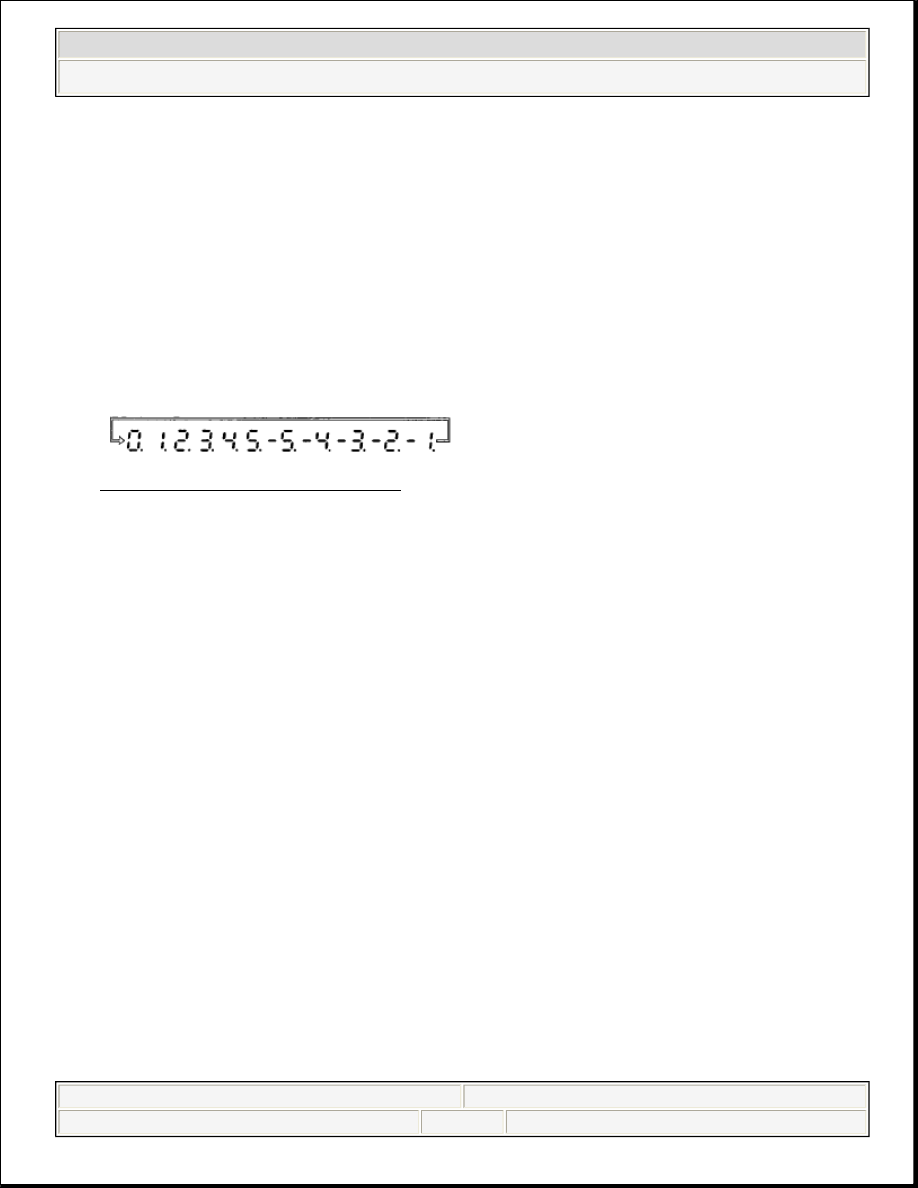

DASH LIGHTS BRIGHTNESS CONTROLLER AND ODOMETER
SELECT/RESET BUTTON TEST/REPLACEMENT
1. Remove the subdisplay visor (see SUBDISPLAY VISOR
REMOVAL/INSTALLATION ) and disconnect the connectors.
2. Remove the two screws and the dash lights brightness controller-odometer
select/reset button (A).
