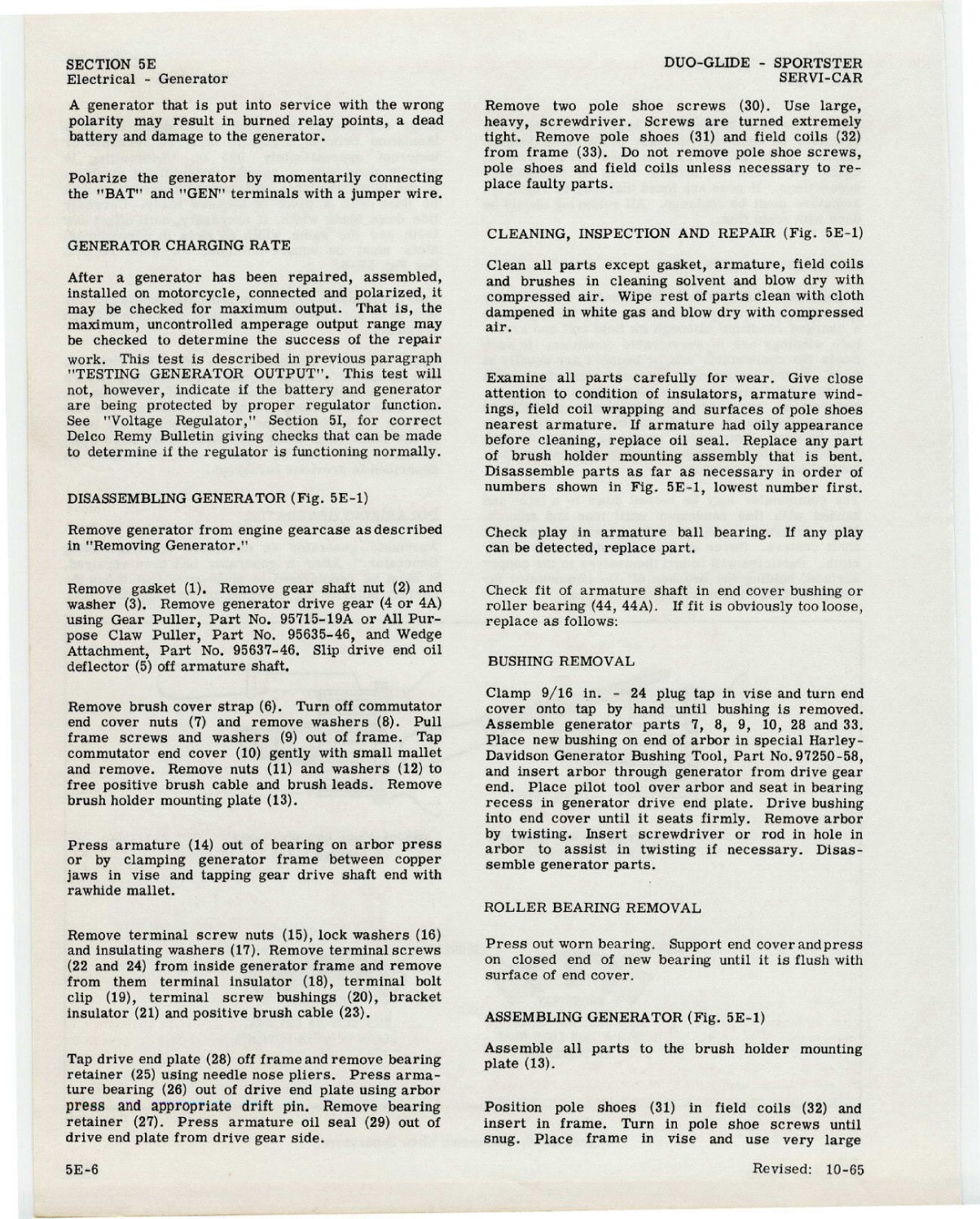

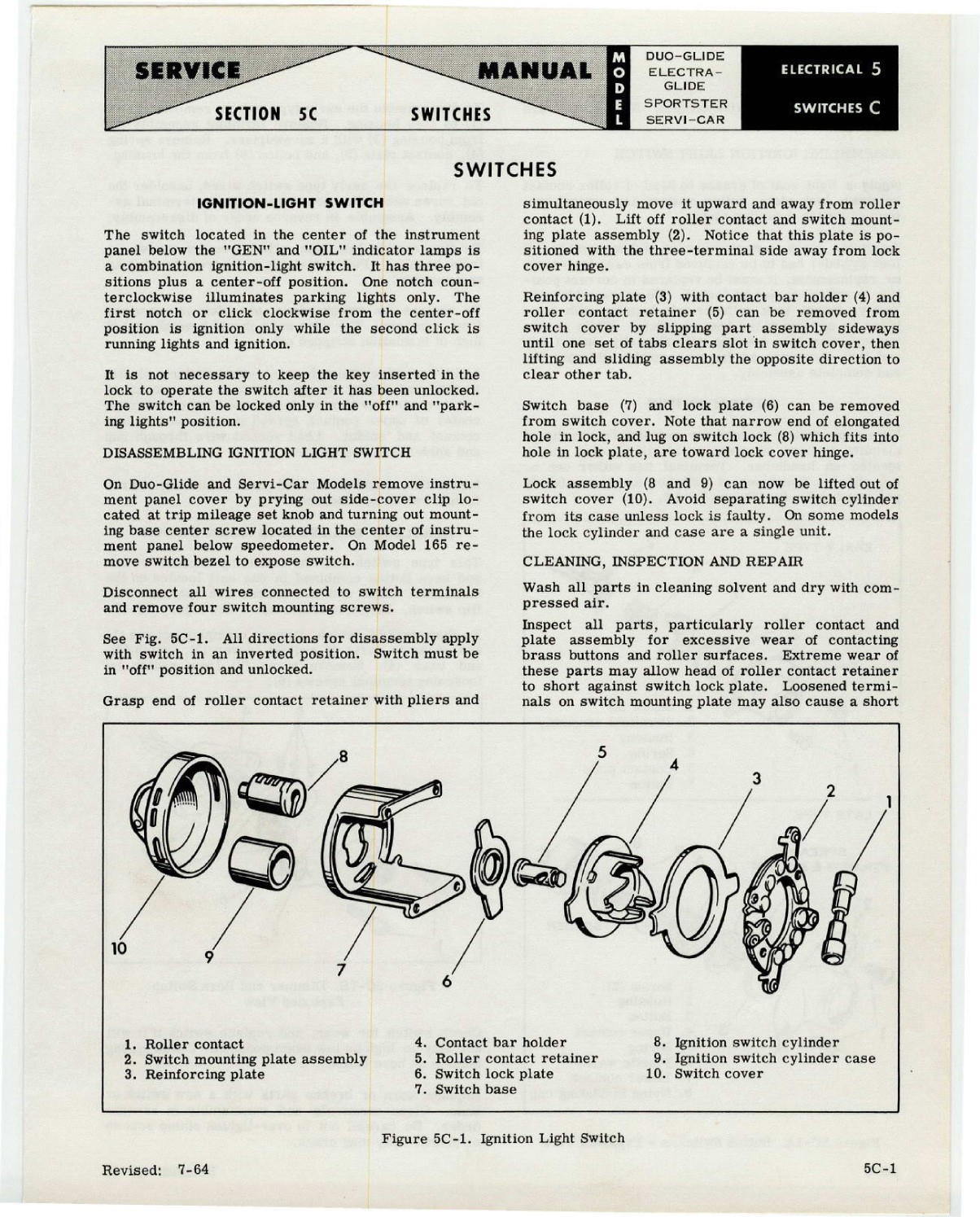

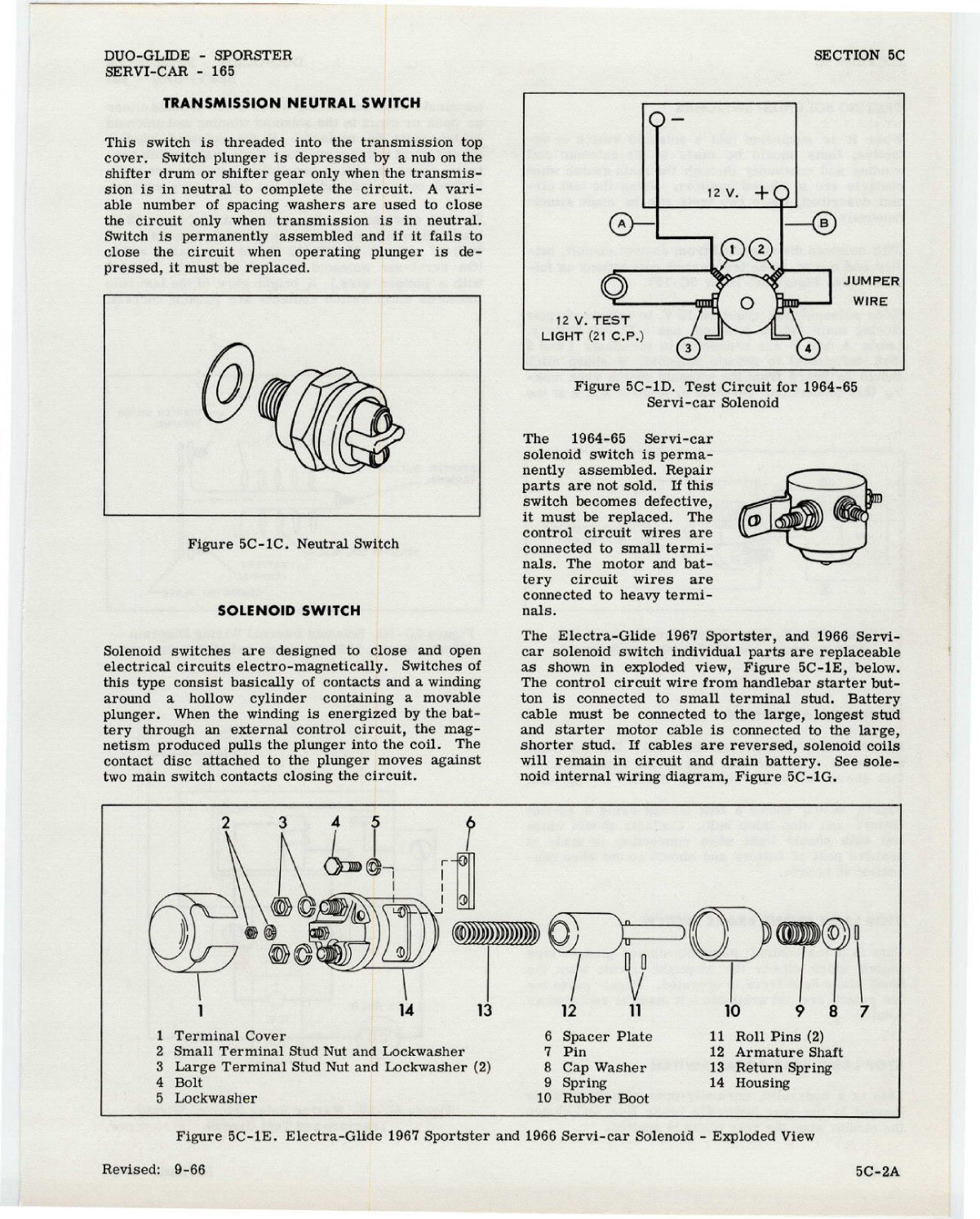

Harley Davidson Sportster (1959 to 1969). Service manual - page 11

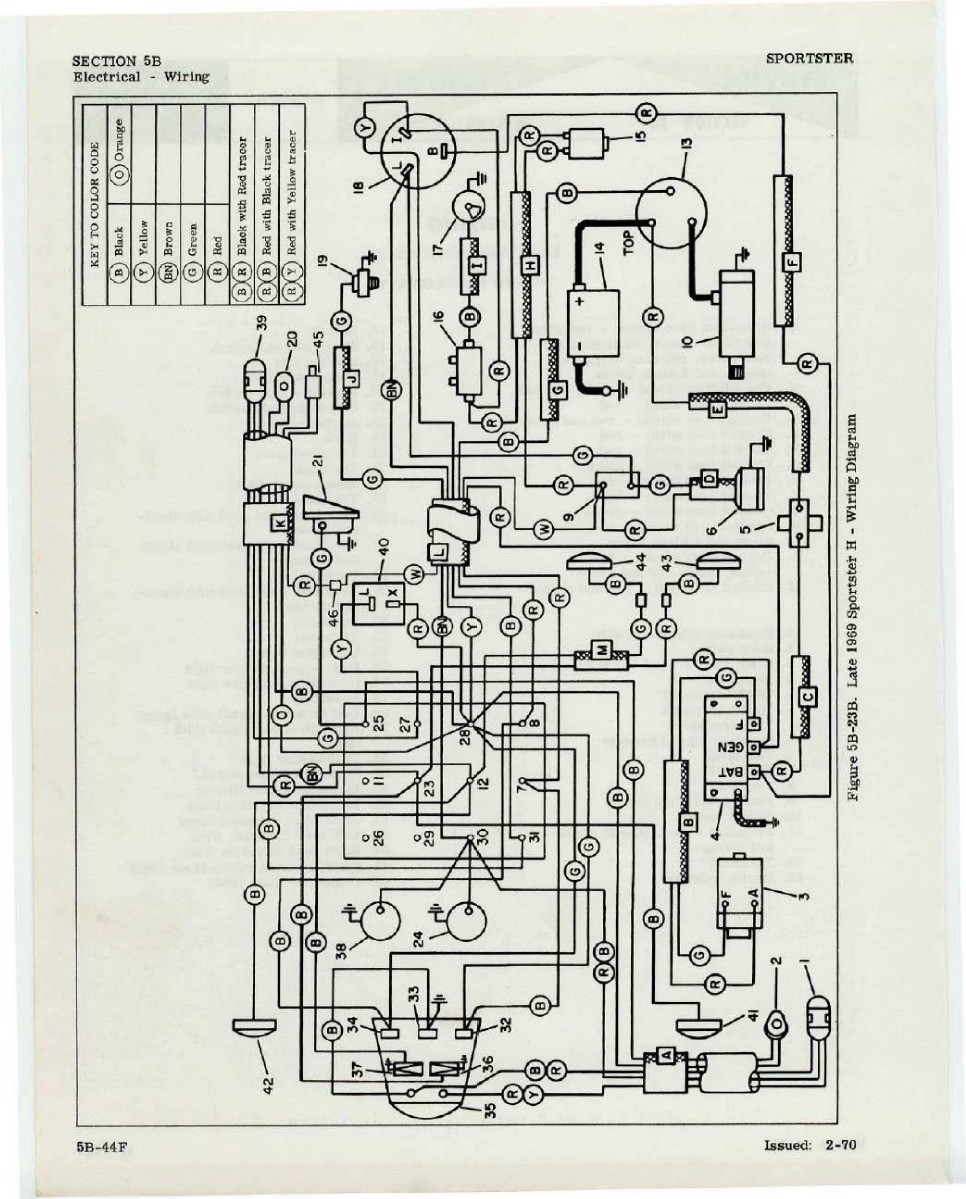

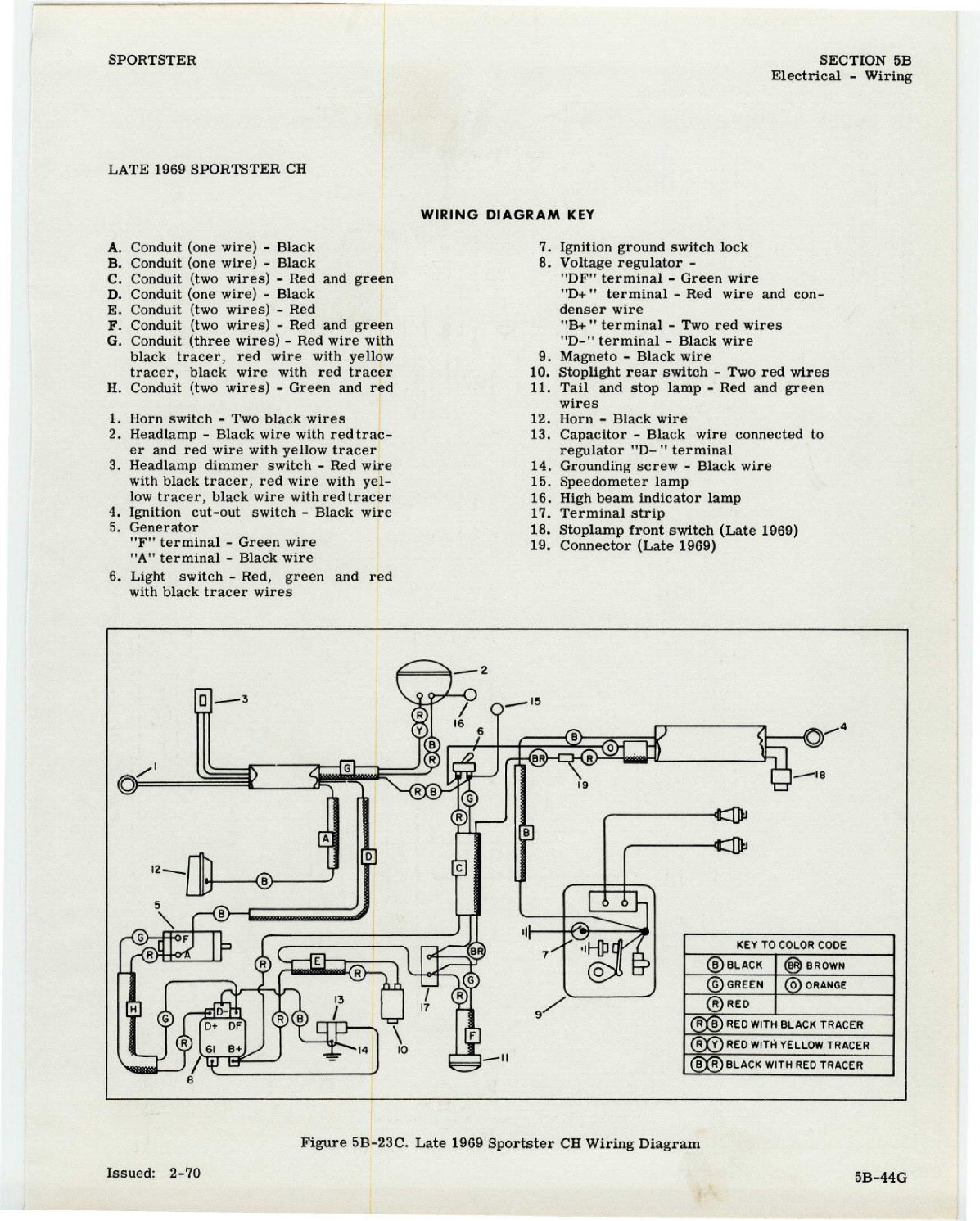

WIRING

1968-69 SPORTSTER H

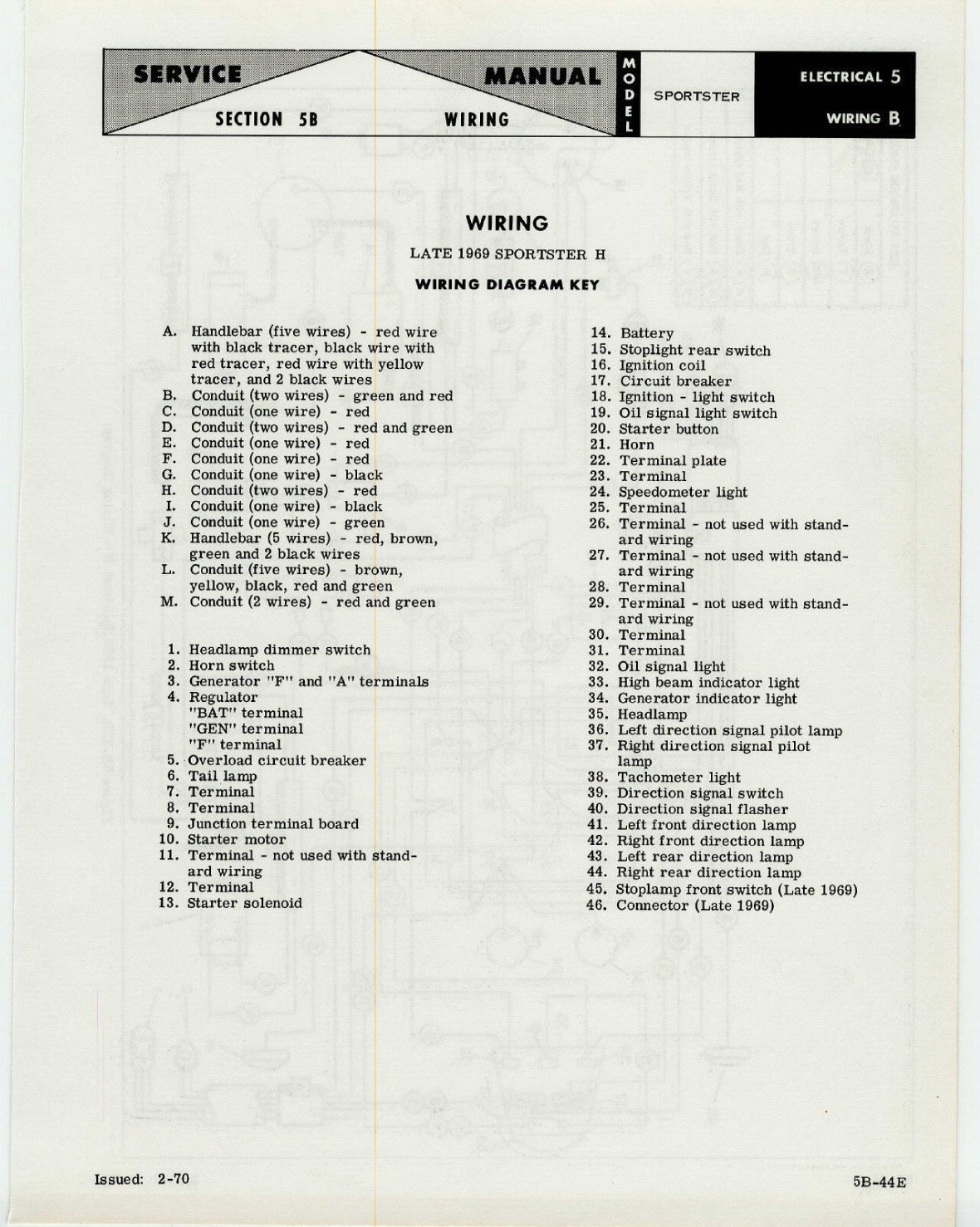

WIRING DIAGRAM KEY

A. Handlebar (five wires) - red wire with black tracer, black wire with red tracer, red wire with yellow tracer, and 2 black wires

B. Conduit (two wires) - green and red

C. Conduit (one wire) - red

D. Conduit (two wires) - red and green

E. Conduit (one wire) - red

F. Conduit (one wire) - red

G. Conduit (one wire) - black

H. Conduit (two wires) - red

I. Conduit (one wire) - black

J. Conduit (one wire) - green

K. Handlebar (5 wires) - red, brown, green and 2 black wires

L. Conduit (five wires) - brown, yellow, black, red and green

M. Conduit (2 wires) - red and green

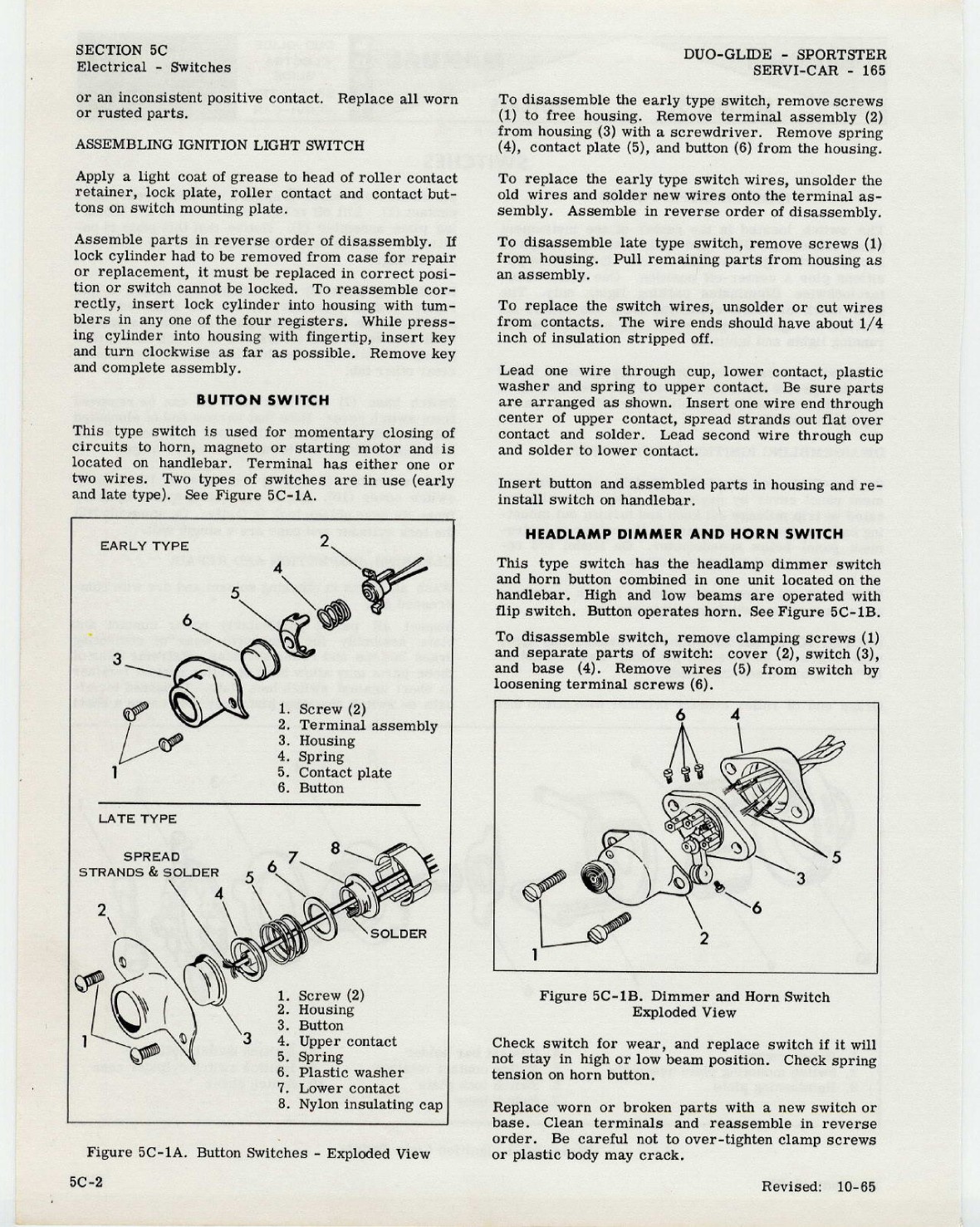

1. Headlamp dimmer switch

2. Horn switch

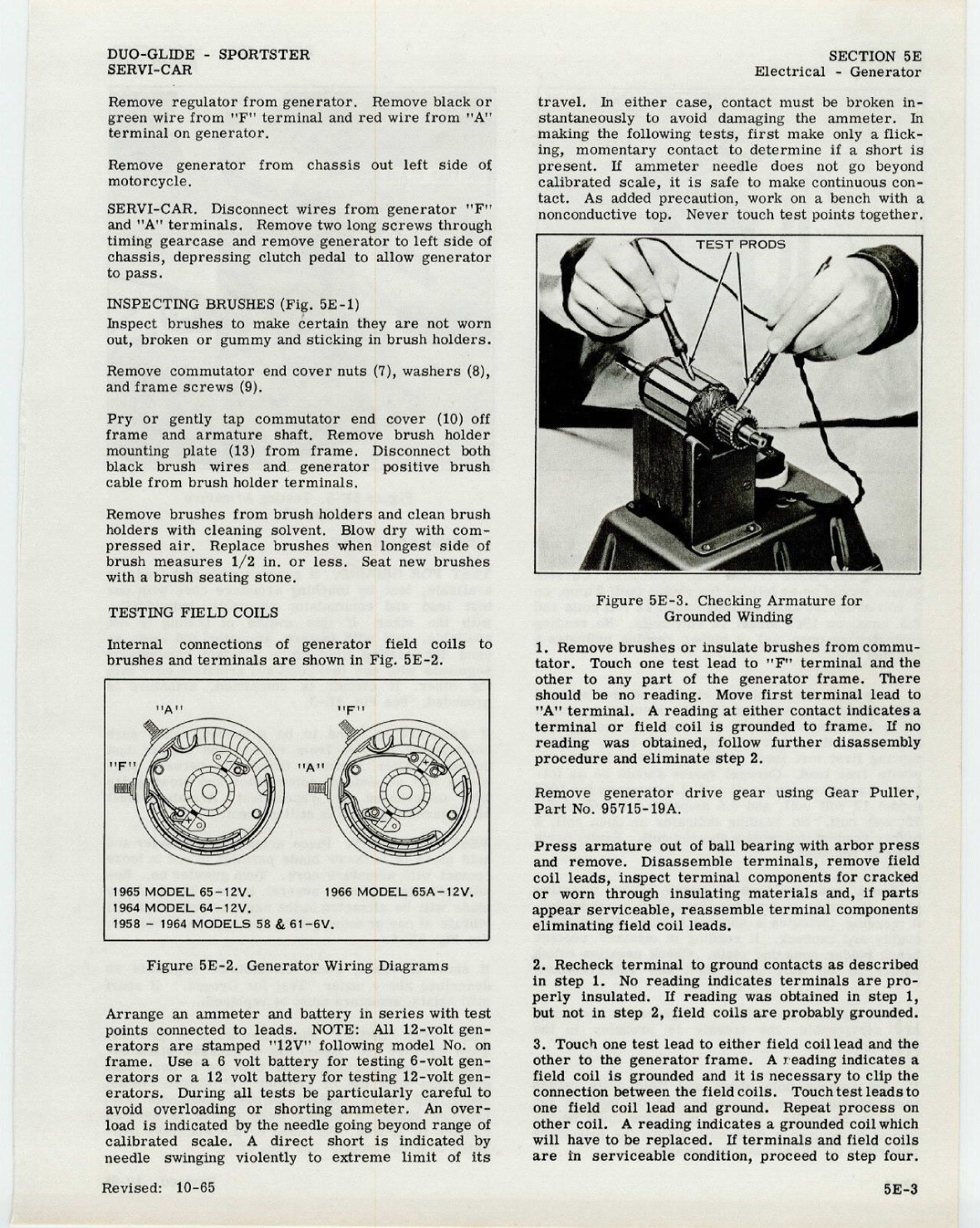

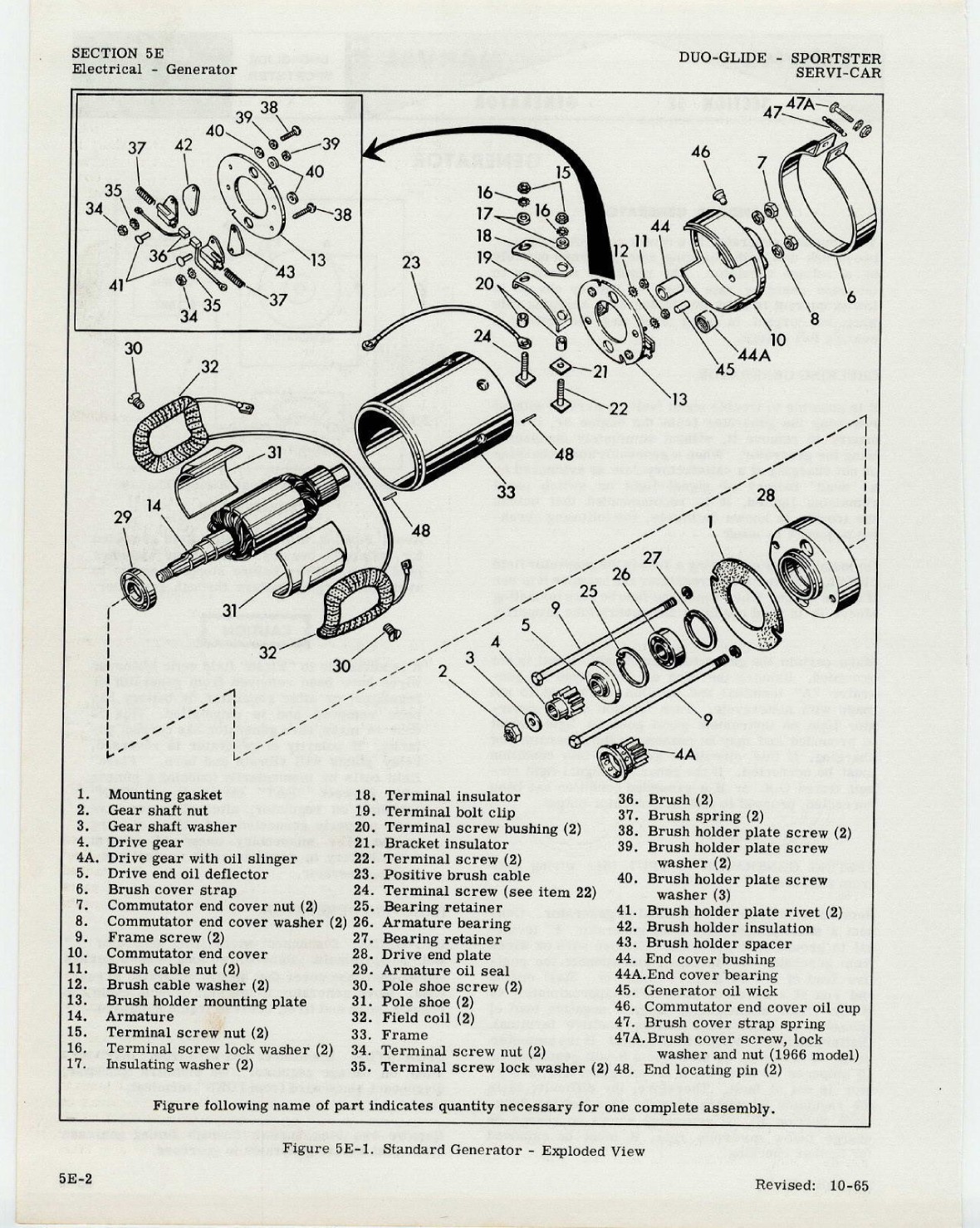

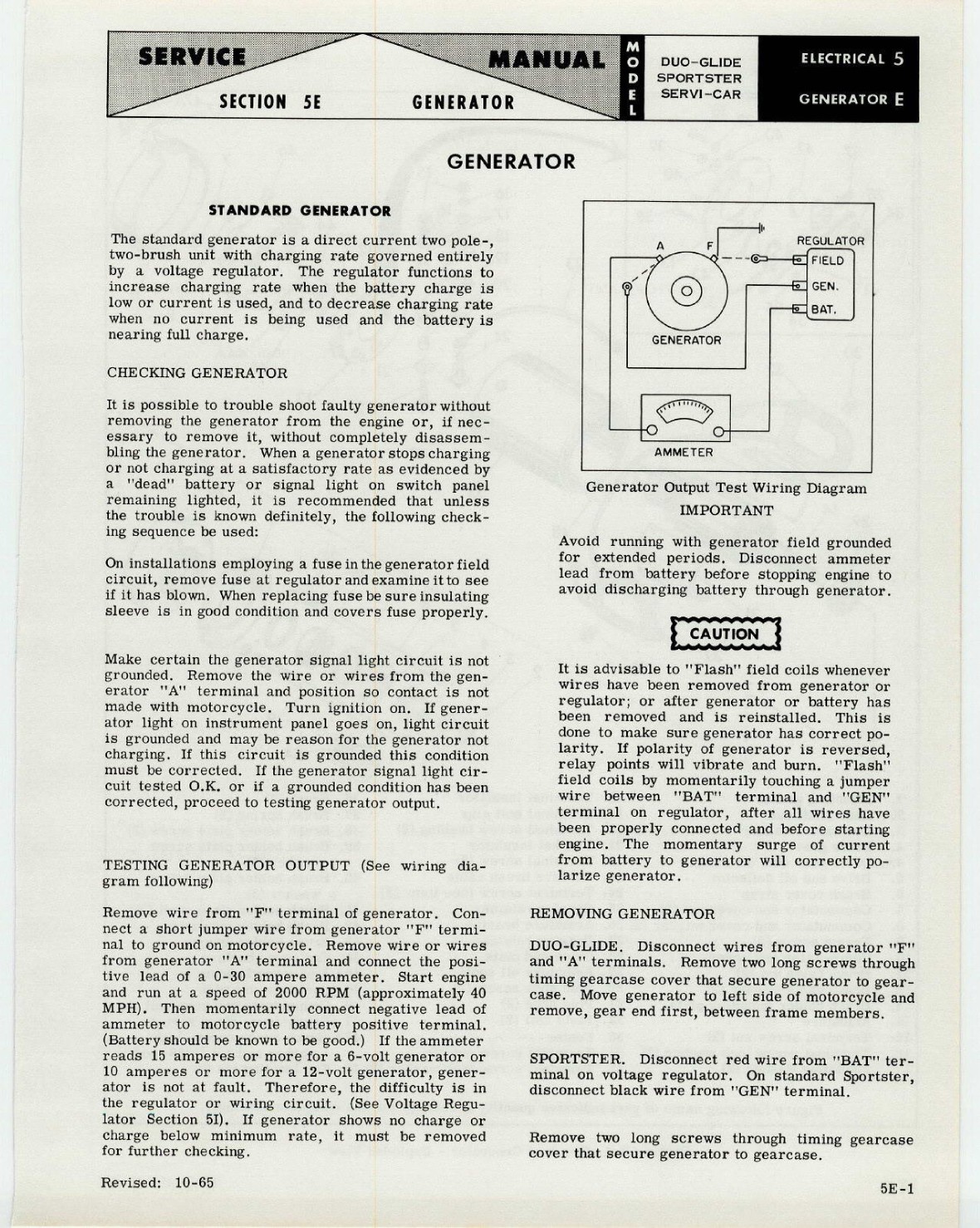

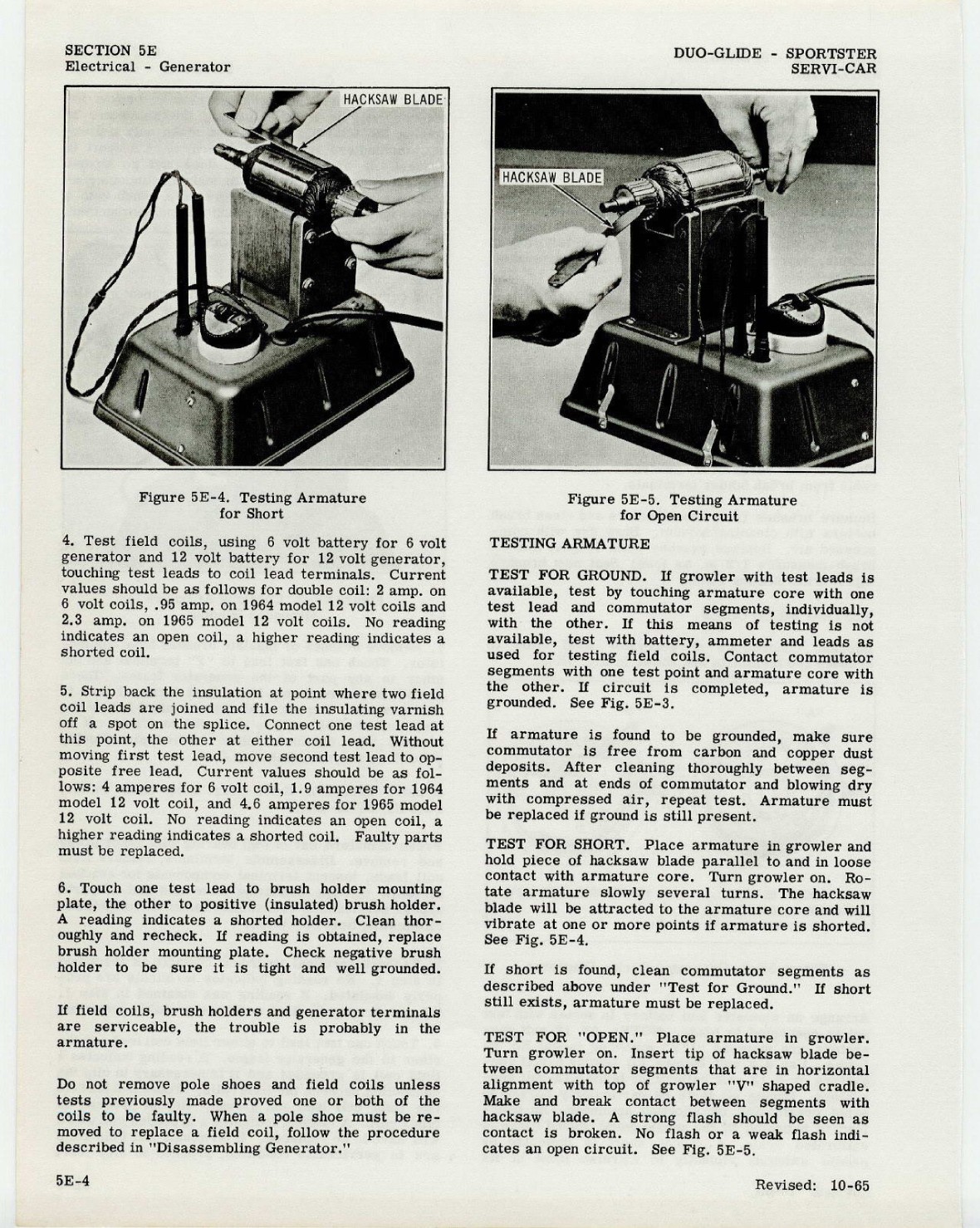

3. Generator "F" and "A" terminals

4. Regulator "BAT" terminal "GEN" terminal "F" terminal

5. Overload circuit breaker

6. Tail lamp

7. Terminal

8. Terminal

9. Junction terminal board

10. Starter motor

11. Terminal - not used with standard wiring

12. Terminal

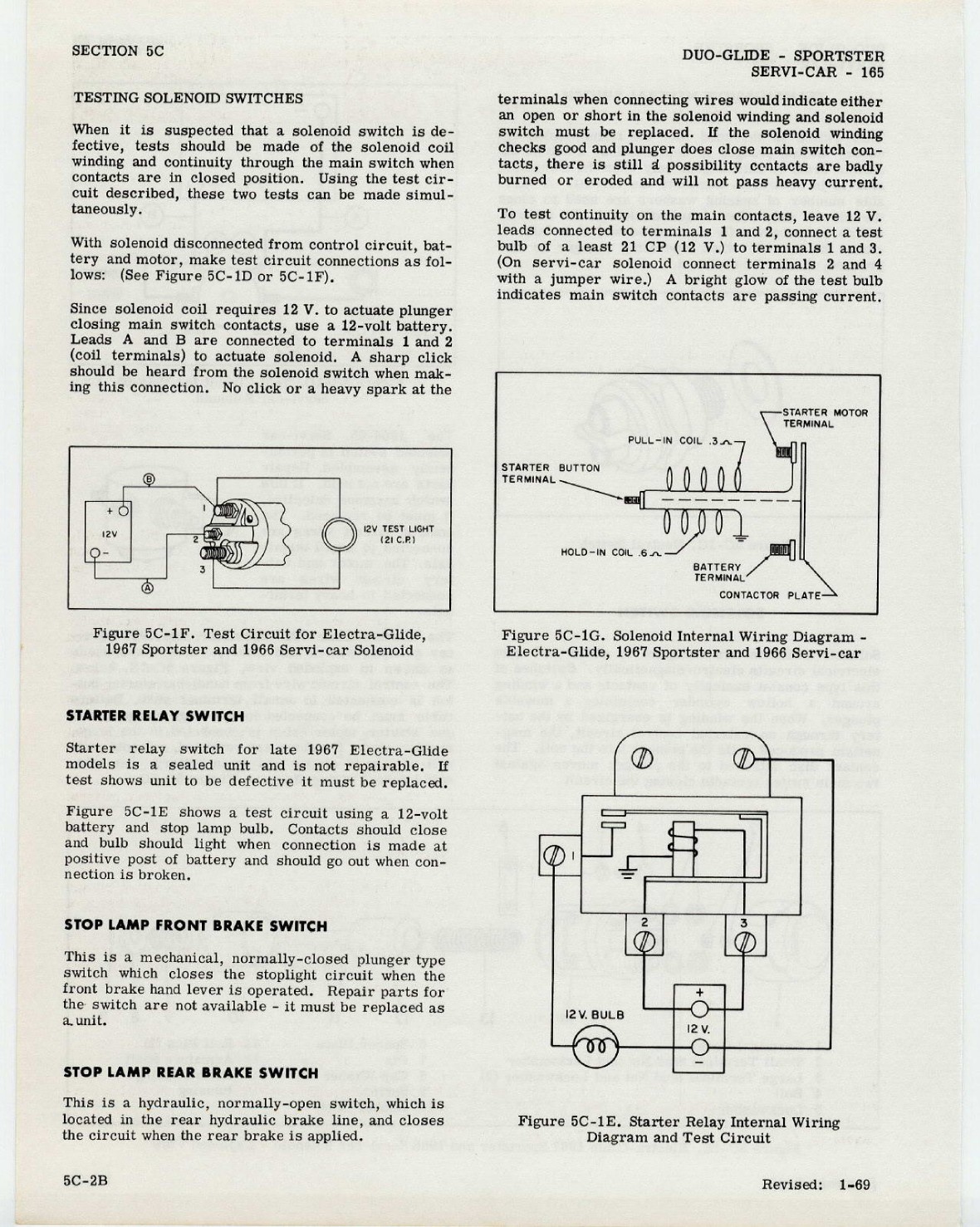

13. Starter solenoid

14. Battery

15. Stoplight switch

16. Ignition coil

17. Circuit breaker

18. Ignition - light switch

19. Oil signal light switch

20. Starter button

21. Horn

22. Terminal plate

23. Terminal

24. Speedometer light

25. Terminal

26. Terminal - not used with standard wiring

27. Terminal - not used with standard wiring

28. Terminal

29. Terminal - not used with standard wiring

30. Terminal

31. Terminal

32. Oil signal light

33. High beam indicator light

34. Generator indicator light

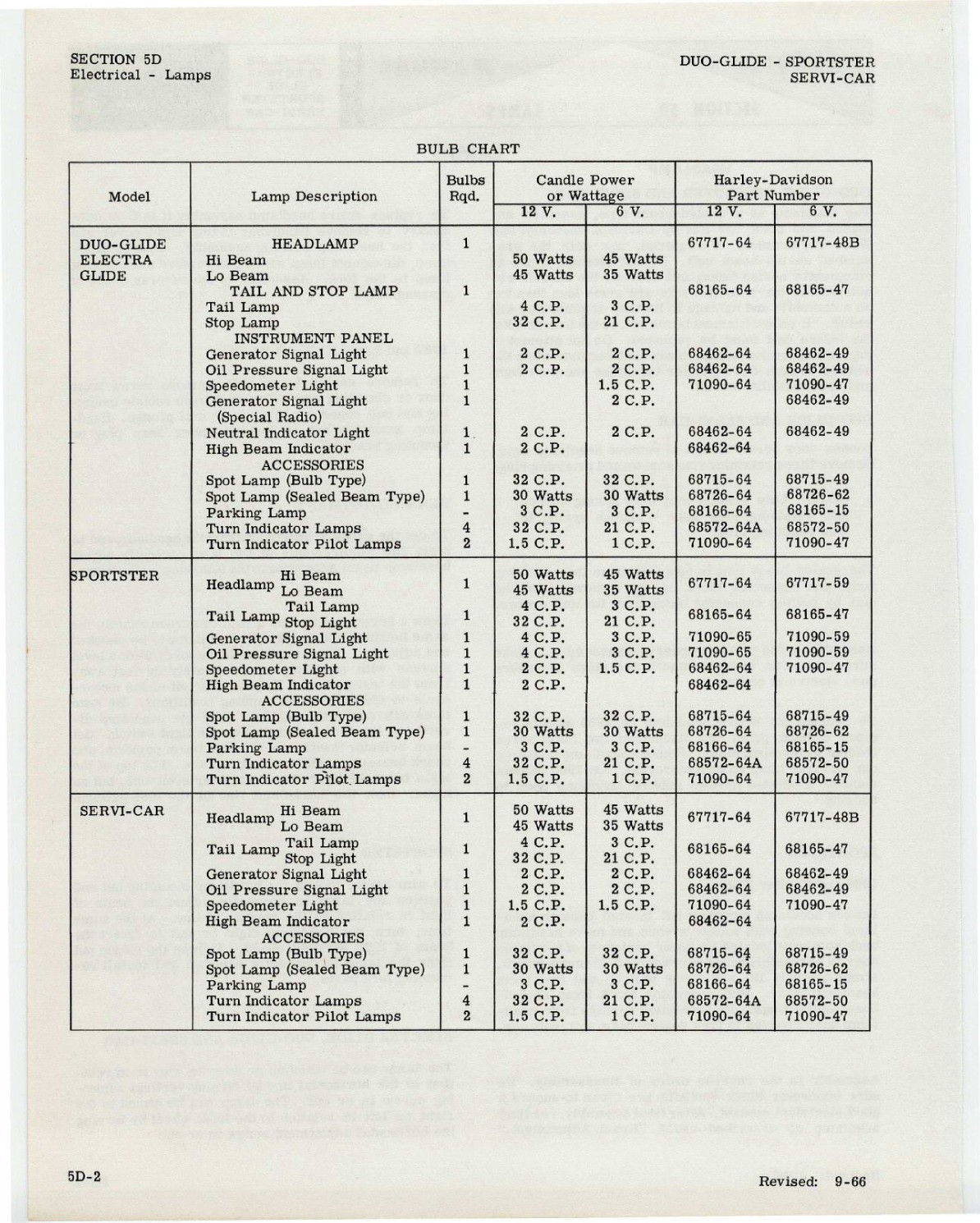

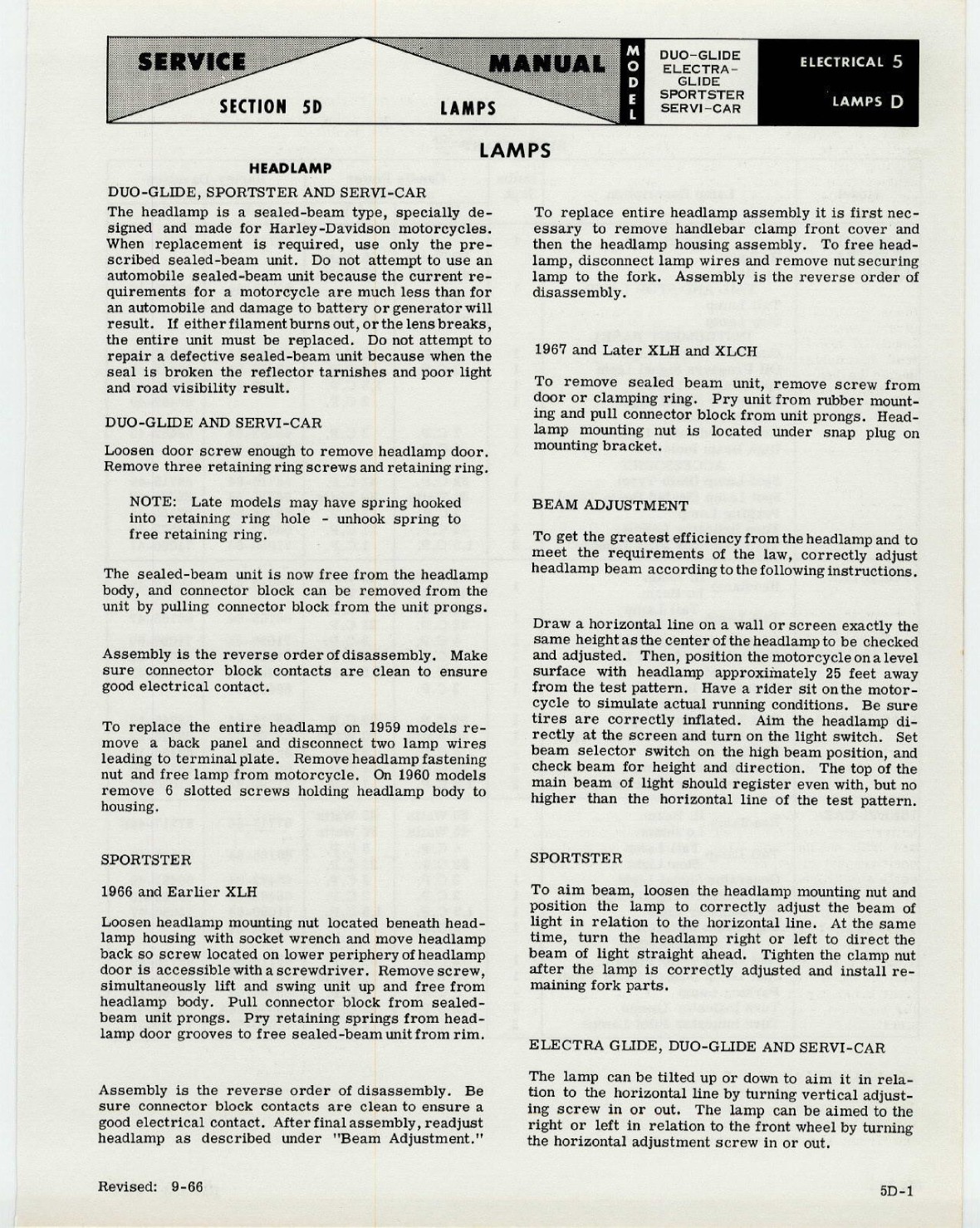

35. Headlamp

36. Left direction signal pilot lamp

37. Right direction signal pilot lamp

38. Tachometer light

39. Direction signal switch

40. Direction signal flasher

41. Left front direction lamp

42. Right front direction lamp

43. Left rear direction lamp

44. Right rear direction lamp
