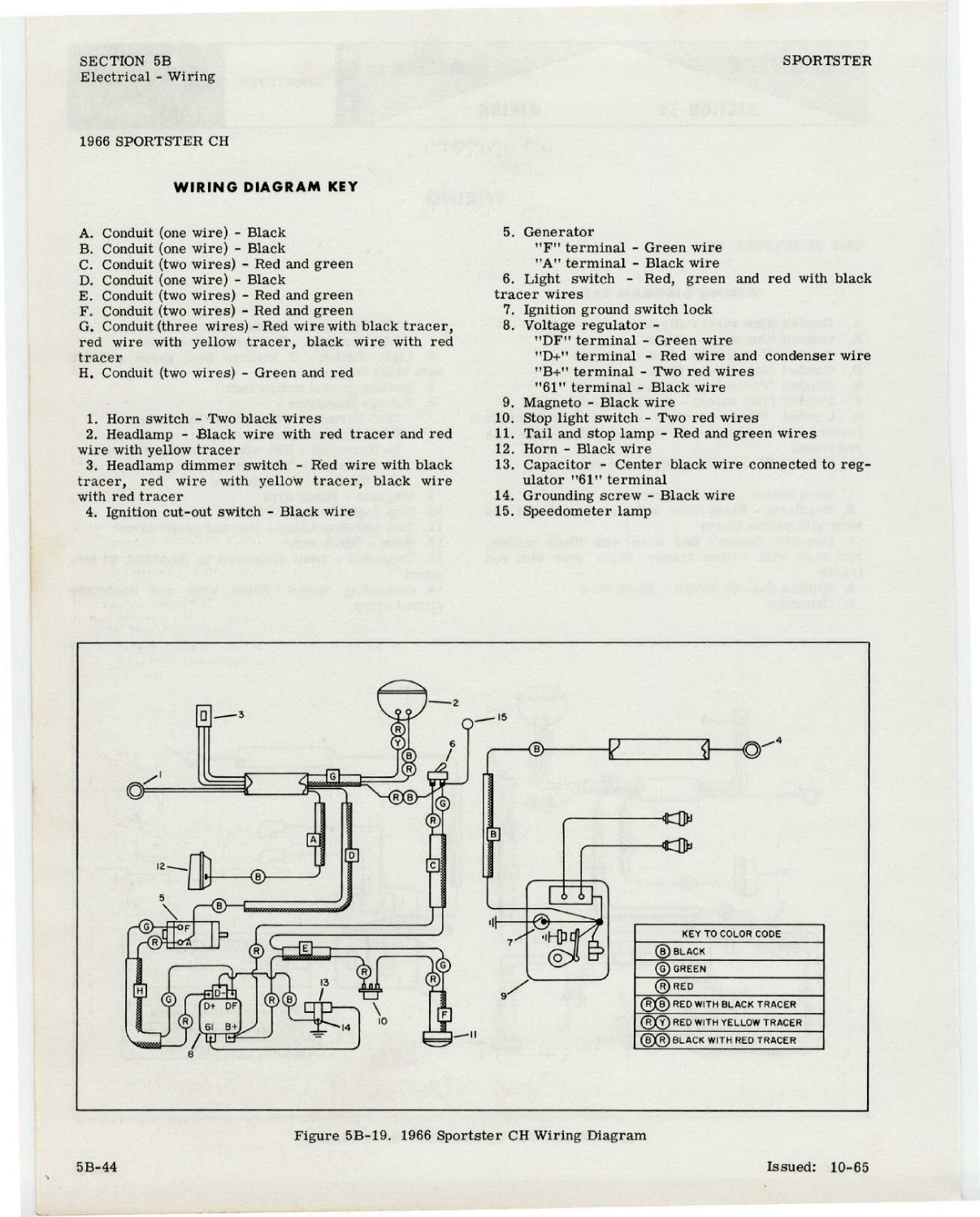

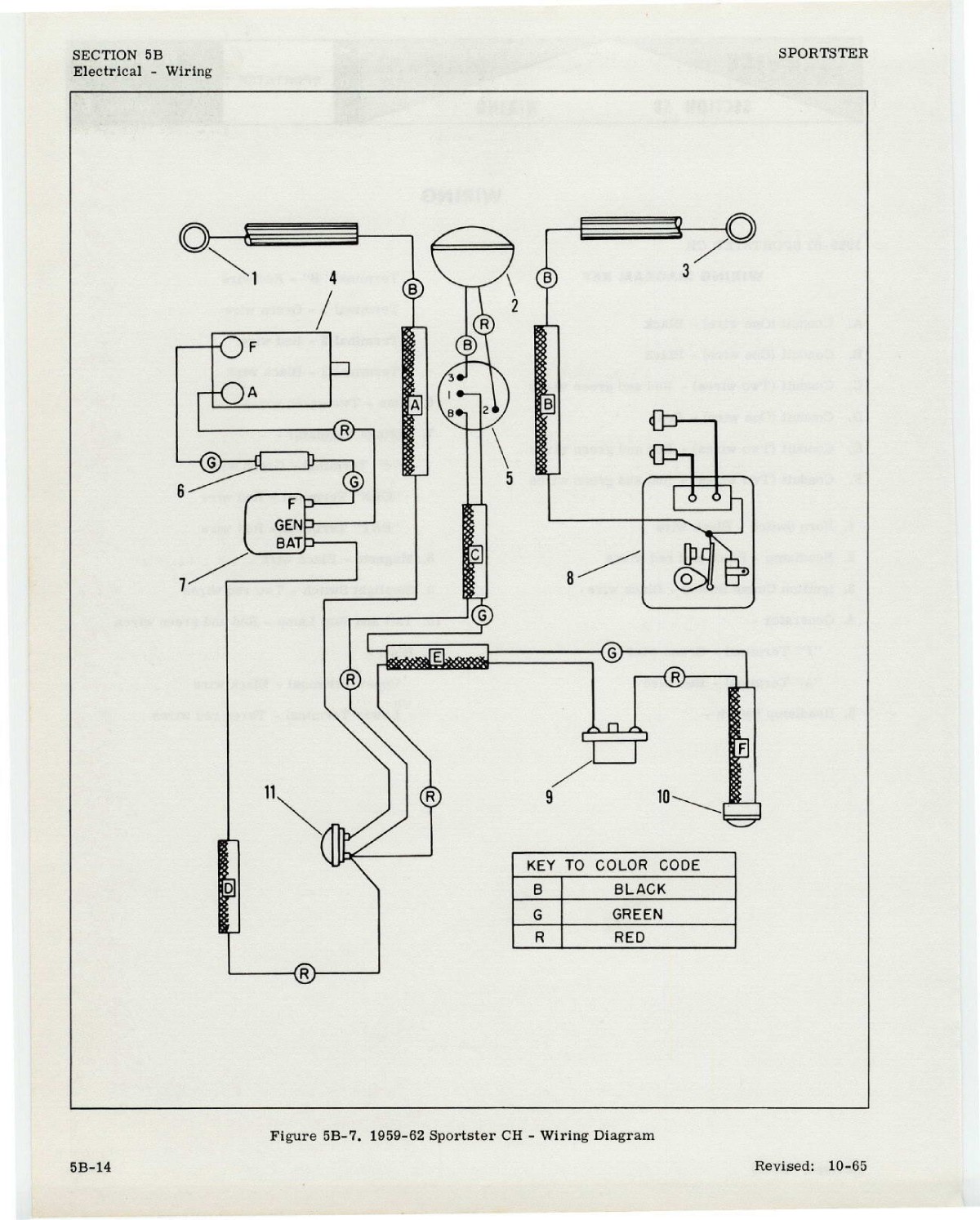

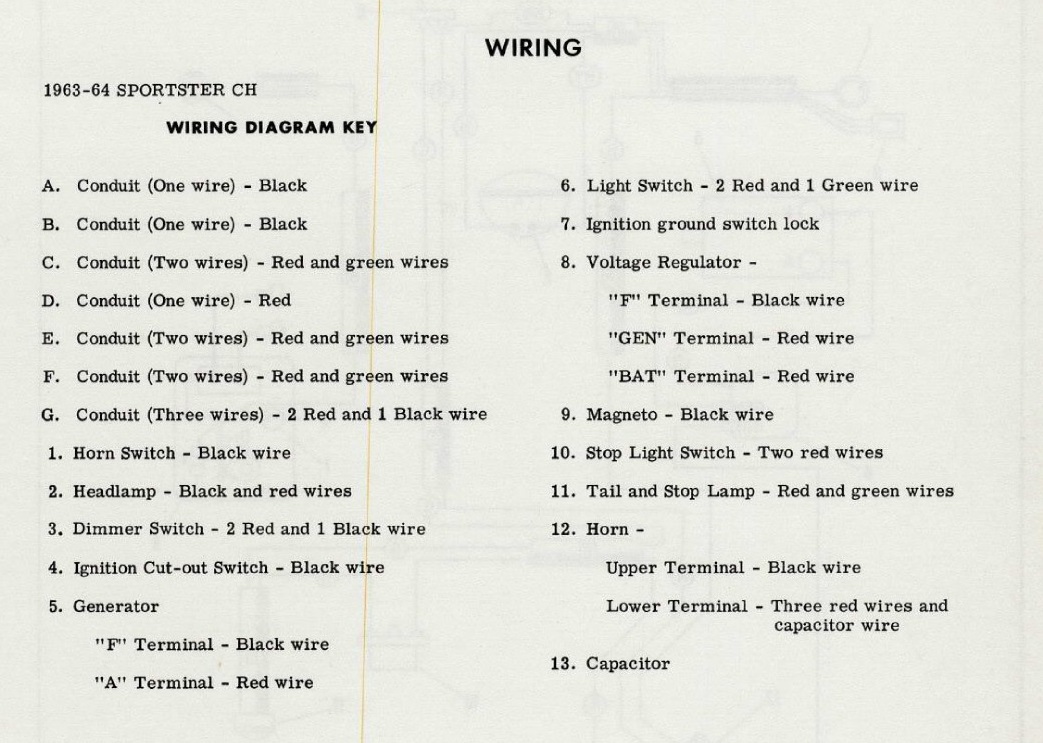

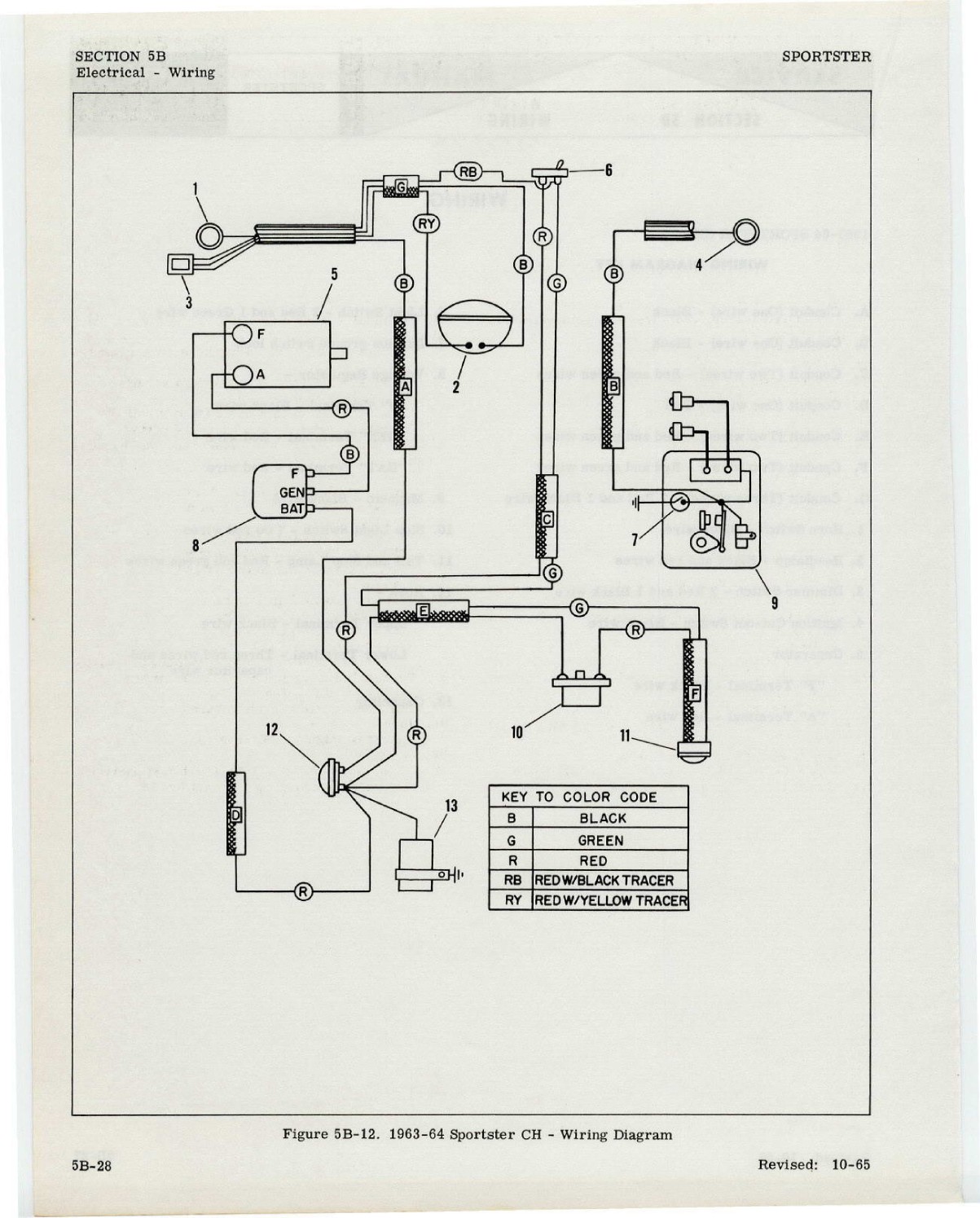

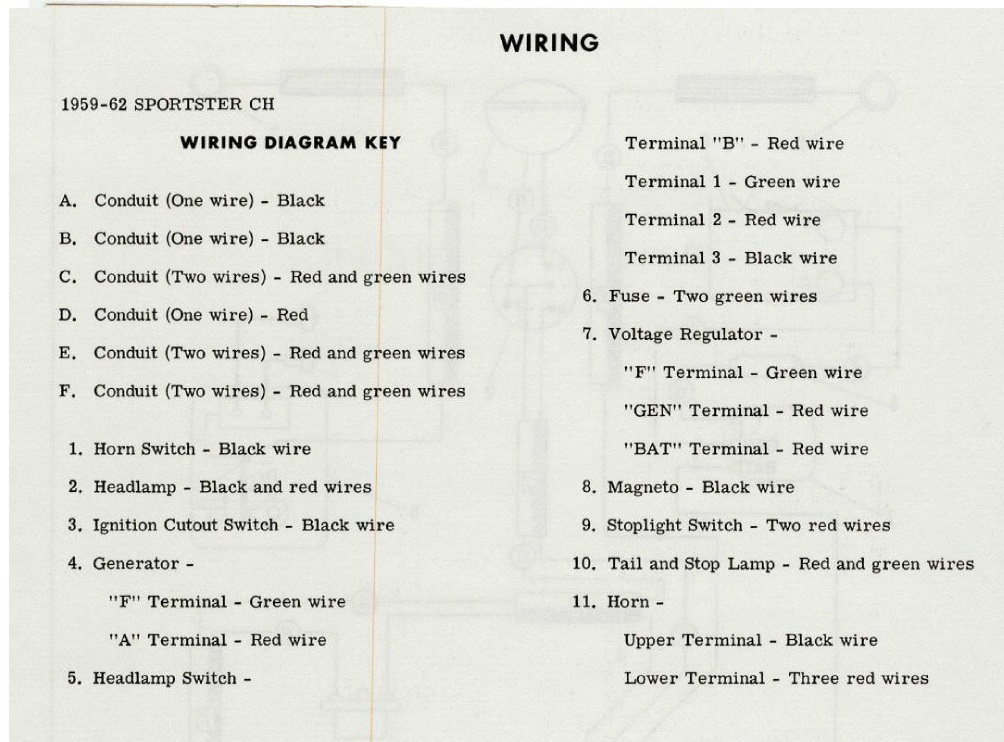

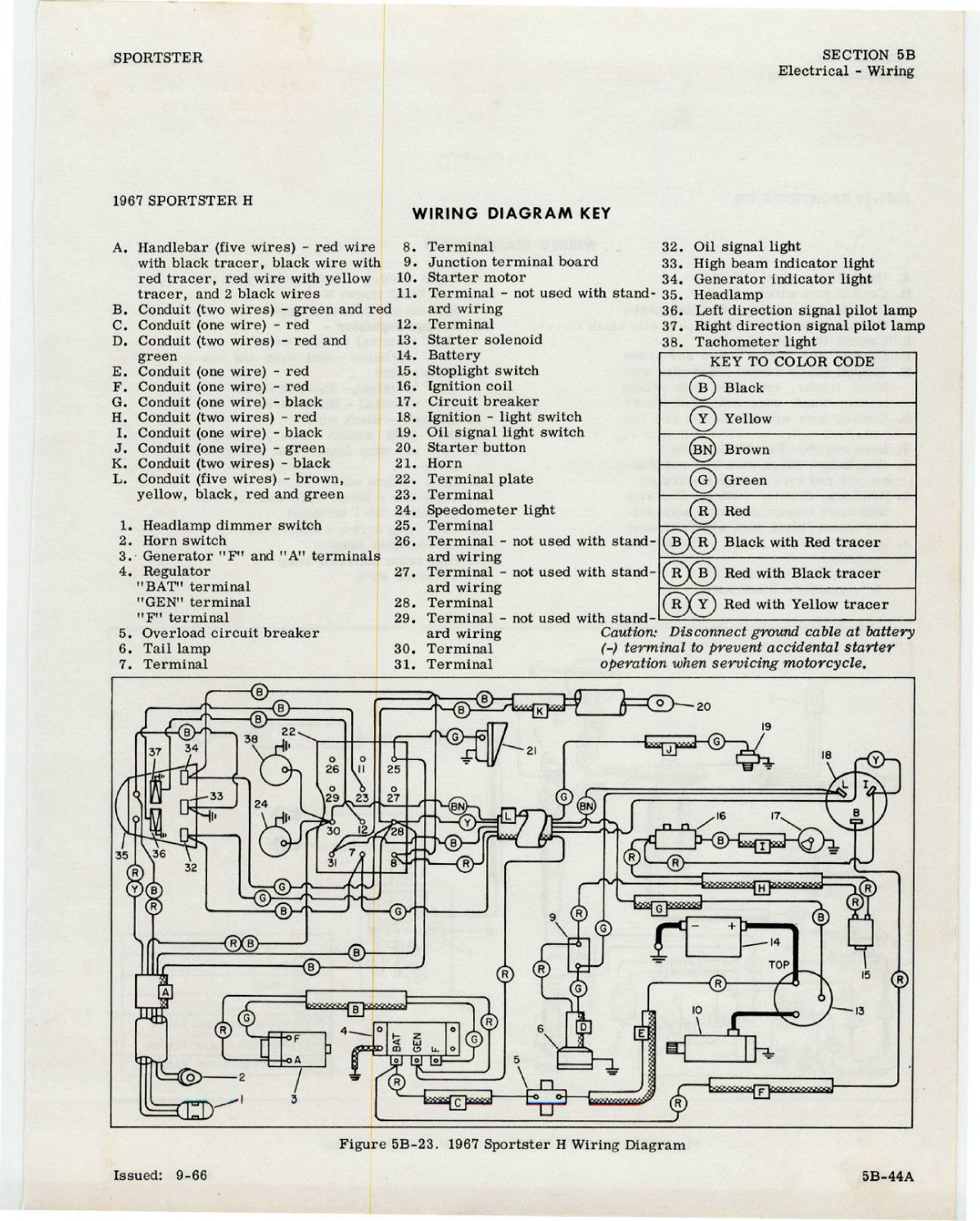

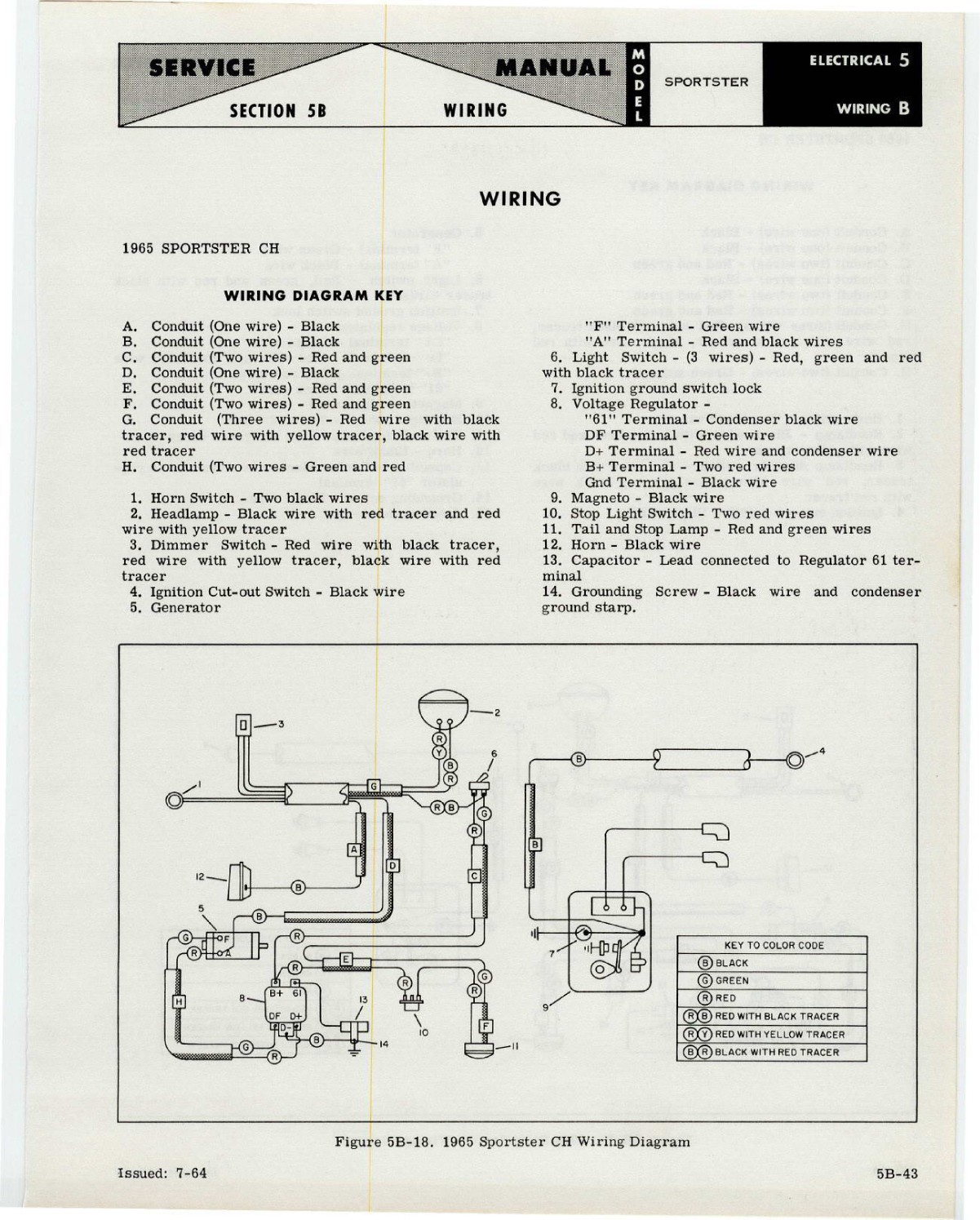

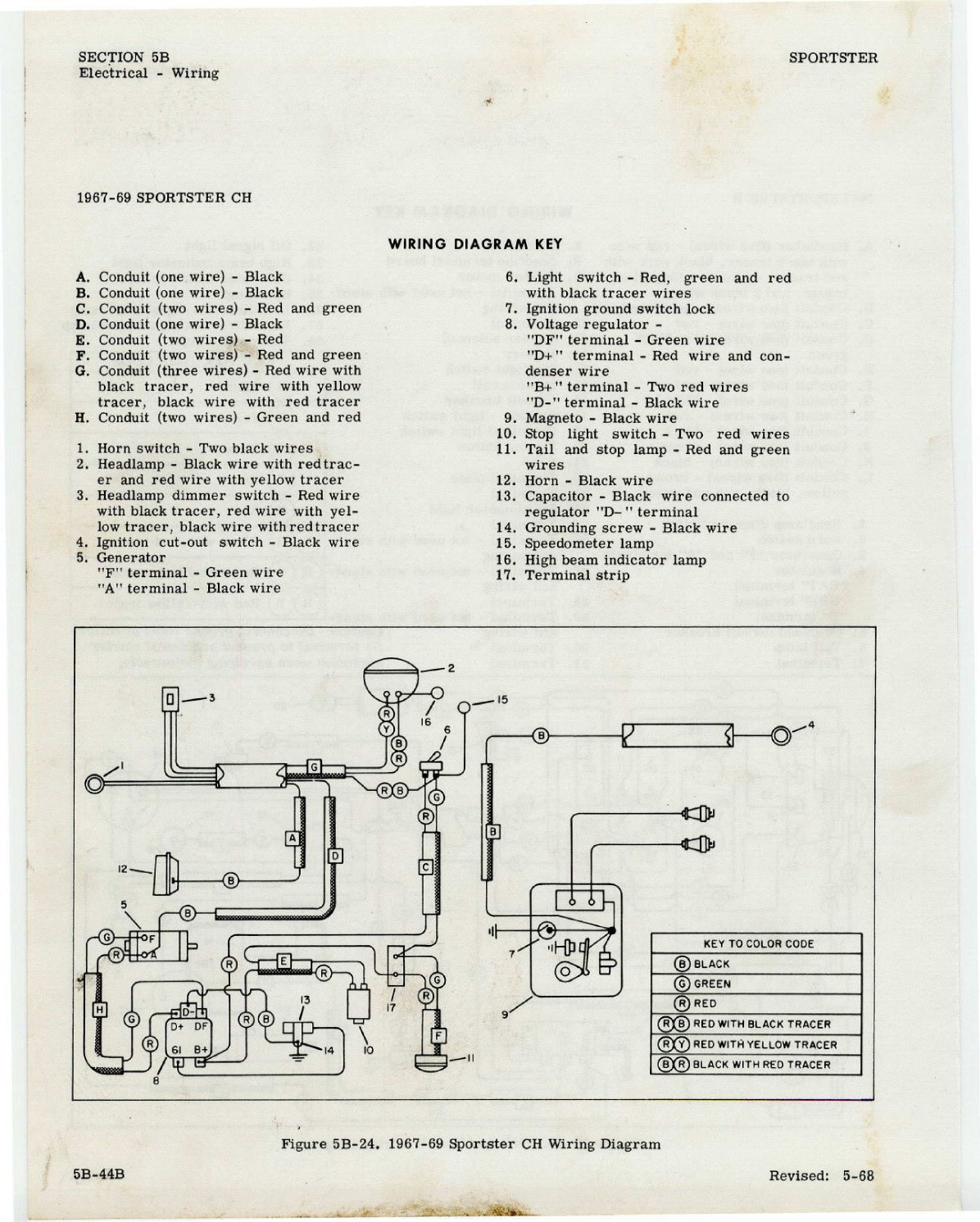

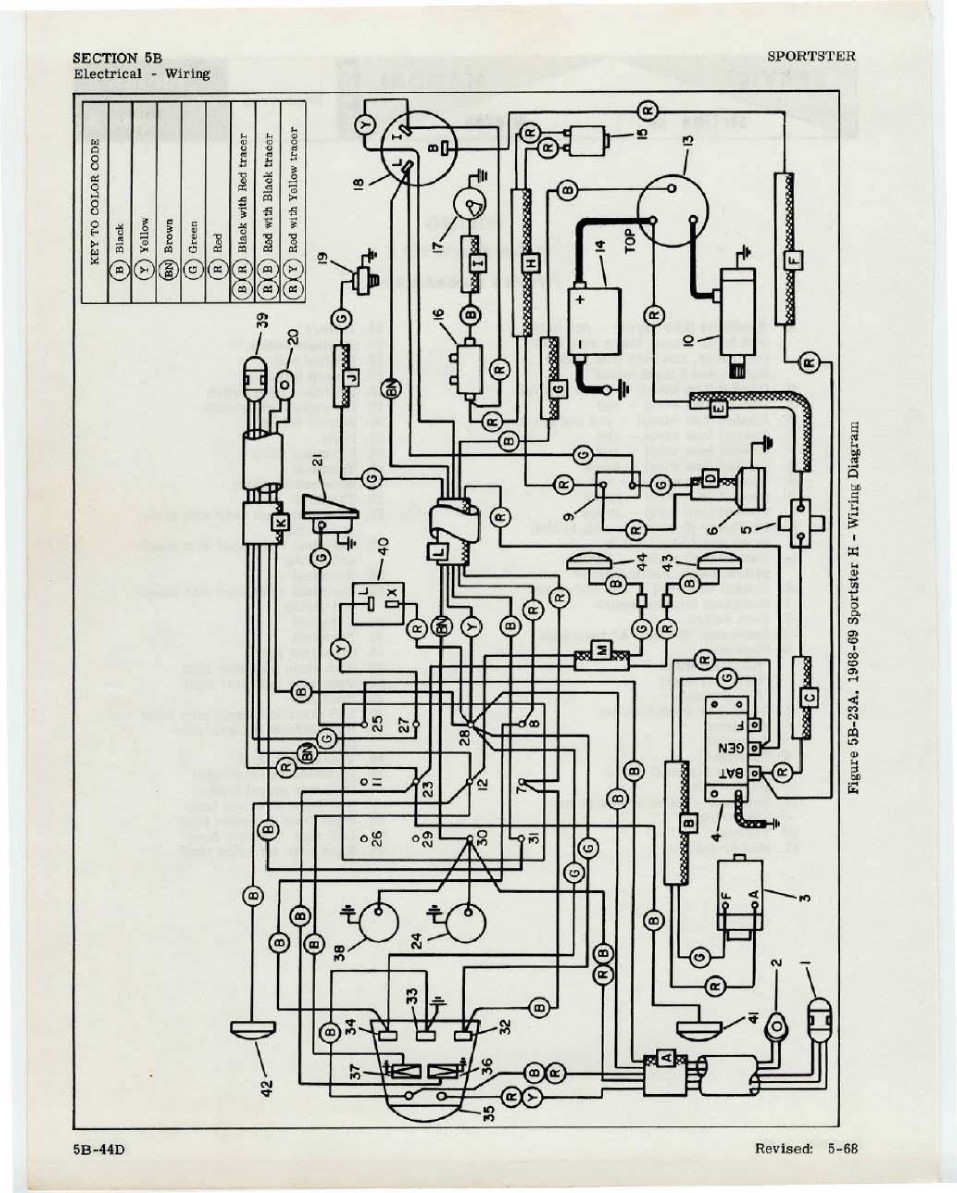

WIRING

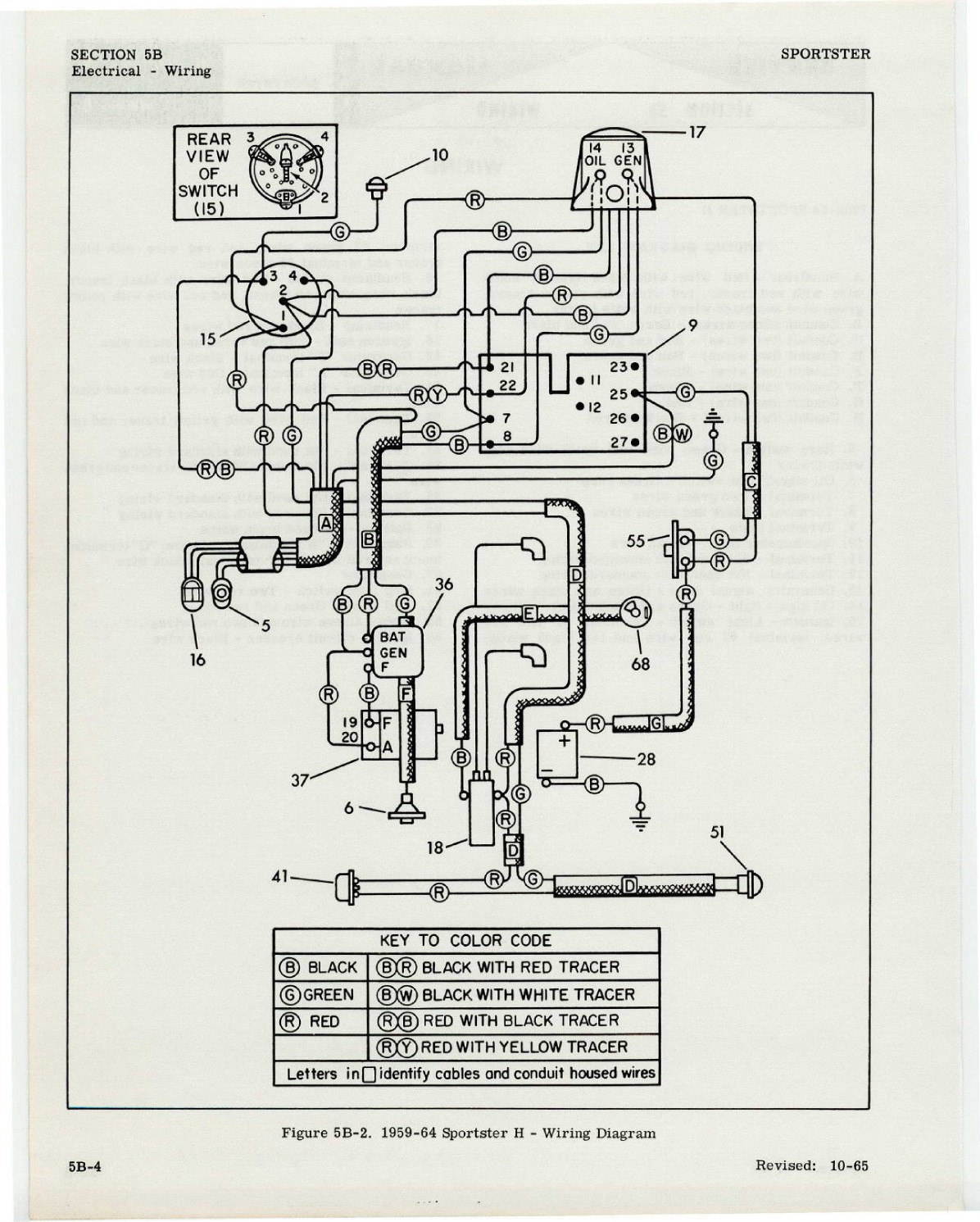

1959-64 SPORTSTER H

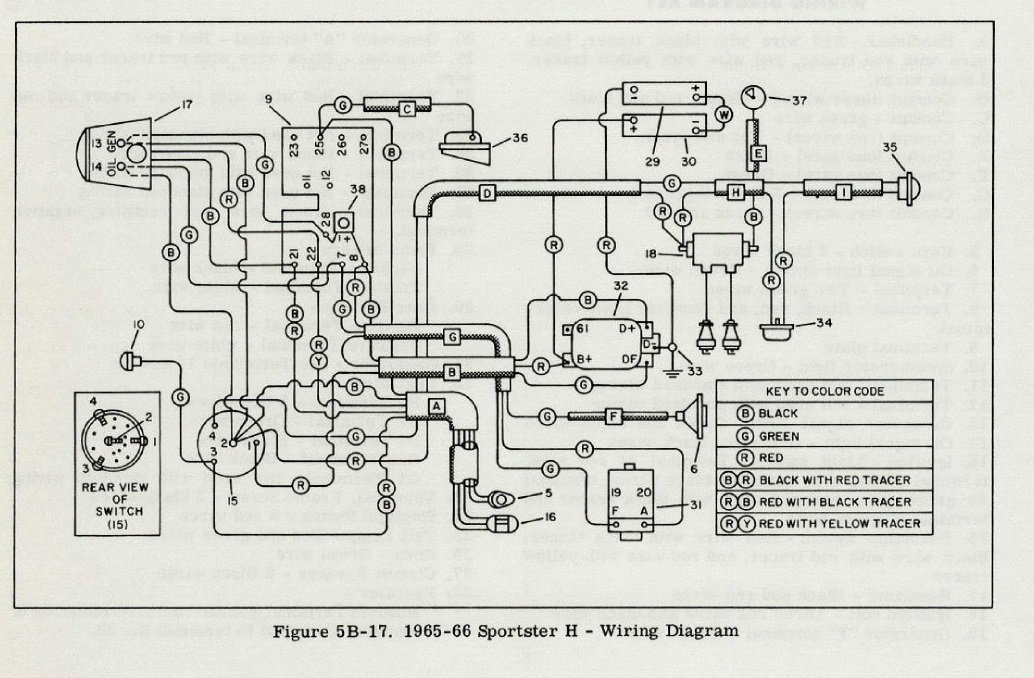

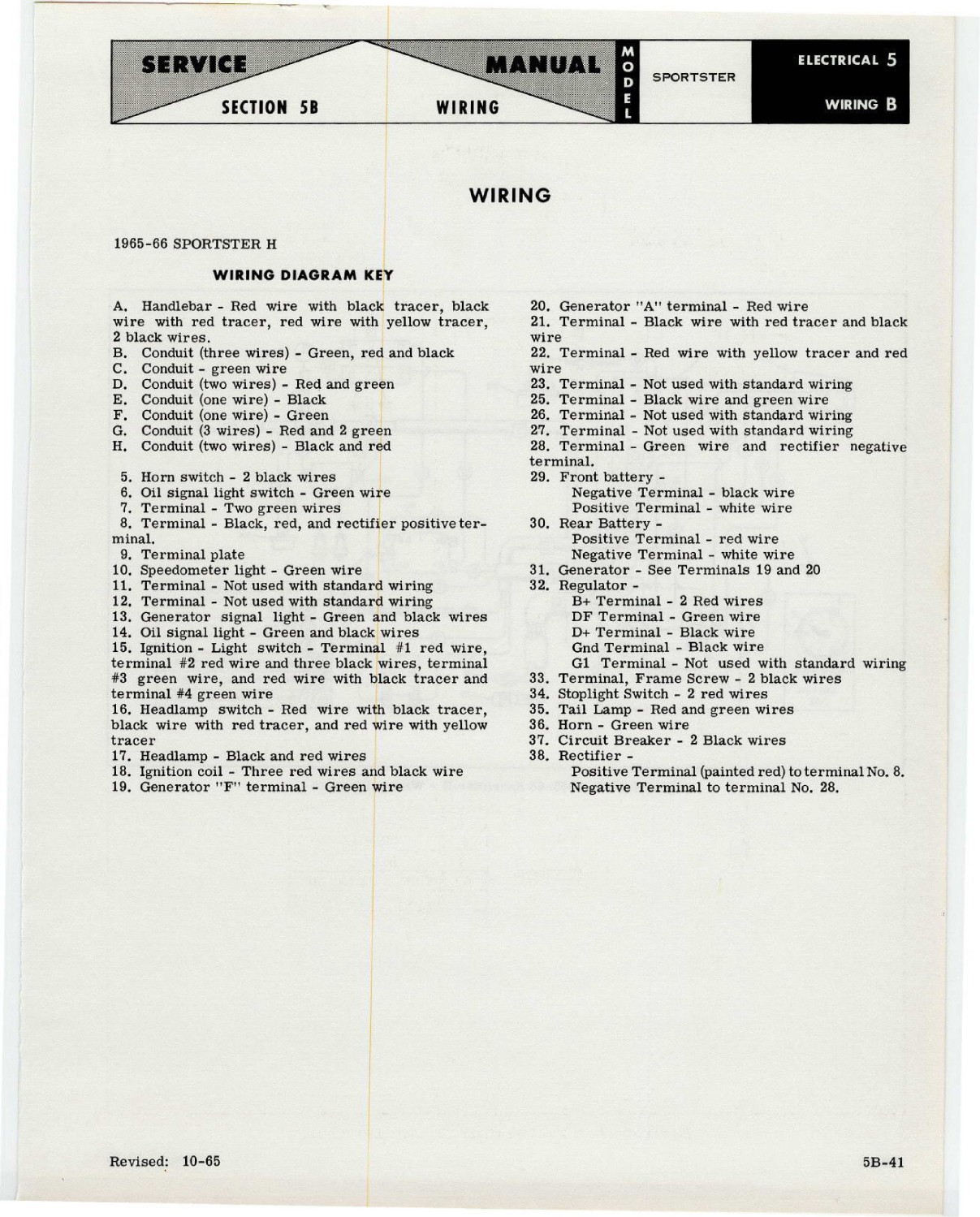

WIRING DIAGRAM KEY

A. Handlebar - Red wire with black tracer, black wire with red tracer, red wire with yellow tracer, green wire and black wire with white tracer

B. Conduit (three wires) - Green, red and black

C. Conduit (two wires) - Red and green

D. Conduit (two wires) - Red and green

E. Conduit (one wire) - Black

F. Conduit (one wire) - Green

G. Conduit (one wire) - Red

H. Conduit (two wires) - Black and red

5. Horn switch - Green wire and black wire with white tracer

6. Oil signal light switch - Green wire

7. Terminal - Two green wires

8. Terminal - Black and green wires

9. Terminal plate

10. Speedometer light - Green wire

11. Terminal - Not used with standard wiring

12. Terminal - Not used with standard wiring

13. Generator signal light - Green and black wires

14. Oil signal light - Green and black wires

15. Ignition - Light switch - Terminal #1 two red wires, terminal #2 red wire and two black wires,

terminal #3 green wire, and red wire with black tracer and terminal #4 green wire

16. Headlamp switch - Red wire with black tracer, black wire with red tracer, and red wire with yellow tracer

17. Headlamp - Black and red wires

18. Ignition coil - Two red wires and black wire

19. Generator "F" terminal - Black wire

20. Generator "A" terminal - Red wire

21. Terminal - Black wire with red tracer and black wire

22. Terminal - Red wire with yellow tracer and red wire

23. Terminal - Not used with standard wiring

25. Terminal - Black wire with white tracer and green wire

26. Terminal - Not used with standard wiring

27. Terminal - Not used with standard wiring

28. Battery - Red and black wires

36. Regulator - "B" terminal, red wire; "G" terminal, black and red wires; "F" terminal, black wire

37. Generator

41. Stop light switch - Two red wires 51. Tail lamp - Green and red wires 55. Horn - Green wire and two red wires 68. Ignition circuit breaker - Black wire
