Great Wall service chassis and body Manual - part 118

B-1

SST Special tool

page

Special tool ................................................................... B-2

B

B-2

Disassembling and as-

sembling tools for lock-

i n g   n u t   o f   s t e e r i n g

knuckle

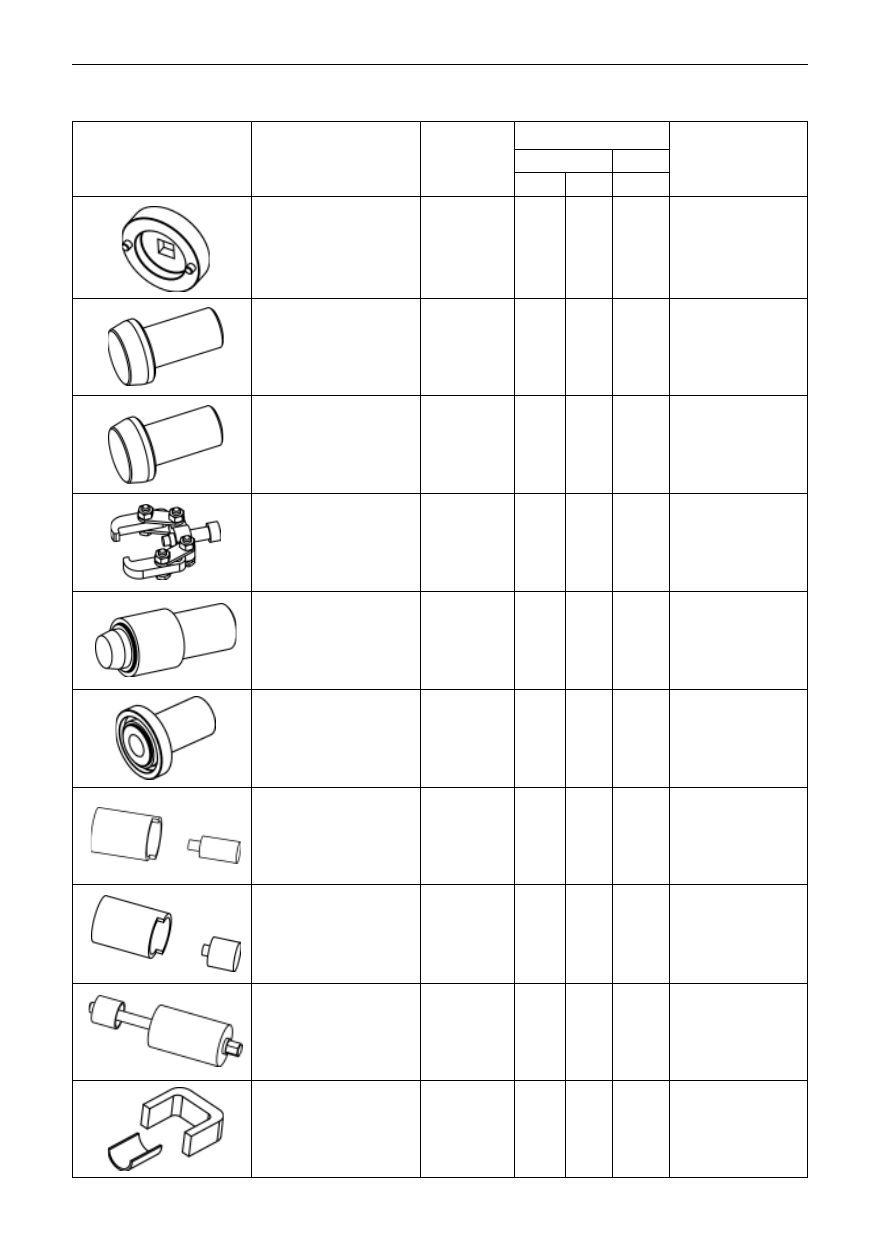

3916001

Press fitting tool for in-

ner bearing of front wheel

hub

3916002

3916003

3916004

3916005

3916006

3916007

3916008

3916009

3916010

Press fitting tool for outer

bearing of front wheel

hub

Disassembling tool of

ball stud

Fixing tool of main teeth

flange of needle bearing

Press fitting tool for steer-

ing knuckle oil seal

Disassembling tool of

shorter liner of lower arm

Mounting tool of shorter

liner of lower arm

Mounting and disassem-

bling tool of long liner of

lower arm

Disassembling tool of

upper arm liner

SST Special Service tool

Diagram

Tool name

tool number

Remark

SST Special  Tool

 Special Service Tool

Application position

Front axle

Rear axle

2WD

4WD

B-3

Application position

Front axle

Rear axle

2WD

4WD

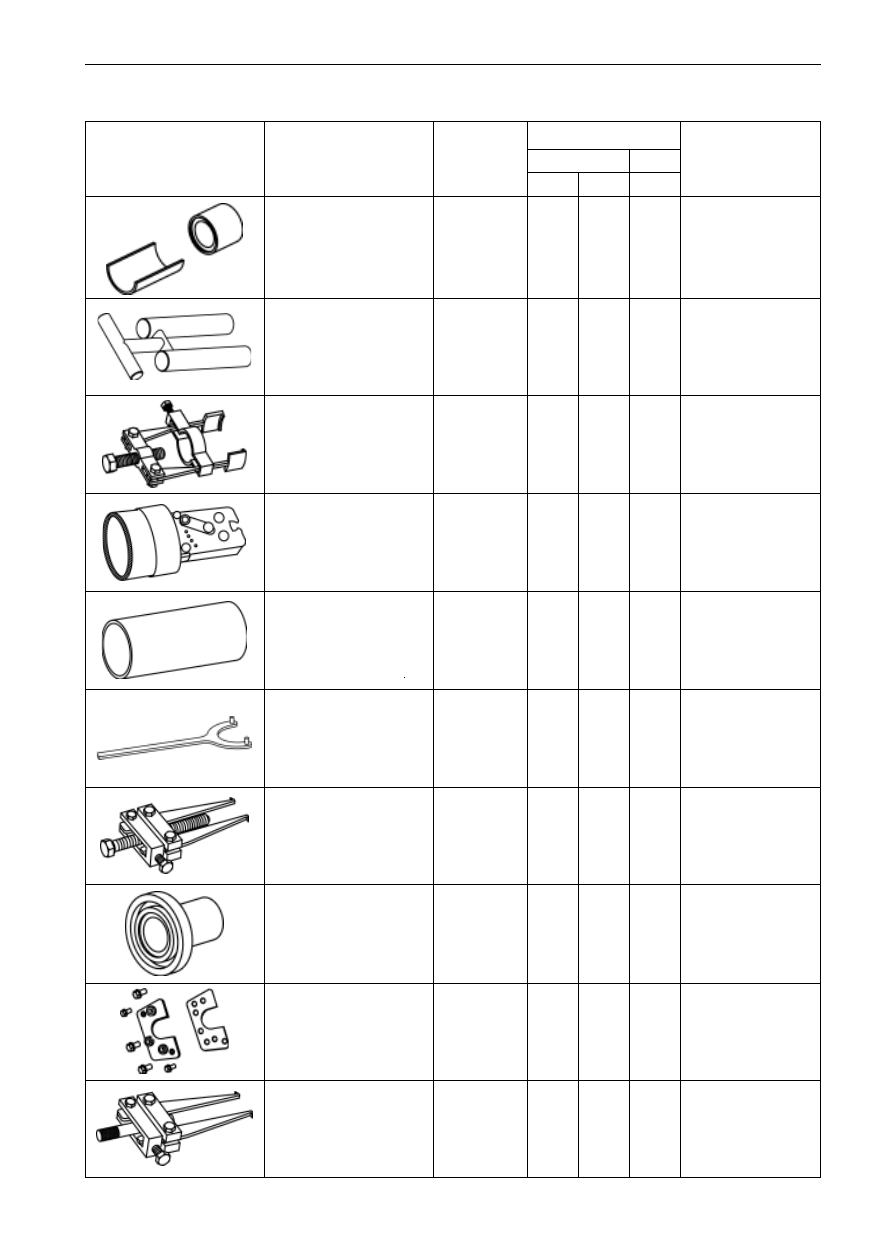

3916011

3916012

3916013

3916014

3916015

3916016

3916017

3916018

3916019

3916020

Press fitting tool of up-

per arm liner

Disassembling and as-

sembling tools of wheel

brake cylinder of front

brake caliper

Disassembling tool of

front drive shaft bearing

Pneumatic caliper of

outer sleeve of front drive

shaft

Press fitting casing of

front drive shaft bearing

Disassembling tool of

main teeth oil seal

Press fitting tool of main

teeth oil seal

Disassembling tool of

long semi-axis

Electric cutch tester

Disassembling tool of oil

seal and needle bearing

Oil seal of long semi-
axis of front axle
Inner oil seal of rear axle
shaft
Needle bearing of long
semi-axis

SST Special  tool

Diagram

Tool Name

tool number

Remark

SST Special  Tool

 Special Service Tool

B-4

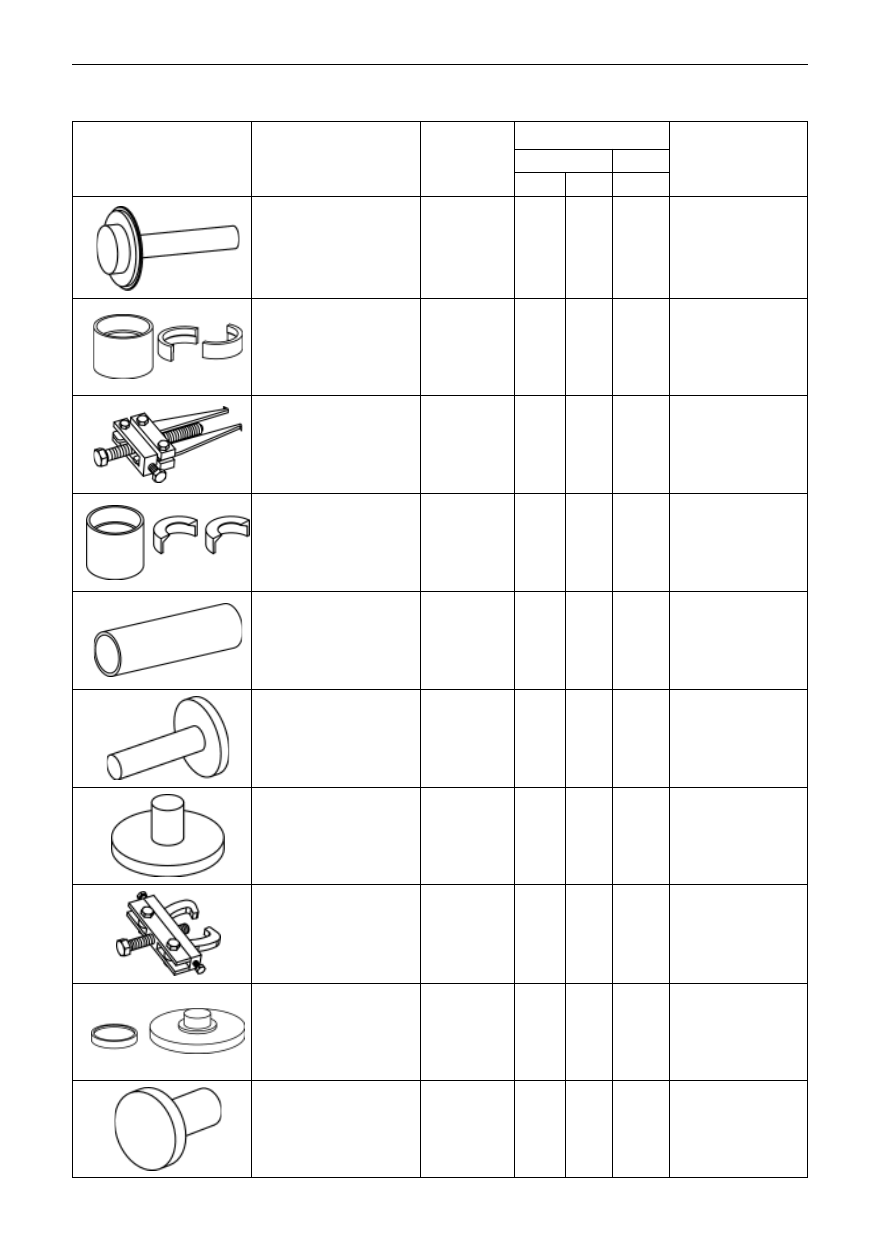

3916021

Press fitting tool of oil

seal of long semi-axis

3916022

Disassembling bracket of

long semi-axis bearing

3916023

Disassembling tool of

inner race of small bear-

ing of main teeth

3916024

Disassembling bracket of

inner race of large bear-

ing of main teeth

3916025

Press fitting casing of

inner race of large bear-

ing of main teeth

3916026

Press fitting casing of

outer race of large bear-

ing of main teeth

3916027

Press fitting casing of

outer race of small bear-

ing of main teeth

3916028

Disassembling tool of

differential side bearing

3916029

Press fitting tool of dif-

ferential side bearing

3916030

Mounting tool of needle

bearing of long semi-axis

SSTSpecial Service tool

Diagram

Tool name

tool number

SST Special  Tool

 Special Service Tool

Application position

Front axle

Rear axle

2WD

4WD

Remark
