B0-64

Spoiler (

)

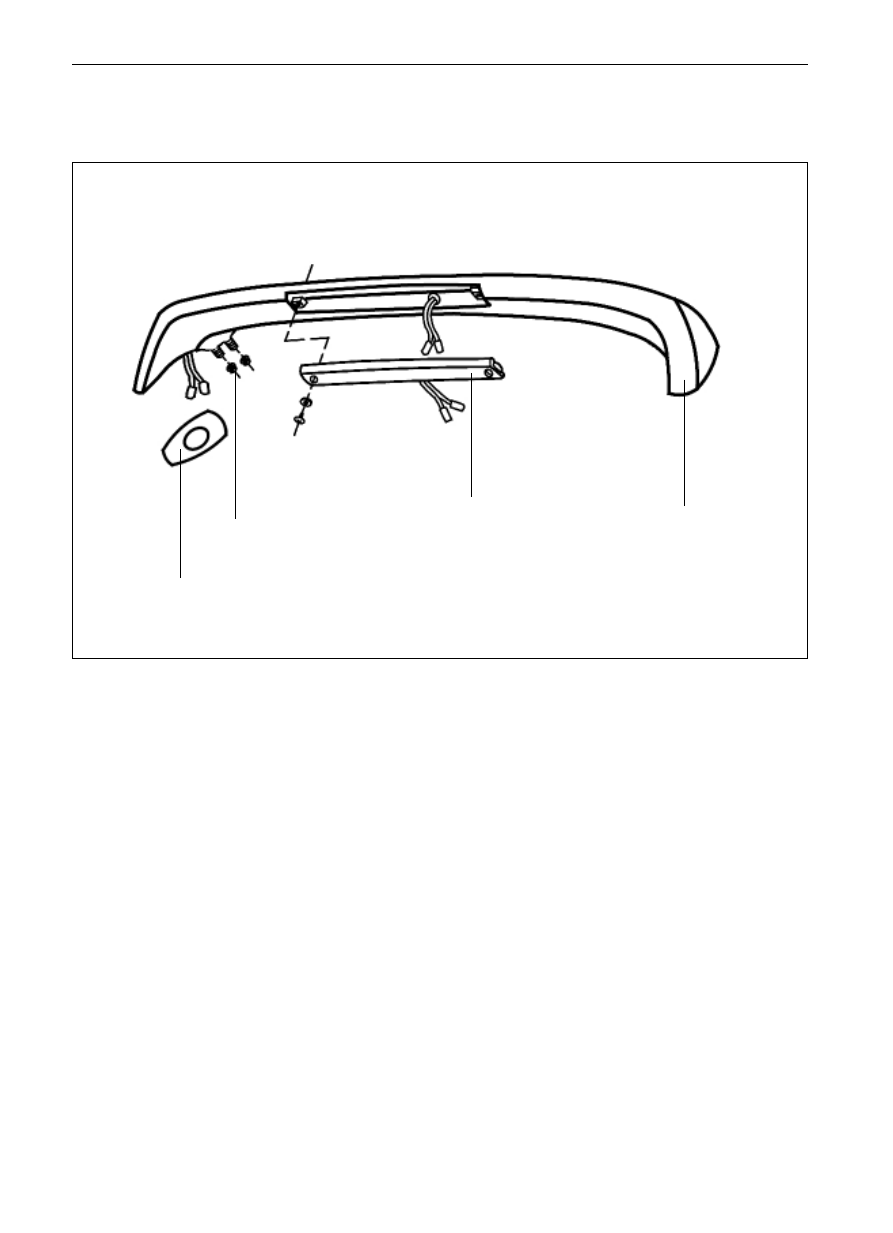

Element figure

Vehicle Body

 Spoiler

Spoiler disassembly

1.

Tear down the highly-mounted stop-grade lamp;

(a)

Tear down the two screws and disconnect the wire harness

from lamp.

(b)

Tear down the highly-mounted stop lamp from the spoiler.

2.

Tear down the spoiler assembly

(a)

Tear down the rear beam trim panel from the inside of body.

(b)

Tear down the four nuts and disconnect the wire harness

from the spoiler;

(c)

Tear down the spoiler assembly and spoiler gasket from the

outside.

SJ

(a)

Open the two covers of round hole at the top-grade of

spoiler;

(b)

Tear down the two bolts and disconnect the wire harness

from the spoiler.

(c)

Tear down the spoiler assembly and spoiler gasket from the

outside.

Mount of Spoiler

Mount the spoiler in the reverse approach.

SY SJ

spoiler gasket

nut

highly mounted

stop lamp

spoiler

assembly

B0-65

Luggage rack

Element figure

Vehicle Body

 Luggage Rack

bracket fastening

button

main sill

SF SY

antiskid strip

beam

blanking plug of

main sill

adjusting button of antiskid strip

fixed bracket

mounting plate of outer

luggage rack

adhesive strip of mounting plate

luggage rack assembly

SJ

B0-66

Body

 Reserve Tire Bracket

Reserve tire bracket (

)

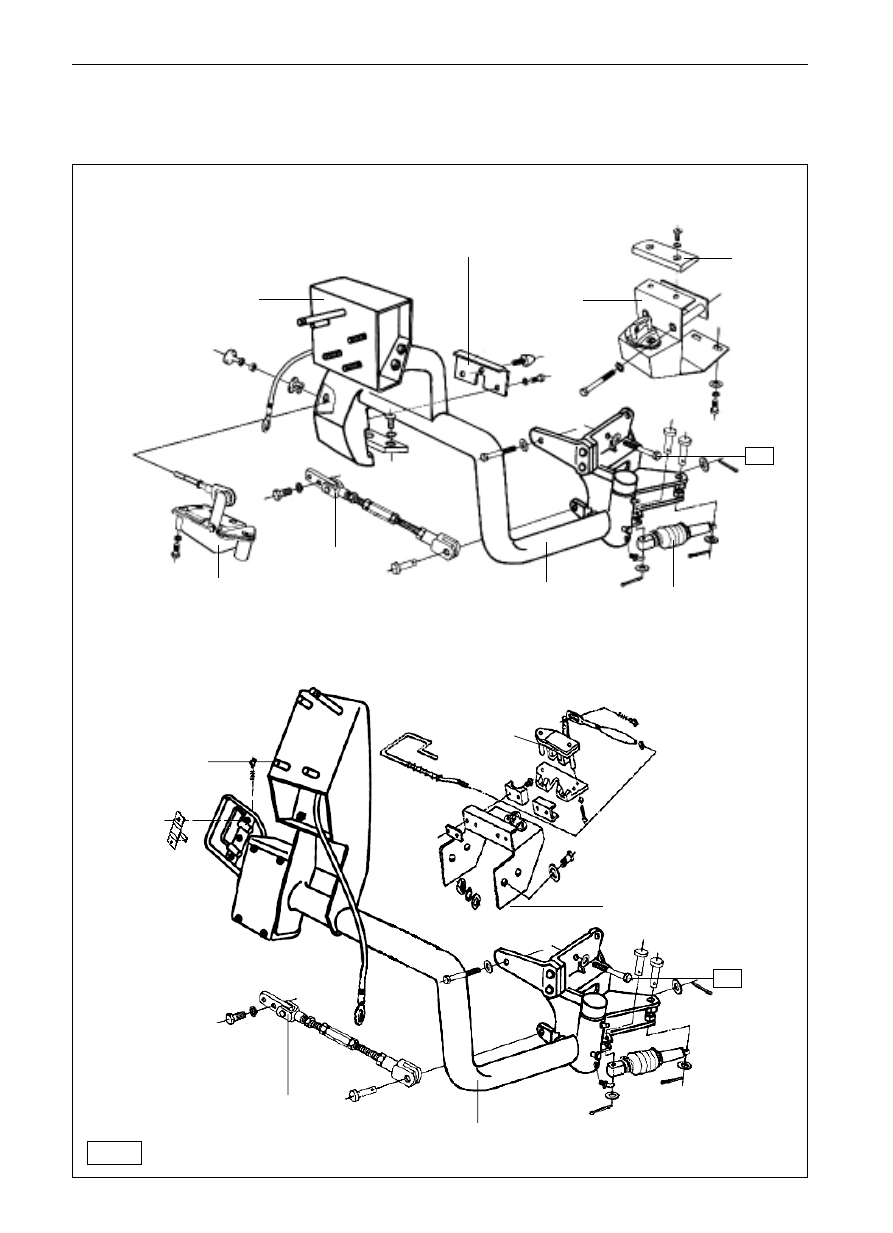

Element figure

reserve tire holder

buffer block bracket

buffer block

lock clip bracket
assembly

return spring

reserve tire bracket

adjusting arm

reserve tire lock

90

SY

specified torque

reserve tire bracket

reserve tire holder

reserve tire lock

lock clip bracket assembly

adjusting arm

SJ

90

K

N

m

B0-67

Vehicle Body

 Reserve Tire Bracket

 Reserve tire bracket (

)

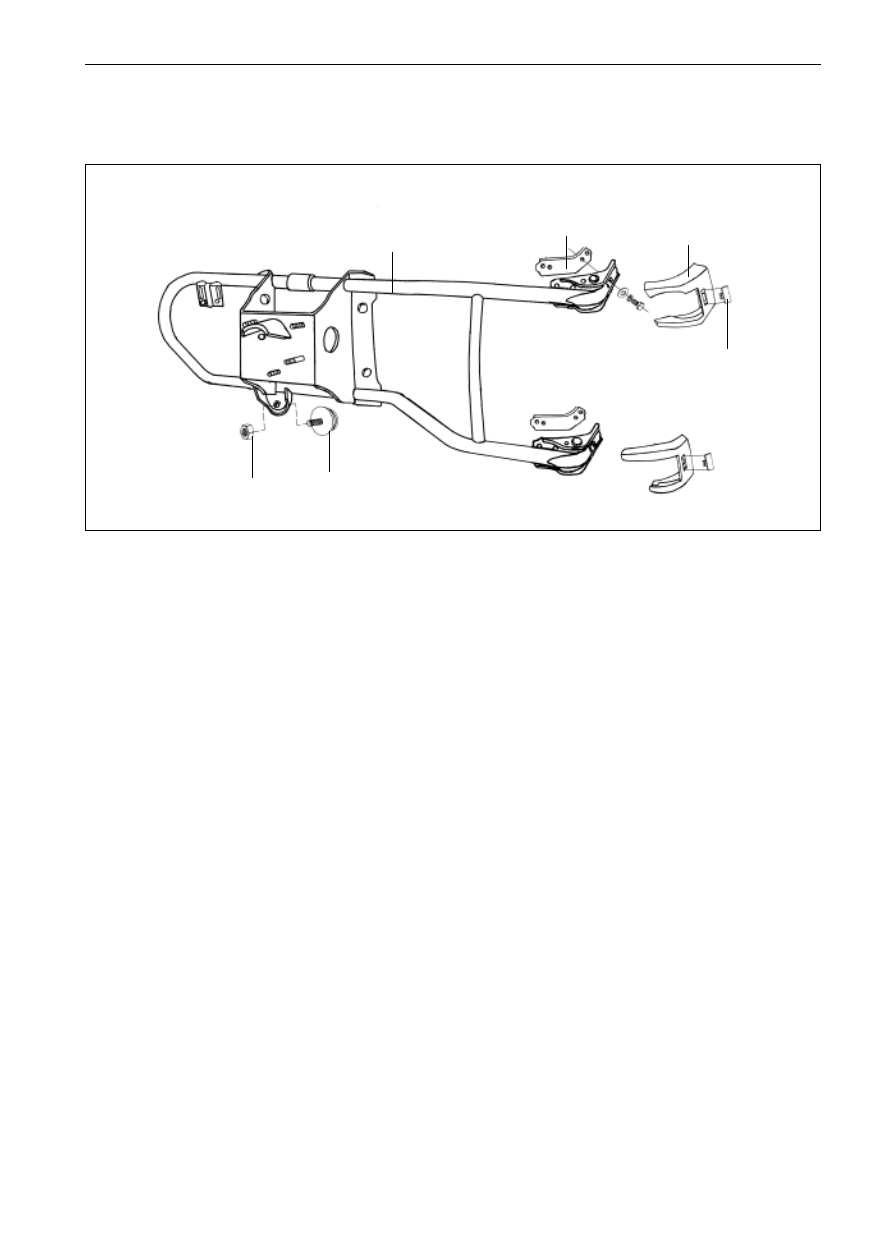

Element figure

buffer block

springy welt

trim cover of fixed bracket

decorative cover of screw hole

reserve tire bracket

nut

SF

Dismantle of reserve tire bracket

1.

Tear down the trim cover of fixed bracket;

Tear down the decorative cover of screw hole, and then tear down the

trim cover of fixed bracket.

Tear down the adjusting arm (SY SJ)

Tear down the two bolts to take down the adjusting arm;

2.

Tear down the reserve tire bracket;

Tear down the three bolts and take down the reserve tire bracket. (SF)

Tear down the three bolts and take down the reserve tire bracket. (SY

SJ)

Mount of reserve tire bracket

1.

Mount the reserve tire bracket;

(a)

Stick the springy welt on the corresponding face where the

reserve tire bracket contact with the body; (SF)

(b)

Fix the reserve tire bracket on the body with eight bolts (SF).

Fix the reserve tire bracket with three bolts on the right mail sill

and tail beam of the body.

2.

Mount the trim cover of fixed bracket;

Mount the trim cover of fixed bracket and the decorative cover of

screw hole.

Mount the adjusting arm (SY SJ)

Fix the adjusting arm on the tail beam bracket of the body by screwing

the two bolts in the fixing hole.

Notice: the paint layer should be well protected during

disassembling and assembling.
