Great Wall service chassis and body Manual - part 108

B0-56

Vehicle Body

 Instrument Panel

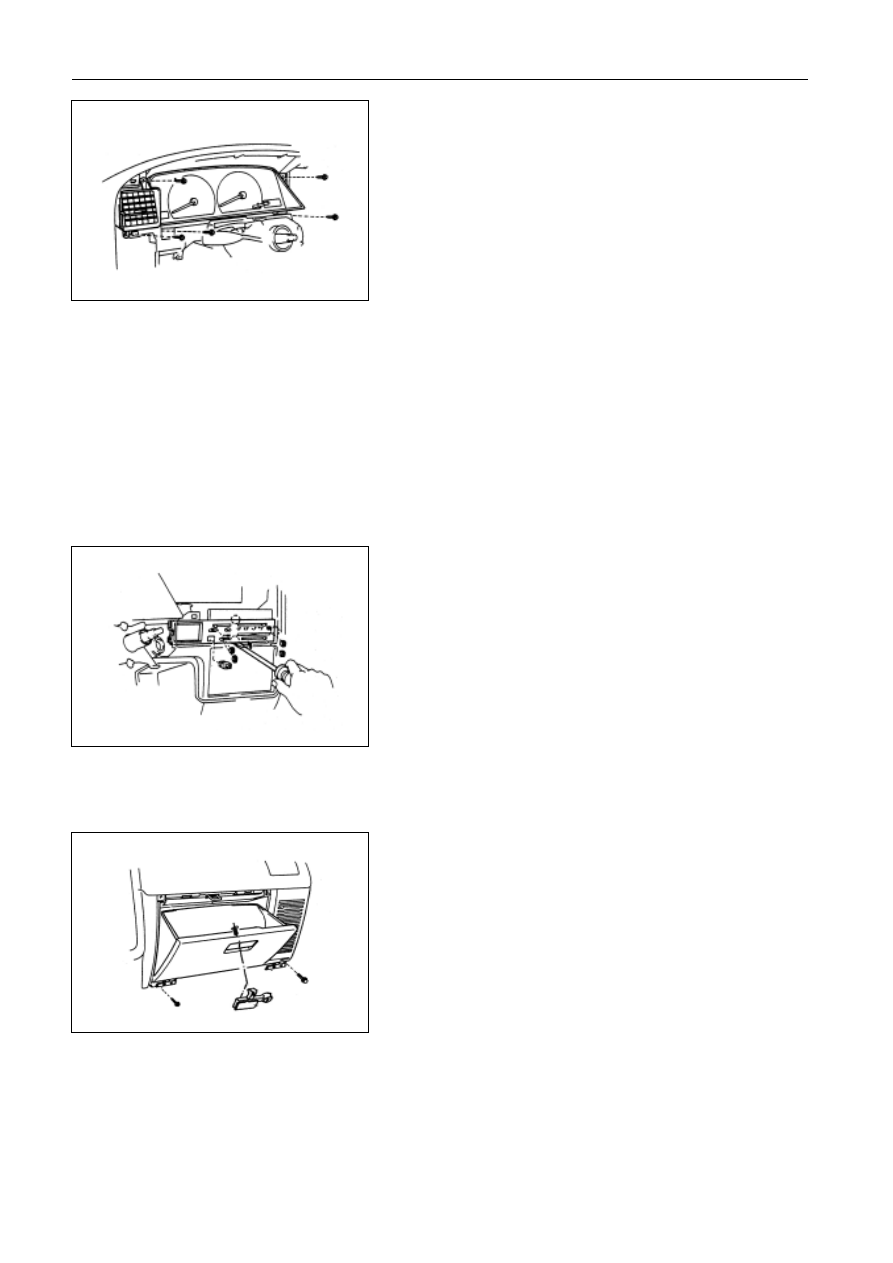

10. Tear down the combination instrument;

(a)

Tear down the four screws;

(b)

Disconnect the plugging elements.

(c)

Tear down the combination instrument.

11. Tear down the CD or combined acoustic device;

(a)

Tear down the four screws;

(b)

Disconnect the aerial cable and the plugging elements;

(c)

Tear down the CD or the combined acoustic device.

12. Tear down the central air tunnel;

Tear down the four screws to take out the central air tunnel.

13. Tear down the air-conditioner controlling panel;

(a)

Pull out the air-conditioner controlling button;

(b)

Prize out the A/C switch;

(c)

Prize out the air-conditioner controlling panel as shown

in the drawing with screwdriver and take it down.

Notice: the screwdriver should be wrapped with adhesive

strap at its head before using.

(d)

Disconnect the plugging elements.

14. Tear down the air-conditioning controlling mechanism

assembly;

Tear down the two screws and let the air-conditioner control-

ling mechanism in suspension.

15. Tear down the lower covering board at right end;

Tear down the four screws and take out the lower covering

board at right end.

16. Tear down the glove box;

Tear down the two screws and the glove box

17. Tear down the instrument body;

(a)

Tear down the three bolts and the instrument panel;

(b)

Disconnect the plugging elements.

Mount of instrument panel

Mount the parts of instrument panel in the reverse

approach.

B0-57

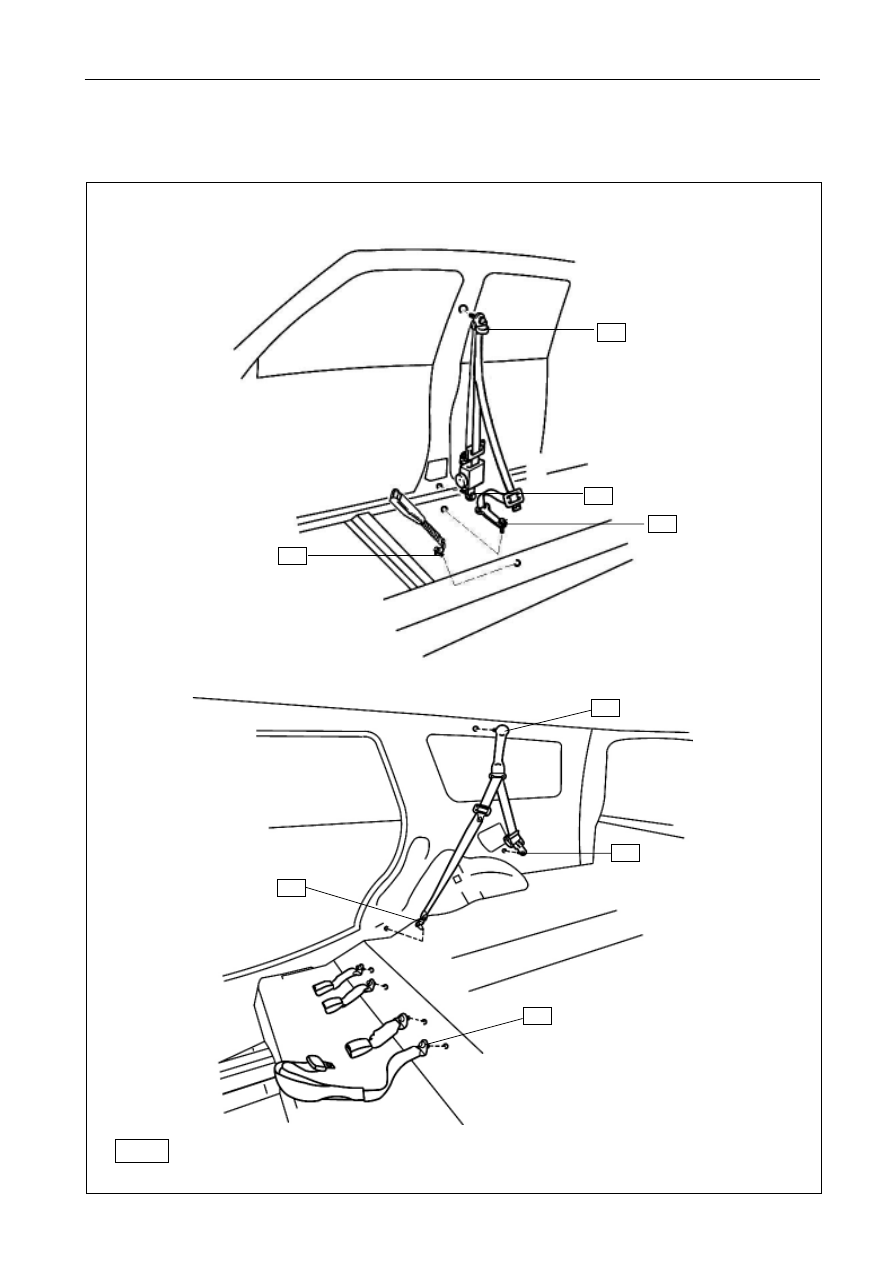

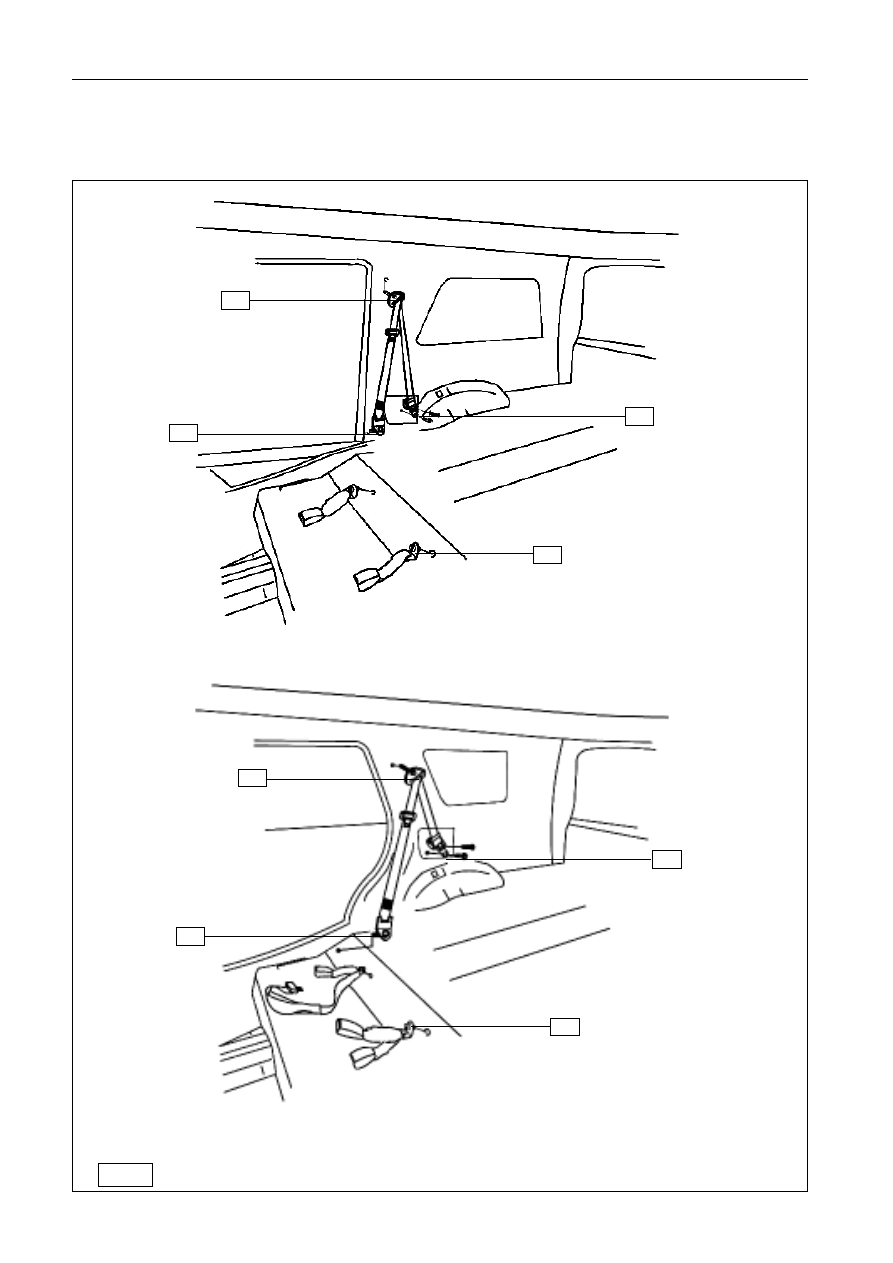

Safety belt (

)

Element figure

Vehicle Body

 Safety Belt

Dr SL SK SF SY SJ

SF  rear safety belt

N

m

specified torque

43

43

43

43

43

QP

43

43

front safety belt

B0-58

Safety belt (

)

Element figure

Vehicle Body

 Safety Belt

QP

43

QP

43

43

43

43

safety belt in
SY model
vehicle

43

safety belt in SJ

model vehicle

N

m

specified torque

B0-59

Body

 Safety Belt

Safety belt

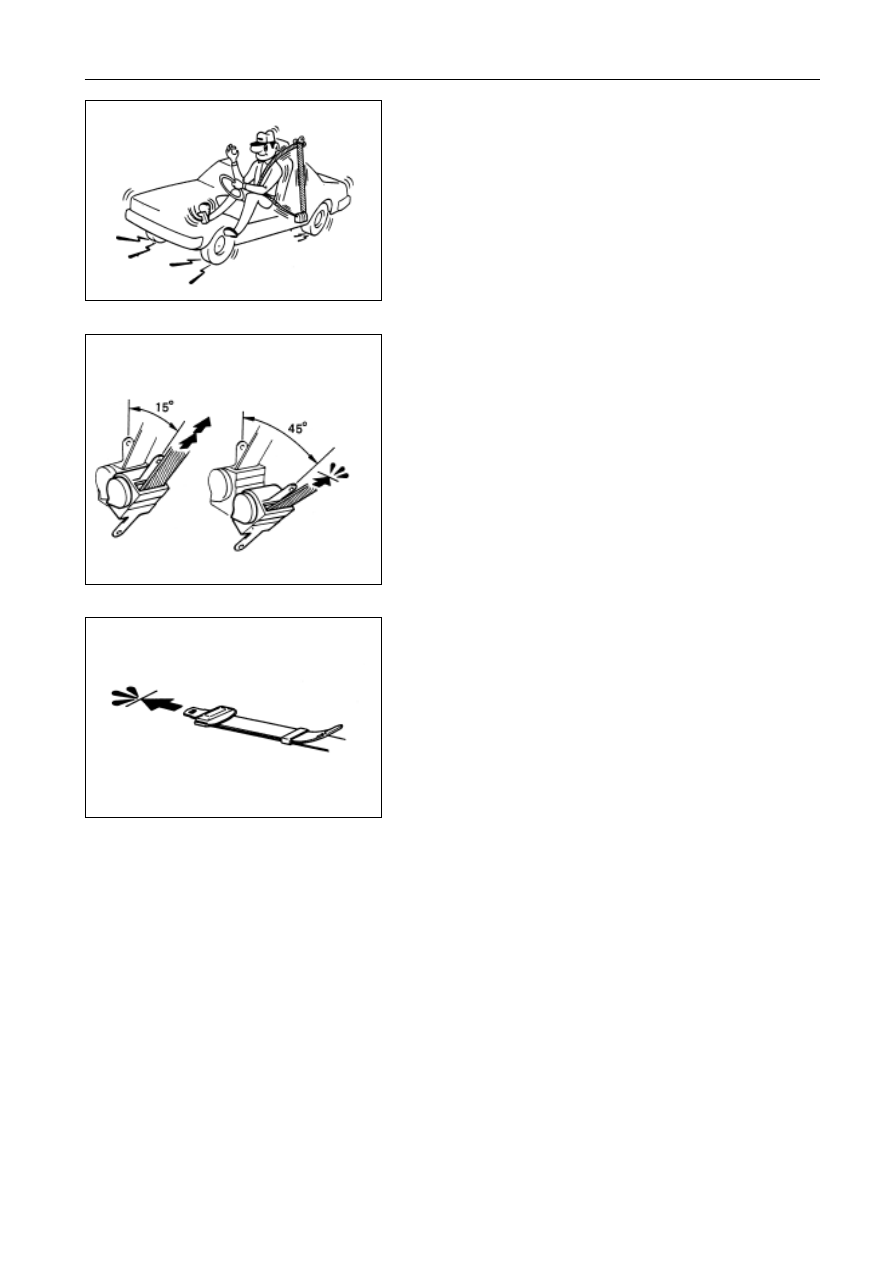

1. Driving test (in the security place);

(a)

Fix the safety belt of the front seat.

(b)

Drive the vehicle at the speed of 16 km/h and brake it

suddenly;

(c)

Check the safety belt, which should be lock tightly

without expansion.

Remark: it is required to tear down the mechanism

fittings of the safety belt to make the following static load

test at the security place, in addition, moderate inspection

for the new safety belt should be conducted before

mounting no matter when the new safety belt fittings is

needed to mount.

2.

Static test

a) Tear down the lock-type expansion fittings;

(b)

Tilt the expansion fittings slowly;

(c)

Check the expansion of safety belt, which should be

pulled out when the tilt angle is no more than 15 but not

be pulled out when the tilt angle is more than 45

.

If the requirement is not met, change the safety belt fittings.

Two-point safety belt

(manually operated)

(a)

Adjust the safety belt to the moderate length;

(b)

Exert the stable load on the belt;

(c)

Check whether the safety belt is elongated or not, in such

case, the belt should not be elongated.
