Great Wall service chassis and body Manual - part 106

B0-48

Vehicle Body

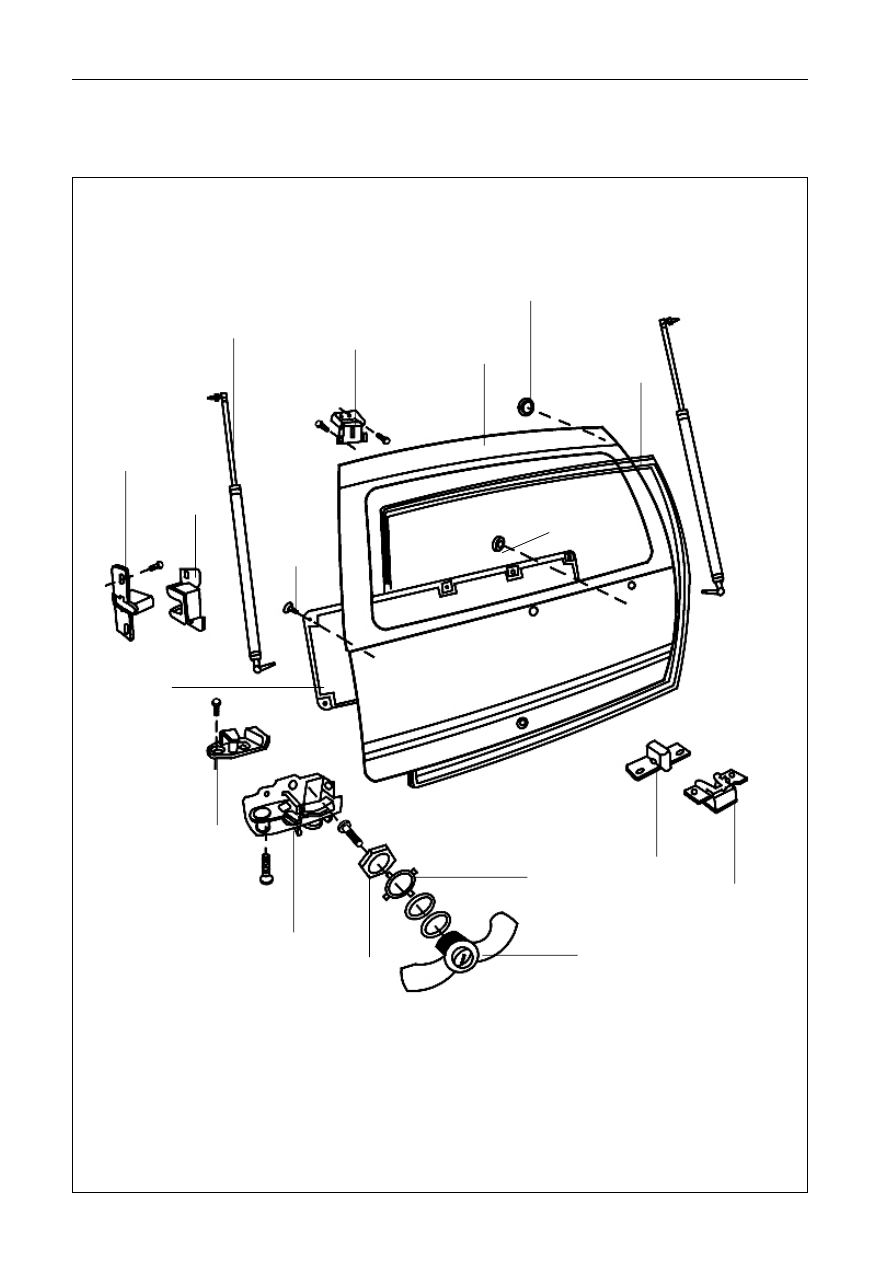

 Tailgate

Tailgate (

)

Element figure

stop-grade
washer

plastic clipes

10 screws

upper position limit

adhesive block

tailgate assembly

pneumatic ejector rod

tailgate hinge

lock clip
assembly

nut

trim panel
at tailgate

tailgate lock
barrel assembly

sealing strip

front wall
plastic clipes

lower
position limit

tailgate lock

side lower
position limit

side upper
position limit

SY SJ

B0-49

Vehicle Body

 Tailgate

Dismantle of Tailgate

1.

Tear down the trim panel at tailgate;

Tear down the ten plastic clipes and take down the trim panel

at tailgate.

2.

Tear down the tailgate lock barrel and lock from tailgate:

(a)

Screw off the nuts of lock barrel from the inside of

tailgate cavity and take down the lock barrel from the

outside.

(b)

Tear down the three screws to take down the tailgate lock.

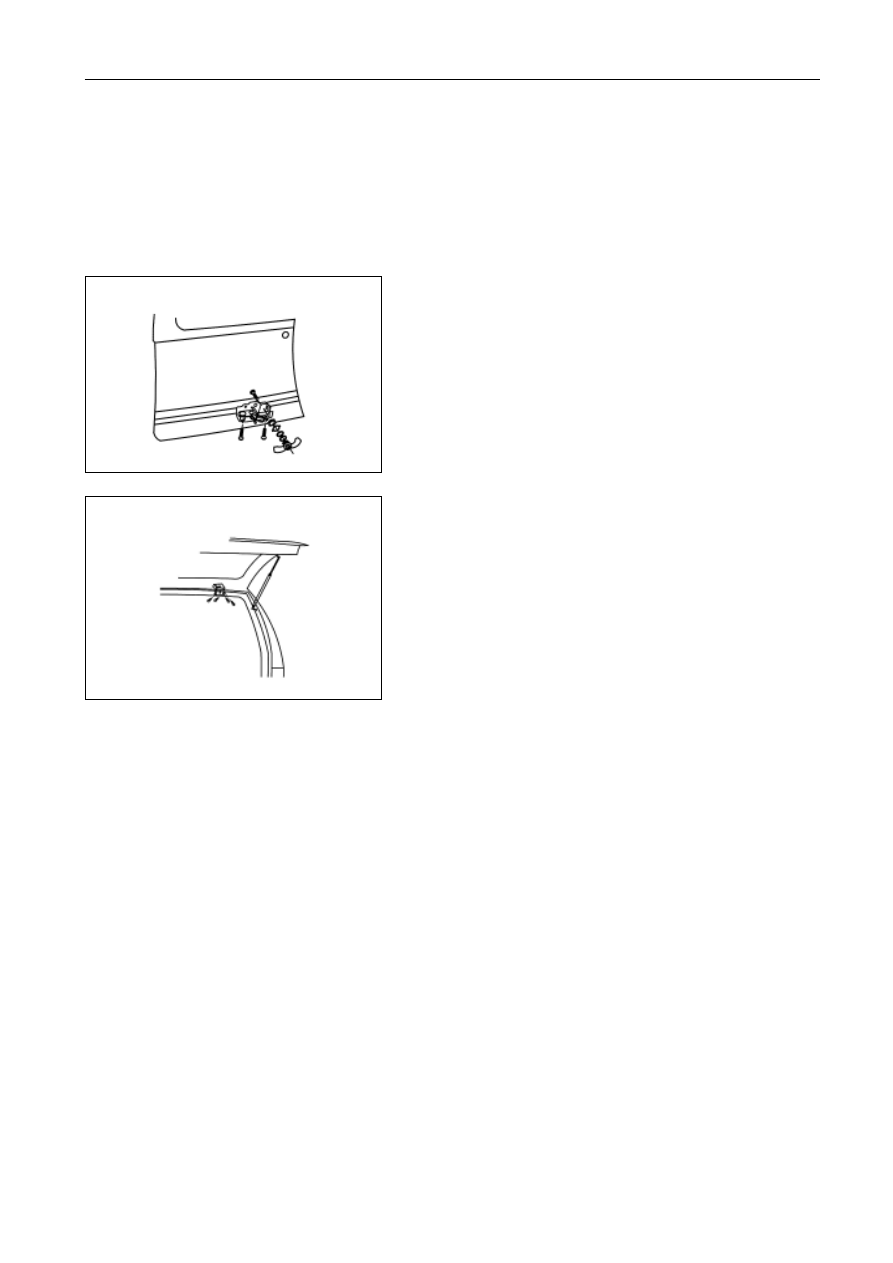

3.

Tear down the tailgate lock clip

Take down the tailgate lock clip from the lower beam flange

after tearing down the two screws.

Dismantle of Tailgate

1.

Tear down the pneumatic ejector rod;

Tear down the screws and take down the two pneumatic ejector

rod from the tailgate and the body.

2.

Tear down the tailgate hinge and the tailgate;

(a)

Tear down the eight bolts to take down the right and left

tailgate hinge from the tailgate and the body;

(b)

Pull out the plugging element of wire harness to tear

down the tailgate from the body.

3.

Tear down the position limit

After tearing down the two bolts, take down the left and right

side upper/lower position limits and the upper/lower position

limit from the tailgate and the body.

Tear down the position limit

Mount of tailgate lock and the tailgate

Mount the tailgate lock and the tailgate in the reverse

order

B0-50

Vehicle Body

 Instrument Panel

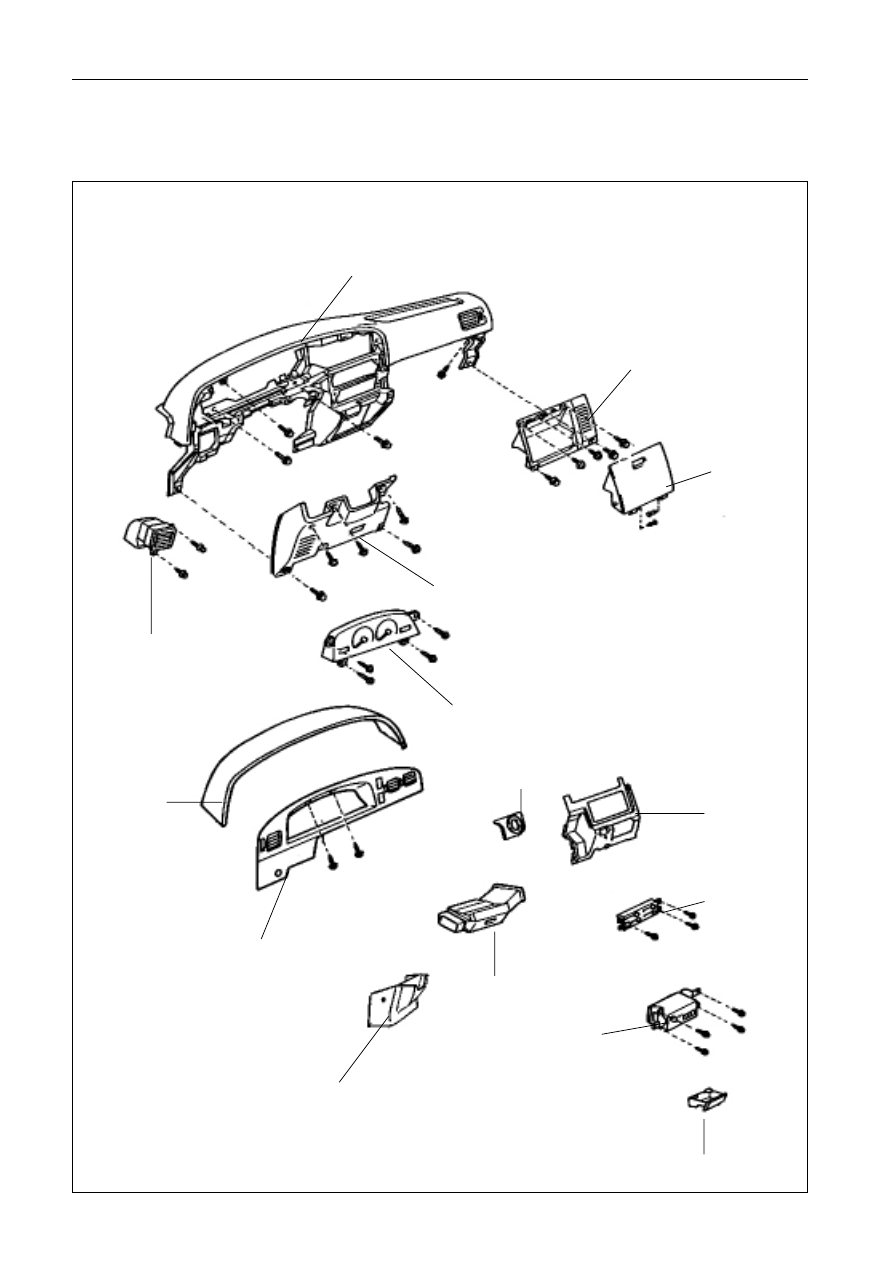

 Instrument panel (

)

Element figure

Dr

instrument
panel body

glove box

cover

glove box

lower instrument cover

left air tunnel

combination
instrument

ignition
switch cap

central cover

decorative cover of
instrument

upper instrument
cover

air passage

CD device

air-conditioning

controlling

mechanism

assembly

central lower wall

ashtray

B0-51

Vehicle Body

 Instrument Panel

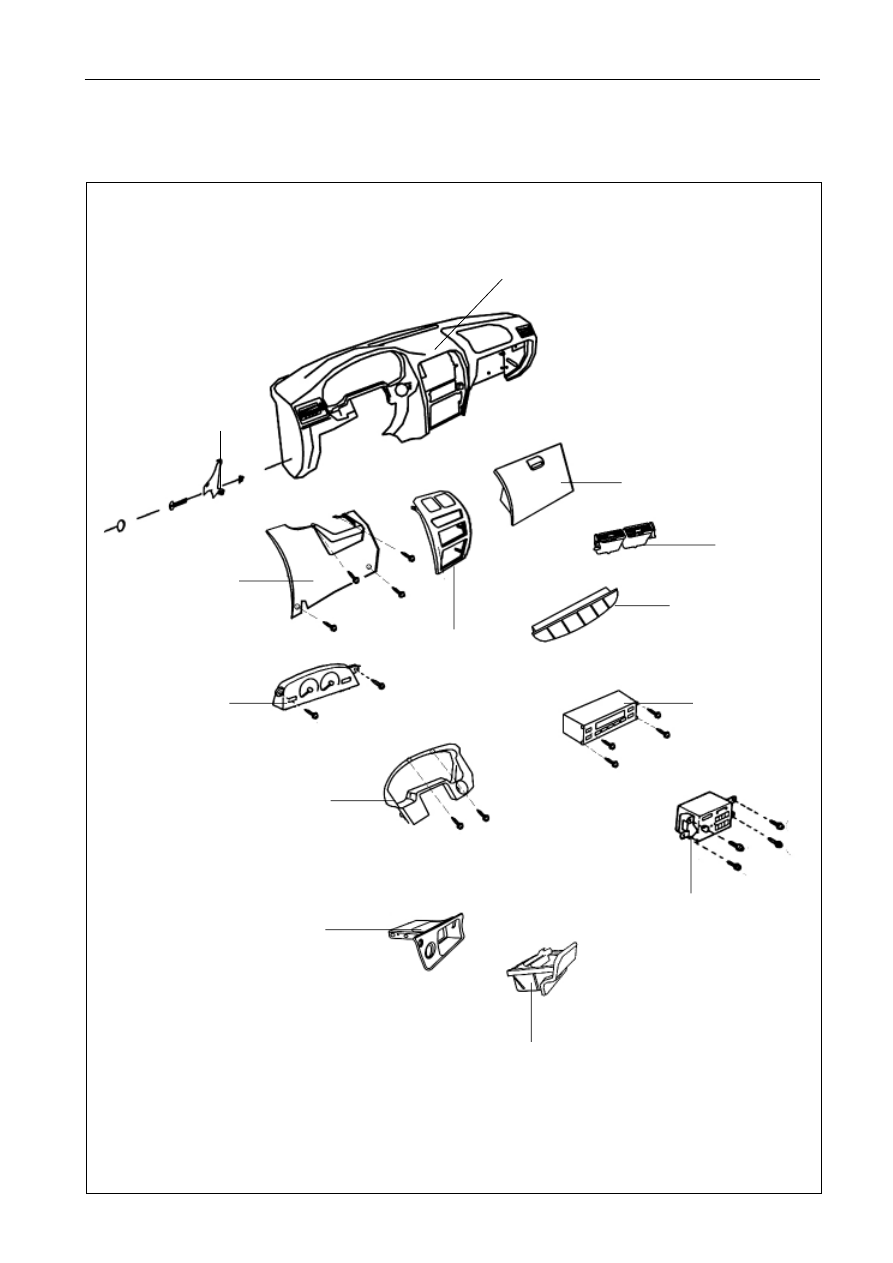

Instrument Panel (

)

Element figure

SF

instrument panel body

lower instrument cover

glove box

central panel

central switch

central air tunnel

combination instrument

instrument cover

cigarette lighter seat

ashtray

combined acoustic

device

ir-conditioner panel

fixed bracket
