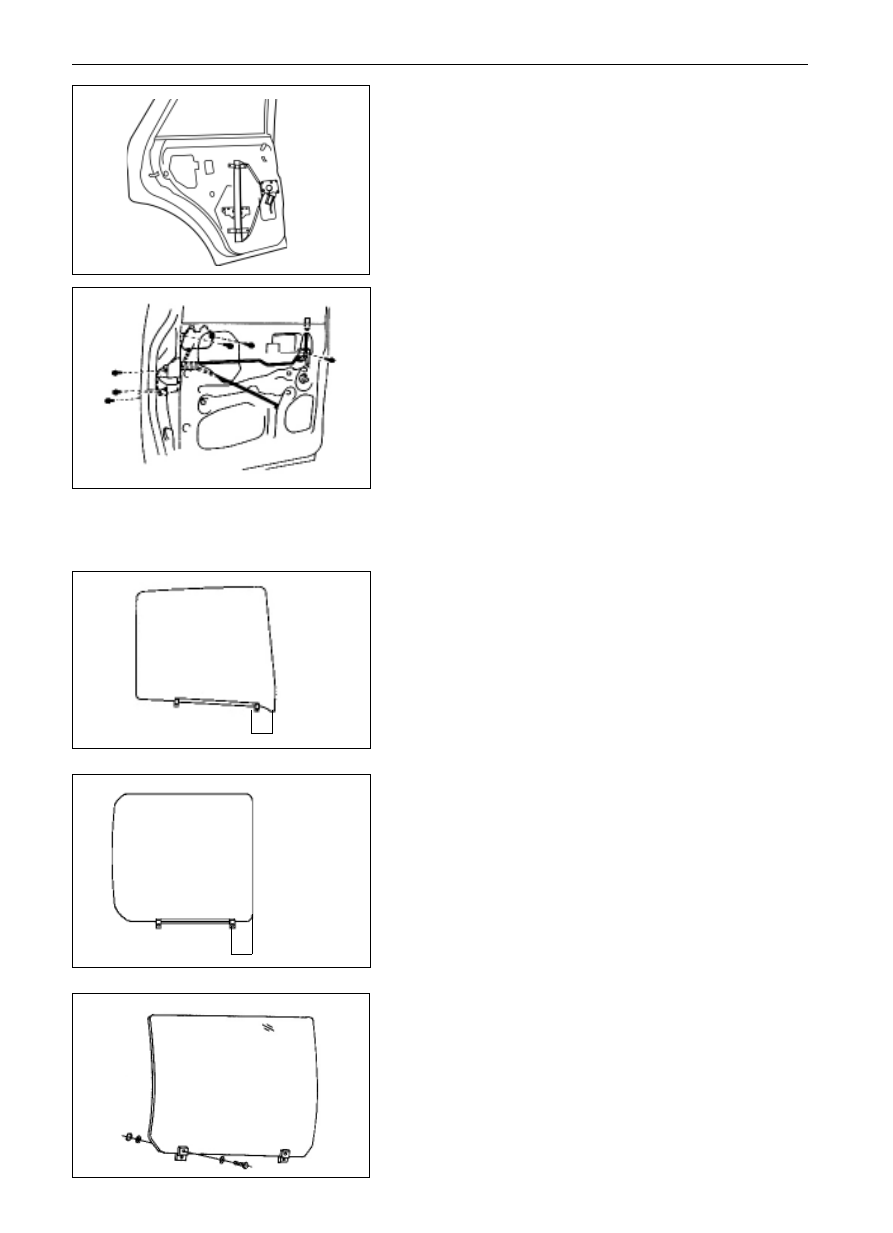

B0-16

(SJ)

(a)

Tear down the four fixing bolts of elevator bracket;

(b)

Tear down fixing bolts of three elevators;

(c)

Disassemble the elevator through the auxiliary hole.

Vehicle Body

 Rear Door

11. Tear down the lock ring inside the vehicle;

Disconnect the connecting bar to tear down the lock ring inside

vehicle body.

12. Tear down door lock and the outdoor handle with lock

barrel:

(a)

Disconnect the outdoor with lock barrel from the con-

necting bar.

(b)

Tear down three screws and door lock.

(c)

Tear down the two bolts and the outdoor handle with lock

barrel.

(d)

Tear down the spring snapping ring and lock barrel.

Change of Glass

(Dr SF)

1.

Tear down the glass bracket with screwdriver or similar

tool.

2.

Coat the black glue on the inner side of glass bracket

liner.

3.

Tap the glass bracket with rubber hammer to encase it.

Tear down the bolts on gear panel with the pliers or similar

tool.

4.

Tear down the bolts of door window glass bracket to take the

glass out.

SJ

a

Dr

a:35mm

b

b:80mm(manual)

  65mm(electric)

SF

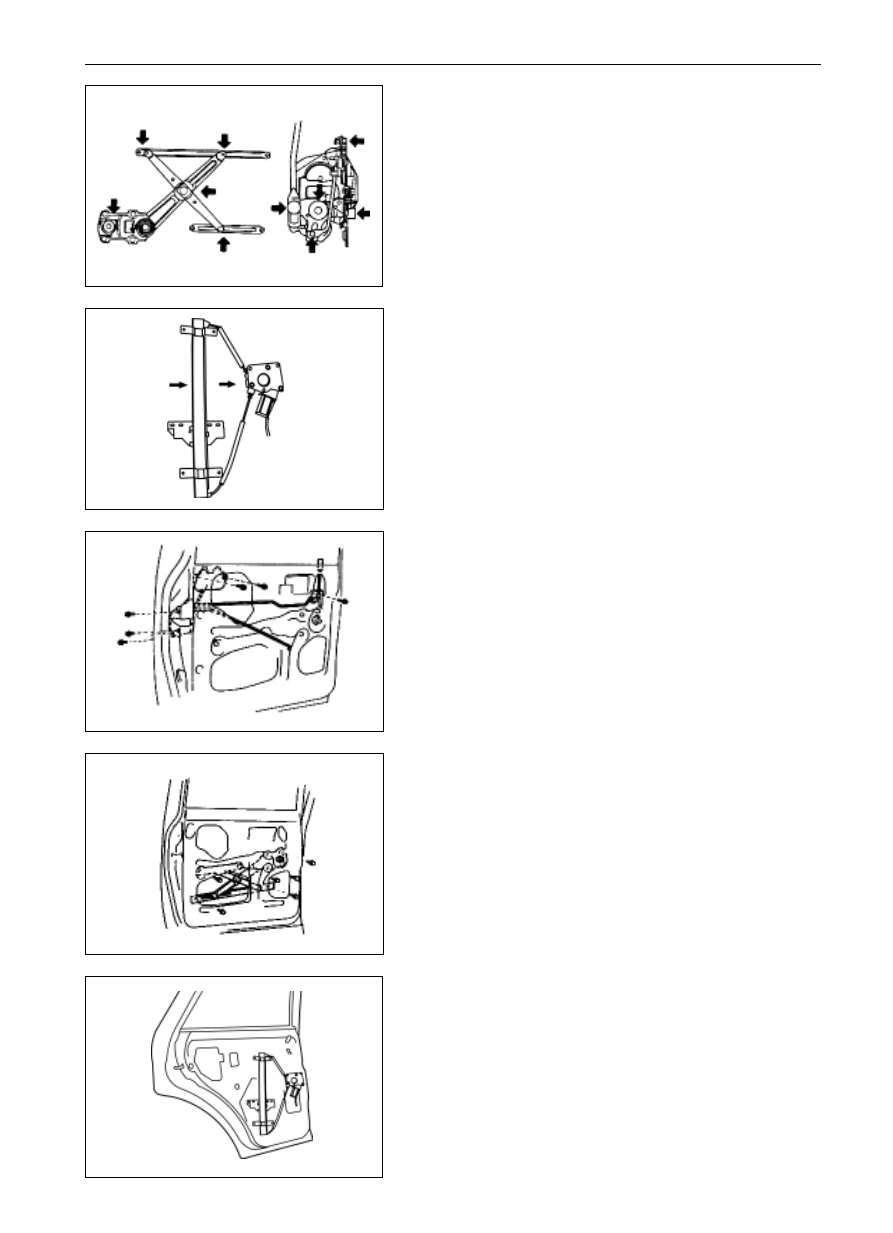

B0-17

Assembly of rear door

1.

Coat the MP lubricant on the parts before mounting

(a)

Coat  the MP lubricant on the sliding face and gear of

glass elevator;

Notice: Do not coat the MP lubricant on the spring of

glass elevator.

(b)

Coat the MP lubricant on the sliding face of door lock.

Vehicle Body

 Rear Door

2.

Mount the outdoor handle with lock barrel and door lock:

(a)

Mount the lock barrel on the outdoor handle with spring

snapping ring.

(b)

Mount the outdoor handle and the lock barrel with two

bolts;

(c)

Mount the lock door with three screws; and

(d)

Connect the connecting bar to the outdoor handle.

3.

Mount the inside lock ring

Mount the inside lock ring and connect the connecting bar.

4. Mount the glass elevator:

(a)

Put in the elevator through the auxiliary hole;

(b)

Mount three fixing bolts of elevator (for manually-

operated elevator);

Mount four fixing bolts of elevator (for electric elevator)

(c)

Mount the small sliding track and tighten the fixing bolts

temporarily;

(SJ)

(a)

Put in the elevator through the auxiliary hole;

(b)

Mount three fixing bolts of elevator;

(c)

Mount four fixing bolts of elevator bracket.

SJ

SJ

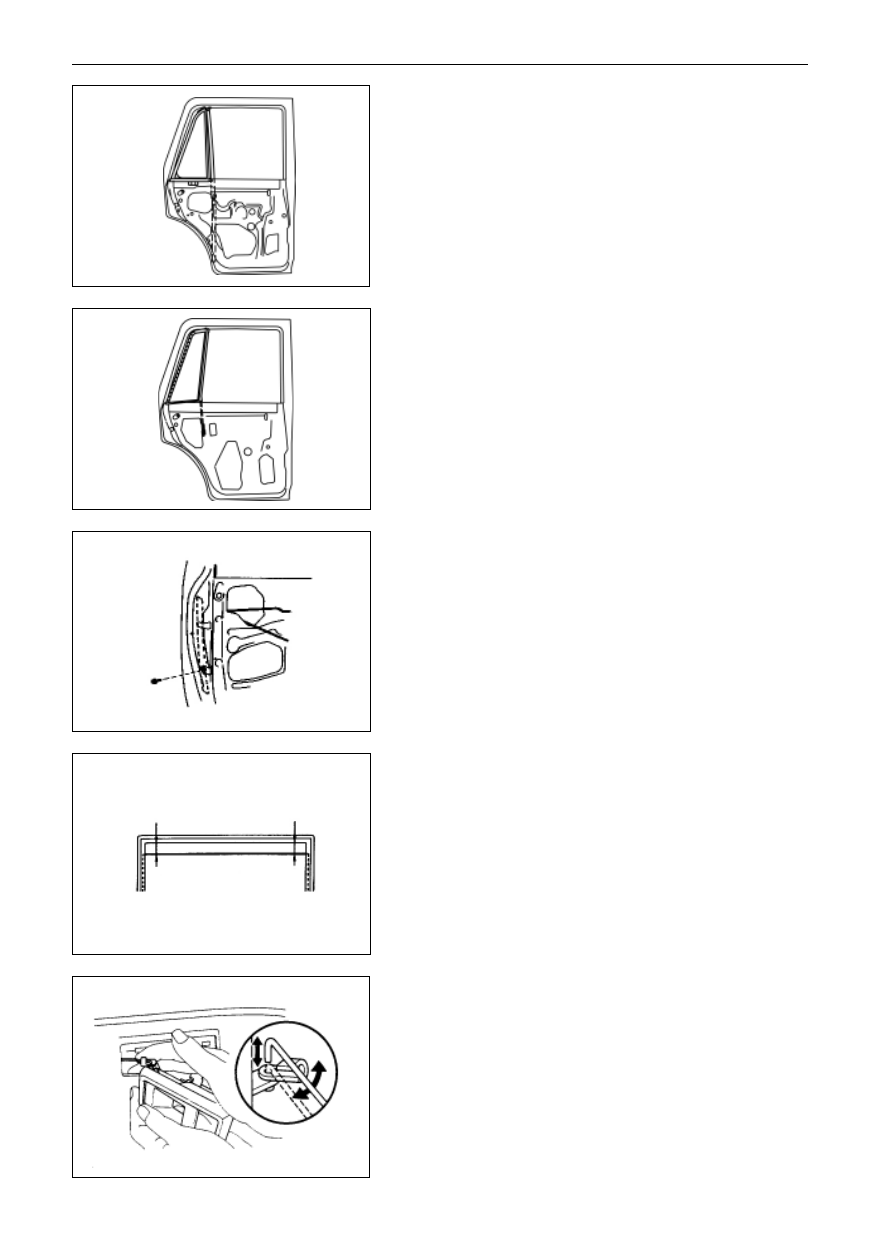

B0-18

10. Adjust the door window glass

Vehicle Body

 Rear Door

Adjust the balance arm upwardly or downwardly until the

dimensions A and B shown in the drawing are equal, and then

fix the balance arm.

11. Mount the outerauchi

8.

Mount lower rear glass guide track (Dr SF)

Mount the bolts and guide track.

9.

Mount the door window glass;

(Dr SF SL SK SY SJ)

Put the glass in the door cavity and then fix the glass on the

glass elevator with two bolts.

Mount on the tailgate baffle and lower dust strip (Dr)

5.

Mount the door glass channel;

6.

Mount on the quarter window glass (SF SJ)

7.

Mount the upper glass guide track (SF)

Mount the bolts and guide track.

12. Mount the door interior trim panel;

13. Mount the indoor handle:

(a) Push the indoor handle in the door paneling and slide it

backwardly.

(b)

Tighten the screws.

A

B

A=B

SF

SJ

B0-19

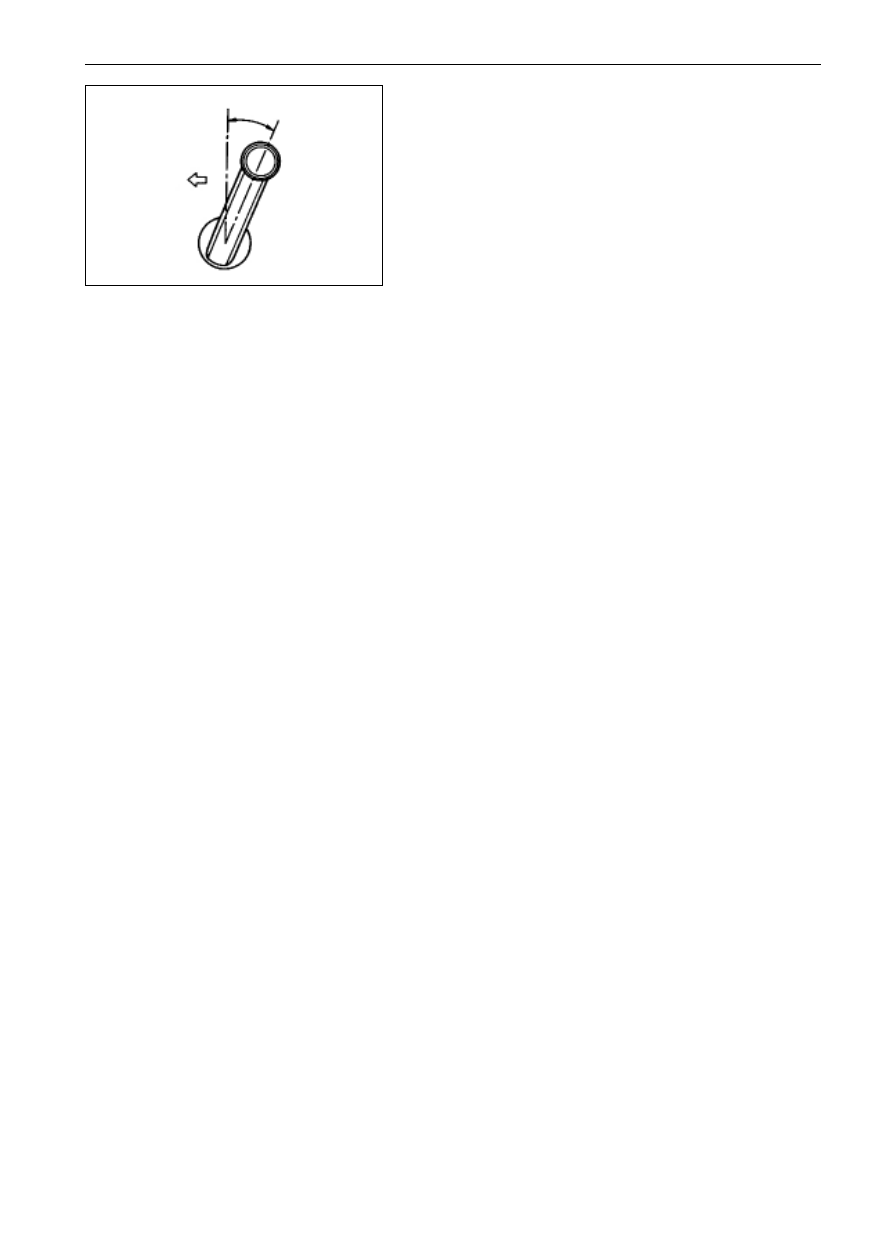

14. Mount the elevator handle (Dr)

Mount the paneling and elevator handle with spring snapping

ring as shown in the drawing under the condition that the all

of doors and windows of vehicle are closed.

Vehicle Body

 Rear Door

forward

30
