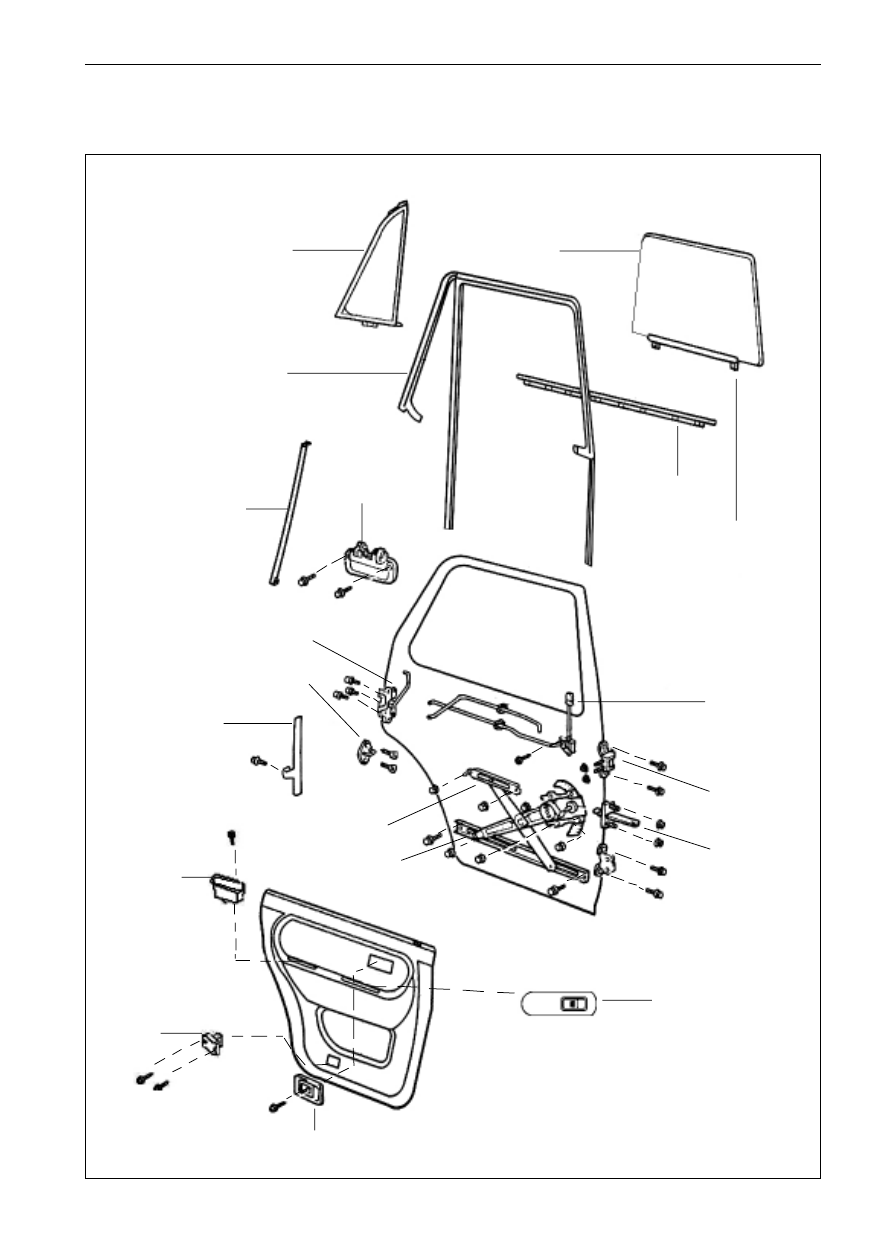

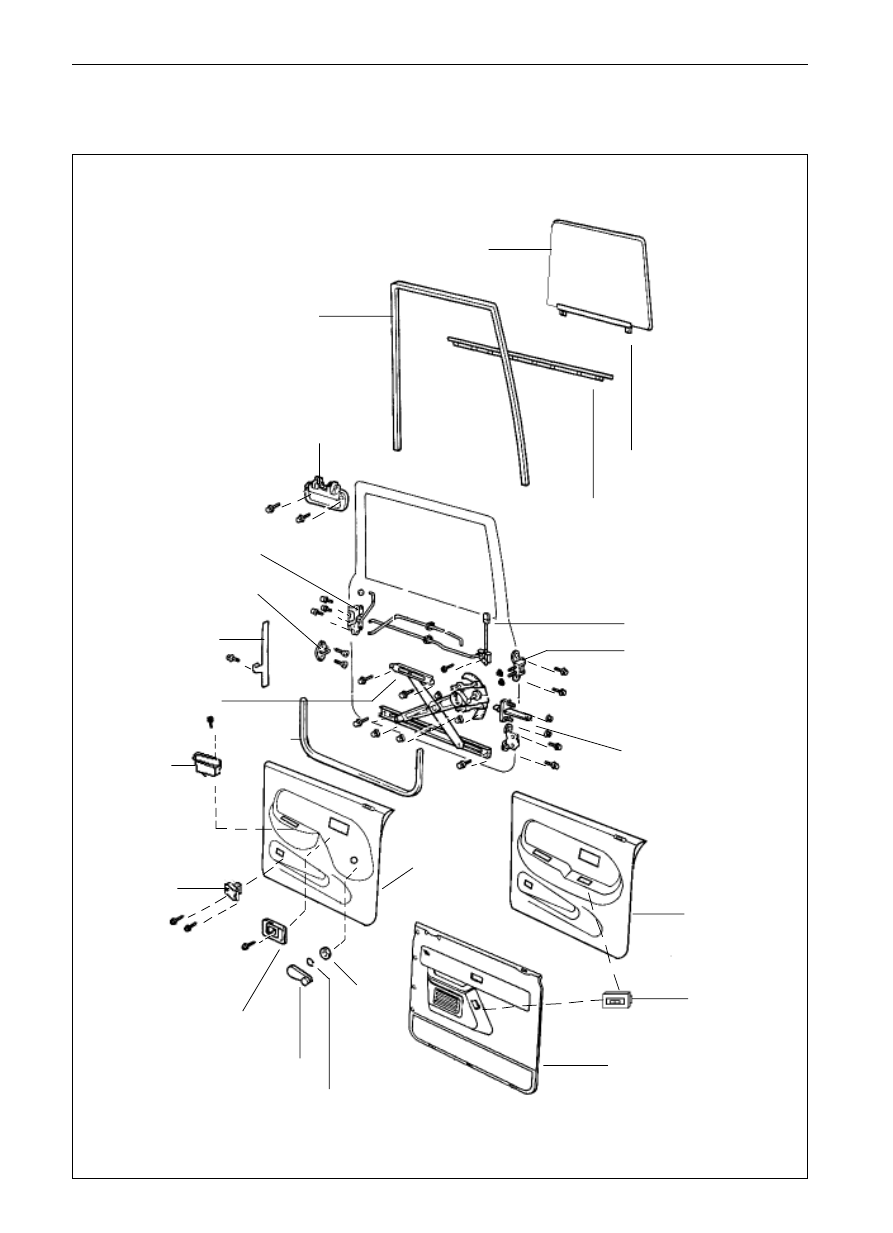

Assembly of Front Door
1.

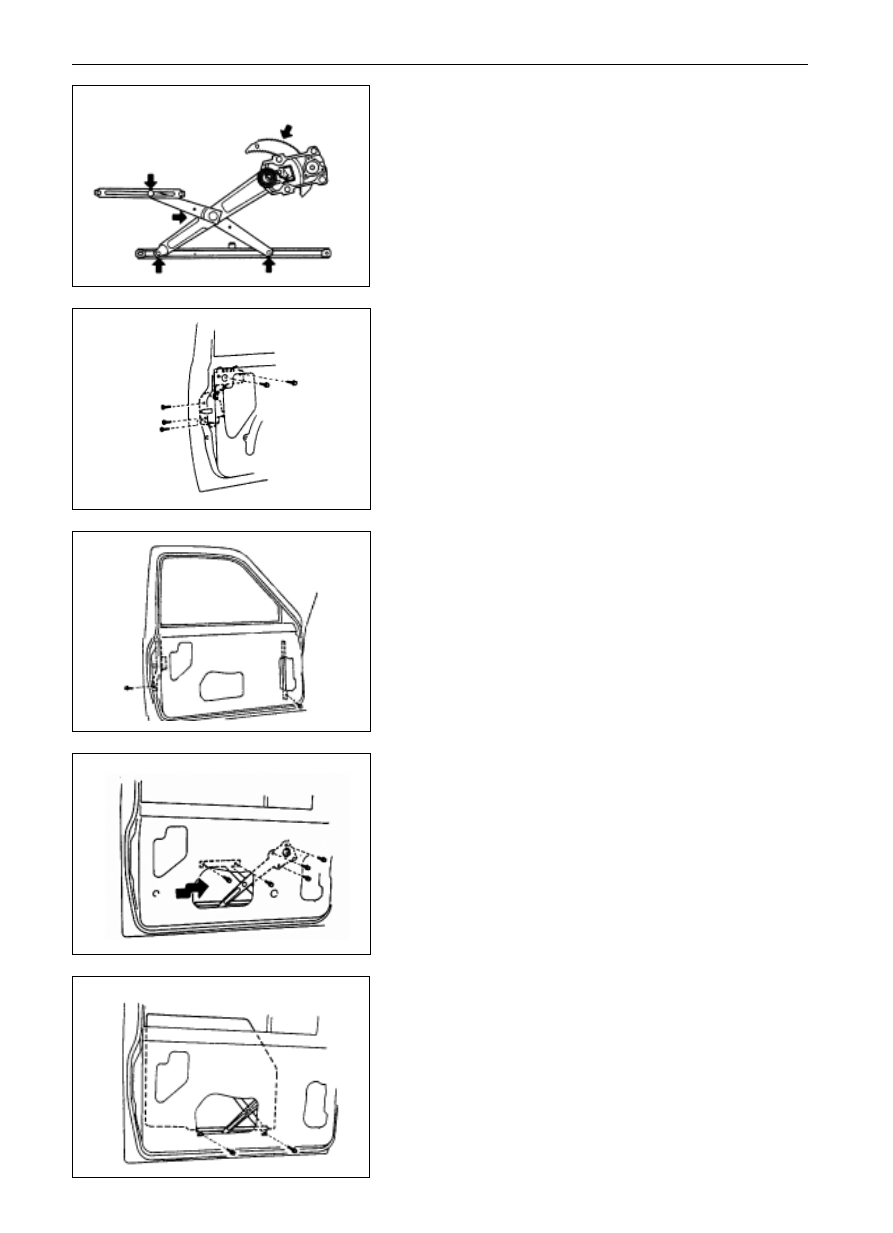

Coat the MP lubricant on the parts before mounting.
(a)
Coat the MP lubricant on the sliding face and the gear of
glass elevator.
Notice: Do not plaster the MP lubricant on the spring of
glass elevator.
(b)
Plaster the MP lubricant on the sliding face of door lock.
2.
Mount the outdoor handle with lock barrel and the door
lock;
(a)
Mount the lock barrel on the outdoor handle with spring
snapping ring;
(b)
Use two bolts to mount the outdoor handle and the lock
barrel;
(c)
Mount the door lock with three screws;
(d)
Connect the outdoor handle to the control lever.
3.
Mount the lock ring inside vehicle
Mount the lock ring inside of vehicle and connect the control
lever.
4.
Mount the lower rear glass guide track,
5.
Mount the lower front glass guide track;
6.
Mount the glass elevator:
(a)
Put in the elevator through the auxiliary hole;
(b)
Mount on the three fixing bolts of elevator. (manually
operated)
Mount on the four fixing bolts of elevator (electric)
(c)
Mount the small sliding track, and screw up the bolts of
small sliding track temporarily.
7.
Mount the glass groove on car door;
8.

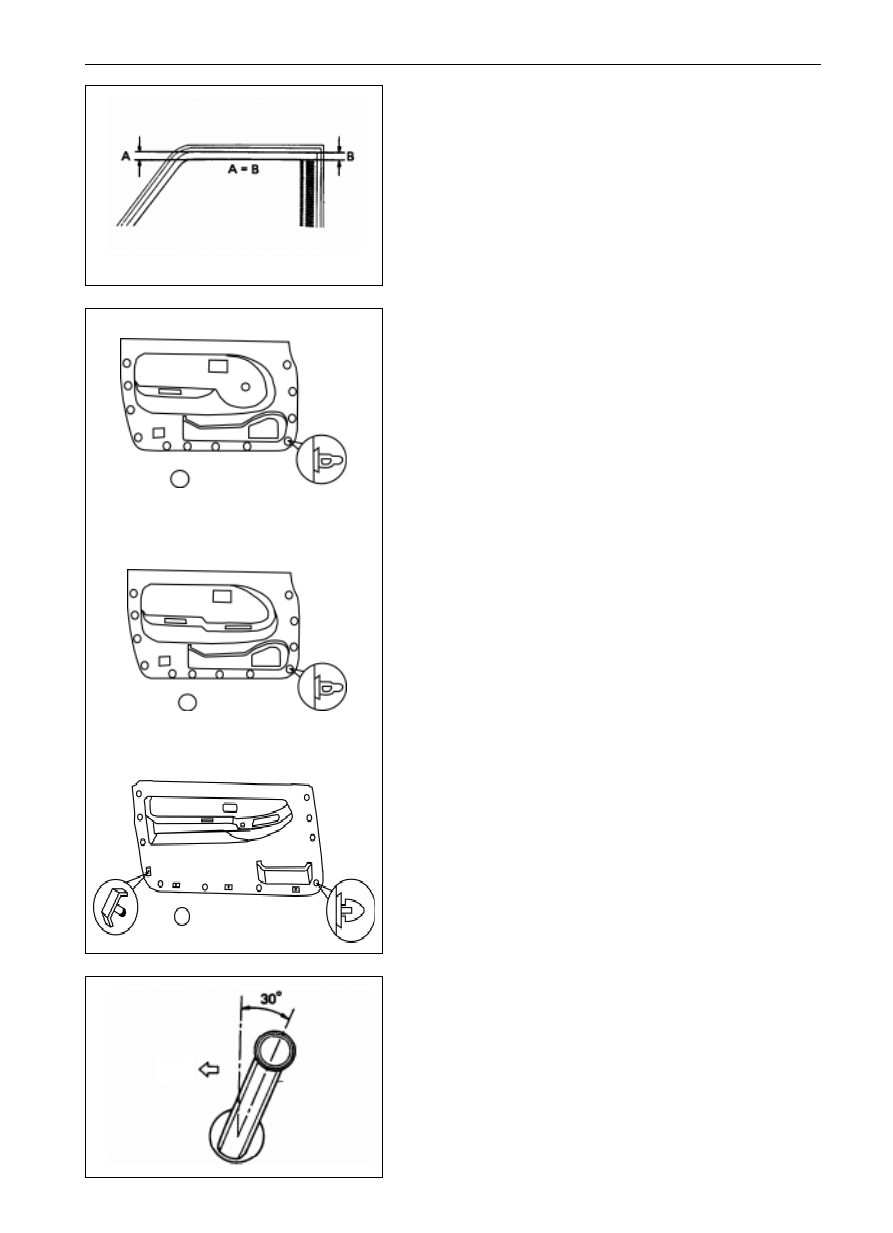

Mount the car door and window glass;
Put the glass in the car door cavity, and then use two bolts to
fix the glass on the elevator.
