13. Mount the front speed reducer assembly on the frame.

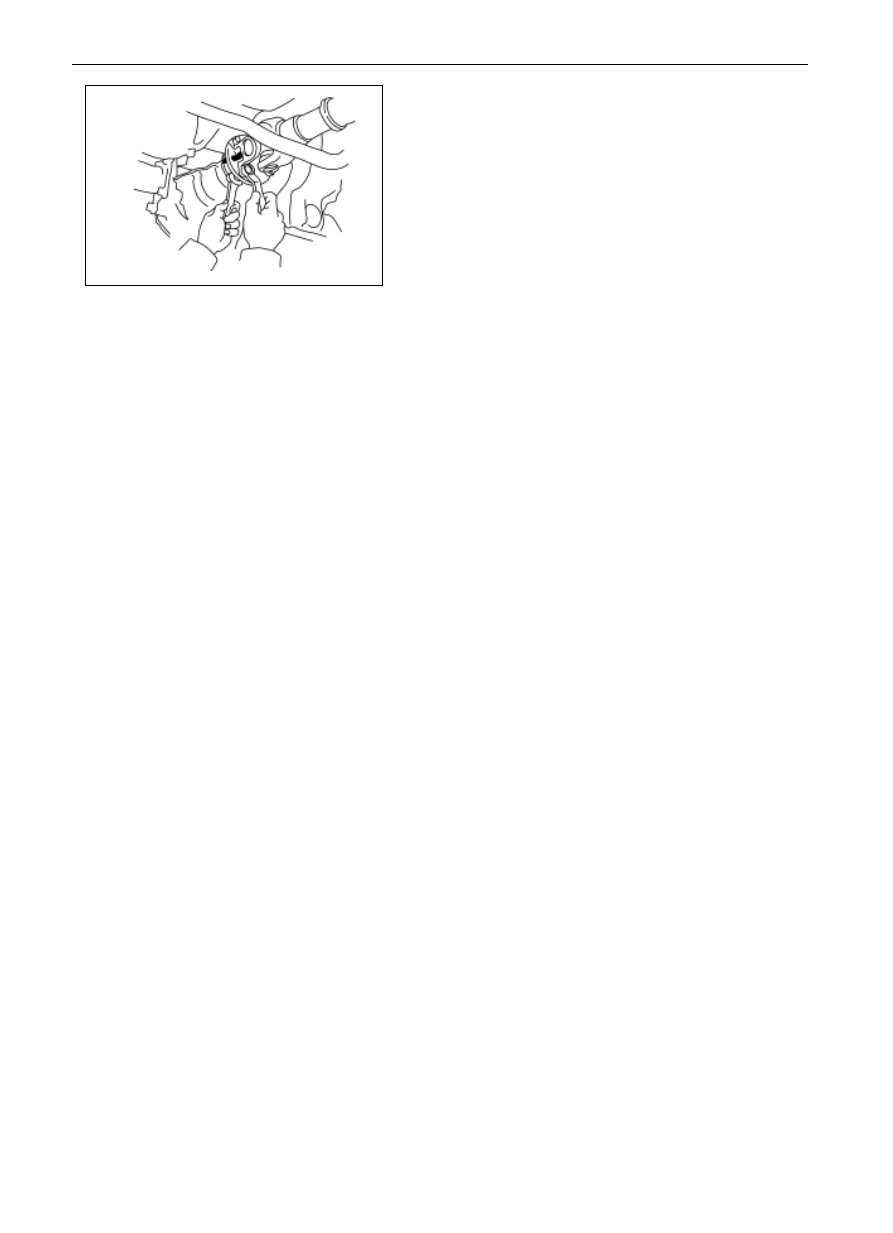

14. Connect the drive shaft to the flange:

(a)

Align the assembly mark and then connect the drive

shaft and the front drive axle flange with four sets of

bolt and nut.

(b)

Screw up the nuts according to the specified torque.

Specified torque

(69-79)N
m

Suspension System and Automobile Axle (SF/4WD)

 Front Speed Reducer (Change of Driving Bevel Gear Oil Seal of Front Speed Reducer)

SA-61

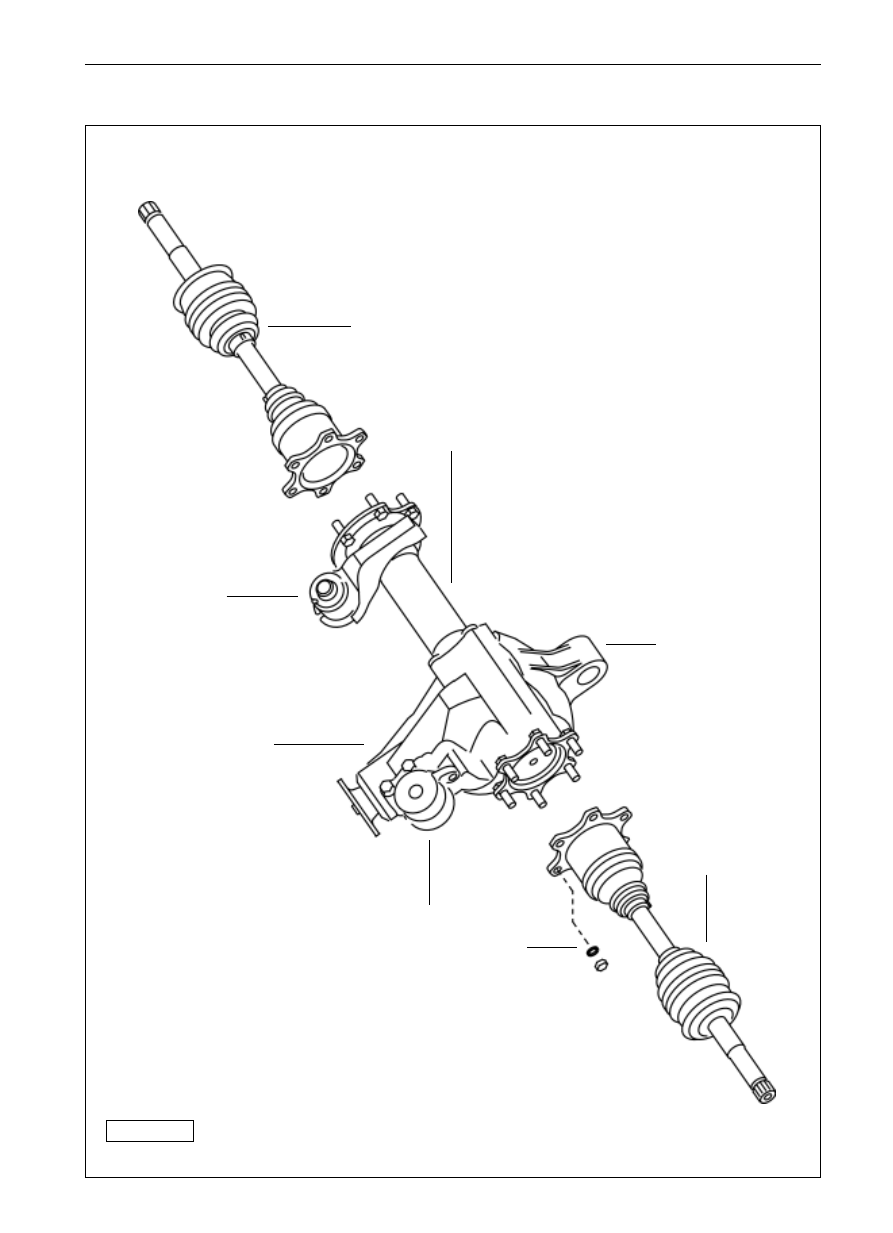

Dismantle of  Front Speed Reducer

constant speed drive shaft

front drive axle shaft

sleeve assembly

front drive axle hanger

front speed reducer and

differential assembly

front speed reducer shell hanger

rubber jacket and

shaft tube

constant speed

drive shaft

 Parts that cannot be reused after being used

N

M

cpecified torque

Suspension System and Automobile Axle (SF/4WD)

 Front Speed Reducer (DisassEmbly of Front Speed Reducer)

SA-62

1.

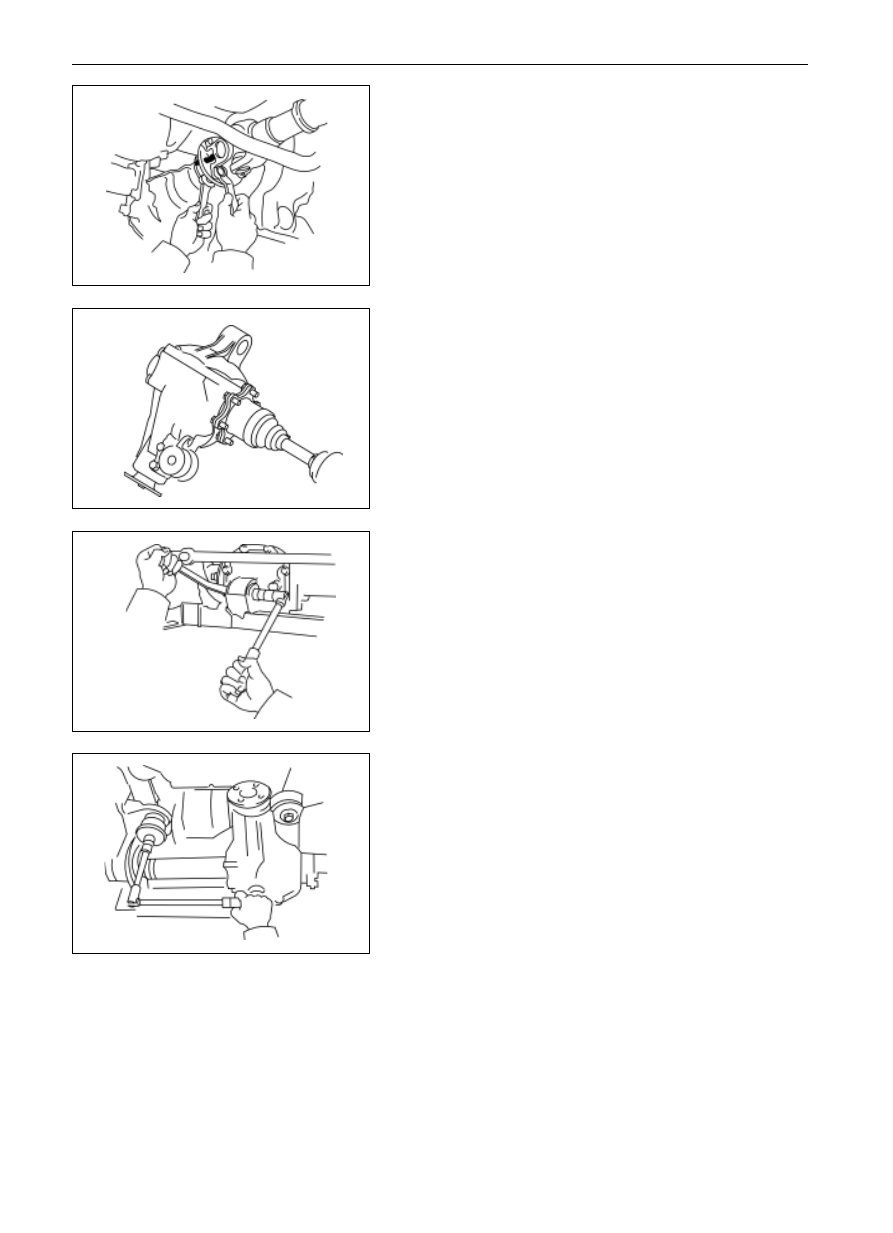

Disconnect the front speed reducer flange and the drive

shaft.

2.

Screw off the nuts that connect the constant speed drive

shaft.

3.

Screw off the bolts connecting the rubber jacket and

shaft tube of the front speed reducer cover and the

frame.

4.

Screw off the bolts connecting the front drive axle hanger

assembly and the front speed reducer shell hanger, and

tear down the front speed reducer.

Suspension System and Automobile Axle (SF/4WD)

 Front Speed Reducer (DisassEmbly of Front Speed Reducer)

SA-63

1.

Tear down the front long semi-axis and the front minor

half-shaft

Pull out the front long and minor semi-axis from the front

speed reducer with tool.

2.

Tear down the front drive axle shaft sleeve and screw off

the bolts connecting the half-shaft sleeve.

3.

Tear down the oil seal - front half-shaft:

Tear down the oil seal-front half-shaft with the special service

tool.

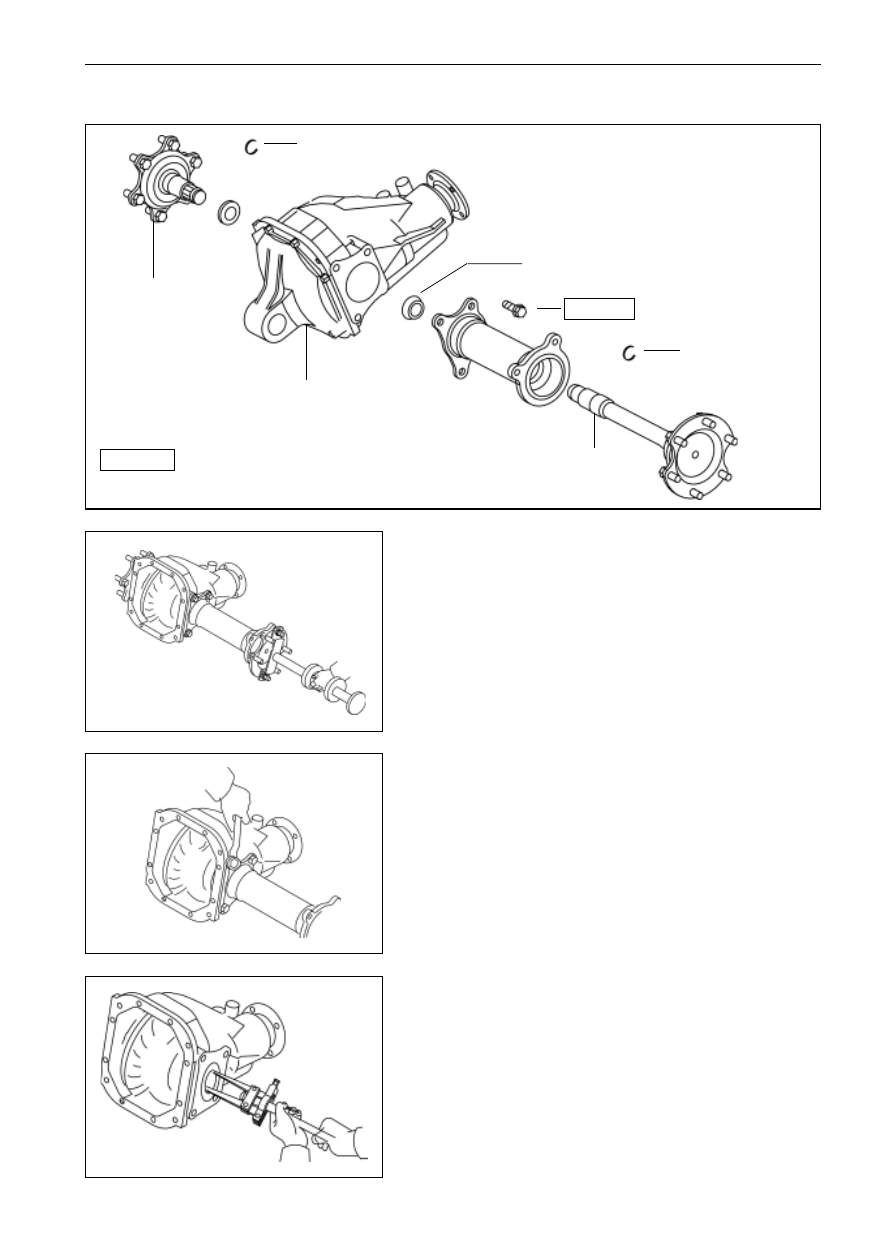

Change of Axle Shaft Oil Seal

 snapping ring

front minor half-shaft

front speed reducer and differential

 oil seal-front half-shaft

front long

semi-axis

 snapping ring

88

N

M

specified torque

 Parts that cannot be reused after being used)

Suspension System Automobile Axle (SF/4WD)

 Front Speed Reducer (Change of Axle Shaft Oil Seal)
