Great Wall Florid. Manual - part 31

GWFLORID Maintenance Manual

122

Front brake caliper assembly installation

1.  Preparations

Make sure all parts are clean and free of foreign materials

before installation.When installing, apply an appropriate

amount of rubber grease to the guide pin and piston's

working surface, as well as the rectangular sealing ring and

the piston protective cover's working surface.

2.  Install the rectangular sealing ring to the caliper.

(a)  Screw the bleed screw into the caliper's vent holes.

Tightening torque: 10±2 N·m

(b)  After applying an appropriate amount of rubber grease

on the rectangular sealing ring's working surface, install

them into the caliper's seal groove.

3.  Install the piston with piston dust cover on the caliper.

(a)  Place the piston dust cover on the piston.

(b)  Stretch the piston dust cover, until its card holder

exposes  the  bottom  of  the  piston.  Use  tools  (for

example, about Ф2 mm of iron wire) to assist by

stuffing the card holder into the cylinder bore card

holder's groove.

Caution: The tools being used should not be sharp, as

to avoid tearing the dust cover.

(c)  Then manually press the piston into the bottom of the

cylinder bore.

4.  Install the guide pin and guide pin dust cover onto the

caliper frame.

(a)  Install the guide pin dust cover onto the guide pin.

(b)  Screw the guide pin into the caliper frame.

Caution: Do not damage the guide pin dust cover.

5.  Install an inner and outer brake pad assembly and

inner and outer muffler plate subassembly.

6.  Install the brake block yoke spring plate as well as the

inner and outer brake pad assembly and inner and

outer muffler plate subassembly on the caliper frame.

Guide pin

Guide pin dust cover

Caliper frame

Brake block yoke

spring plate

Air bleed

screw cap

Air bleed

screw

        Caliper

Inner muffler plate

subassembly

Alarm plate

Inner brake pad assembly

Outer brake pad

assembly

Outer muffler plate subassembly

123

Brake System

7.  Install the caliper assembly.

(a)  Install the caliper assembly.

(b)  Install and tighten the hexagon bolt for flange face.

Tightening torque: 30±5 N·m

8.  Connect the brake line.

Connect the brake pipeline to the caliper.

Tightening torque: 40±4 N·m

9.  Fill the brake reservoir up with brake fluid and exhaust

the air from the brake system.

10. Check for leaking brake fluid.

Caution: Bleed the air after replacing.

GWFLORID Maintenance Manual

124

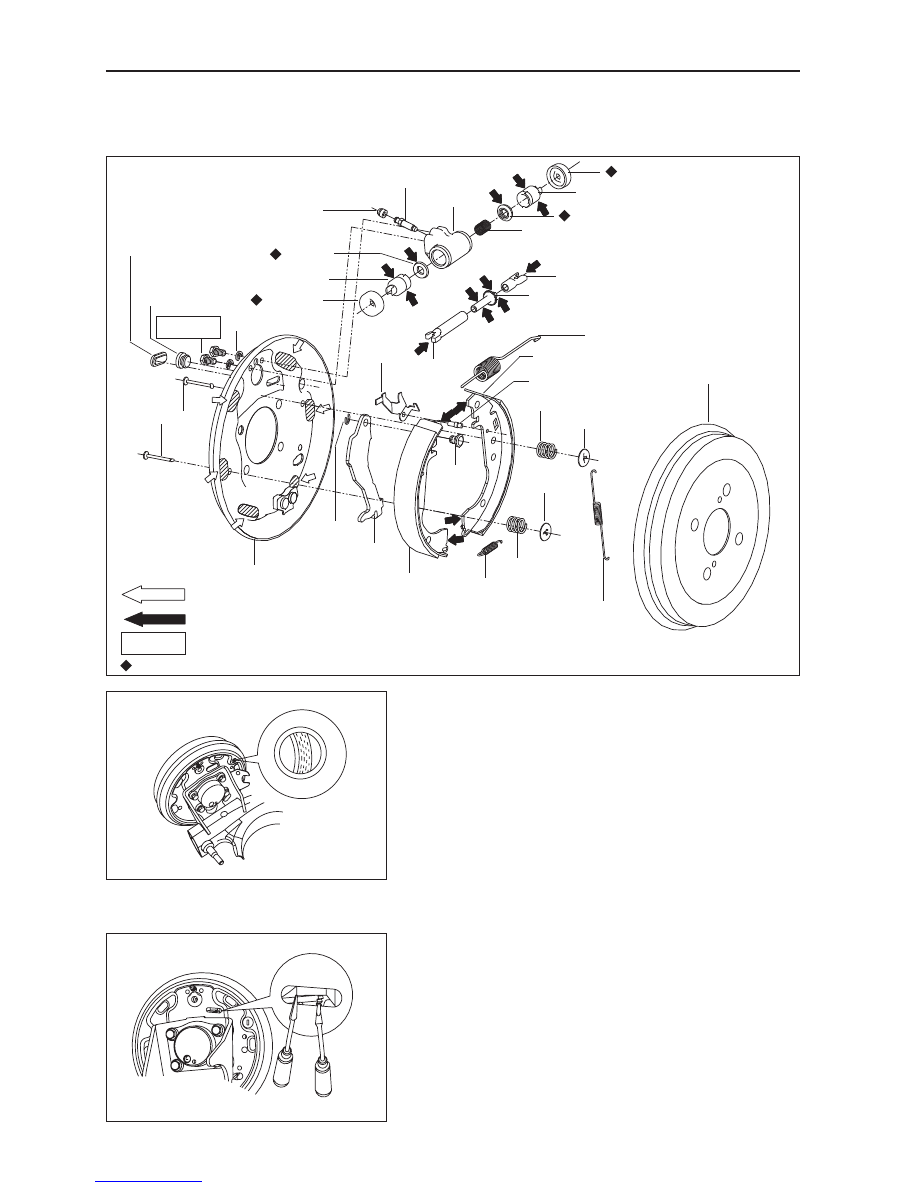

Rear Brake

Components

4.  Remove the rear brake drum.

Remark: If it is difficult to remove the rear brake drum,

follow the steps below:

Method one:

(a)  Remove the rubber plug of the adjuster's observation

port, and insert a slotted screwdriver into the brake's

back plate assembly hole, and pry off the adjusting

paddle from the adjusting clearance wheel.

(b)  Use another slotted screwdriver to toggle the adjusting

clearance wheel and loosen the brake's leading and

trailing shoe assembly's tension on the rear brake drum.

 Disposable parts

Dust cover

Brake leading shoe assembly

Pressure spring

Pressure spring cap

Brake shoe tension spring

Rear brake drum

Lever

rotating

shaft

Retainer spring

Locking cap

Split ring

Brake lever

Brake trailing

shoe assembly

Brake back plate assembly

Pressure spring bar

Rubber plug of the

adjuster's observation port

Rubber plug of the

observation port gap

Washer

Bleed screw cap

Bleed screw

Piston

Ring cup

Piston spring

Wheel cylinder

Adjusting clearance shaft head

Adjusting clearance wheel

Adjusting

clearance

screw rod

Return spring

Adjusting

paddle

Pin

Side spring

Dust cover

Piston

Ring cup

Rubber grease

: Specified torque

N·m

7.8-11.8

High temperature resistant

grease

Rear brake removal

1.  Inspecting the brake's friction plate thickness.

Remove the rubber plug of the observation port gap and

examine the friction plate thickness via the observation port.

If it's smaller than the minimum value, the brake's leading

and trailing shoe assemblies should be replaced.

Minimum thickness: 1.0 mm

2.  Remove the rear wheel.

3.  Release the brake fluid.

Caution: Be sure not to spill the brake fluid onto the

paint's  surface.  Otherwise  it  must  be  immediately

cleaned.

125

Brake System

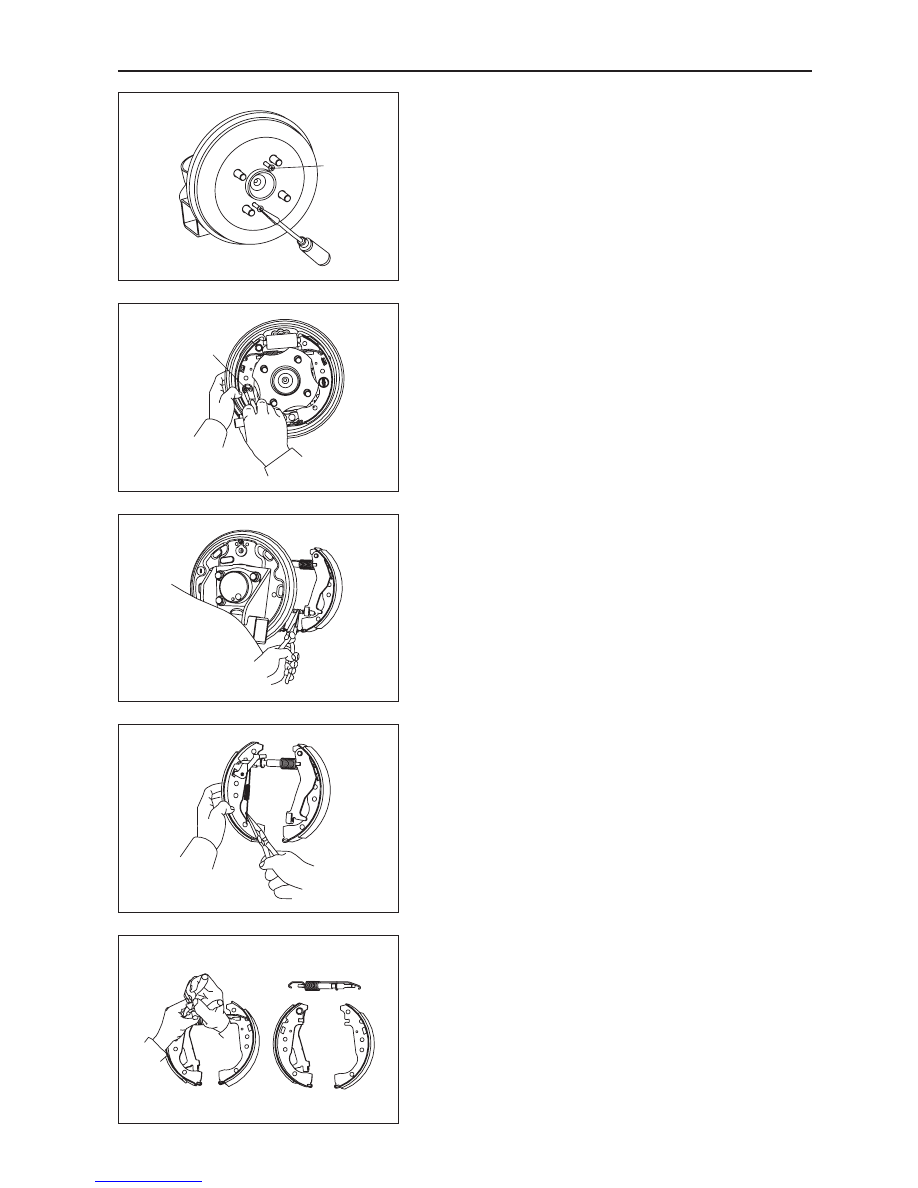

Method two:

(a)  Find two M6×40 (the thread is longer than 25 mm)

phillip screws, and screw them into the rear brake

drum's two threaded holes.

(b)  Use a screwdriver to tighten the phillip screw, and push

out the rear brake drum.

Caution: Alternately tighten the two screws.

5.  Remove the brake leading and trailing shoe assembly

and adjusting paddle.

(a)  Use SST (Special Service Tools) to separate and remove

the pressure spring cap of the brake leading and trail-

ing shoe assembly, and remove the pressure spring and

pressure spring bar.

(b)  Take out the brake leading and trailing shoe assembly

from the brake back plate assembly, take down the

retainer spring, and remove the cable connector.

Remark: When taking out the brake leading and trailing

shoe assembly from the brake back plate assembly, screw

the adjusting clearance wheel thread completely into the

adjusting clearance screw rod, decrease the return spring's

tension on the brake leading and trailing shoe assembly.

(c)  Use needle nose pliers to remove the brake shoe tension

spring, and take down the adjusting paddle.

(d)  Use pliers to remove the return spring from the brake

leading and trailing shoe assembly, and separate the

brake leading and trailing shoe assembly.

SST

M6×40
