6. Remove the output shaft's 2nd gear synchronizer ring,

2nd gear needle bearing, and the 2nd gear subassem-

bly retaining ring.

7. Remove the shaft retainer from the No. 1 synchronizer

gear hub of the output shaft.

8. Remove the output shaft's No. 1 synchronizer compo-

nents and the 1st driven gear.

9. Remove the needle bearing from the output shaft's 1st

driven gear subassembly.

Transmission

10. Remove each component of output shaft's No. 1 syn-

chronizer.

11. Remove the front tapered roller bearing.

GWFLORID Maintenance Manual

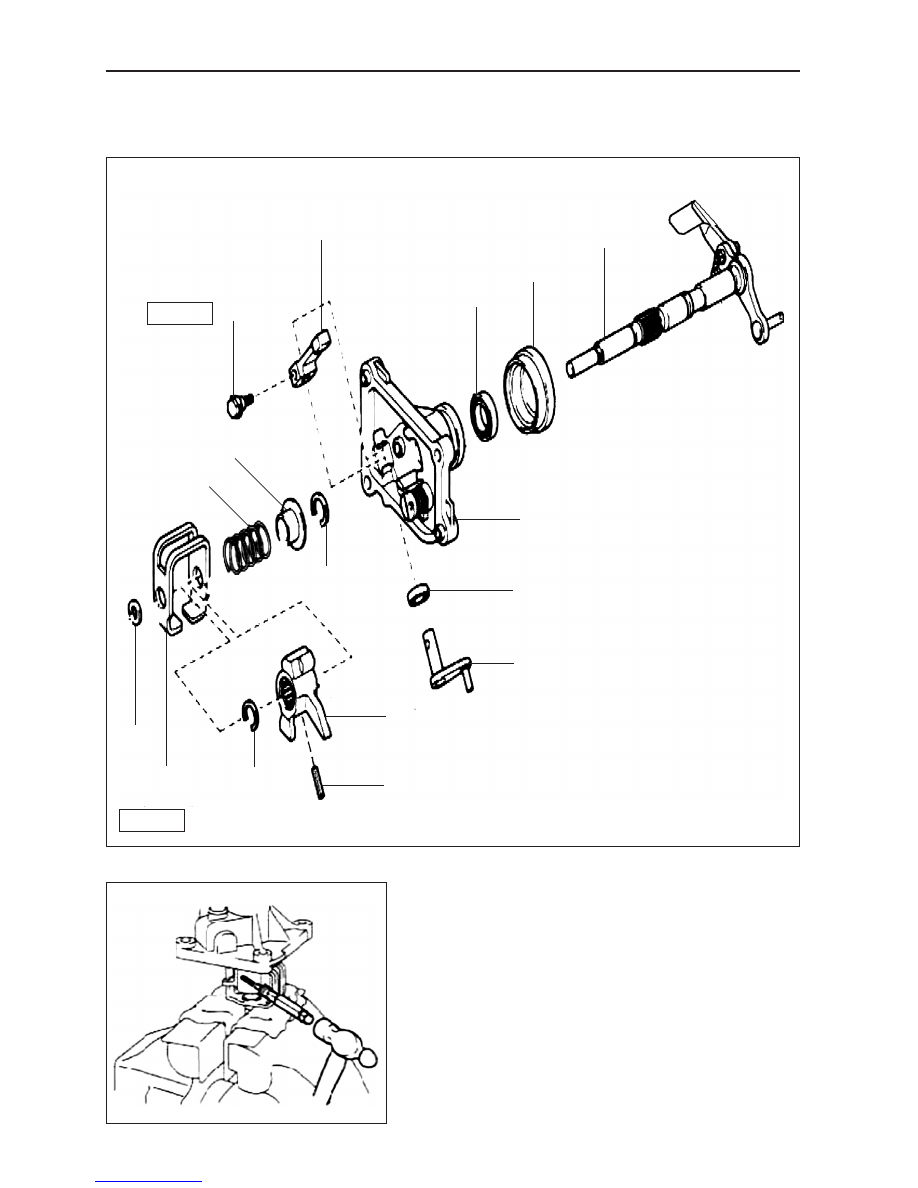

Disassembling the Shift Cover Subassembly

Components

Shift lever assembly

Dust cover

T oil seal

Gear shifting block

No. 2 spring seat

Pressure spring

Shaft retainer

Gasket

Lock plate

Shaft retainer

Elastic cylindrical pin

Shift guide block

Select lever subassembly

Manipulation lid

T oil seal

1. Remove the shift lever's elastic cylindrical pin.

Set bolt

38.0

: Specified torque

N·m

Transmission

2. Remove the shaft retainer on the shift lever and the se-

lect lever.

3. Remove the lock plate.

4. Remove the pressure torsion spring.

5. Remove the No. 2 spring seat.
