Supplemental restraint system--Scrap treatment for safety airbag

Special

tool

Safety airbag
assembly at the
side of passenger

Battery

Over 10m

(5) Put two tyres at least under the tyre fixed with airbag

assembly, and put two tyres at least on the tyre fixed with
airbag assembly, at the same time, top tyre should have
wheel hub. Use two wiring harnesses to bind tyre tightly, if
shake is produced when airbag explodes, airbag module
will break off to make danger.
Width: 185mm
Inner diameter: 360mm

(6) Cut off the joint of wiring harness used for unfolding of safety

airbag assembly at the side of driver at the place apart from
the automobile, then connect it with two ends of battery.

(7) Treatment for explosive module.

Disassemble the safety airbag module at the side of driver
from wheel, and put it in ethane plastic bag, then bind the
bag for treatment with other parts.

 269

Safety belt

Note

Hint:

When scraping a automobile equipping with safety belt pre-tension crimper, or disposing the safety belt

(equipping with safety belt pre-tension crimper), firstly, it is necessary to make by following steps.

If happening any abnormal phenomenon, please consult with GEELY automobile company.

When disposing a impacted automobile, and its safety belt pre-tension crimper did not explode, its treatment

step is same as the “Treatment step 1-(e)”.

Warning:

Forbid disposing the safety belt pre-tension crimper that does not work.
When exploding the safety belt pre-tension crimper, it will produce big explosive noise, so this opera-
tion should be made out of automobile and in environment where will not influence near habitants.
When exploding the safety belt pre-tension crimper, it is necessary to use SRS airbag exploding
special tool, at the same time, the environment implementing this operation should be apart from
electronic interruption.
When exploding the safety belt pre-tension crimper, the environment implementing this operation
should be 10m apart from safety belt pre-tension crimper assembly.
When exploding the safety belt pre-tension crimper, safety belt will be very hot, please do not dispose
it in 30 minutes after explosion.
When disposing exploded safety belt pre-tension crimper, it is necessary to wear glove and safety
glass.
After finishing this operation, it is necessary to wash your hand with water.
Do not sprinkle water on exploded safety belt pre-tension crimper.

Safety belt--Front safety belt

Special

tool

Battery

Special

tool

 270

Treatment

1. Safety belt pre-tension crimper when scraping

automobile.

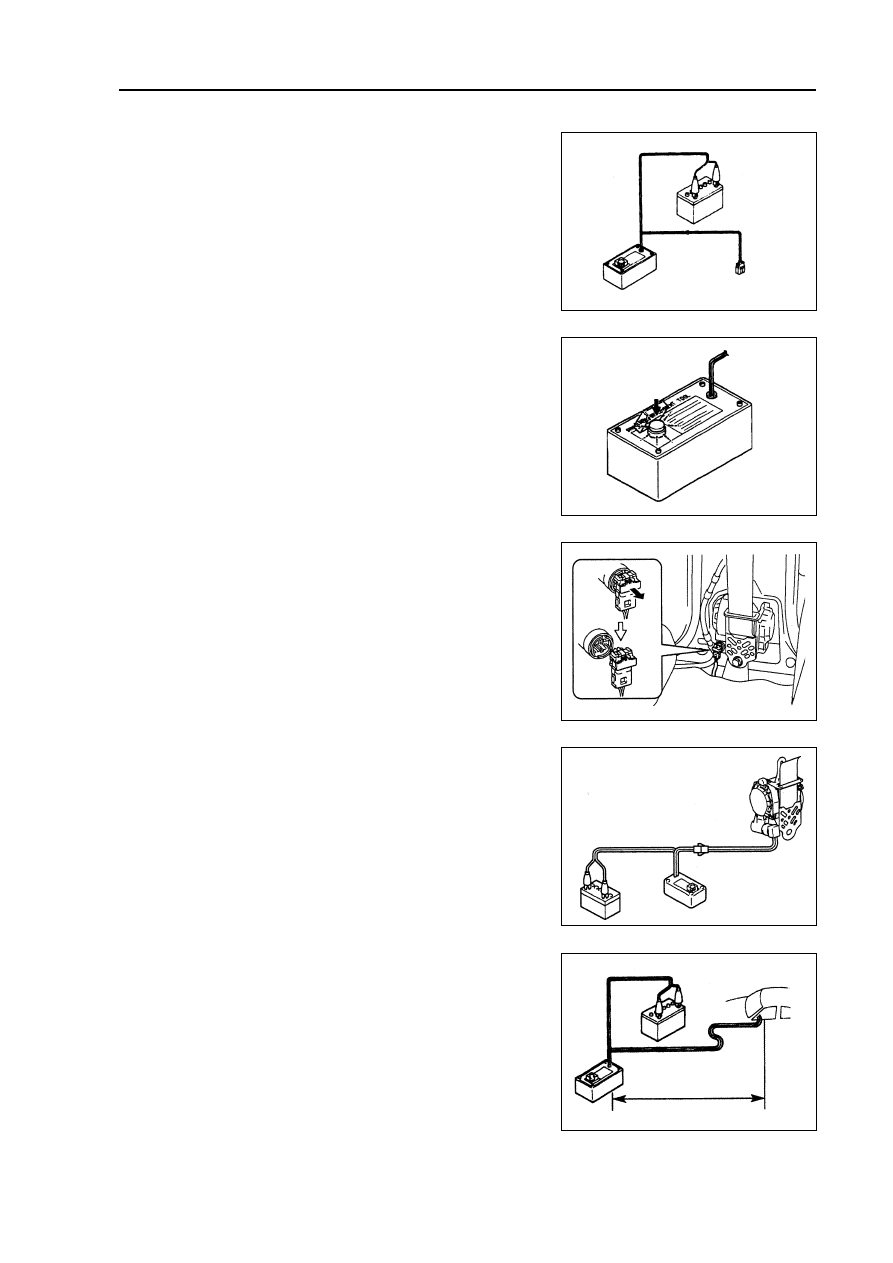

Hint: prepare a battery as the power to explode safety

belt pre-tension crimper.

(a) Confirm the function of special tool

Warning: when exploding safety belt pre-tension

crimper, it is necessary to use regulated special
tool: SRS airbag exploding tool.

Safety belt--Front safety belt

(1) Connect special tool with battery,

Connect the red clamp of special tool with the anode of
battery (+), and black clamp with the cathode of battery
(-).
Hint: Do not connect the yellow joint with safety

belt pre-tension crimper.

(2) Confirm the function of special tool.

Press working switch of special tool, then the LED on
switch should illuminate.
Warning: if working switch is not pressed, LED

illuminates, then special tool might have
malfunction, at the this time, do not use the
special tool.

(b) Disassemble the joint of safety belt pre-tension crimper.

(1) Disassemble panel trim board of front door,
(2) Disassemble panel trim board of rear door.
(3) Disassemble lower fixed bolts and trim cover of safety

belt.

(4) Disassemble lower inner trim board of middle column.
(5) Liking that shown in figure, disassemble the joint of safety

belt pre-tension crimper.

(c) Assemble special tool

(1) Assemble lower fixed bolts and trim cover of safety belt.

(2) Connect two special tools with lower fixed bolts and trim

cover of safety belt..
Note: to avoid damaging the joint and wiring har-

ness of special tool, do not lock the twice lock
of dual-lock organization.

(3) Move the special tool apart from the front end of auto-

mobile for 10m at least.

(4) Close all doors and windows.

Note: do not damage wiring harness of special tool.

(5) Connect the read clamp of special tool with the anode

of battery (+), and black clamp with the cathode of bat-
tery (-).

Special

tool

Battery

Special

tool

Special

tool

Special

tool

Over 10m

 271

Safety belt--Front safety belt

(d) Explode safety belt pre-tension crimper.

(1) Confirm there is no one in automobile and in 10m scope apart from automobile.
(2) Press down working switch of special tool and explode safety belt pre-tension crimper.

Hint: when LED of working switch of special tool illuminates, safety belt pre-tension crimper will

explode charged gas at the same time.

(e) Treatment for safety belt pre-tension crimper.

Hint: when scraping automobile, it is necessary to explode safety belt pre-tension crimper,

then it could be scraped with automobile.

2. Only treatment for safety belt pre-tension crimper (Treatment type for exploding front

seat safety belt).

Note:

when only exploding safety belt pre-tension crimper,
forbid using the automobile belonging to customer to
explode safety belt pre-tension crimper.
When exploding safety belt pre-tension crimper, it is
necessary to accord with following step.

(a) Disassemble safety belt.

Hint: cut off safety belt at its position closing to

shrinker.

(b) Confirm the function of special tool.
(c) Assemble special tool.

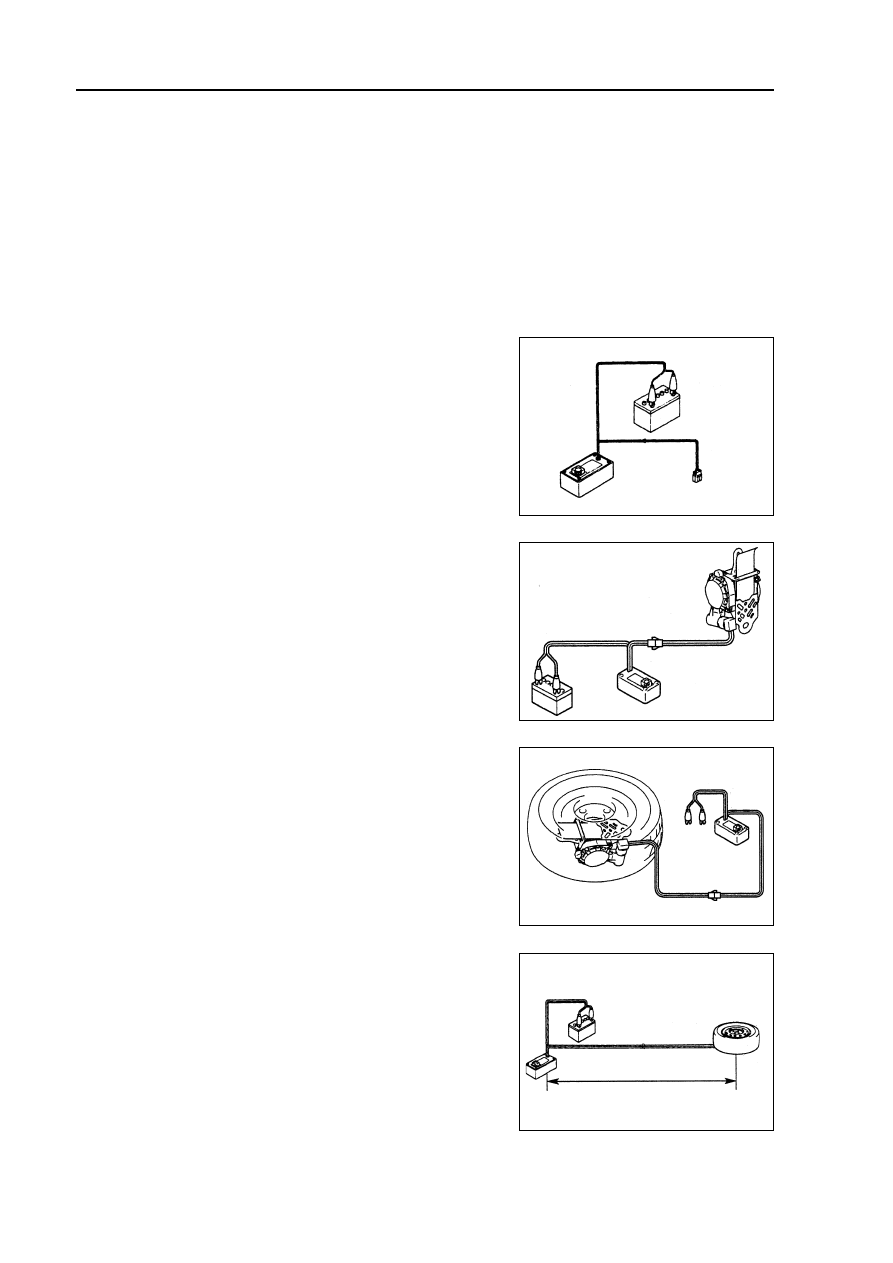

(1) Connect two joints of special tool to the joint of safety

belt pre-tension crimper.
Note: to avoid damaging the joint and wiring har-

ness of special tool, do not lock the twice lock
of dual-lock organization.

(2) Place the safety belt pre-tension crimper on ground, and

cover it with tyre.
Note: Place the safety belt pre-tension crimper lik-

ing that shown picturey.

(3) Place th special tool  above 10mm away from tire

Note: do not damage special tool and wiring har-

ness carefully.

(d) Explode safety belt pre-tension crimper.

(1) Connect red fixed clamp of special tool to the anode of

battery (+), black fixed clamp to cathode of battery (-).

(2) Confirm there is not anyone in 10m apart from the tyre

binding safety belt pre-tension crimper.

(3) Press down working switch of special tool to explode

safety belt pre-tension crimper.
Hint: when LED of working switch of special tool

illuminates, safety belt pre-tension crimper
will explode at the same time.

Special

tool

Special

tool

Special

tool

Special

tool

Special

tool

Battery

Over 10m
