Geely FC. Manual part - 61

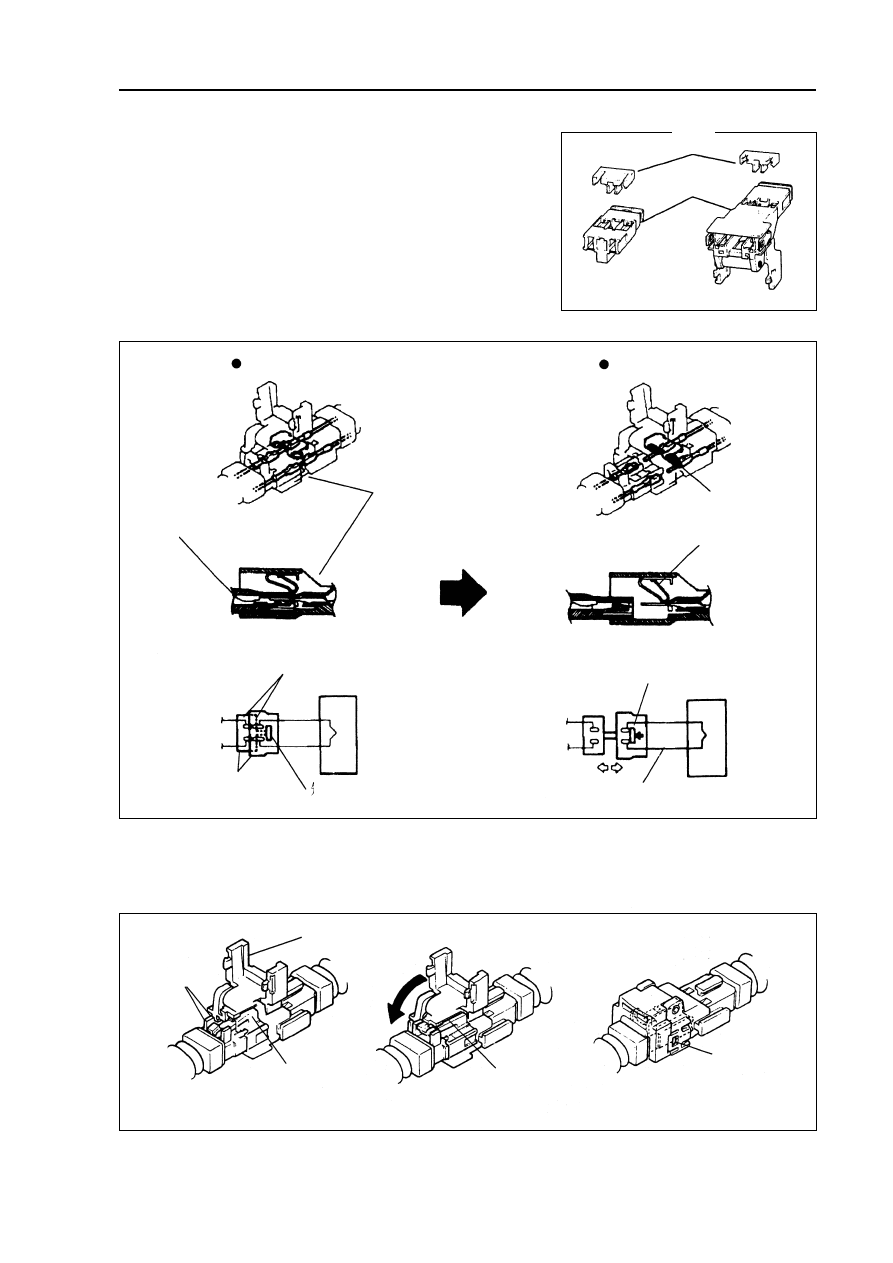

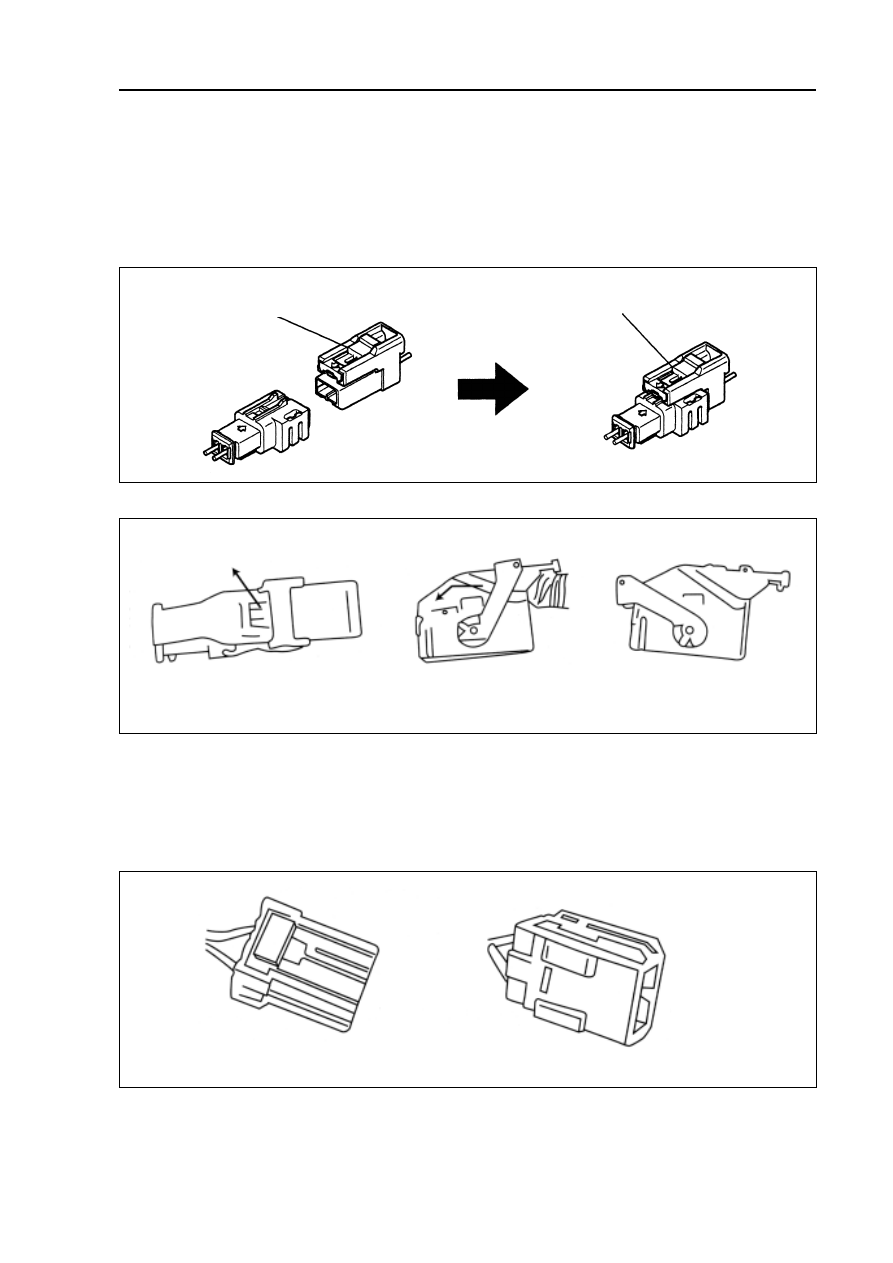

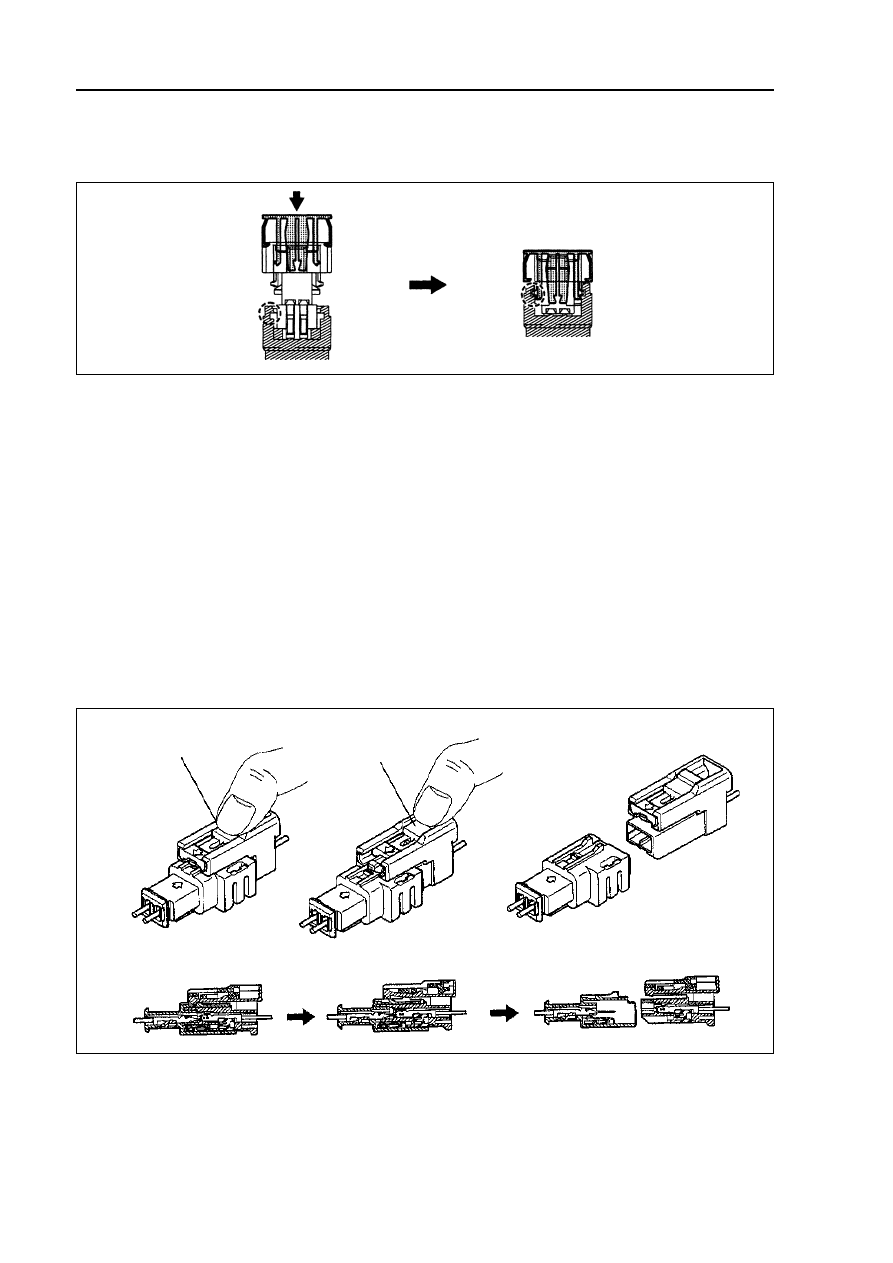

(3) Joint dual-locking organization: The joint equipping with this organization (male joint and female joint) is locked by dual-locking device to increase the reliability of connection. If one time lock is not firm, convex block will interrupt and stop the locking of twice lock. (1) Terminal dual-locking organization: Each joint should be dual-locking organization and combines with joint body and locking block. This design is caused by the reason that dual-locking device (locking block and fixed sheet) could fix the terminal to prevent it from releasing. (2) Airbag anti-explosive organization Each joint has a short circuit sheet, when the joint is disassembled, short circuit sheet will connect the terminal of device power supply with that terminal of igniter. Mother joint Father joint Supplemental restraint system--Note 241 Body Body Body When connecting the joint When disconnecting the joint Short circuit spring sheet Short circuit spring sheet Terminal Detonator Short circuit spring sheet Short circuit spring sheet ON Detonator Closed circuit Contact with father terminal Joint lock lock Twice lock Convex block One time lock One time lock is not firm (twice lock is stopped) Twice lock is firm (Twice lock could lock) Dual-lock could lock completely Locking block |
