When adding engine coolant, use a 50/50 mixture of engine coolant and distilled water. To maintain the
integrity of the coolant and the cooling system:
z
Add Motorcraft Premium Engine Coolant VC-4-A (in Oregon VC-5, in Canada CXC-10) or equivalent
meeting Ford specification ESE-M97B44-A (Green color), Motorcraft Specialty Orange Engine Coolant
such as VC-2, meeting Ford specification WSS-M97B44-D or Motorcraft Premium Gold Engine Coolant
VC-7-A or equivalent meeting Ford specification WSS-M97B51-A1 (Yellow color). Use the same
coolant that was drained from the cooling system. Do not mix coolant types.
z
Do not add/mix Orange-colored Motorcraft Speciality Orange Engine Coolant VC-2 or equivalent
meeting Ford specification WSS-M97B44-D. Mixing coolants may degrade the coolant's corrosion
protection.
z
Do not add alcohol, methanol, or brine, or any engine coolants mixed with alcohol or methanol antifreeze.
These can cause engine damage from overheating or freezing.
z
Do not mix with recycled coolant unless it meets the requirements of Ford specification ESE-M97B44-A
or WSS-M97B51-A1. Not all coolant recycling processes meet these Ford specifications. Use of such
coolants can harm the engine and cooling system components.

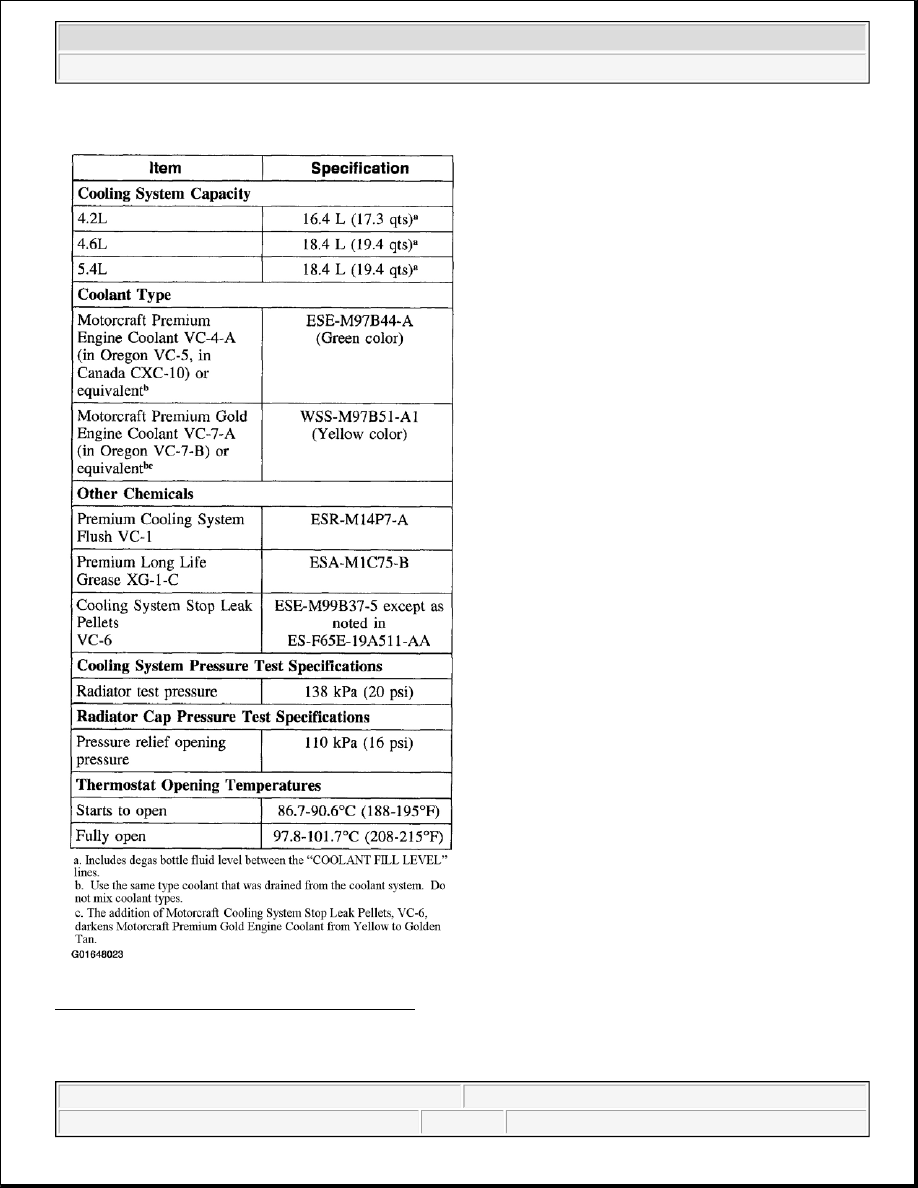

COOLING SYSTEM SPECIFICATIONS
press down on the radiator cap (with a cloth), turn and remove.
NOTE:
The addition of Motorcraft Cooling System Stop Leak Pellets (VC-6), darkens
Motorcraft Premium Gold Engine Coolant from Yellow to Golden Tan.
Application
Specification
Coolant Capacity
(1)
4.2L
17.3 Qts. (16.4L)
4.6L & 5.4L
19.4 Qts. (18.4L)
Cooling System Test Pressure
20 psi (141 kPa)
Pressure Relief Cap Opening Pressure
16 psi (110 kPa)
Thermostat Opens
Starts To Open
188-195°F (87-91°C)
Fully Open
208-215°F (98-102°C)
(1)
Includes degas bottle fluid level between the COOLANT FILL LEVEL lines.
2003 Ford Pickup F150
2003-04 ENGINE COOLING Specifications & Drive Belt Routing - Blackwood, F150 Heritage Pickup & F150 Pickup
