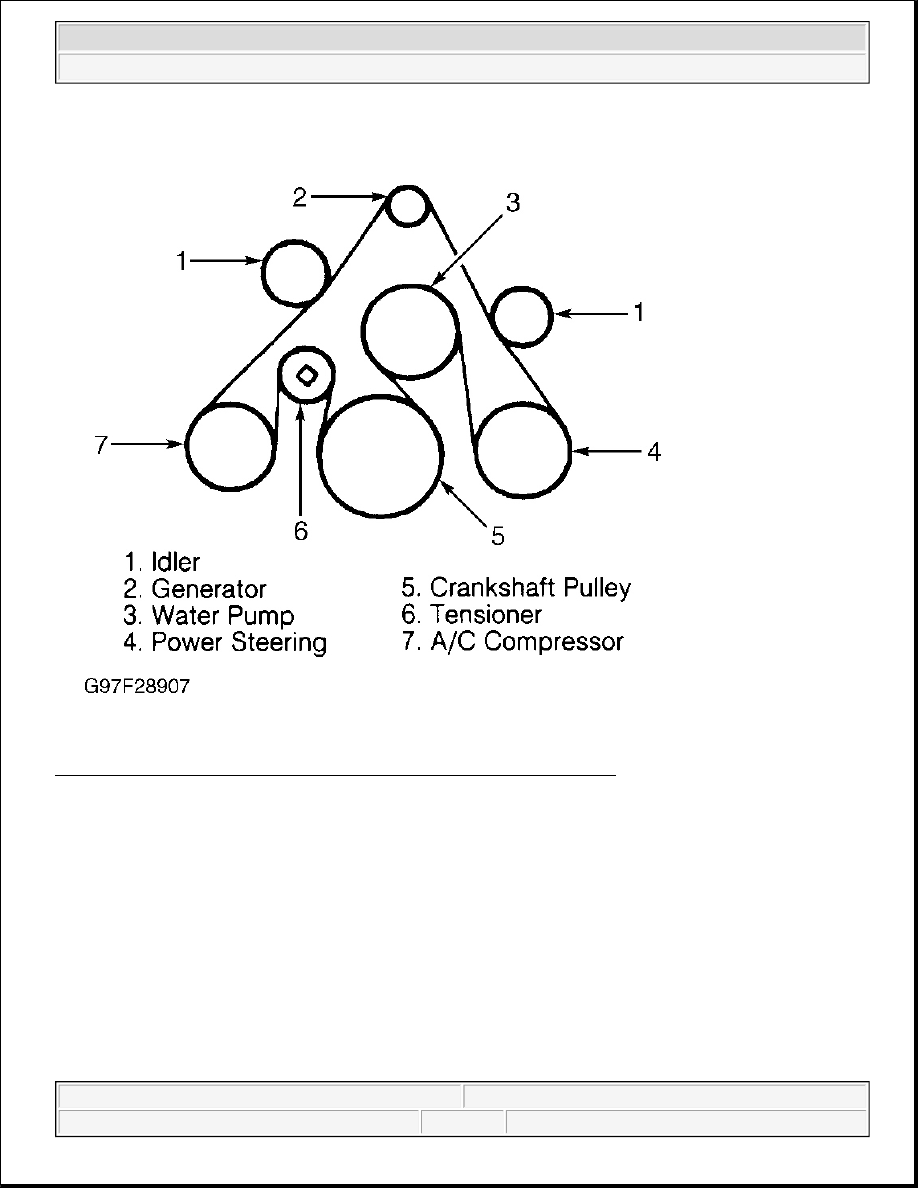

Fig. 7: Checking Belt Routing (F150 Pickup & F150 Heritage Pickup - 4.6L & 5.4L With A/C)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003-04 ENGINE COOLING Specifications & Drive Belt Routing - Blackwood, F150 Heritage Pickup & F150 Pickup



Fig. 8: Checking Belt Routing (F150 Pickup & F150 Heritage Pickup - 4.6L & 5.4L Without A/C
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003-04 ENGINE COOLING Specifications & Drive Belt Routing - Blackwood, F150 Heritage Pickup & F150 Pickup



Fig. 9: Drive Belt Routing (F150 Heritage Pickup - 5.4L SC - 1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003-04 ENGINE COOLING Specifications & Drive Belt Routing - Blackwood, F150 Heritage Pickup & F150 Pickup



Fig. 10: Checking Belt Routing (F150 Heritage Pickup - 5.4L SC - 2 Of 2)
Courtesy of FORD MOTOR CO.

COOLING SYSTEM SPECIFICATIONS

COOLANT

WARNING:

Never remove the radiator cap under any conditions while the engine is
operating. Failure to follow these instructions could result in personal
injury and/or damage to the cooling system or engine. To avoid having
scalding hot coolant or steam blow out of the radiator, use extreme care
when removing the radiator cap from a hot radiator. Wait until the engine
has cooled, then wrap a thick cloth around the radiator cap and turn it
slowly to the first stop. Step back while the pressure is released from the
cooling system. When you are certain all the pressure has been released,
