Ford F150 Pickup. Instruction - part 952

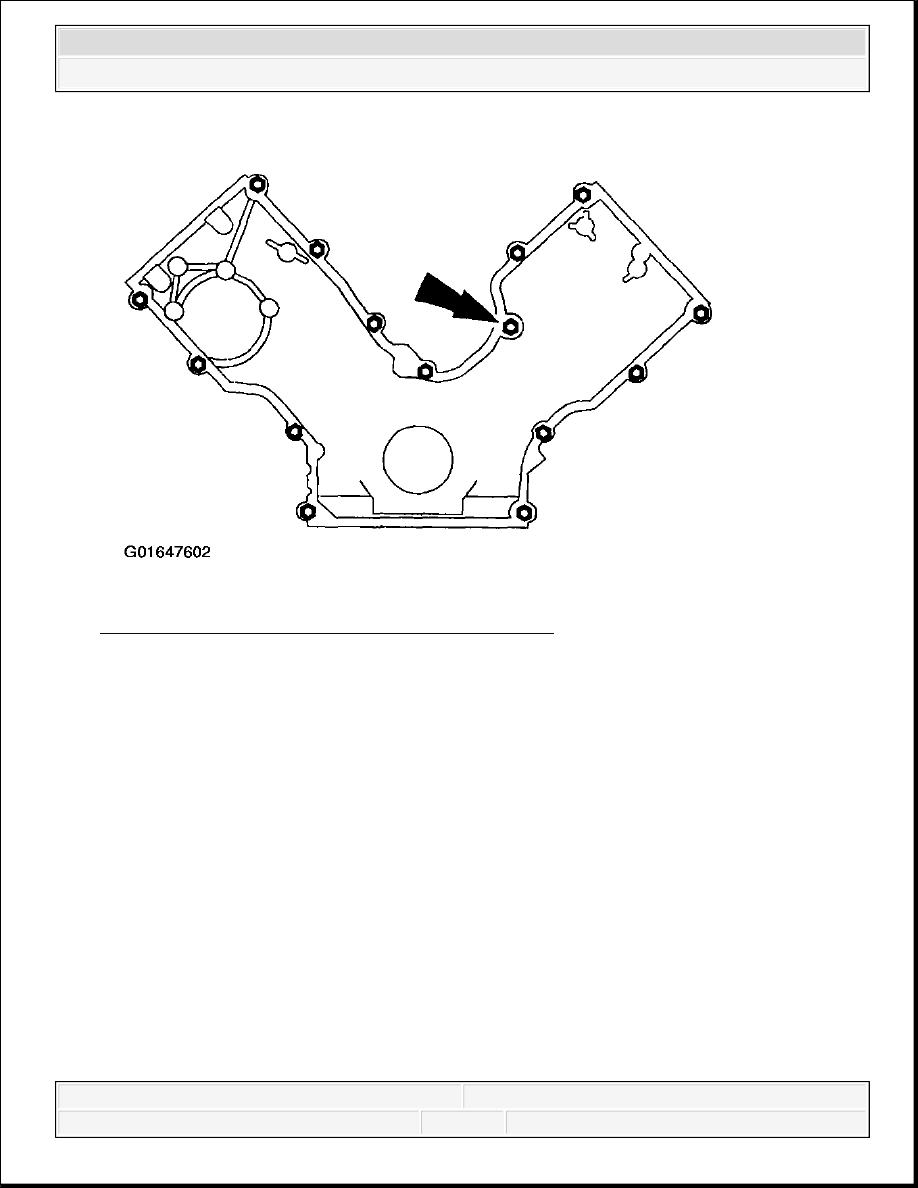

Fig. 705: Removing Engine Front Cover Fasteners Courtesy of FORD MOTOR CO.
27. Remove the fasteners.
28. Remove the engine front cover from the cylinder block.
2003 Ford Pickup F150
2003 ENGINE Engine - 4.6L & 5.4L - F150 Pickup
