Ford F150 Pickup. Instruction - part 631

2. Remove the differential pinion shaft lock bolt and remove the differential pinion shaft (4211).

z

If required, remove the differential ring gear and anti-lock speed sensor ring.

NOTE:

The differential bearings (4221) need not be removed to overhaul the Ford
limited slip differential. If bearing removal is required, use the special tool
205-D072 (D97L-4221-A) and special tool 205-D019 (D80L-630-8) for
differential case bearings.

NOTE:

The anti-lock speed sensor ring cannot be reused once removed.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

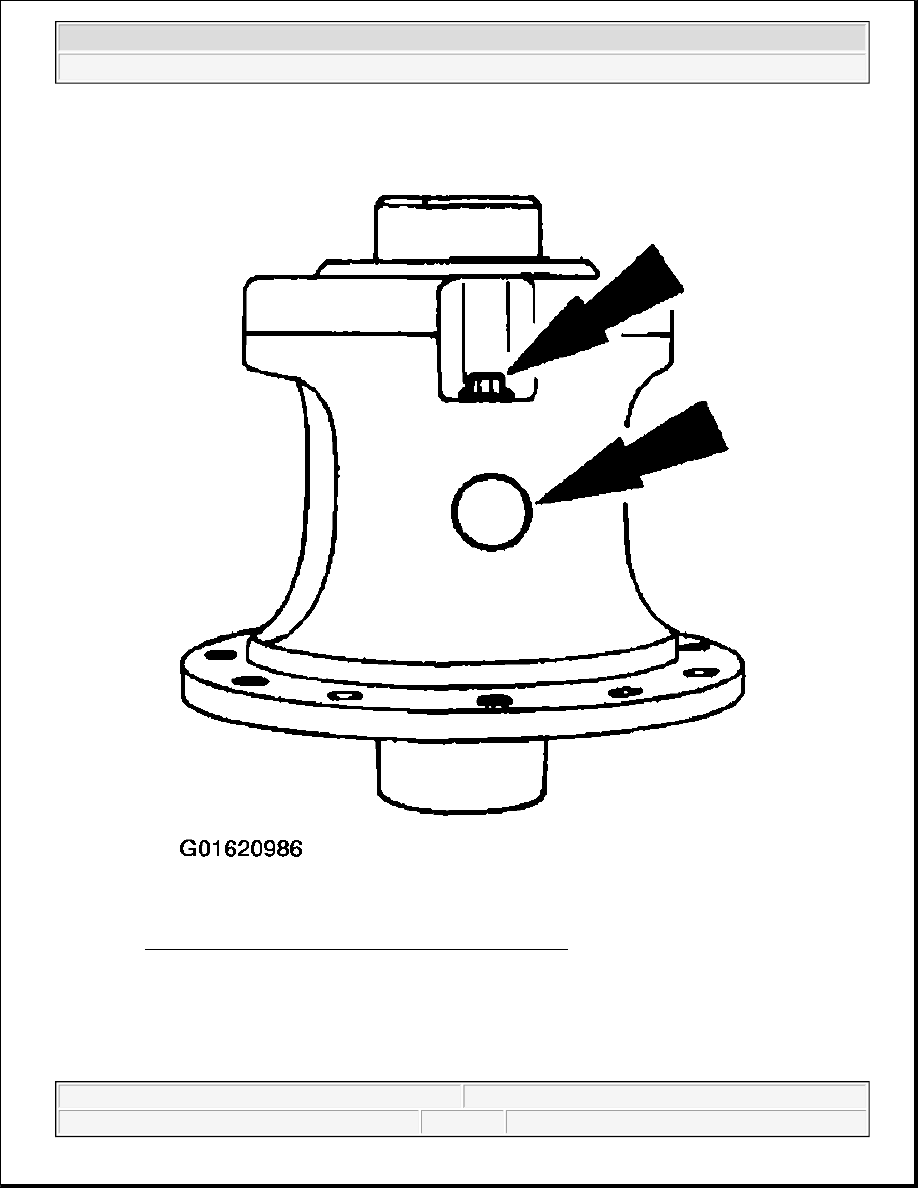

Fig. 142: Removing Differential Pinion Shaft Lock Bolt
Courtesy of FORD MOTOR CO.

3. Install the special tool in a suitable vise.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

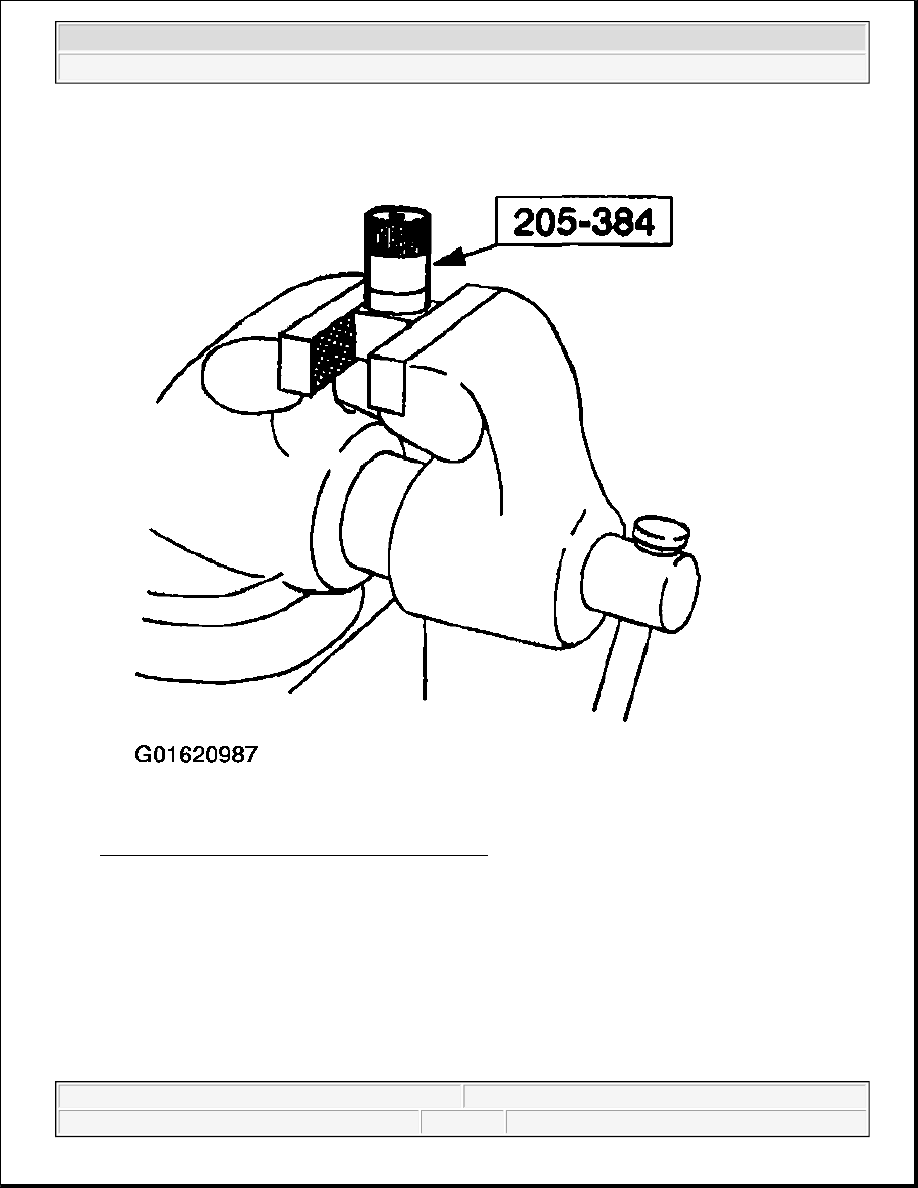

Fig. 143: Installing Special Tool In A Suitable Vise
Courtesy of FORD MOTOR CO.

4. Install the differential case on the tool.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 144: Installing Differential Case
Courtesy of FORD MOTOR CO.

NOTE:

Apply a small amount of grease to the centering hole of the special tool.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup
