Ford F150 Pickup. Instruction - part 630

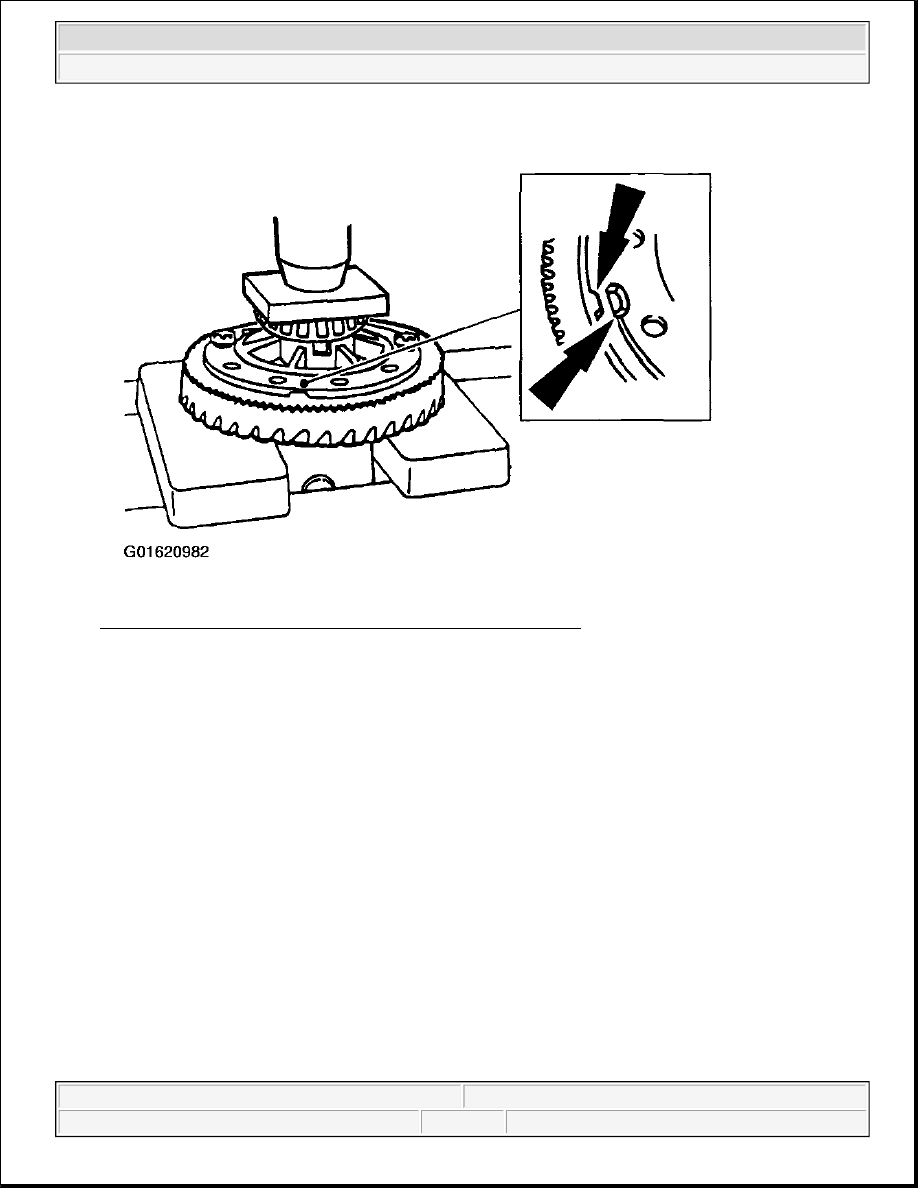

Fig. 138: Installing Anti-Lock Speed Sensor Ring & Ring Gear
Courtesy of FORD MOTOR CO.

8. Press the new anti-lock speed sensor ring and the differential ring gear on the differential case.

9. Install the differential ring gear bolts and tighten.

Apply Stud and Bearing Mount EOAZ-19554-BA or equivalent meeting Ford specification WSK-
M2G349-A1 to the differential ring gear bolts.

2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

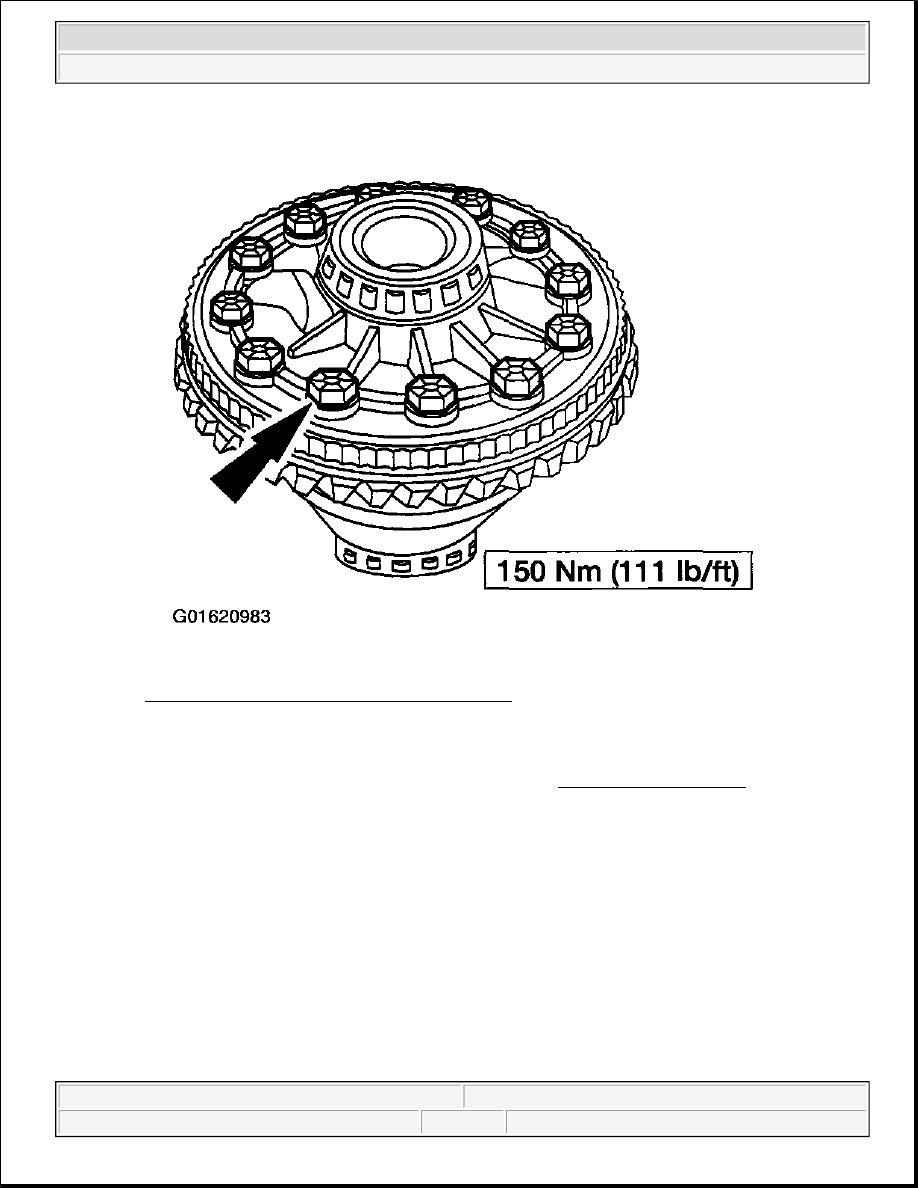

Fig. 139: Installing Differential Ring Gear Bolts
Courtesy of FORD MOTOR CO.

10. Install new differential bearings, if removed.

11. Install the differential case. For additional information, refer to DIFFERENTIAL CASE .

DIFFERENTIAL CASE & RING GEAR - TRACTION-LOK(R)

Special Tool(s)

2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

Fig. 140: Identifying Special Tool(s) (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

Fig. 141: Identifying Special Tool(s) (2 Of 2)
Courtesy of FORD MOTOR CO.

Disassembly

1. Remove the differential case (4204). For additional information, refer to DIFFERENTIAL CASE .

2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup
