Ford F150 Pickup. Instruction - part 626

Fig. 122: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Disassembly

1. Remove the differential case (4204). For additional information, refer to DIFFERENTIAL CASE .



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

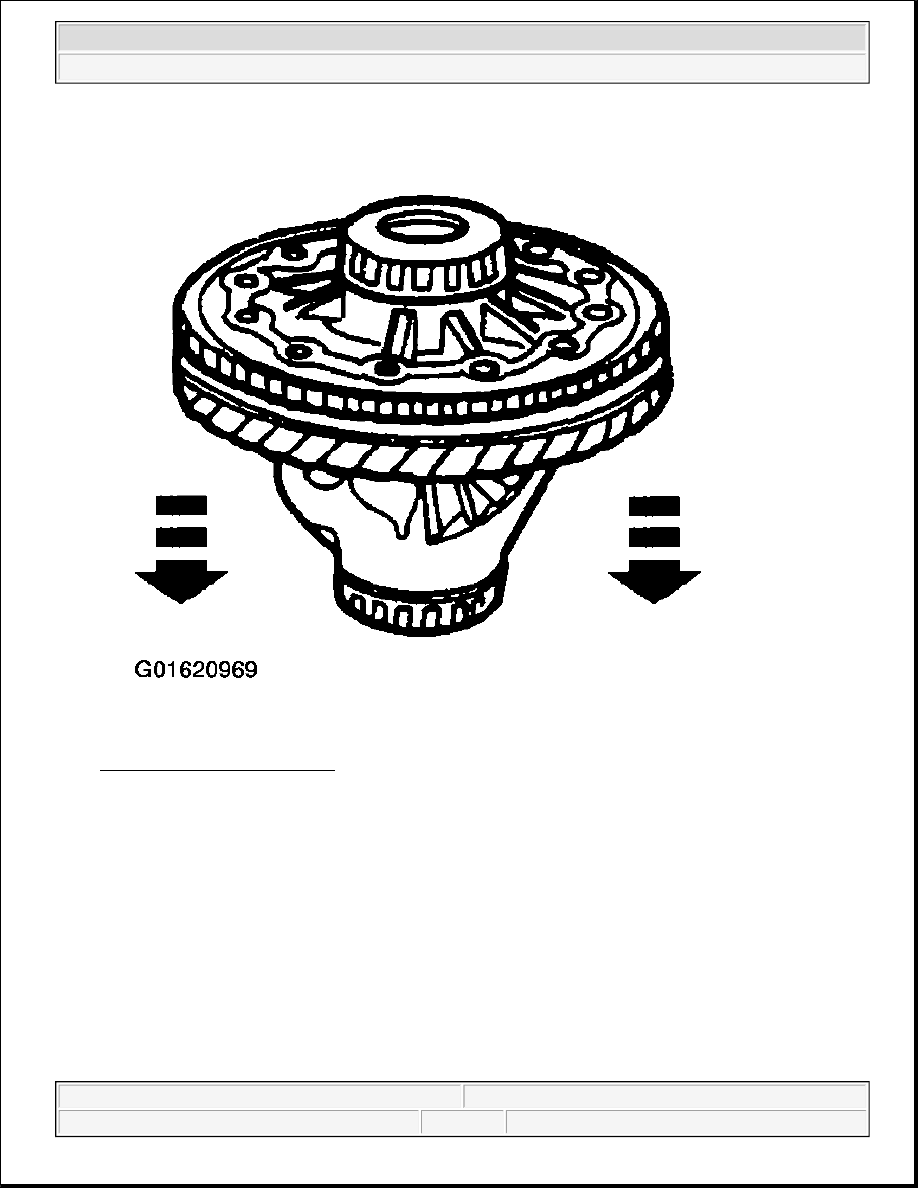

Fig. 123: Removing Differential Case
Courtesy of FORD MOTOR CO.

2. Remove the differential ring gear bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 124: Removing Differential Ring Gear Bolts
Courtesy of FORD MOTOR CO.

3. Insert a punch in the bolt holes and drive the differential ring gear off.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 125: Removing Ring Gear
Courtesy of FORD MOTOR CO.

NOTE:

The anti-lock speed sensor ring cannot be reused once removed.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup
