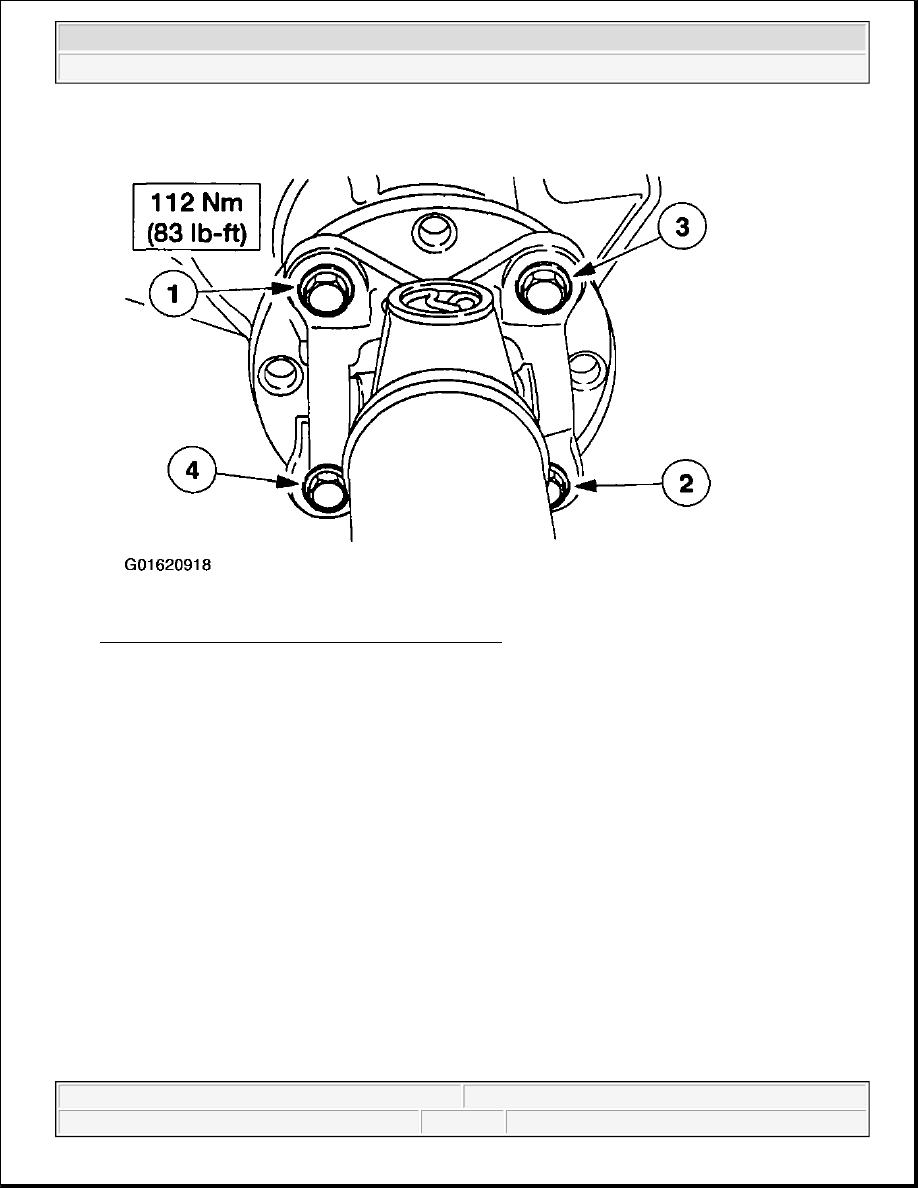

Fig. 74: Driveshaft Flange Bolt Tightening Sequence
Courtesy of FORD MOTOR CO.

23. Install the driveshaft.

DIFFERENTIAL CASE

Special Tool(s)



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

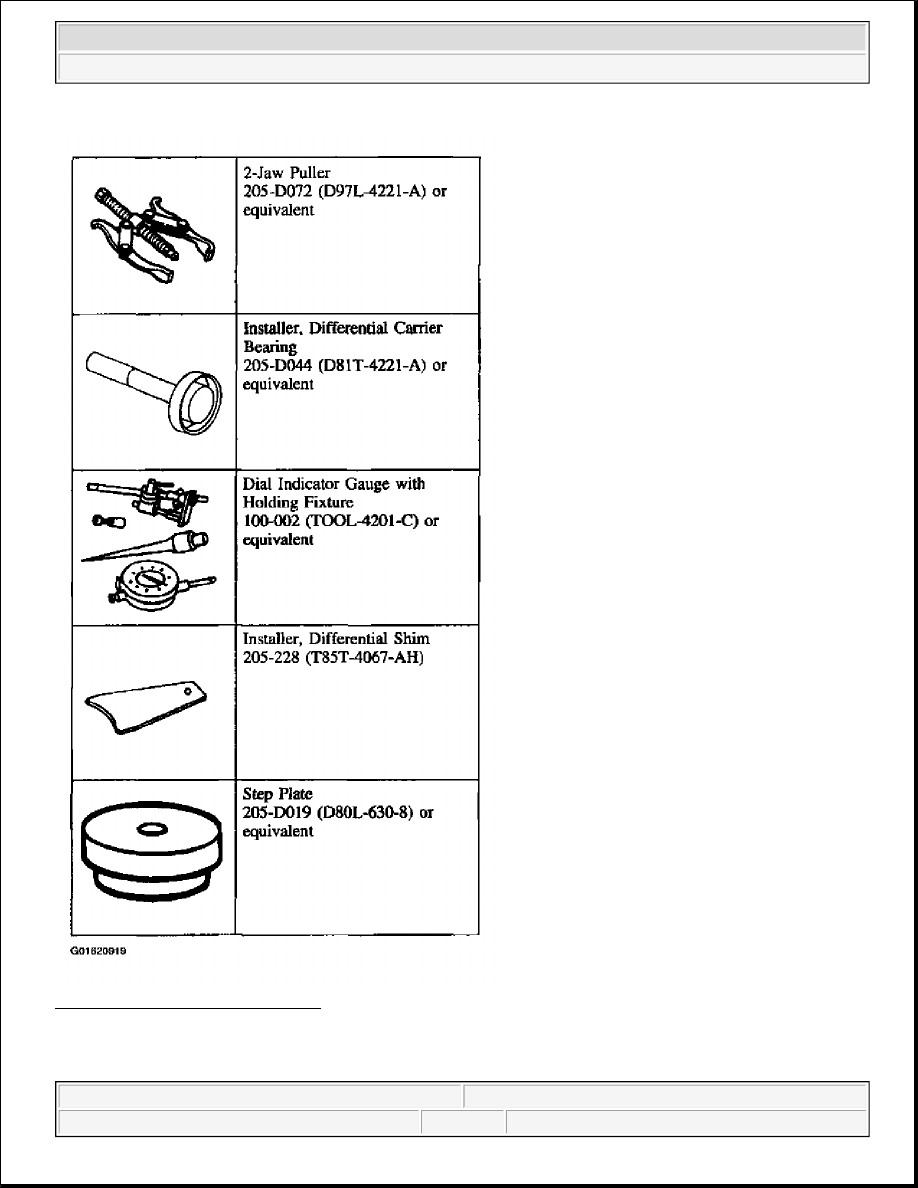

Fig. 75: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Removal



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



1. Remove the axle shafts (4234). For additional information, refer to AXLE SHAFT .

2. Wipe the lubricant from the internal working parts, and visually inspect the parts for wear or damage.

3. Rotate the differential case (4204) to see if there is any roughness which would indicate damaged

bearings or gears.

Fig. 76: Rotating Differential Case
Courtesy of FORD MOTOR CO.

NOTE:

There is a space between the anti-lock speed sensor ring and the ring gear
for measuring ring gear backface runout.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

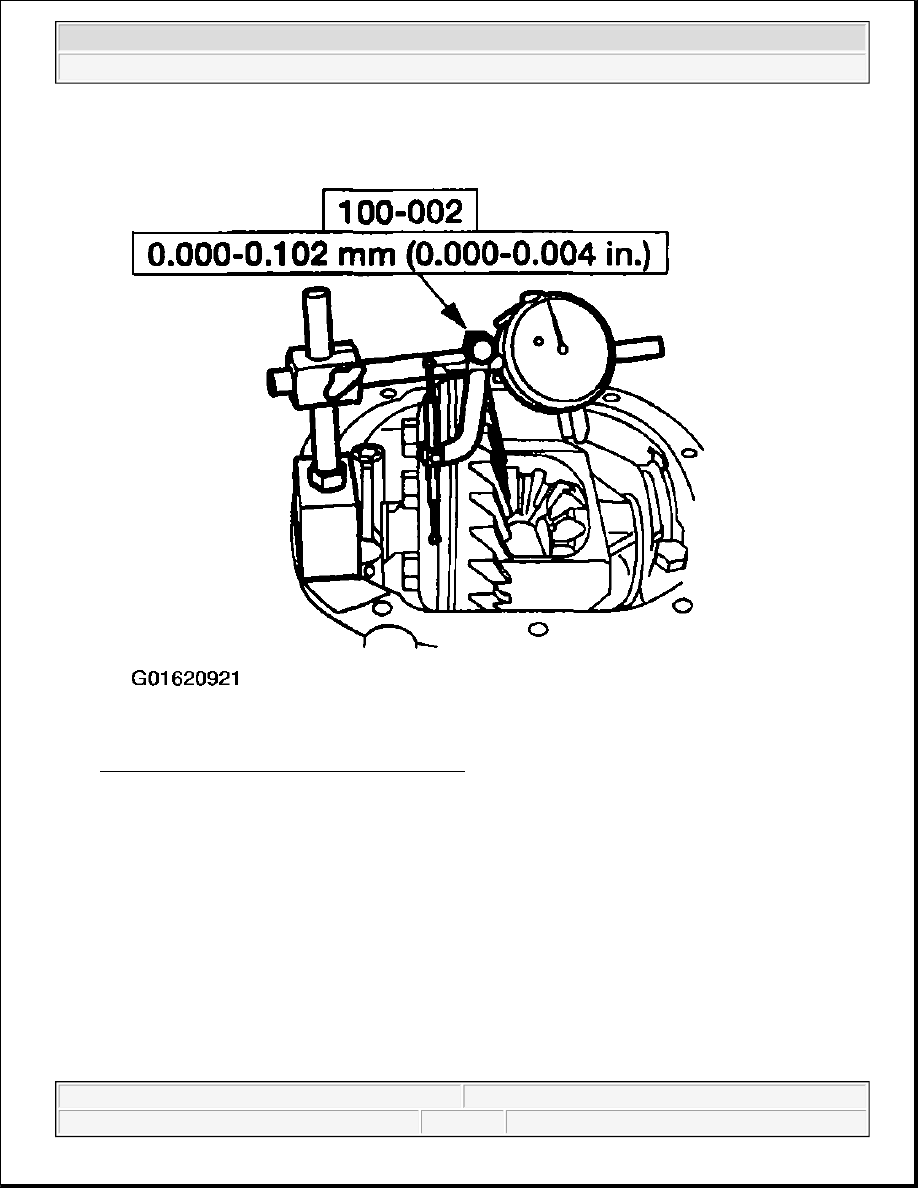

Fig. 77: Inspecting Ring Gear Backface Runout
Courtesy of FORD MOTOR CO.

4. Position the special tool and inspect the ring gear backface runout.

CAUTION: Mark the position of the bearing caps as arrows may not be visible.

The bearing caps must be installed in their identical locations and
positions.
