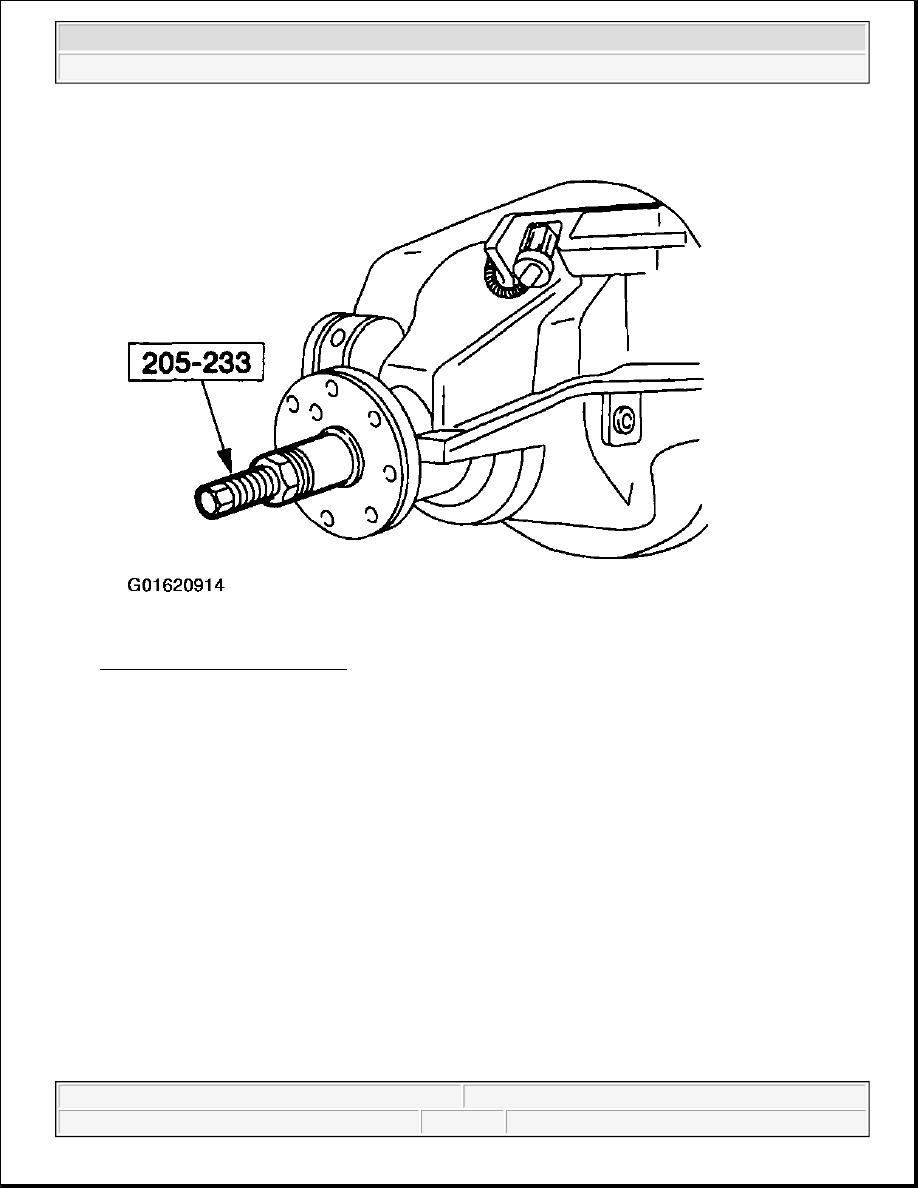

Fig. 70: Installing Pinion Flange
Courtesy of FORD MOTOR CO.

19. Position the new pinion nut.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 71: Installing Pinion Nut
Courtesy of FORD MOTOR CO.

20. Using a suitable pinion flange holding tool to hold the pinion flange, tighten the pinion nut.

z

Rotate the pinion occasionally to make sure the cone and roller bearings are seating correctly.

z

Install a N.m (inch-pound) torque wrench on the pinion nut.

z

Rotating the pinion through several revolutions, take frequent cone and roller bearing torque
preload readings until the original recorded preload reading is obtained.

z

If the original recorded preload is lower than specifications, tighten to the appropriate specifications
for used bearings. If the preload is higher than specification, tighten the nut to the original reading
as recorded. For additional information, refer to TORQUE SPECIFICATIONS .

CAUTION: Under no circumstances is the pinion nut to be backed off to reduce

preload. If reduced preload is required, a new drive pinion collapsible
spacer and pinion nut must be installed.

CAUTION: The pinion flange holding tool must be removed before preload

readings can be taken.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

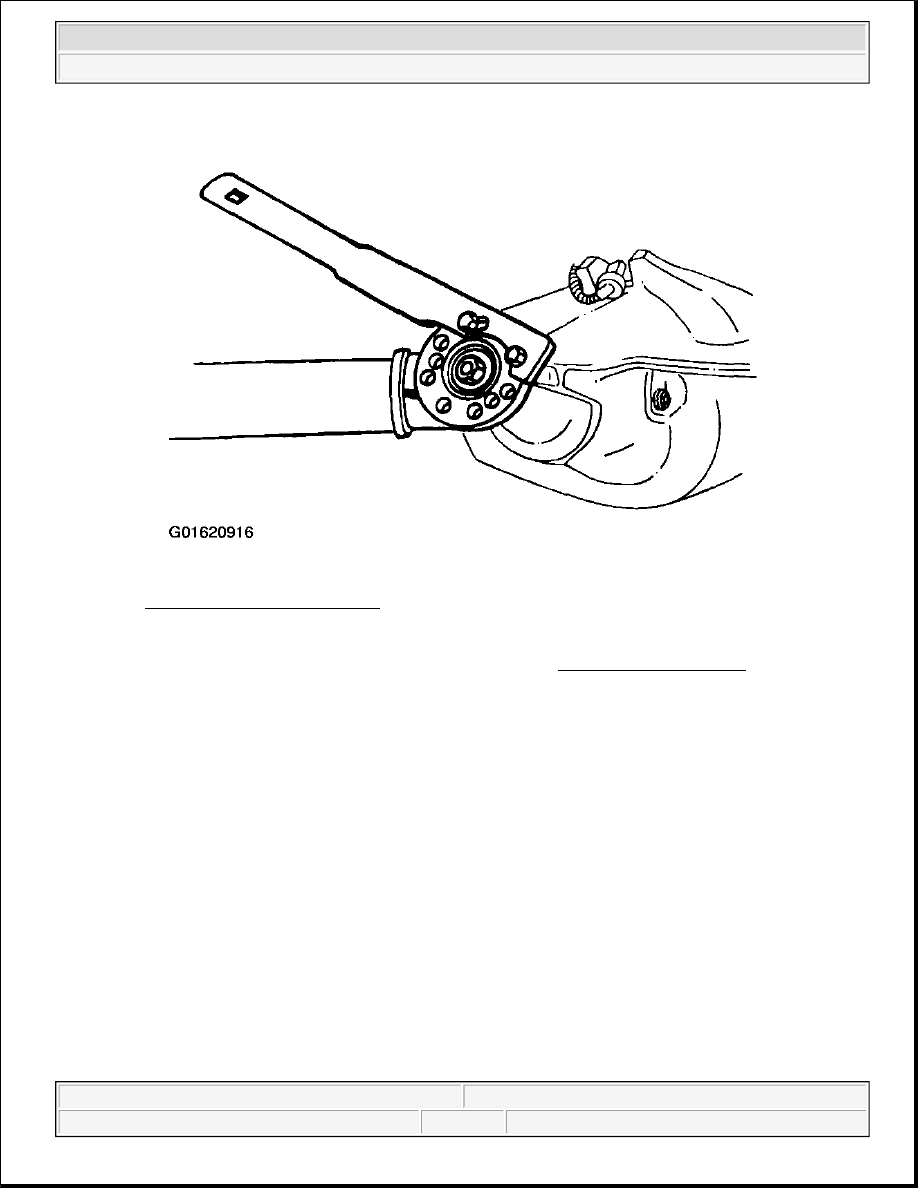

Fig. 72: Tightening Pinion Nut
Courtesy of FORD MOTOR CO.

21. Install the differential case. For additional information, refer to DIFFERENTIAL CASE . For additional

adjustments, Refer to DRIVELINE SYSTEM - GENERAL INFORMATION .

22. Position the driveshaft and align the mark on the pinion flange.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 73: Aligning Mark On Driveshaft & Pinion Flange
Courtesy of FORD MOTOR CO.

CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle

pinion flange pilot. To make sure that the yoke seats squarely on the
flange, tighten the bolts evenly in a cross pattern as shown.
