Ford F150 Pickup. Instruction - part 595

Fig. 1: General Specifications Table (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 2: General Specifications Table (2 Of 2)
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 3: Torque Specifications Table
Courtesy of FORD MOTOR CO.

DESCRIPTION & OPERATION



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



REAR DRIVE AXLE & DIFFERENTIAL

Rear Axle - 9.75-Inch Ring Gear

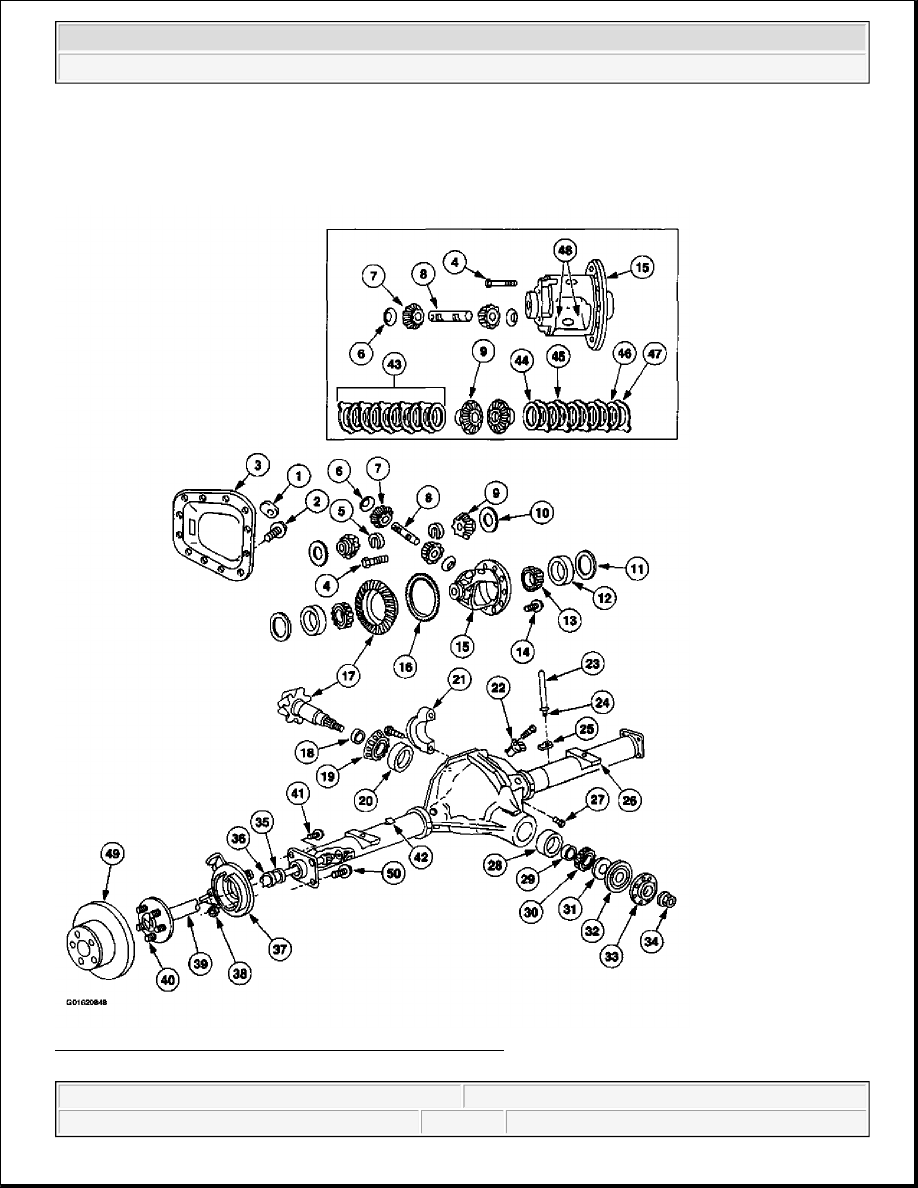

Fig. 4: Exploded View Of Rear Axle - 9.75-Inch Ring Gear
Courtesy of FORD MOTOR CO.
