Ford F150 Pickup. Instruction - part 594

Fig. 172: Installing Anti-Lock Speed Sensor Ring & Ring Gear
Courtesy of FORD MOTOR CO.

15. Press the new anti-lock speed sensor ring and the ring gear on the differential case.

NOTE:

Apply stud and bearing mount to the ring gear bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



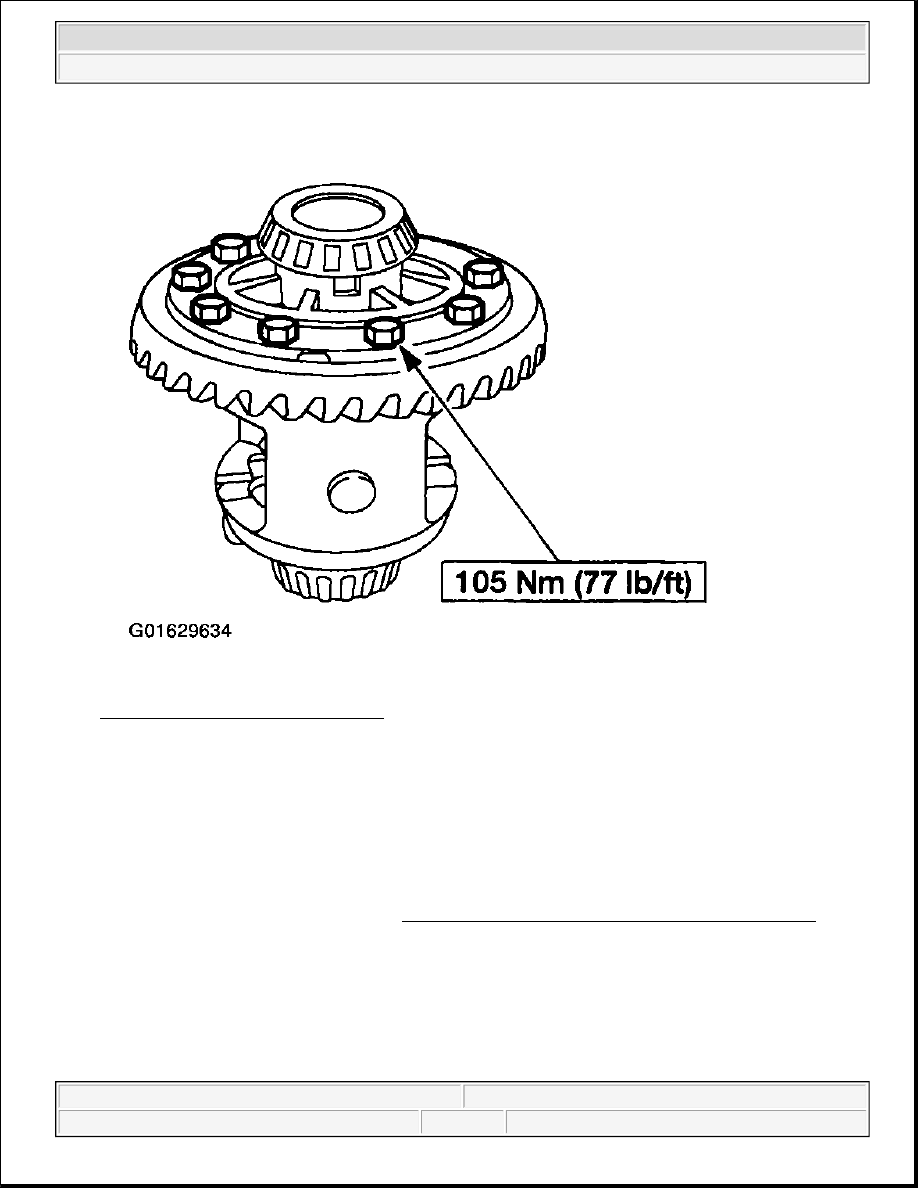

Fig. 173: Tightening Ring Gear Bolts
Courtesy of FORD MOTOR CO.

16. Install the ring gear bolts.

17. Check the torque required to rotate one differential side gear.

z

Mount the differential case and special tool in a vise.

z

The initial minimum break-away torque, if original clutch plates are used, must be within
specification. The minimum rotating torque required to keep the differential side gear turning with
new clutch plates may vary.

z

For additional information, refer to DRIVELINE SYSTEM-GENERAL INFORMATION .



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 174: Mounting Differential Case & Special Tool In A Vise
Courtesy of FORD MOTOR CO.

18. Install the differential case. For additional information, refer to DIFFERENTIAL CASE .
