2. Remove the two differential side gears.

3. Remove the two differential pinion thrust washers.

Fig. 157: Removing Differential Gears
Courtesy of FORD MOTOR CO.

CAUTION: Keep the differential clutch packs in order. Do not mix them. They

must be reassembled in the same sequence.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



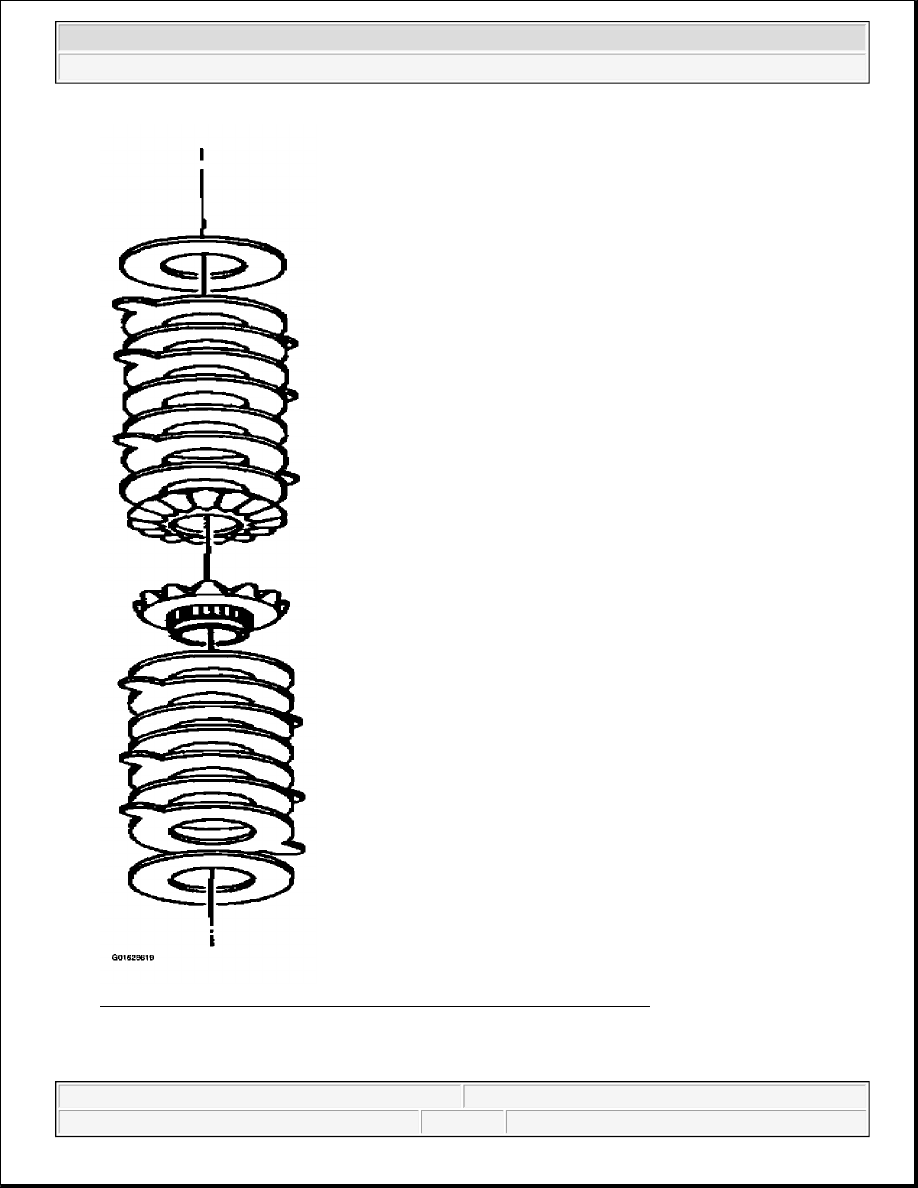

Fig. 158: Removing Differential Clutch Packs & Differential Side Gears
Courtesy of FORD MOTOR CO.

9. Remove the differential clutch packs and differential side gears and tag them "right" and "left" with the



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



shim.

z

Clean and inspect the remaining parts of the differential case for wear or damage and replace parts
as necessary.

10. Clean and inspect the differential clutch packs for wear and replace parts as necessary.

Assembly

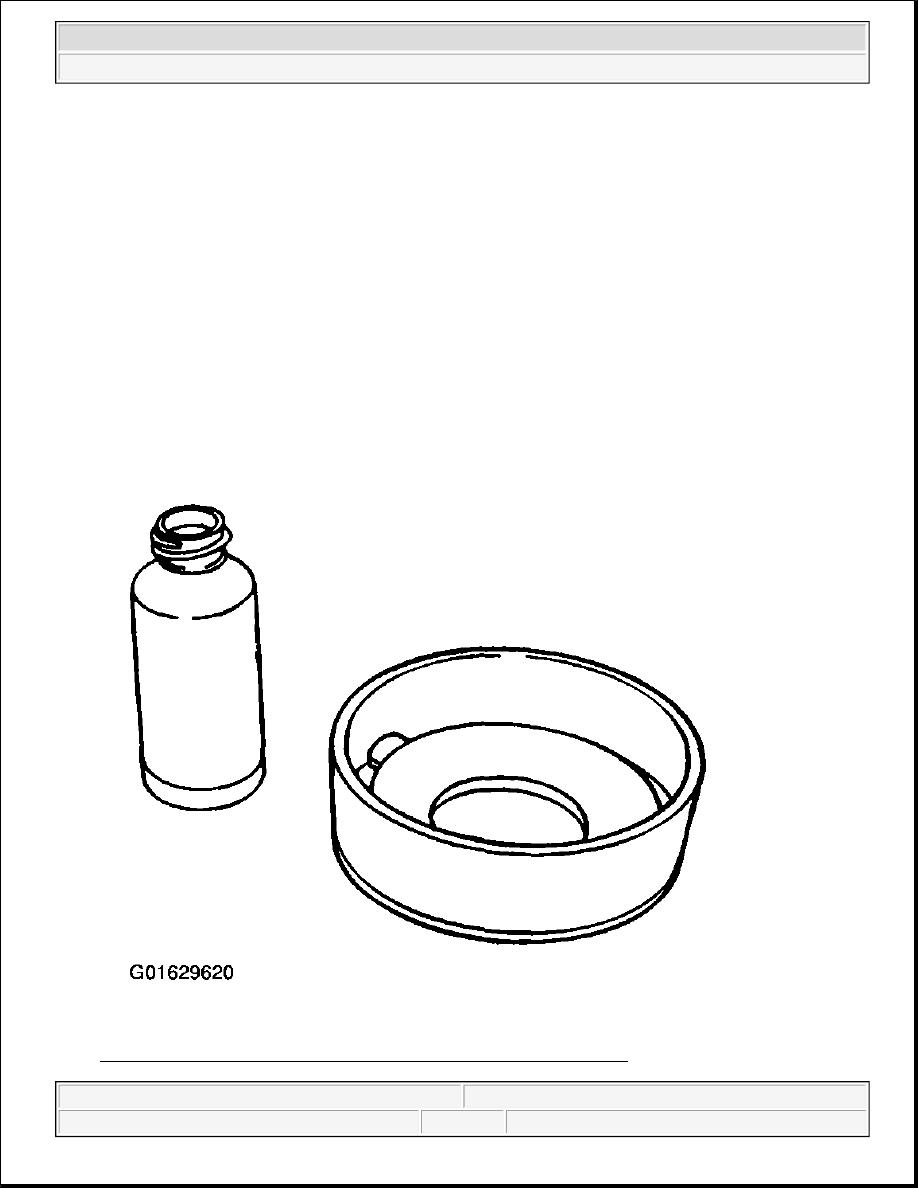

Fig. 159: Prelubricating Steel Clutch Plate & Soaking Friction Plates
Courtesy of FORD MOTOR CO.

CAUTION: Do not use acids or solvents when cleaning the differential clutch

pack. Wipe components with a clean, lint-free cloth only.

CAUTION: 118 ml (4 oz) of the specified Ford Friction Modifier must be used in

the axle.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



1. Prelubricate each steel clutch plate and soak all friction plates with friction modifier for at least 15

minutes.

CAUTION: Do not mix the differential clutch packs or shims from the one side

with the other.
