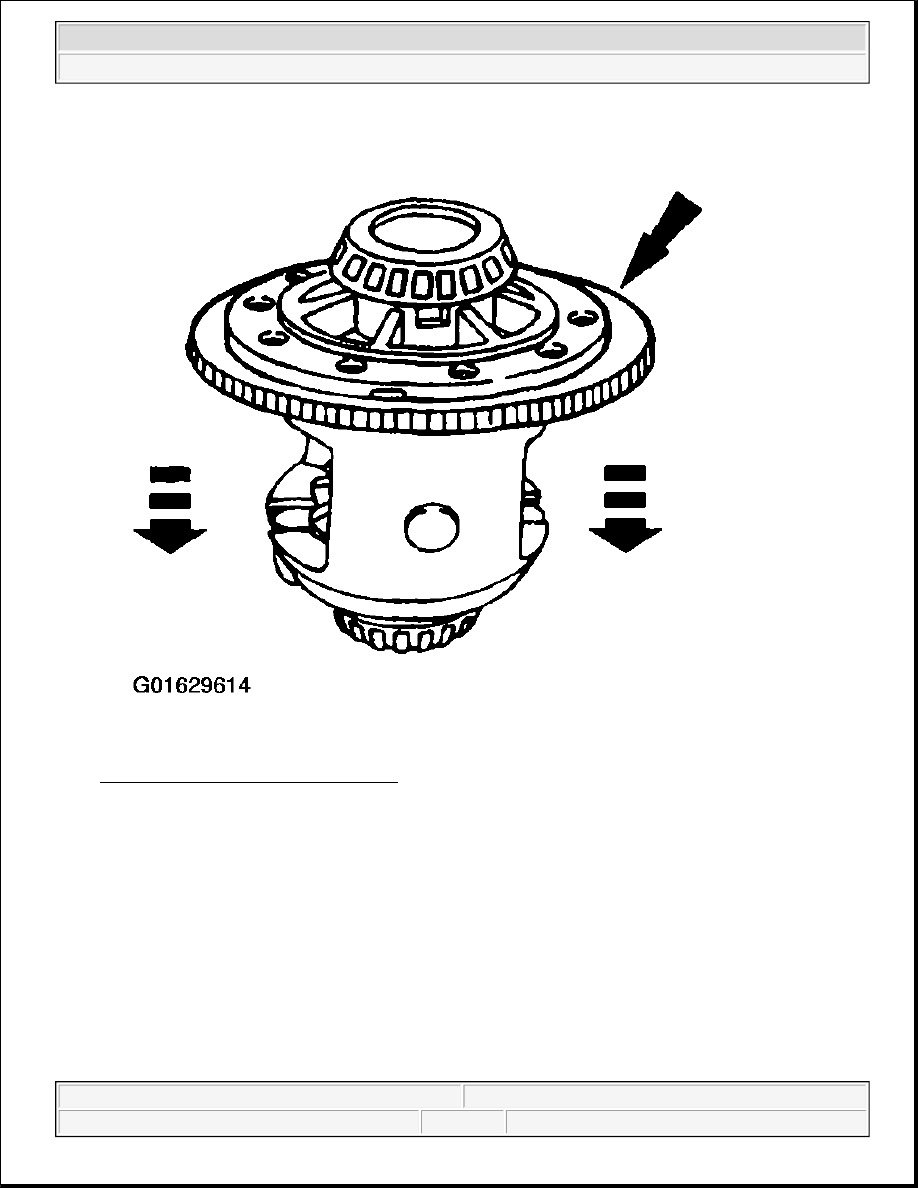

Fig. 153: Removing Speed Sensor Ring
Courtesy of FORD MOTOR CO.

4. Remove the speed sensor ring, if required.

5. Using the special tools, remove the differential bearing.

Repeat for the other side.

2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

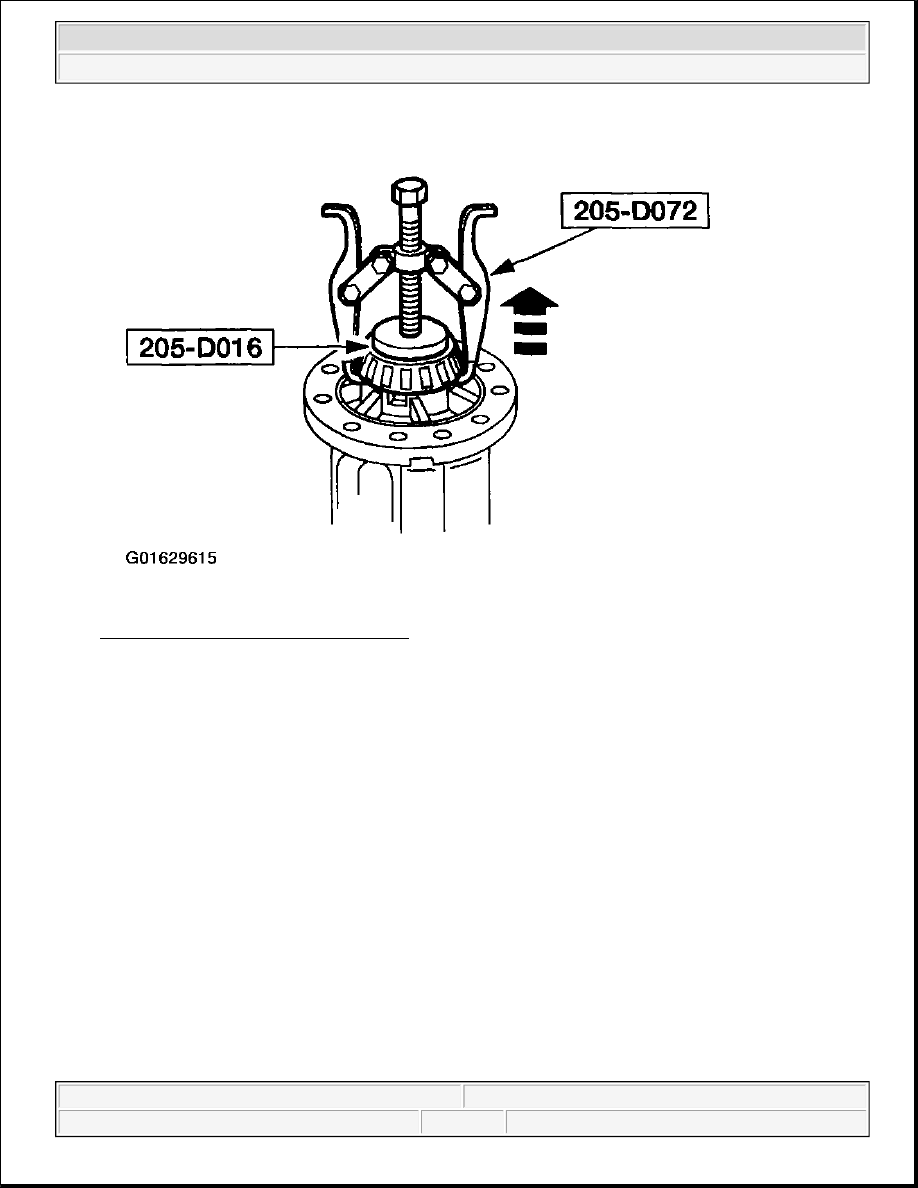

Fig. 154: Removing Differential Bearing
Courtesy of FORD MOTOR CO.

6. Remove the differential pinion shaft lock bolt and remove the differential pinion shaft.

2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

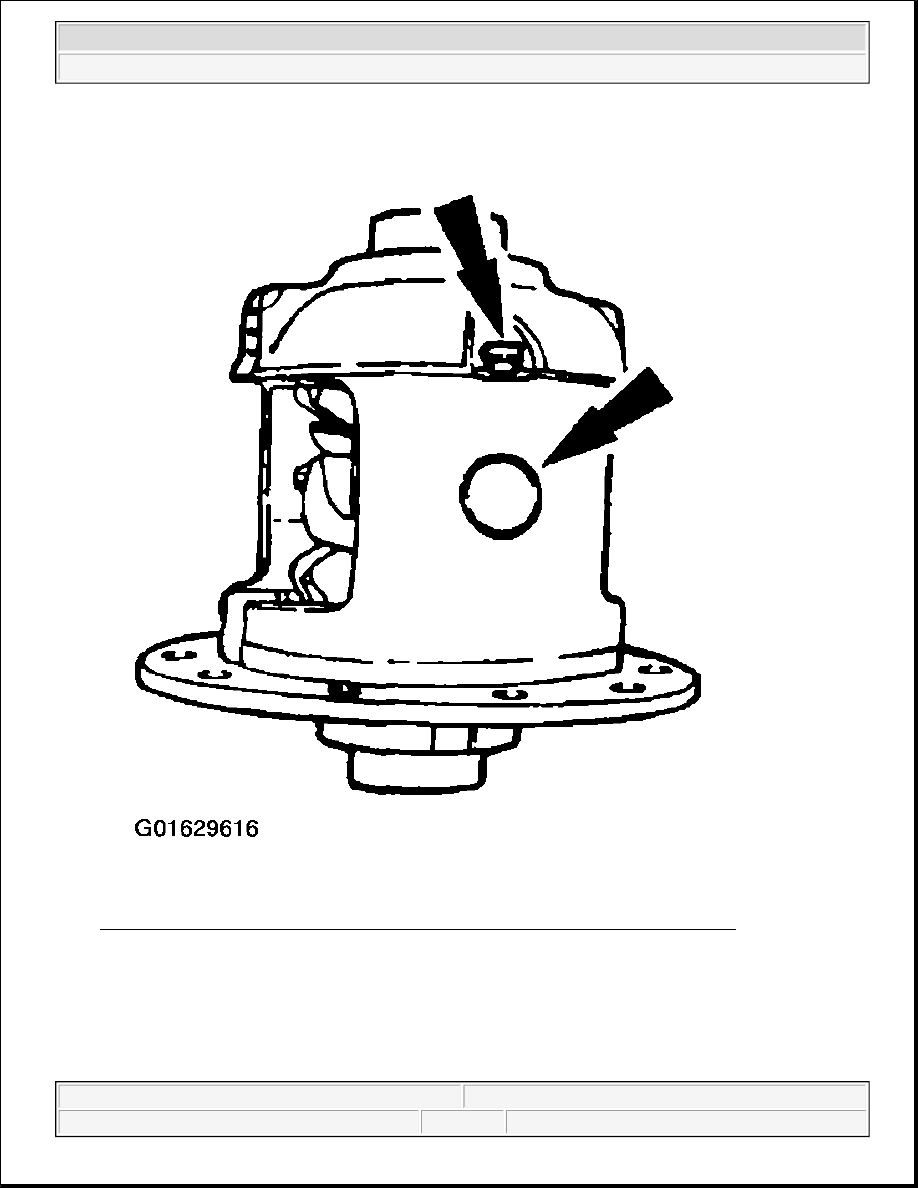

Fig. 155: Removing Differential Pinion Shaft Lock Bolt & Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

WARNING:

Due to the spring tension, care must be used when removing the
differential clutch spring.

2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

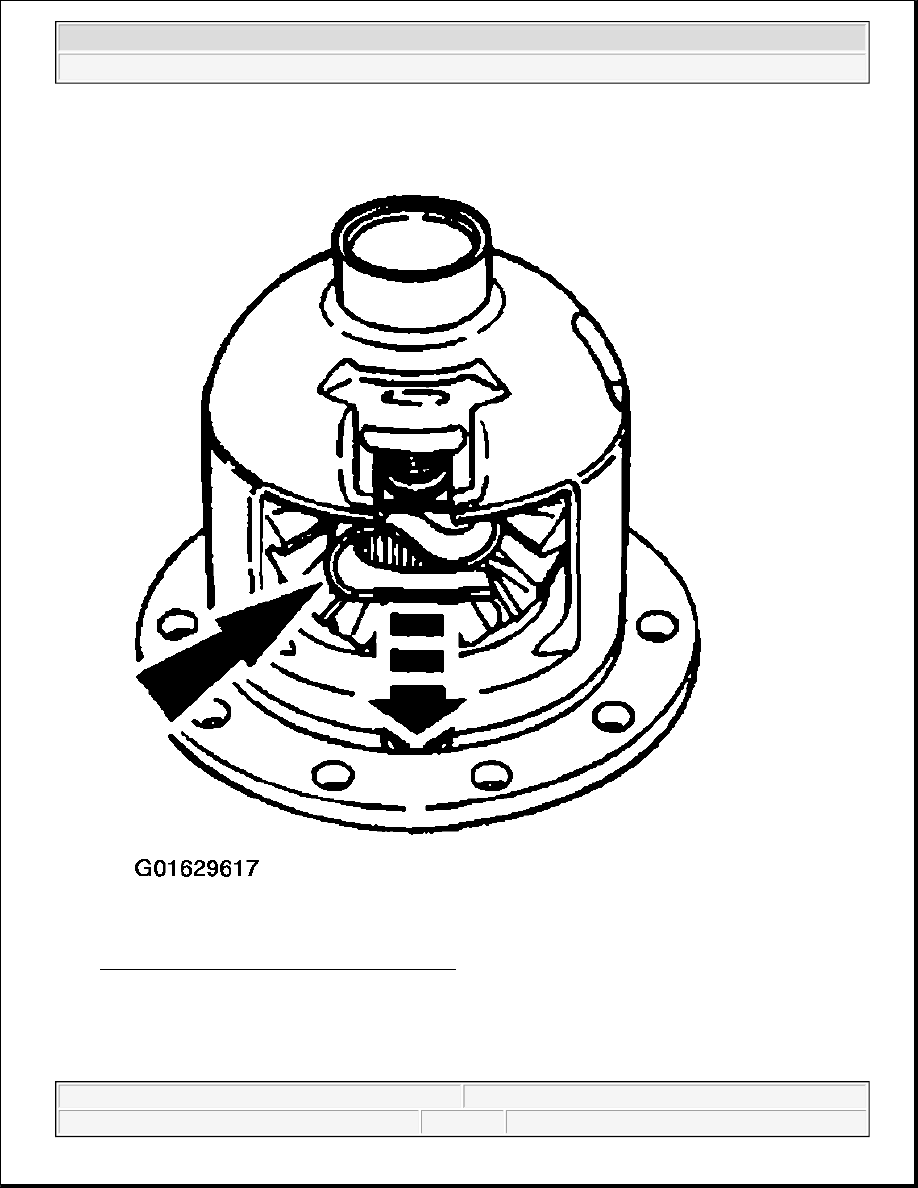

Fig. 156: Removing Differential Clutch Spring
Courtesy of FORD MOTOR CO.

7. Remove the differential clutch spring.

8. Remove the differential gears.

1. Remove the two differential pinion gears.
