Ford F150 Pickup. Instruction - part 583

Fig. 129: Material Specification
Courtesy of FORD MOTOR CO.

Disassembly

1. Remove the differential case. For additional information, refer to DIFFERENTIAL CASE .

2. Remove the 10 ring gear bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 130: Removing Ring Gear Bolts
Courtesy of FORD MOTOR CO.

CAUTION: Care should be taken not to damage the bolt hole threads.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

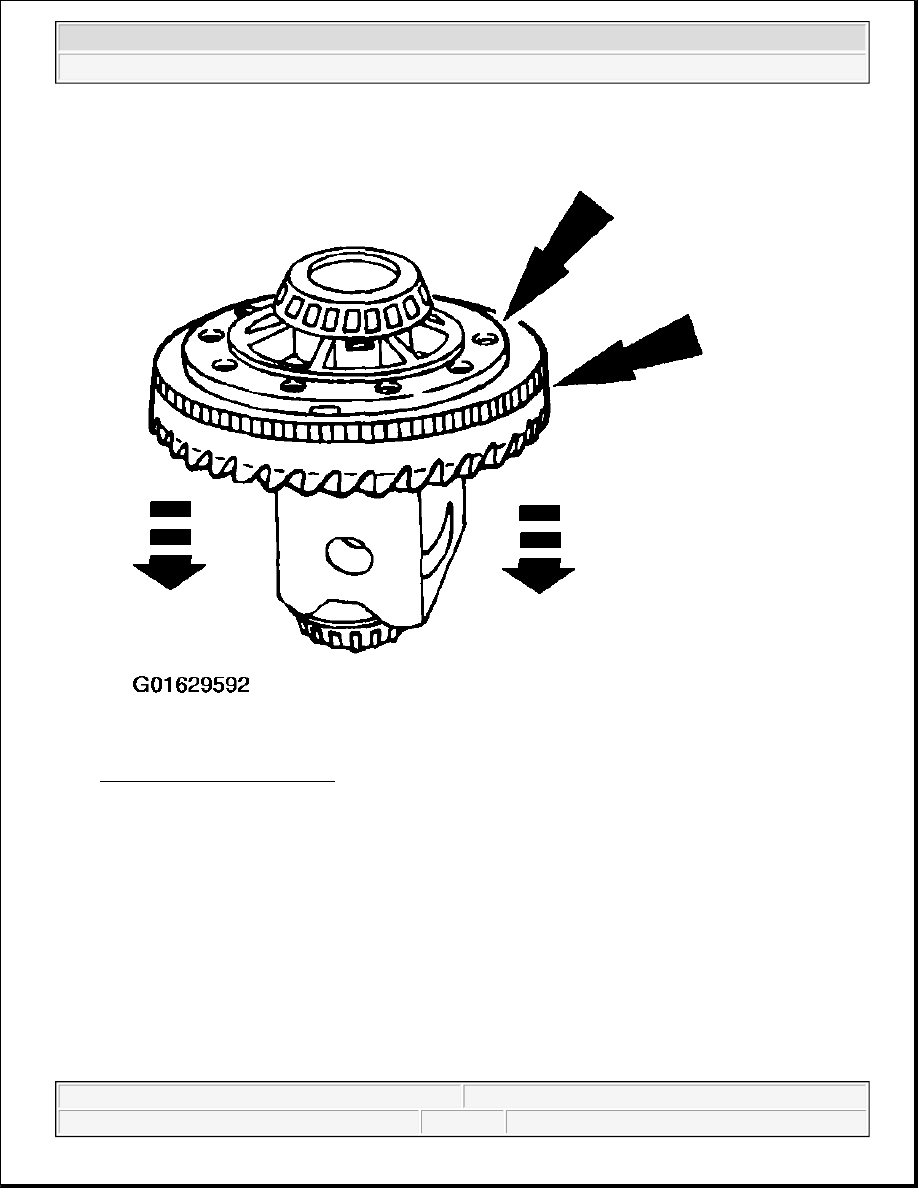

Fig. 131: Removing Ring Gear
Courtesy of FORD MOTOR CO.

3. Insert a punch in the bolt holes and drive the ring gear off.

NOTE:

The speed sensor ring cannot be reused once removed. Remove the
speed sensor ring only if damaged.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

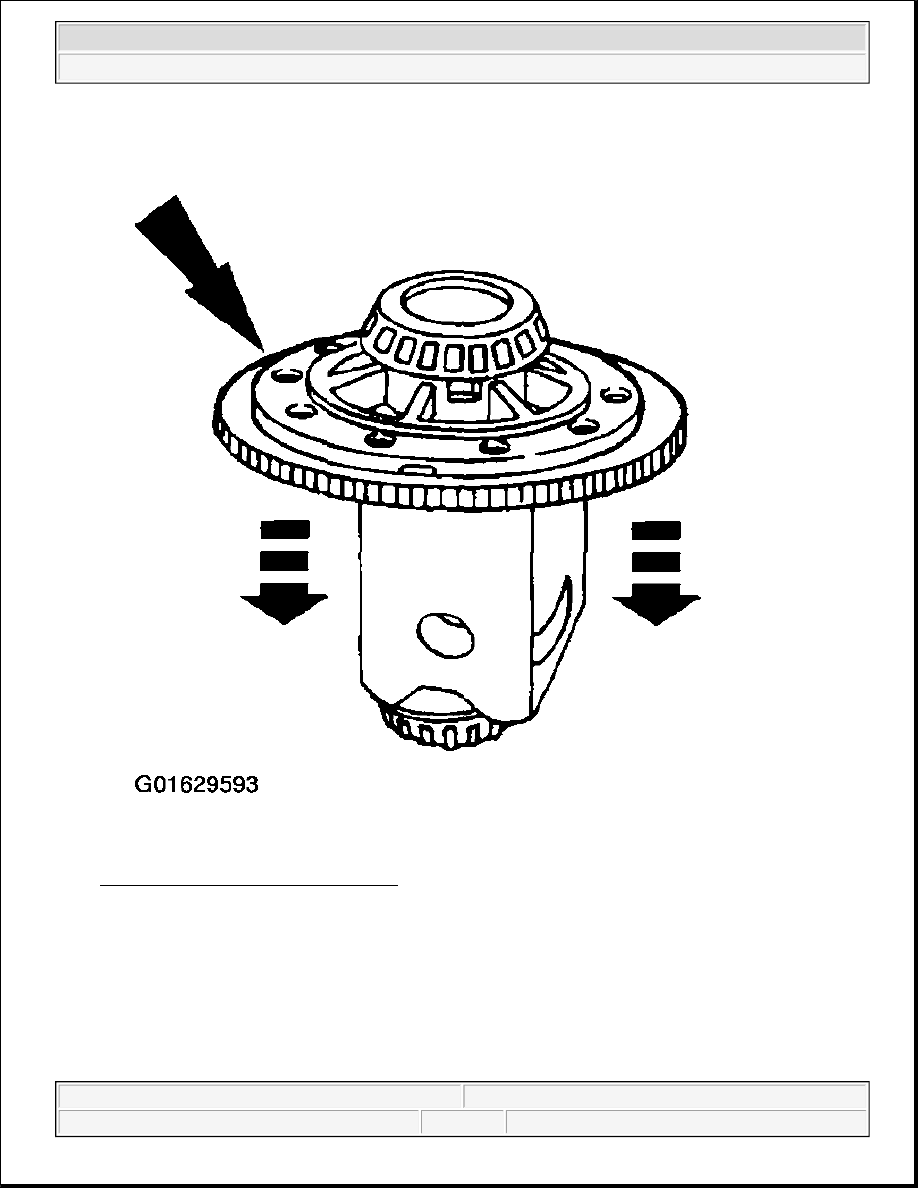

Fig. 132: Removing Speed Sensor Ring
Courtesy of FORD MOTOR CO.

4. Remove the speed sensor ring if required.

5. Using the special tools, remove the differential bearing.
