Ford F150 Pickup. Instruction - part 555

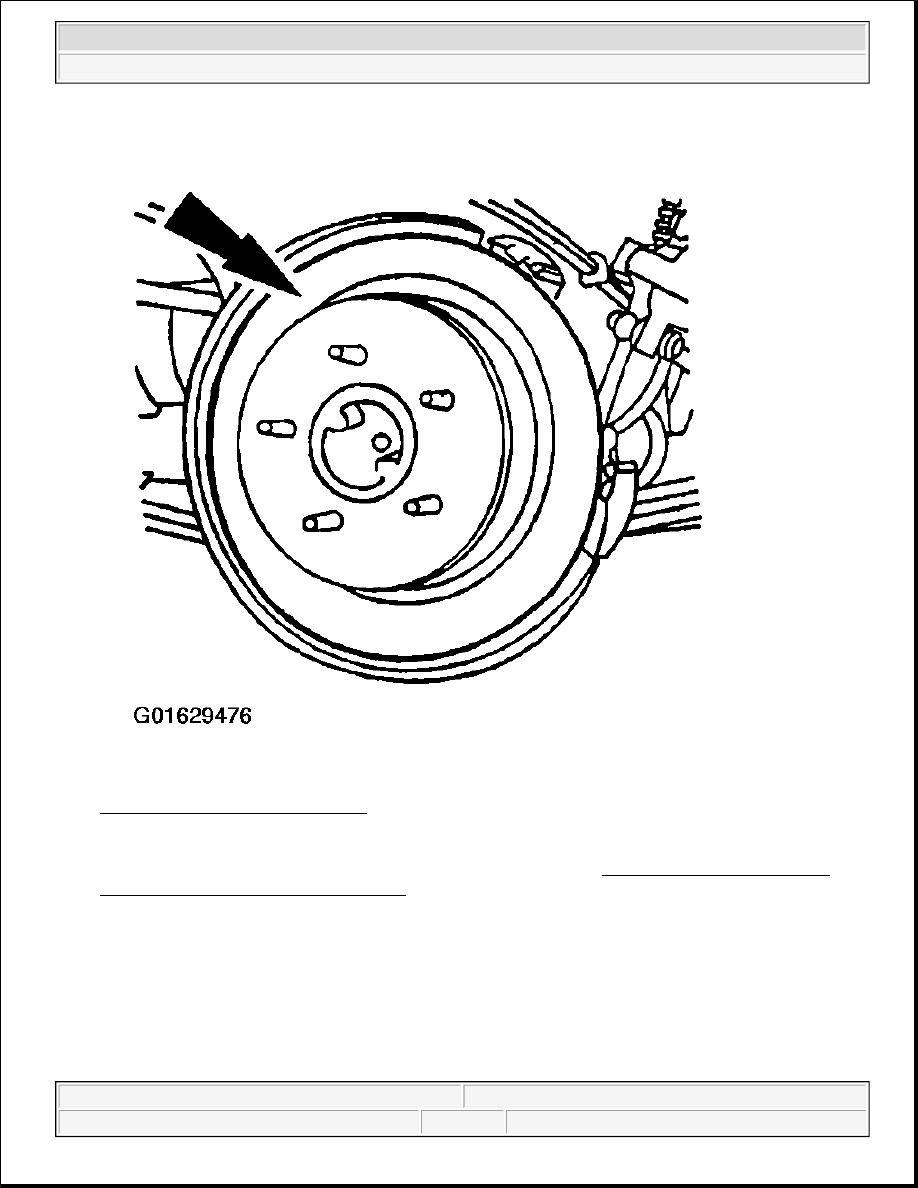

Fig. 15: Installing Rear Brake Disc
Courtesy of FORD MOTOR CO.

7. Install the rear disc brake caliper. For additional information, refer to DISC - BLACKWOOD, F150

HERITAGE PICKUP & F150 PICKUP .

NOTE:

Clean the gasket mating surface of the rear axle and the differential
housing cover.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 16: Applying Continuous Bead Of Sealant To Differential Housing Cover
Courtesy of FORD MOTOR CO.

8. Apply a new continuous bead of sealant to the differential housing cover.

NOTE:

The differential housing cover must be installed within 15 minutes of
application of the silicone, or new sealant must be applied. If possible,
allow one hour before filling with lubricant to make sure the silicone
sealant has correctly cured.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 17: Installing Differential Housing Cover
Courtesy of FORD MOTOR CO.

9. Install the differential housing cover.

1. Install the differential housing cover.

2. Install the 10 differential housing cover bolts.

10. Fill the rear axle housing (4010) with 2.37 liters (5 pints) with the specified lubricant.

11. Clean the wheel hub and mounting surfaces.

12. Install the tire and wheel assembly. For further information, refer to WHEELS & TIRES .

REAR WHEEL BEARING & AXLE SHAFT OIL SEAL

Special Tool(s)

WARNING:

Always remove any corrosion, dirt or foreign material present on the
mounting surfaces of the wheel (1007) or the surface of the wheel
hub or brake drum or disc that contacts the wheel. Installing wheels
without correct metal-to-metal contact at the wheel mounting
surfaces can cause the lug nut to loosen and the wheel to come off
while the vehicle is in motion, causing loss of control.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 18: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Material



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup
