Ford F150 Pickup. Instruction - part 553

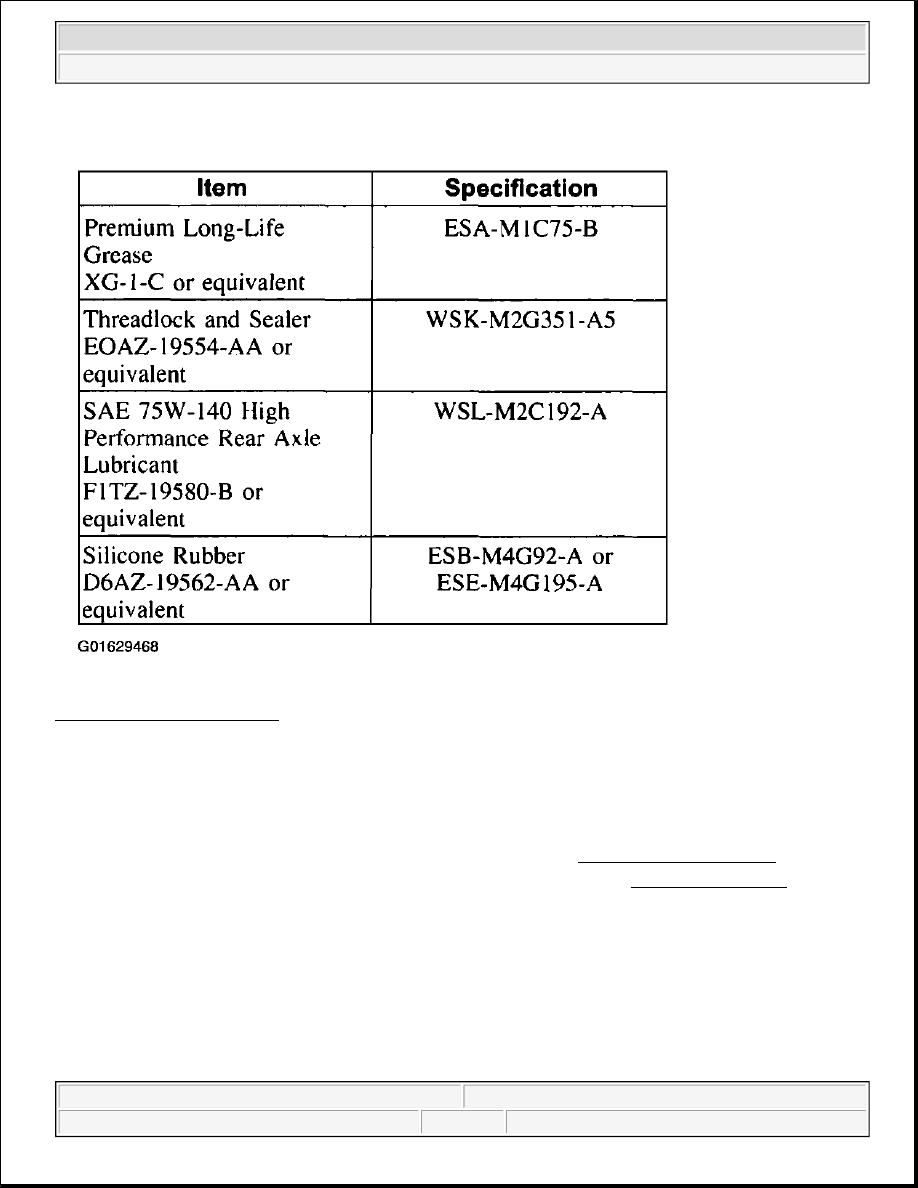

Fig. 7: Material Specification
Courtesy of FORD MOTOR CO.

Removal

All Vehicles

1. Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .

2. Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .

3. Remove the differential housing cover.

1. Remove the 10 differential housing cover bolts and drain the lubricant from the rear axle housing.

2. Remove the differential housing cover.

Vehicles With Drum Brakes

NOTE:

Empty the lubricant into a clean container for reuse.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



4. Remove the rear brake drums. For additional information, refer to DISC & DRUM article.

Vehicles With Disc Brakes

5. Remove the rear disc brake caliper. For additional information, refer to DISC & DRUM article.

z

Wire the rear disc brake caliper aside.

6. Remove the rear brake disc.

Fig. 8: Removing Rear Brake Disc
Courtesy of FORD MOTOR CO.

All Vehicles



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



7. Remove the differential pinion shaft.

1. Remove and discard the differential pinion shaft lock bolt.

2. Remove the differential pinion shaft.

Fig. 9: Removing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage the rubber O-rings in the axle shaft grooves.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 10: Removing U-Washers
Courtesy of FORD MOTOR CO.

8. Remove the U-washers.

1. Push the axle shafts.

2. Remove the U-washers.

CAUTION: Do not damage the wheel bearing oil seal.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup
