Ford F150 Pickup. Instruction - part 514

Fig. 37: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Material



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

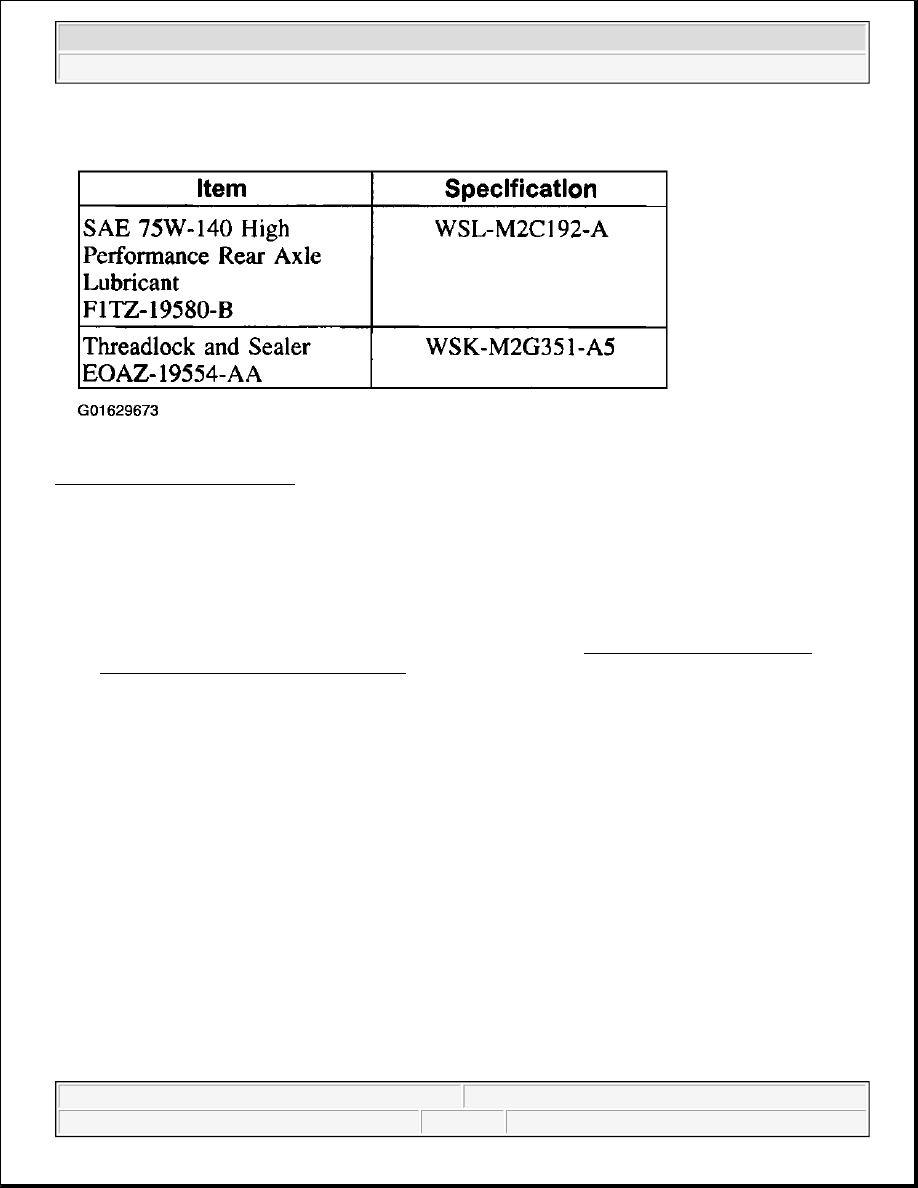

Fig. 38: Material Specifications
Courtesy of FORD MOTOR CO.

Removal

1. Remove the rear brake system. For additional information, refer to DISC - BLACKWOOD, F150

HERITAGE PICKUP & F150 PICKUP .

2. Mark the driveshaft flange and rear axle pinion flange (4851) for correct alignment during installation.

NOTE:

The rear wheels and brake discs/drums must be removed to prevent brake
drag during drive pinion bearing preload adjustment.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 39: Index Marking Driveshaft Flange & Rear Axle Pinion Flange
Courtesy of FORD MOTOR CO.

3. Remove the four driveshaft bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

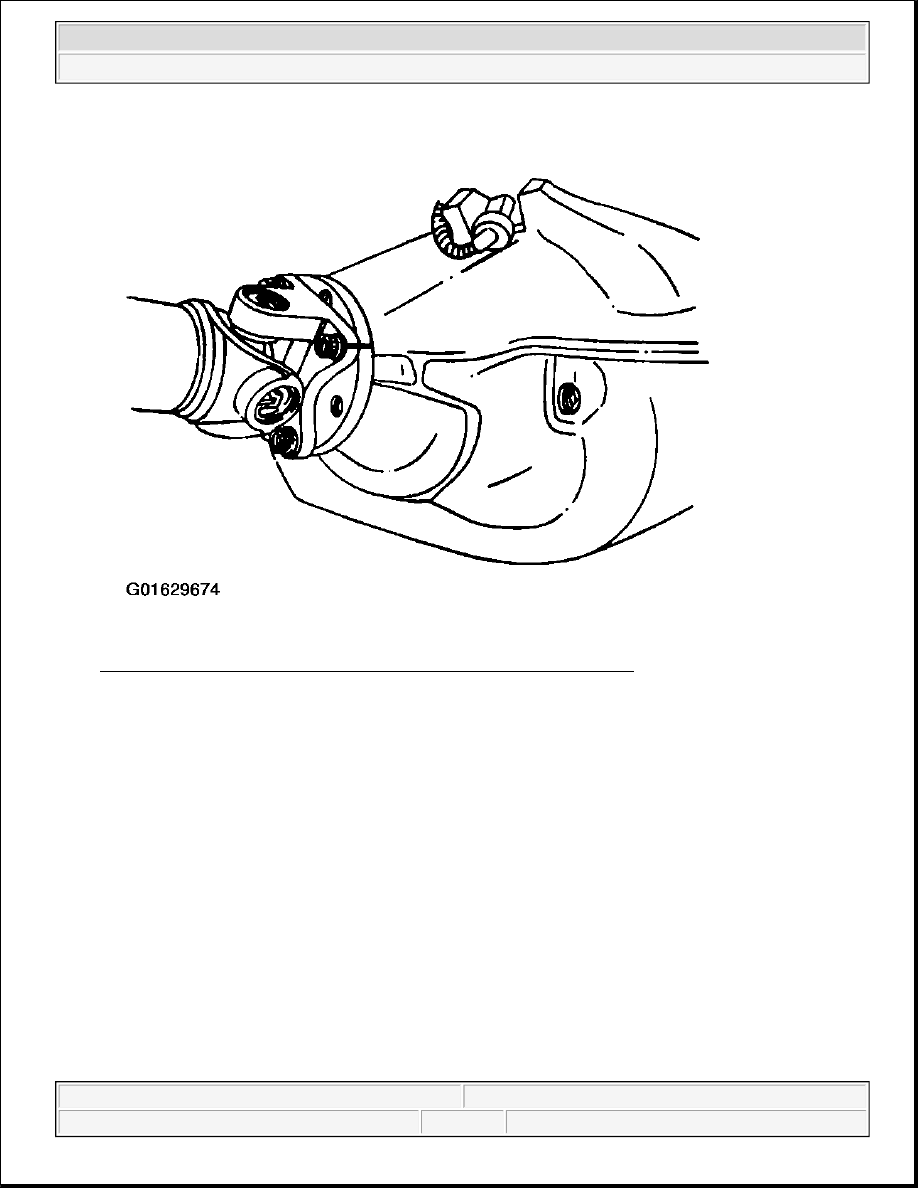

Fig. 40: Removing Driveshaft Bolts
Courtesy of FORD MOTOR CO.

4. Using a suitable tool as shown, disconnect the driveshaft centering socket yoke from the rear axle pinion

flange.

z

Position the driveshaft aside.

CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle

pinion flange pilot. Never hammer on the driveshaft or any of its
components to disconnect the yoke from the flange. Pry only in the
area shown with a suitable tool to disconnect the yoke from the
flange.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup
