Ford F150 Pickup. Instruction - part 512

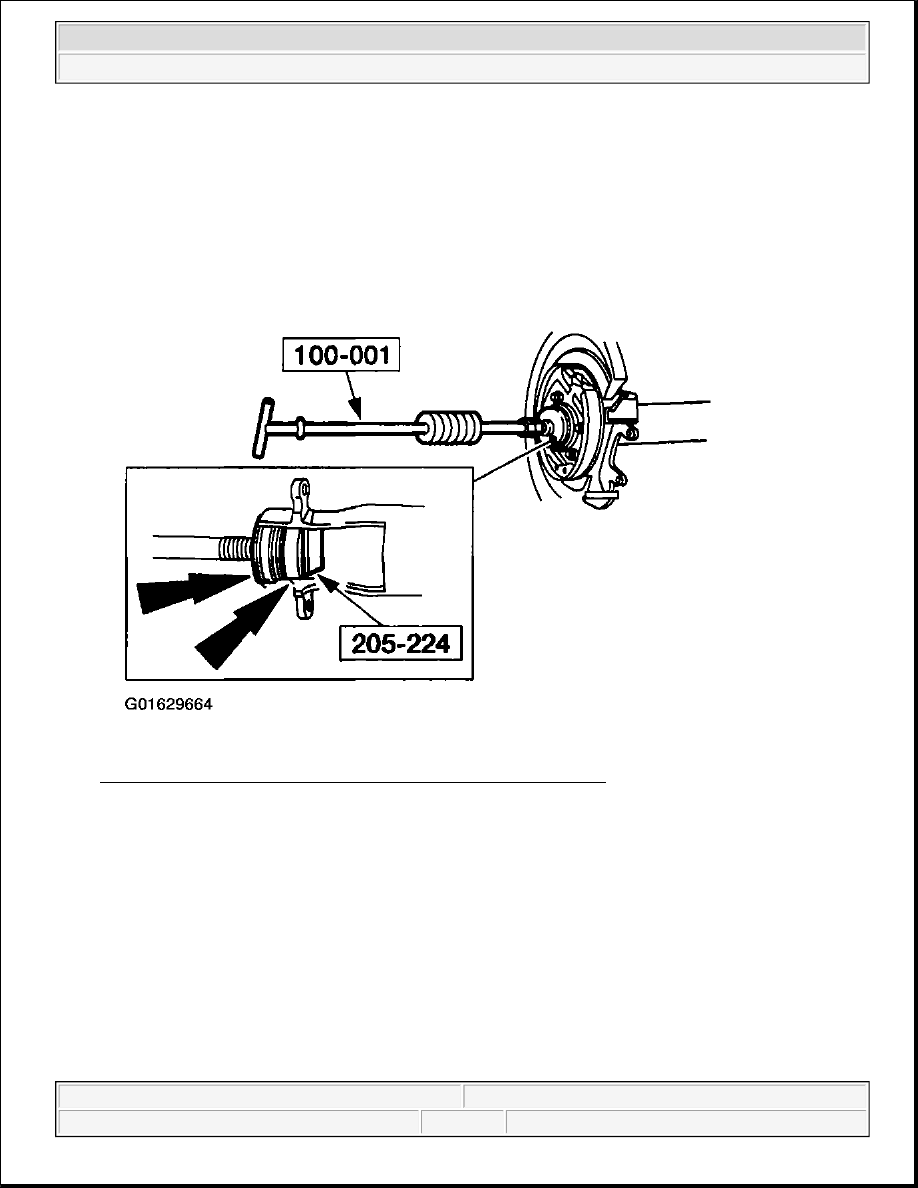

Fig. 29: Removing Rear Wheel Bearing & Wheel Bearing Oil Seal
Courtesy of FORD MOTOR CO.

2. Using the special tools, remove the rear wheel bearing and the wheel bearing oil seal.

Installation

1. Lubricate the new rear wheel bearing with rear axle lubricant.

2. Using the special tools, install the rear wheel bearing.

CAUTION: Never remove the wheel bearing oil seal (1177) by itself. Always

remove the wheel bearing oil seal and the rear wheel bearing (1225)
at the same time.

NOTE:

If the wheel bearing oil seal is leaking, the axle housing vent may be
plugged with debris.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 30: Installing Rear Wheel Bearing
Courtesy of FORD MOTOR CO.

3. Lubricate the lip of the new wheel bearing oil seal with grease.

4. Using the special tools, install the wheel bearing oil seal.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 31: Installing Wheel Bearing Oil Seal
Courtesy of FORD MOTOR CO.

5. Install the axle shaft. For additional information, refer to AXLE SHAFT-DISC BRAKE .

REAR WHEEL BEARING & AXLE SHAFT OIL SEAL - DRUM BRAKE

Special Tool(s)



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

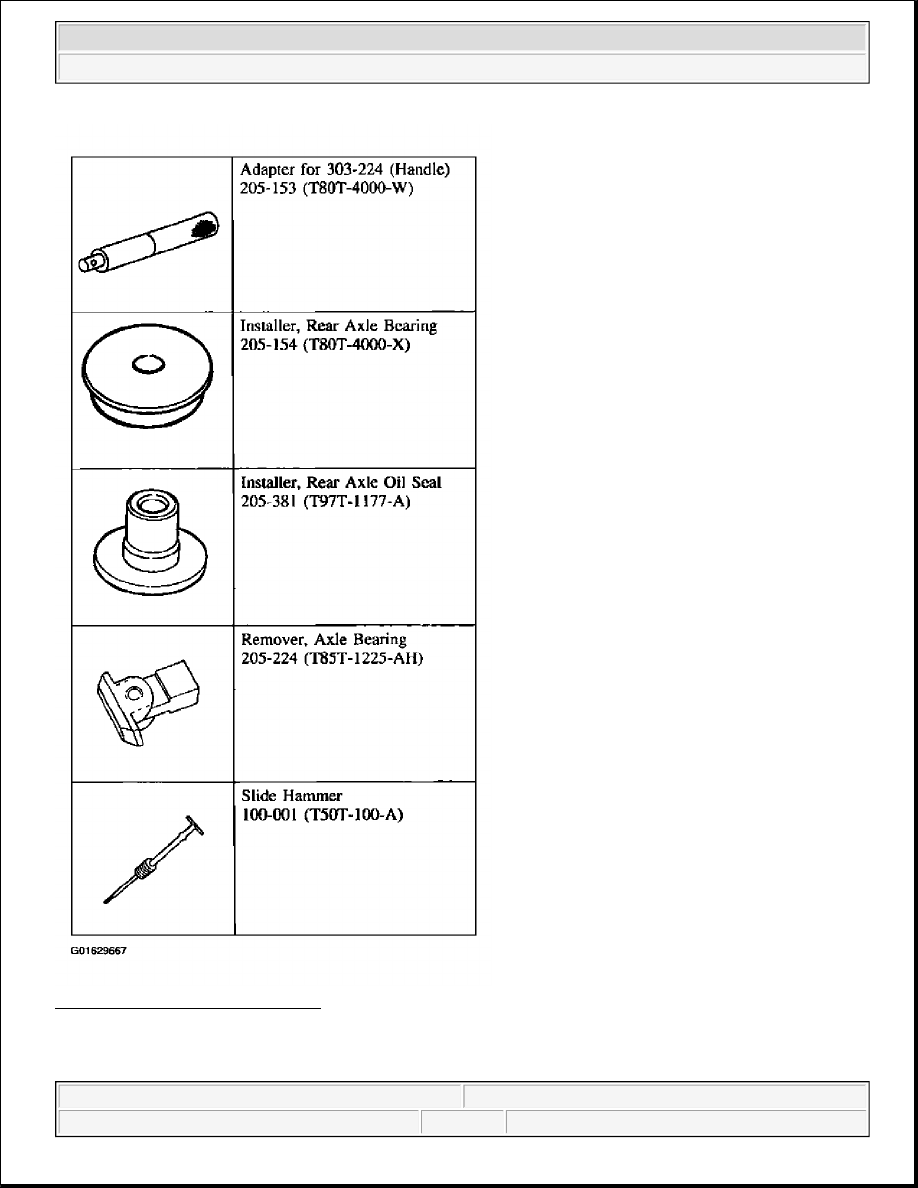

Fig. 32: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Material



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup
