Ford F150 Pickup. Instruction - part 510

Fig. 20: Removing U-Washers
Courtesy of FORD MOTOR CO.

6. Remove the U-washers.

1. Push the axle shafts inboard.

2. Remove the U-washers.

CAUTION: Do not damage the wheel bearing oil seal.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 21: Removing Axle Shafts
Courtesy of FORD MOTOR CO.

7. Remove the two axle shafts.

Installation

1. Lubricate the lip of the wheel bearing oil seal with grease.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



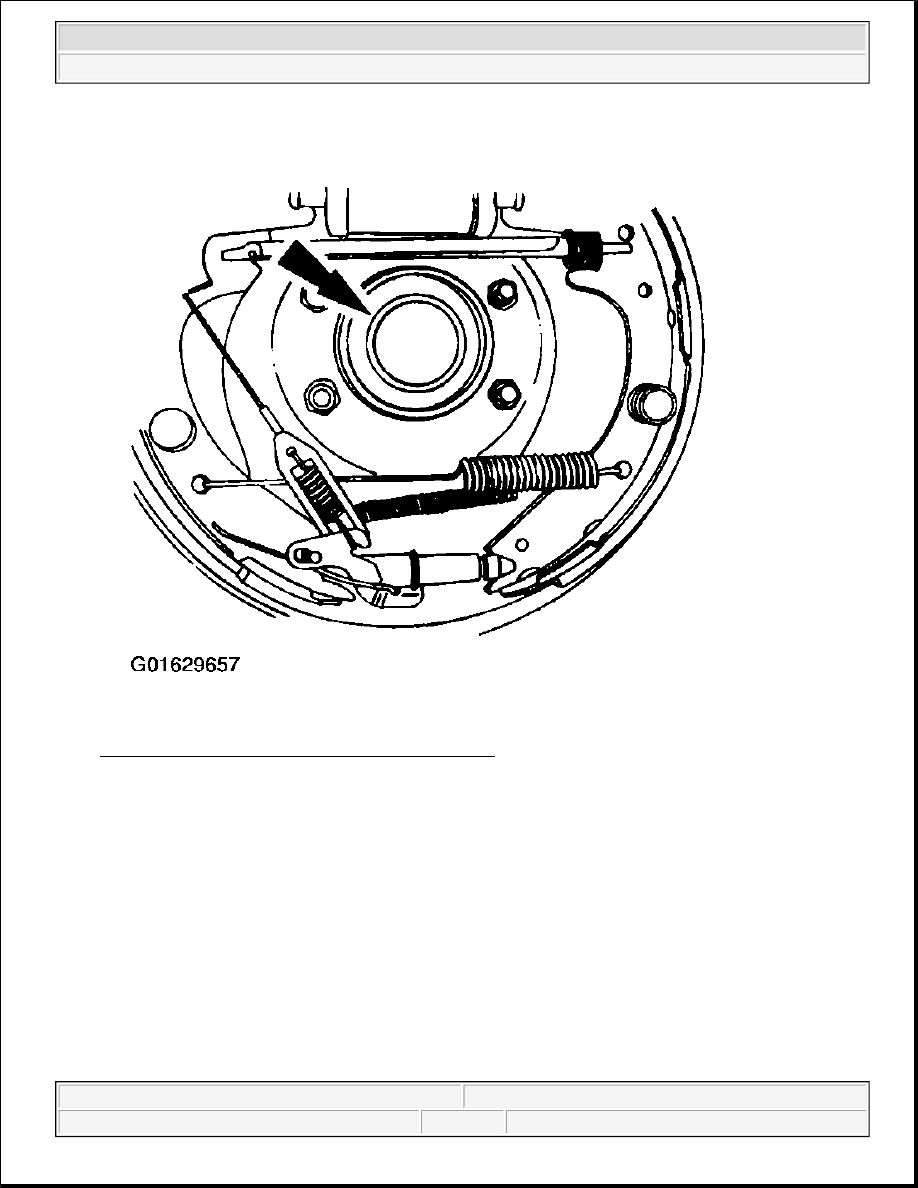

Fig. 22: Lubricating Lip Of Wheel Bearing Oil Seal
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage the wheel bearing oil seal.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



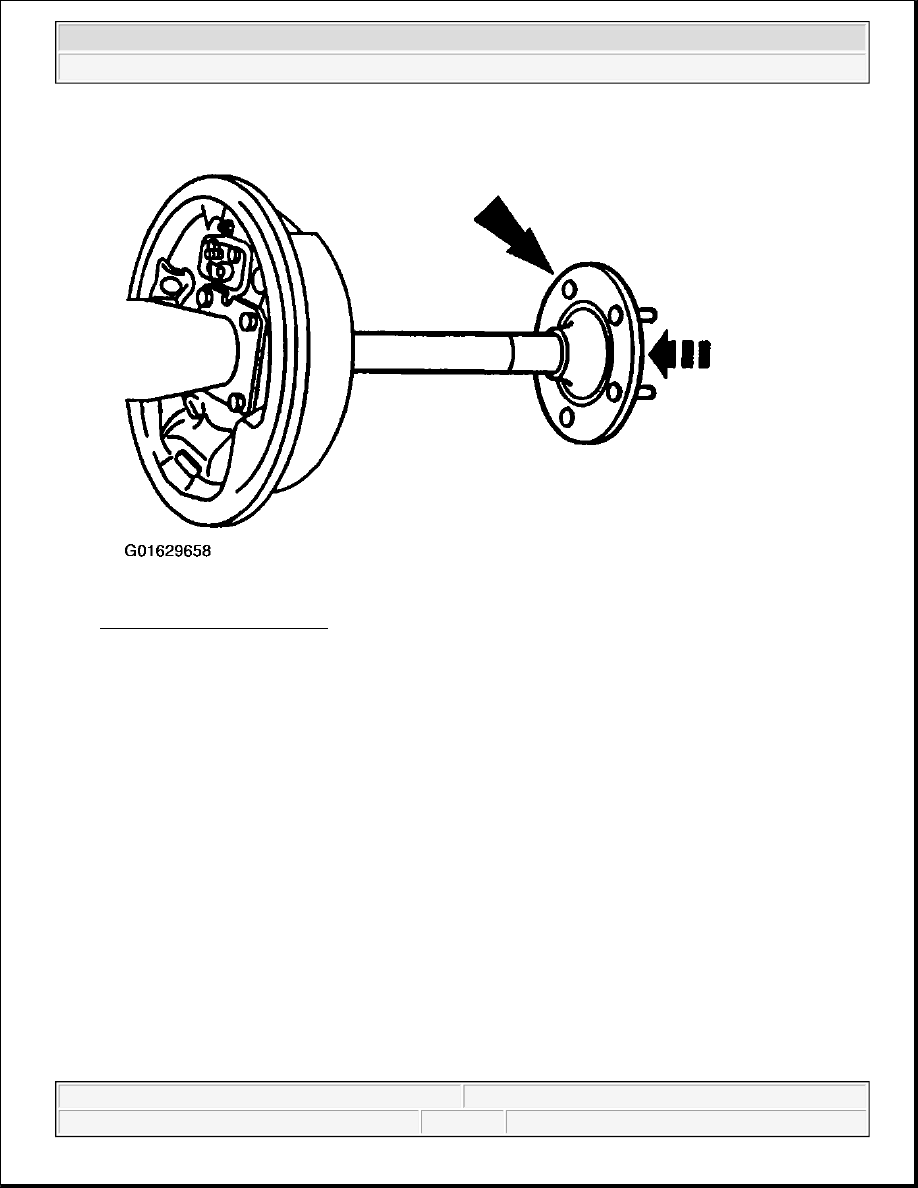

Fig. 23: Installing Axle Shafts
Courtesy of FORD MOTOR CO.

2. Install the two axle shafts.

3. Install the U-washers.

1. Position the two U-washers on the button ends of the axle shafts.

2. Pull the axle shafts outward.

CAUTION: Do not damage the rubber O-rings in the U-washer grooves.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup
