Ford F150 Pickup. Instruction - part 505

Fig. 2: General Specifications Table (2 Of 2)
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

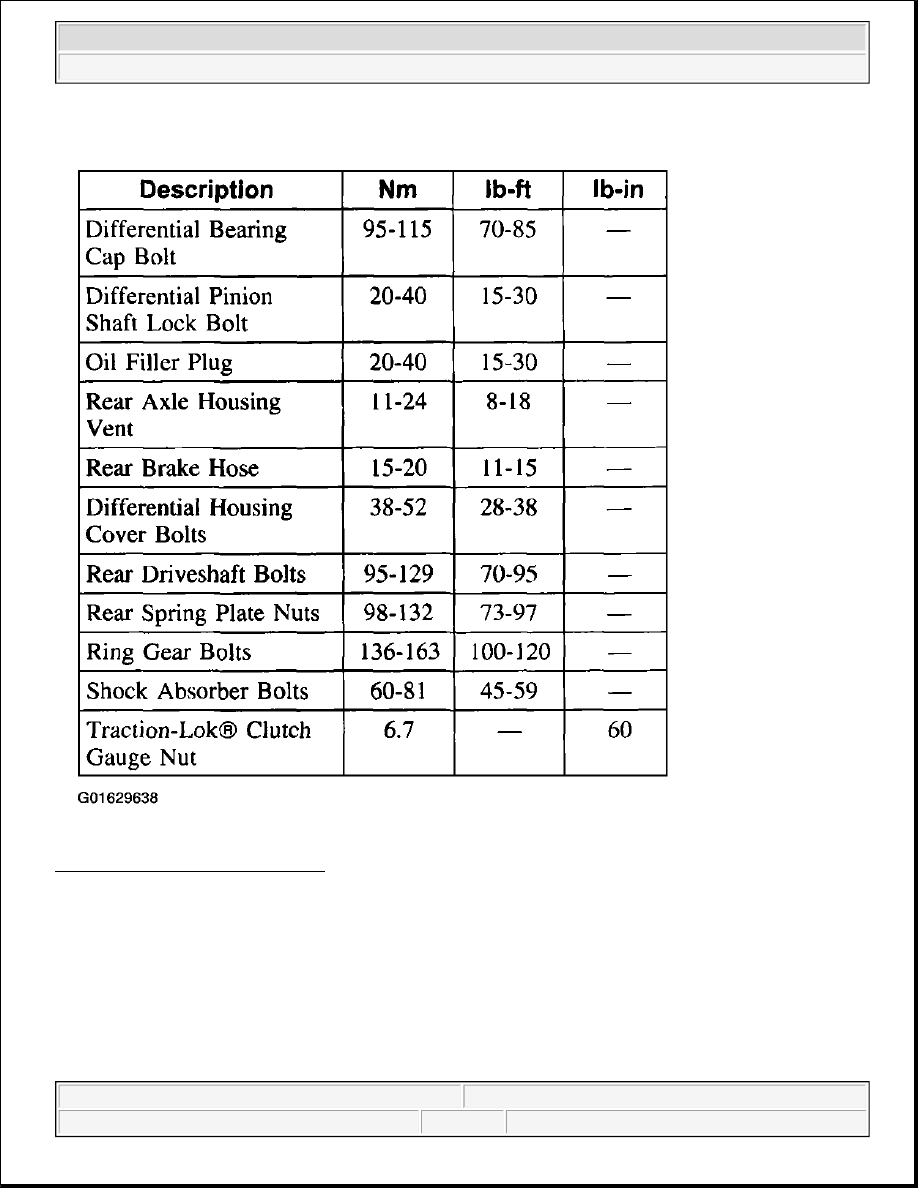

Fig. 3: Torque Specifications Table
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

REAR DRIVE AXLE & DIFFERENTIAL

Rear Axle - 10.25-Inch Ring Gear



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 4: Exploded View Of Rear Axle - 10.25-Inch Ring Gear
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 5: Exploded View Of Rear Axle Legend - 10.25-Inch Ring Gear (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup
