Ford F150 Pickup. Instruction - part 504

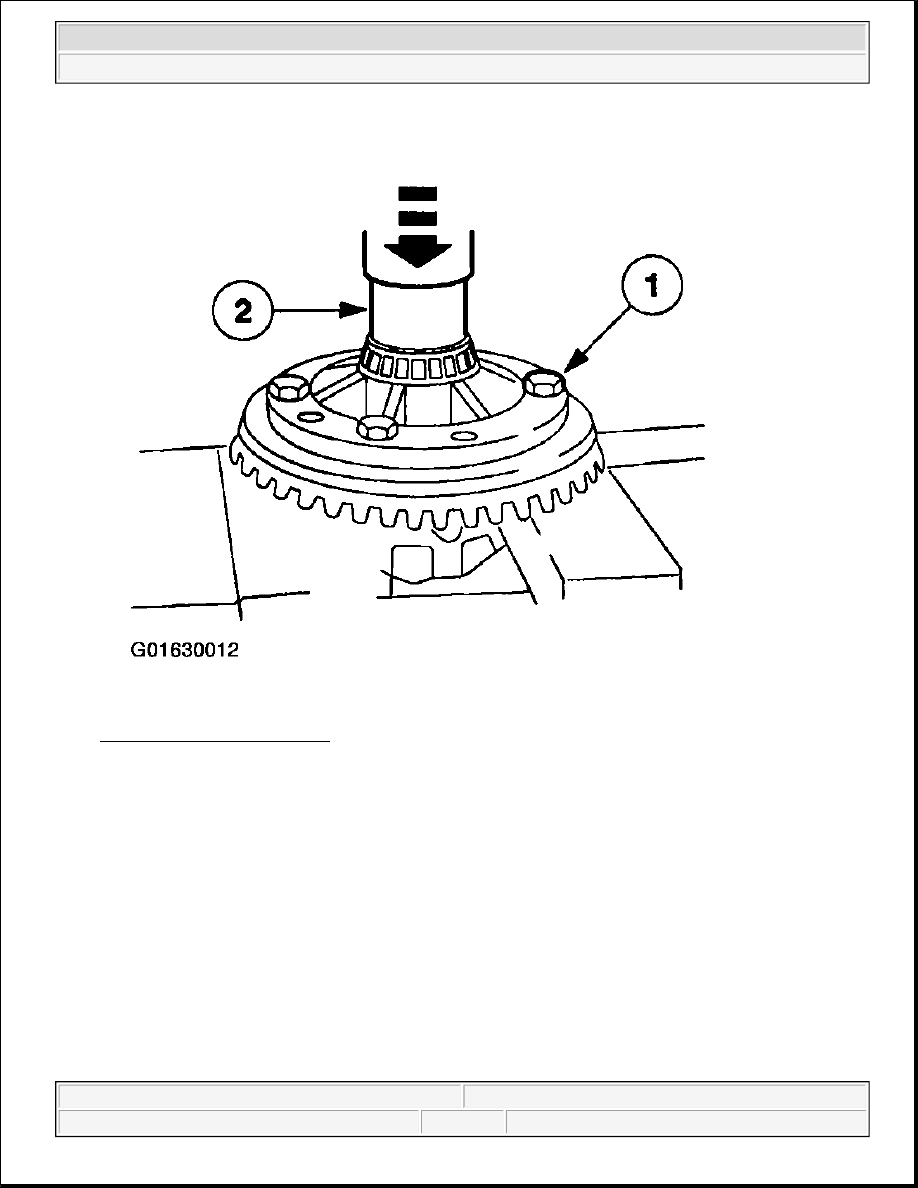

Fig. 195: Installing Ring Gear
Courtesy of FORD MOTOR CO.

9. Install the ring gear.

1. Position three bolts to align the holes in the ring gear and the differential case.

2. Using a suitable press, install the ring gear.

10. Install the remaining bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

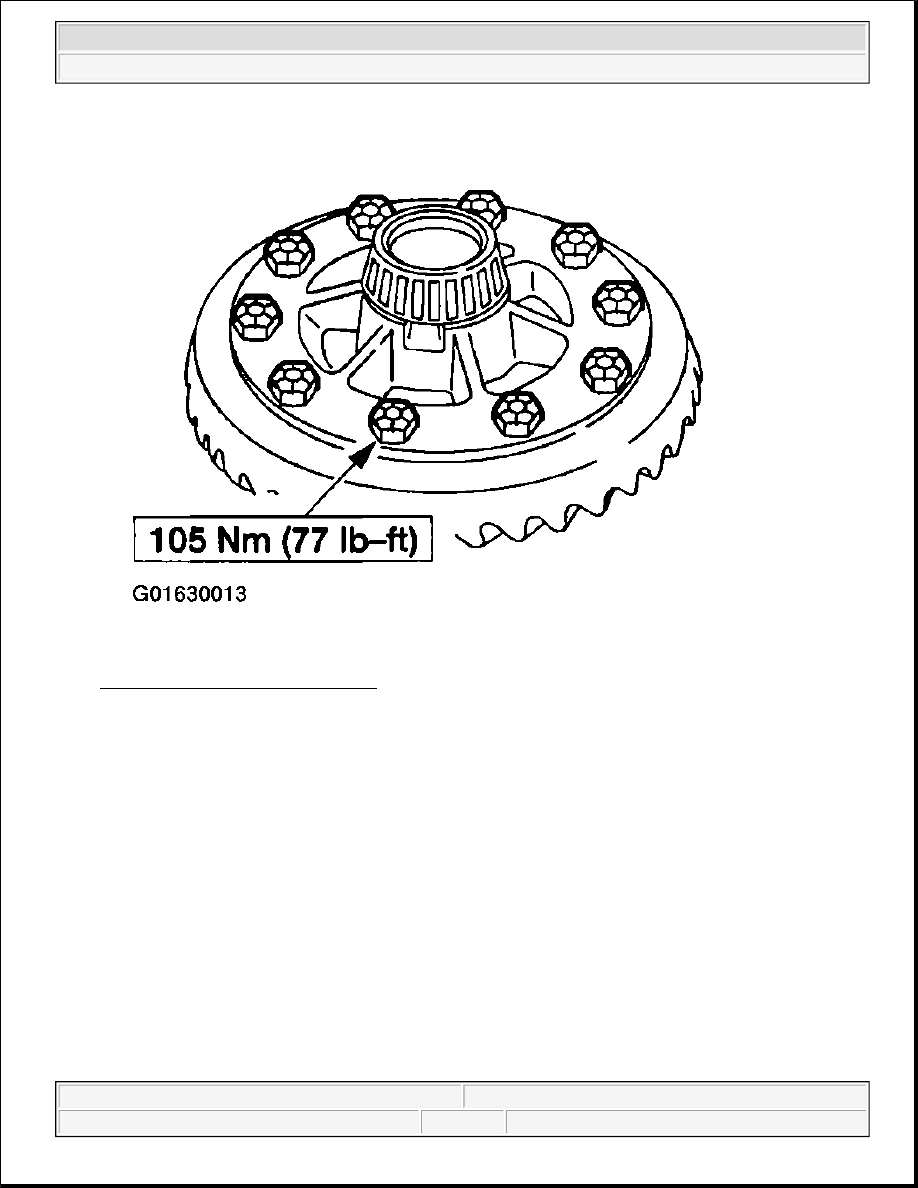

Fig. 196: Installing Remaining Bolts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



2003 DRIVELINE/AXLES

Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

SPECIFICATIONS

GENERAL SPECIFICATIONS



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup





2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

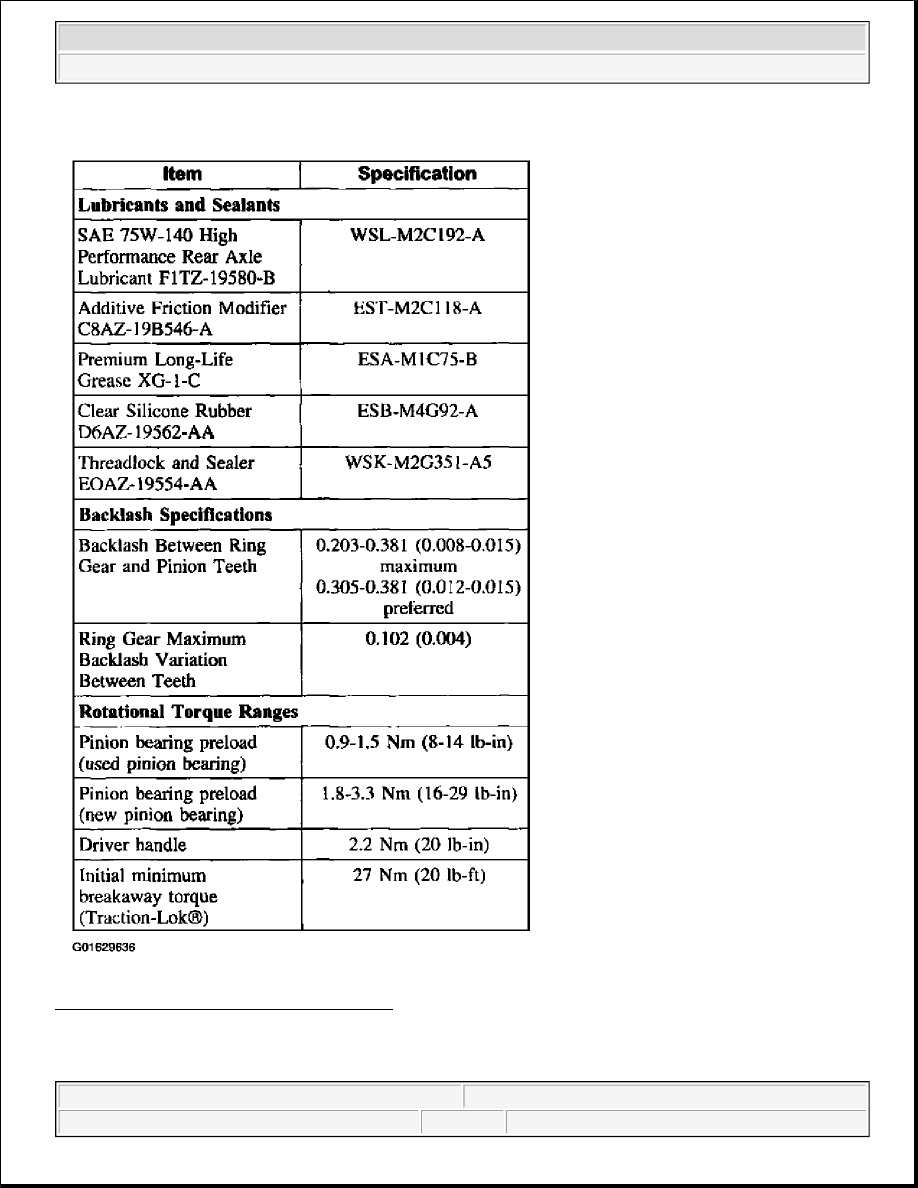

Fig. 1: General Specifications Table (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup
