Ford F150 Pickup. Instruction - part 492

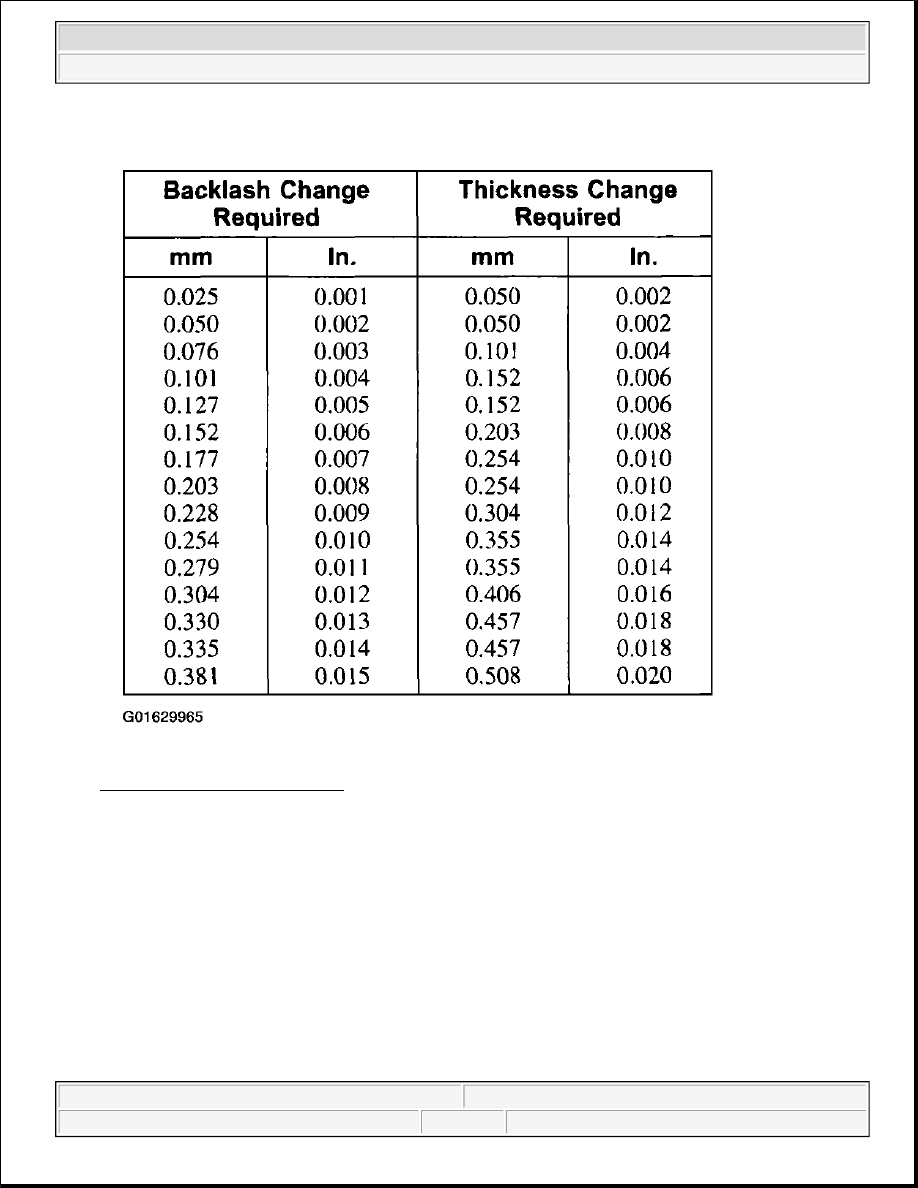

Fig. 146: Differential Bearing Shim Selection Chart (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig. 147: Differential Bearing Shim Selection Chart (3 Of 3)
Courtesy of FORD MOTOR CO.
a
Round off initial thickness to the nearest shim thickness as in example for final shim thickness.
40. Select the appropriate shim by the thickness or the stripe color.
2003 Ford Pickup F150
2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup
