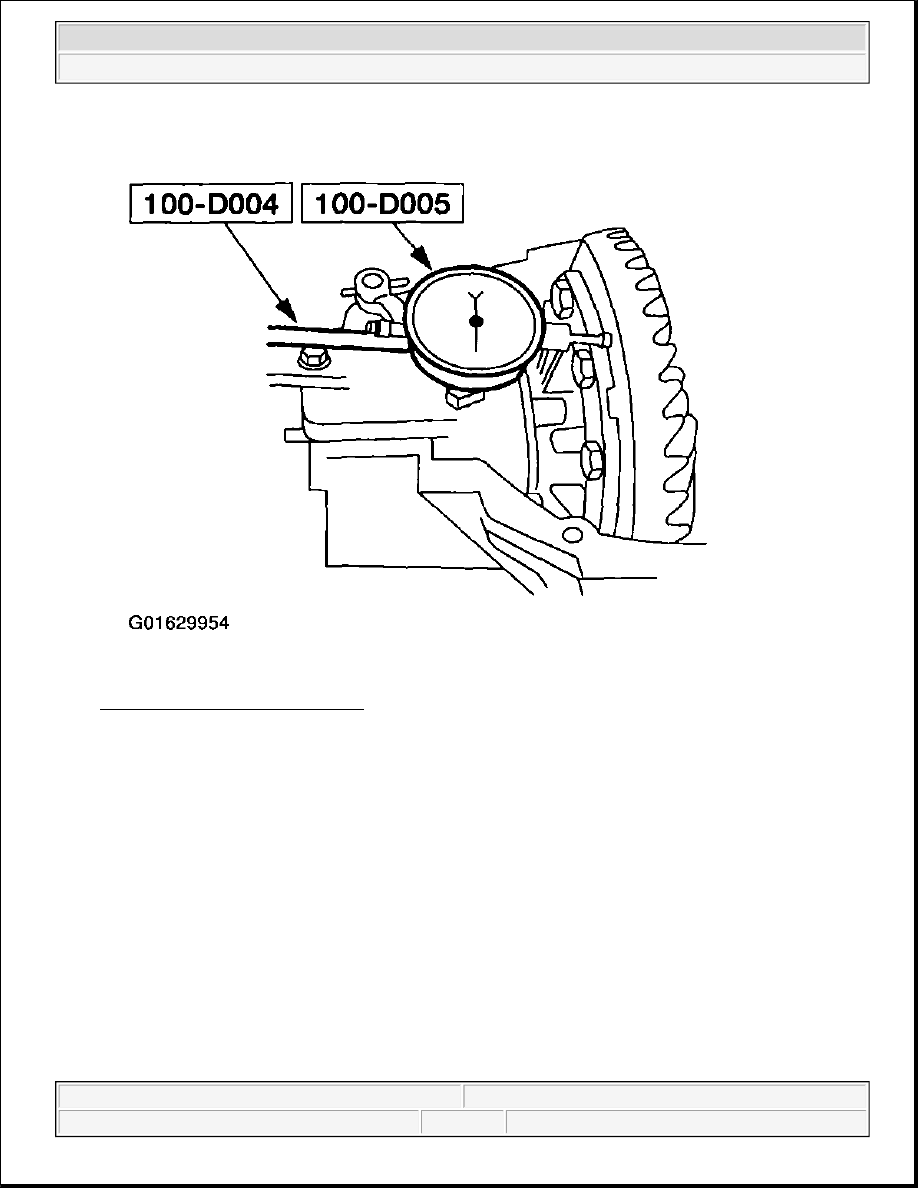

Fig. 137: Positioning Special Tools
Courtesy of FORD MOTOR CO.

32. Push and rock the ring gear into mesh with the pinion gear (zero backlash) and adjust the special tool to

zero.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

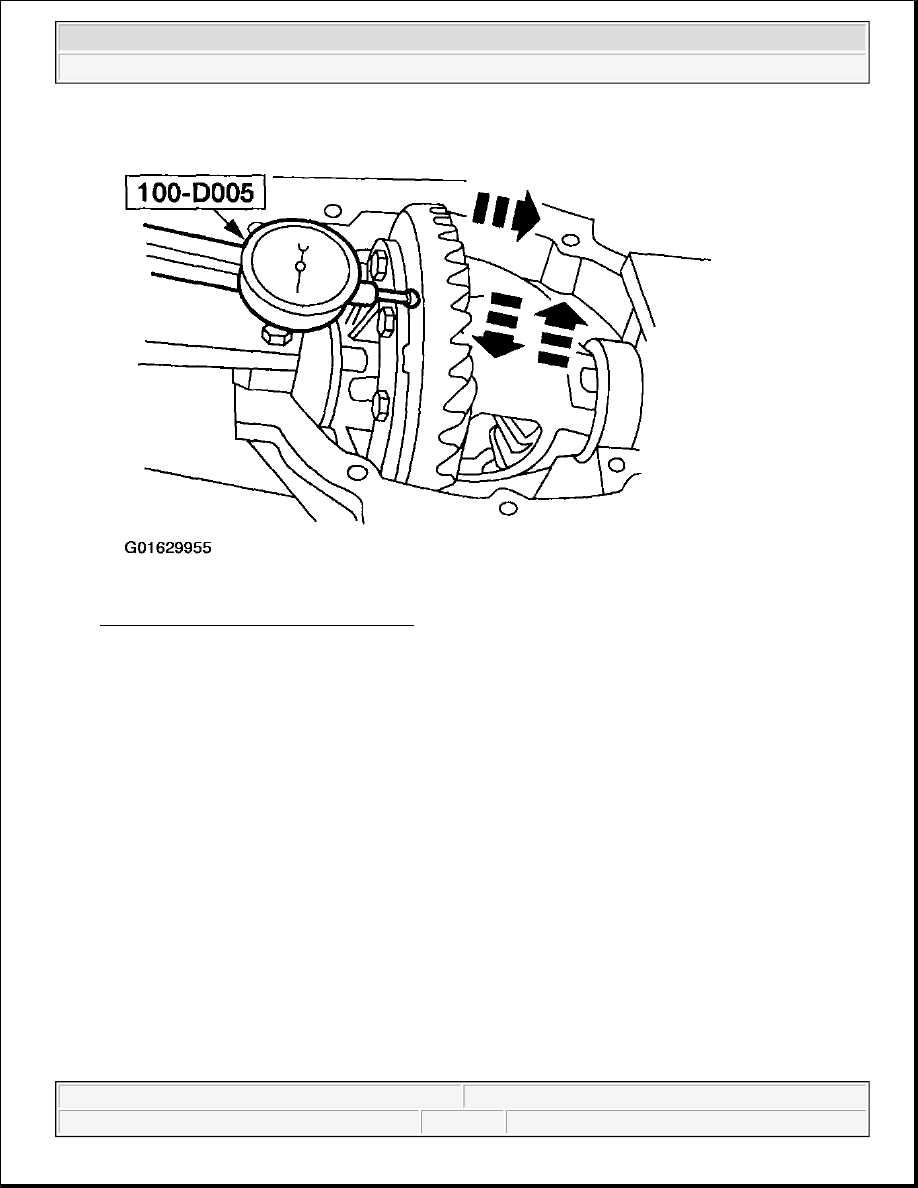

Fig. 138: Adjusting Special Tool To Zero
Courtesy of FORD MOTOR CO.

33. Move the ring gear away from the pinion gear as far as possible. Record the reading on the Differential

Bearing Shim Selection Procedure Worksheet, Line B.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

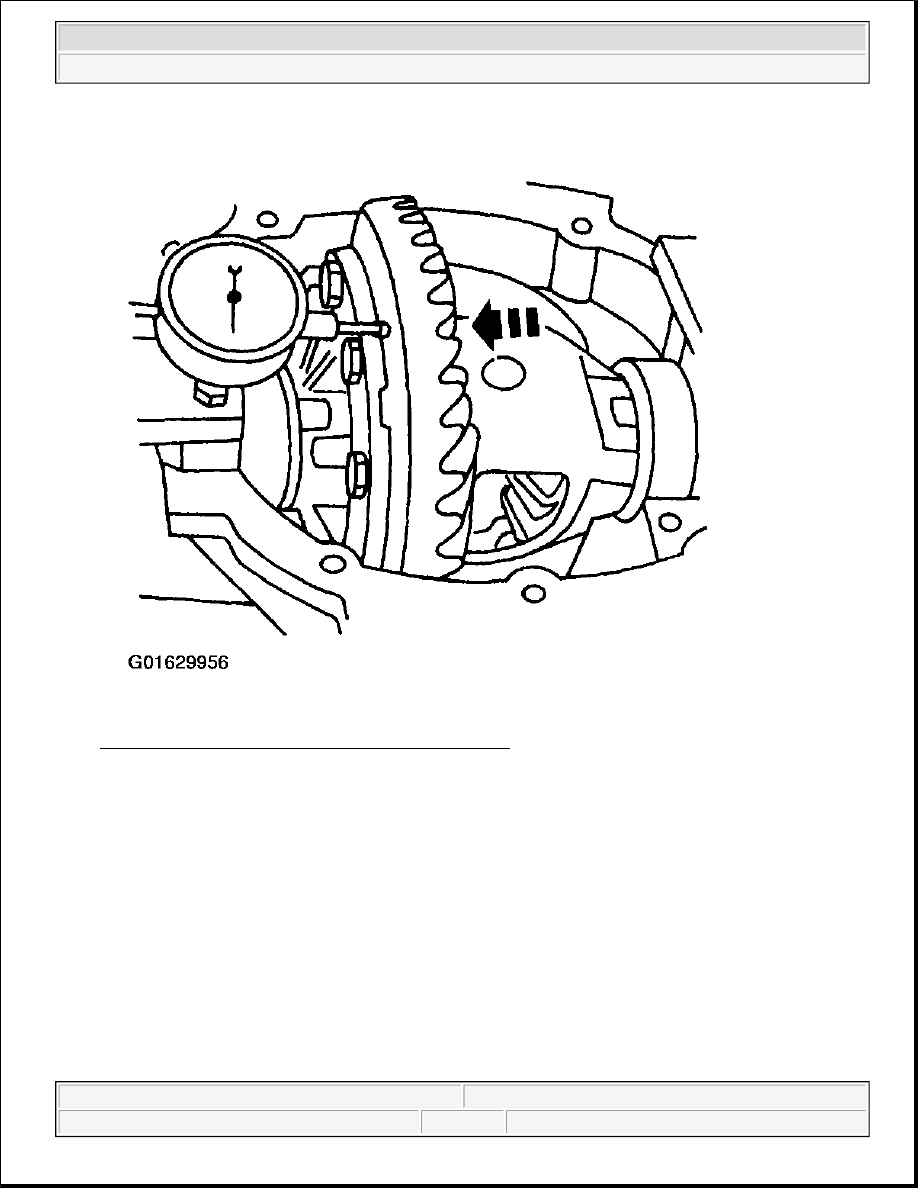

Fig. 139: Moving Ring Gear Away From Pinion Gear
Courtesy of FORD MOTOR CO.

34. Remove the special tools.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 140: Removing Special Tools
Courtesy of FORD MOTOR CO.

35. Remove the differential case and the special tools.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup
