Ford F150 Pickup. Instruction - part 489

Fig. 133: Installing Ring Gear
Courtesy of FORD MOTOR CO.

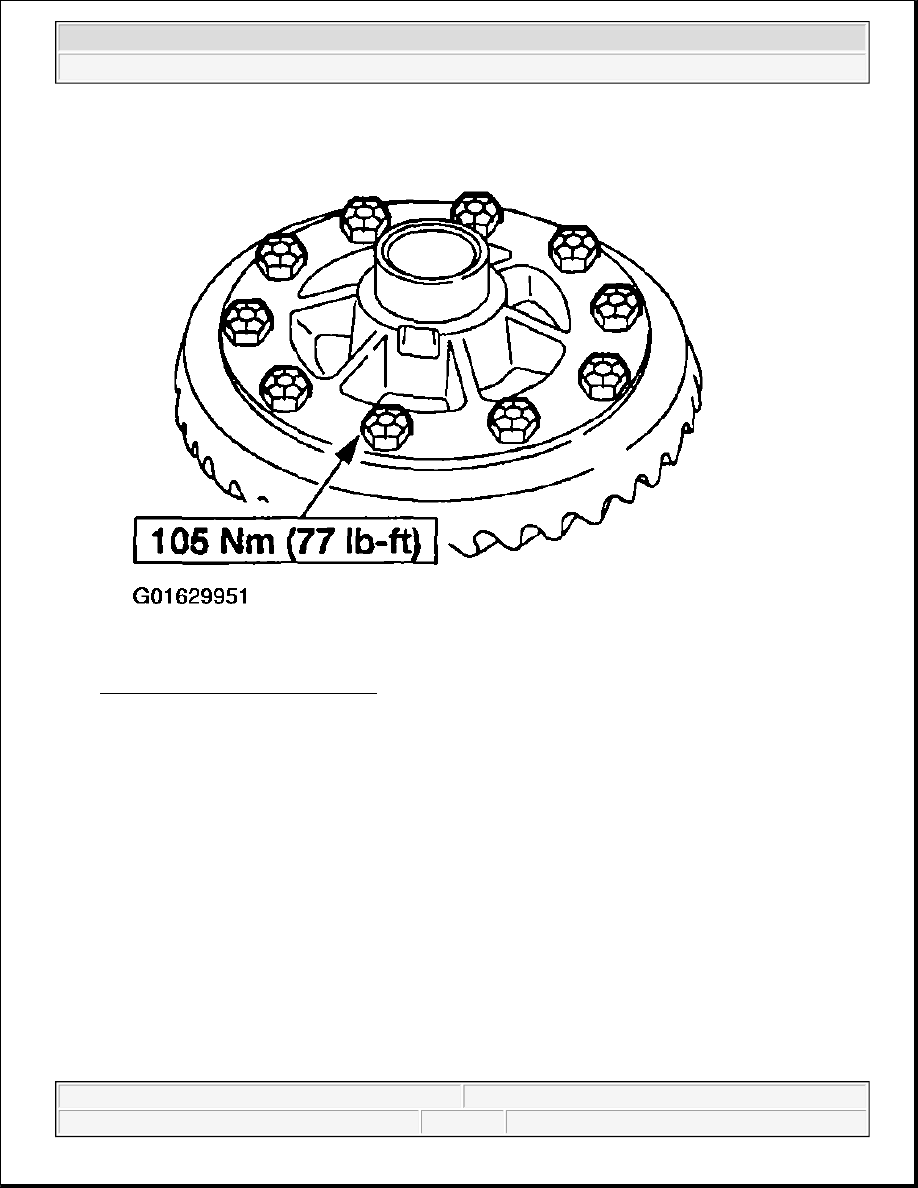

28. Install the remaining bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 134: Installing Remaining Bolts
Courtesy of FORD MOTOR CO.

29. Remove three adjacent bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 135: Removing Three Adjacent Bolts
Courtesy of FORD MOTOR CO.

CAUTION: Position the three empty bolt holes downward.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

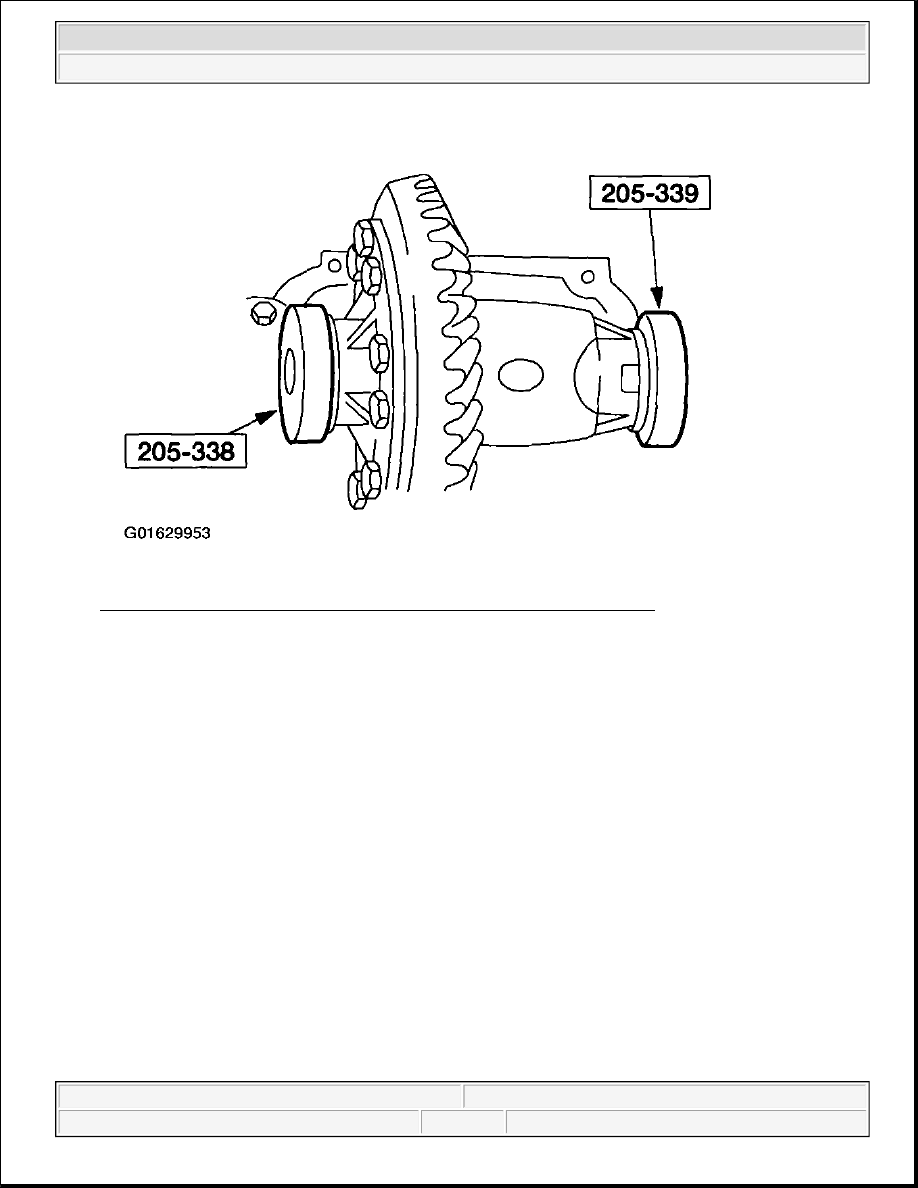

Fig. 136: Positioning Differential Case Into Differential Carrier Housing
Courtesy of FORD MOTOR CO.

30. Position the differential case with the special tools into the differential carrier housing.

31. Position the special tools.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup
